Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-08D560EFIXED IND 56UH 1.1A 73 MOHM TH |
4,638 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 56 µH | ±10% | 1.1 A | - | Unshielded | 73mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-11D102FFIXED IND 1MH 570MA 1.1 OHM TH |
3,087 | 0.00 |
|
Datasheet |
11D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 1 mH | ±10% | 570 mA | - | Unshielded | 1.1Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.453" Dia (11.50mm) | 0.547" (13.90mm) |
|
|
ELC-11D221FFIXED IND 220UH 1.2A 230 MOHM TH |
4,520 | 0.00 |
|
Datasheet |
11D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 220 µH | ±10% | 1.2 A | - | Unshielded | 230mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.350" (8.90mm) |
|
|
ELC-11D681DFFIXED IND 680UH 640MA 780MOHM TH |
4,342 | 0.00 |
|
Datasheet |
11D | Radial, Vertical Cylinder | Tape & Box (TB) | Obsolete | - | - | 680 µH | ±10% | 640 mA | - | Unshielded | 780mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.350" (8.90mm) |
|
|
ELC-11D681FFIXED IND 680UH 640MA 780MOHM TH |
3,148 | 0.00 |
|
Datasheet |
11D | Radial, Vertical Cylinder | Bulk | Obsolete | - | - | 680 µH | ±10% | 640 mA | - | Unshielded | 780mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.350" (8.90mm) |
|
|
ETQ-PAF1R3EFKFIXED IND 1.3UH SMD |
1,714 | 0.00 |
|
Datasheet |
PCC-F179F (S1) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 1.3 µH | - | - | - | Shielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.213" (5.40mm) |
|

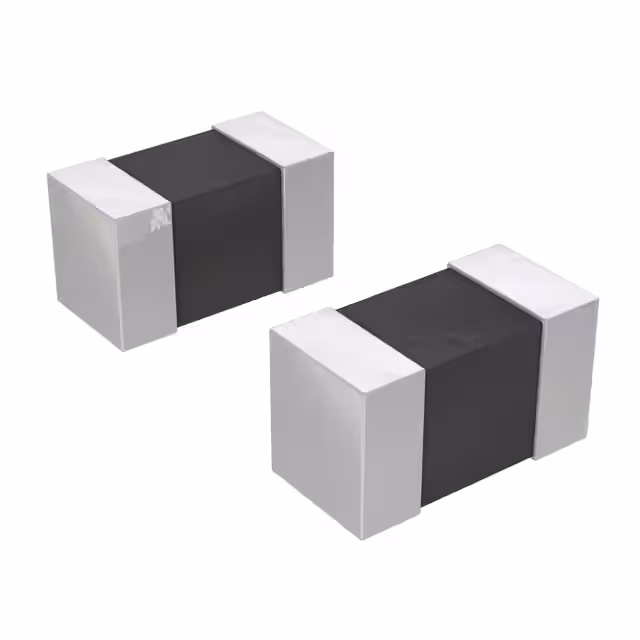

ELJ-QF4N7ZFFIXED IND 4.7NH 360MA 170MOHM SM |
2,127 | 0.28 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 4.7 nH | ±0.2nH | 360 mA | - | Unshielded | 170mOhm Max | 10 @ 100MHz | 4.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-RF4N3ZFBFIXED IND 4.3NH 360MA 160MOHM SM |
4,492 | 0.11 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 4.3 nH | ±0.2nH | 360 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

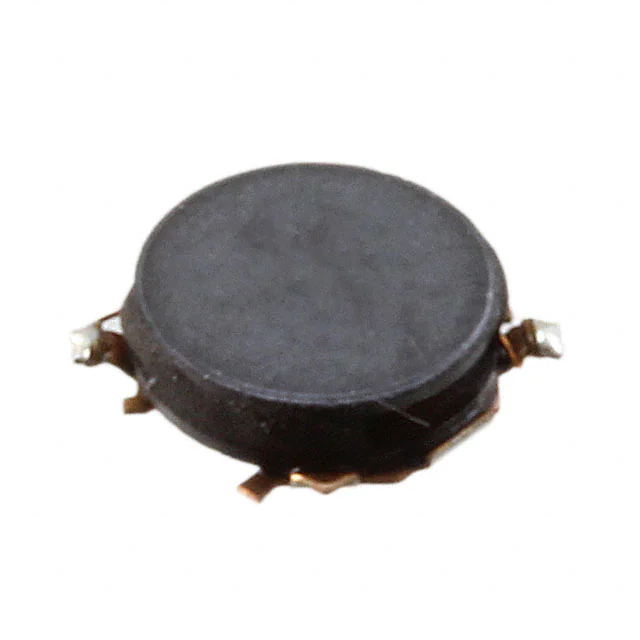

ELL-SFG121MAFIXED IND 120UH 210MA 3.1OHM SMD |
3,079 | 0.71 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±20% | 210 mA | 200mA | Shielded | 3.1Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG1R0NAFIXED IND 1UH 1.7A 49 MOHM SMD |
4,922 | 0.71 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 1.7 A | 1.8A | Shielded | 49mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG221MAFIXED IND 220UH 145MA 6.7OHM SMD |
2,373 | 0.71 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 145 mA | 140mA | Shielded | 6.7Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG680MAFIXED IND 68UH 310MA 1.5 OHM SMD |
4,098 | 0.71 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 310 mA | 270mA | Shielded | 1.5Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ELL-SFG820MAFIXED IND 82UH 270MA 2 OHM SMD |
4,374 | 0.87 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±20% | 270 mA | 220mA | Shielded | 2Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
CAL45TB102KFIXED IND 1MH 190MA 13.2 OHM TH |
4,574 | 0.00 |
|
Datasheet |
CA, L Type | Axial | Cut Tape (CT) | Obsolete | Wirewound | - | 1 mH | ±10% | 190 mA | - | Unshielded | 13.2Ohm Max | - | - | - | -25°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB2R2KFIXED IND 2.2UH 3.9A 54 MOHM TH |
4,750 | 0.00 |
|
Datasheet |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 2.2 µH | ±10% | 3.9 A | - | Unshielded | 54mOhm Max | - | - | - | -25°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
LQH3NPN1R0MMREFIXED IND 1UH 2.15A 50.4MOHM SMD |
1,027 | 0.00 |
|
- |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.15 A | 1.6A | Shielded | 50.4mOhm Max | - | 135MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LQM2HPN1R0MJCLFIXED IND 1UH 1.5A 108 MOHM SMD |
1,886 | 0.00 |
|
- |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.5 A | - | Shielded | 108mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM2HPN2R2NJCLFIXED IND 2.2UH 1A 219 MOHM SMD |
1,349 | 0.00 |
|
- |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±30% | 1 A | - | Shielded | 219mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQM31PN1R0MC0LFIXED IND 1UH 1.1A 175 MOHM SMD |
4,090 | 0.00 |
|
- |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.1 A | - | Shielded | 175mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQM31PN1R5MC0LFIXED IND 1.5UH 1A 213 MOHM SMD |
3,400 | 0.00 |
|
Datasheet |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1 A | - | Shielded | 213mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
