Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
RL0809-101-R FIXED IND 100UH TH Eaton - Electronics Division	1,113	0.00	RFQ	Datasheet	RL0809	Radial, Vertical Cylinder	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	100 µH	-	-	-	Unshielded	-	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	0.311" Dia (7.90mm)	0.354" (9.00mm)
HCV1206-R40-R FIXED IND 400NH SMD Eaton - Electronics Division	4,323	0.00	RFQ	Datasheet	HCV1206	Nonstandard	Tape & Reel (TR)	Active	-	Ferrite	400 nH	-	-	-	Unshielded	-	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.480" L x 0.386" W (12.20mm x 9.80mm)	0.240" (6.10mm)
HCV1206-R47-R FIXED IND 470NH SMD Eaton - Electronics Division	1,276	0.00	RFQ	Datasheet	HCV1206	Nonstandard	Tape & Reel (TR)	Active	-	Ferrite	470 nH	-	-	-	Unshielded	-	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.480" L x 0.386" W (12.20mm x 9.80mm)	0.240" (6.10mm)

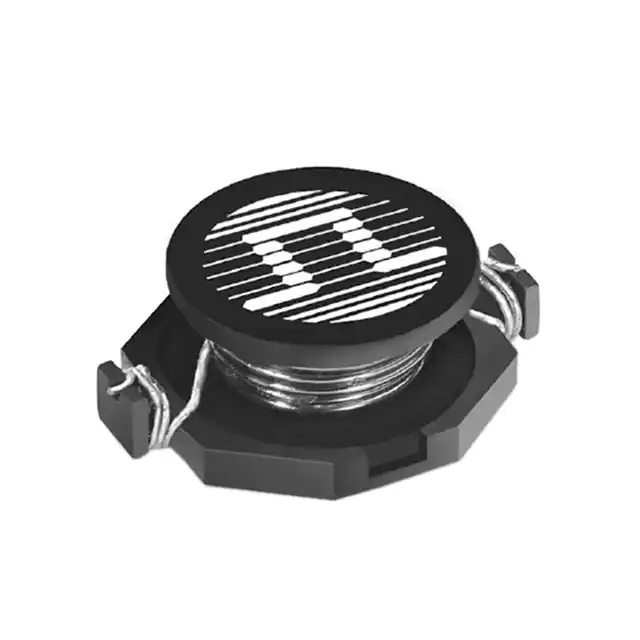

P0752.684NL FIXED IND 680UH 400MA 2.17OHM SM Pulse Electronics	4,412	0.00	RFQ	Datasheet	P0752NL	Nonstandard	Tray	Active	Wirewound	-	680 µH	±20%	400 mA	400mA	Unshielded	2.17Ohm Max	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.510" L x 0.370" W (12.95mm x 9.40mm)	0.215" (5.46mm)
PA0511.221NL FIXED IND 220NH 25A 0.39MOHM SMD Pulse Electronics	1,233	0.00	RFQ	Datasheet	PA0511NL	Nonstandard	Tray	Active	-	-	220 nH	±20%	25 A	33A	Shielded	0.39mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.402" L x 0.276" W (10.20mm x 7.00mm)	0.195" (4.96mm)

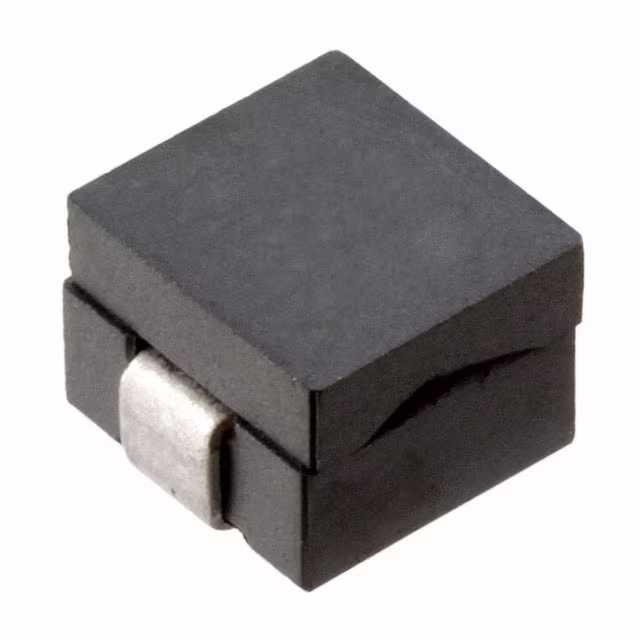

PA0512.101NL FIXED IND 105NH 31A 0.32MOHM SMD Pulse Electronics	3,931	0.00	RFQ	Datasheet	PA0512NL	Nonstandard	Tray	Obsolete	-	-	105 nH	±20%	31 A	46A	Shielded	0.32mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.276" L x 0.276" W (7.00mm x 7.00mm)	0.195" (4.96mm)

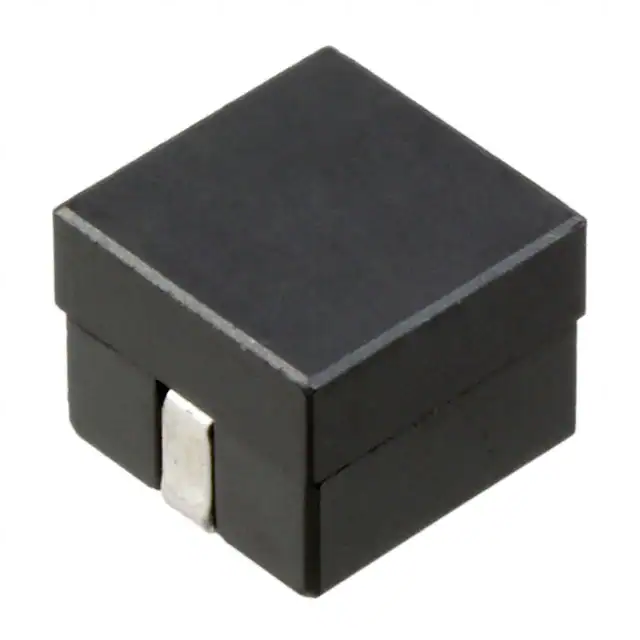

PA0512.151NL FIXED IND 150NH 24A 0.32MOHM SMD Pulse Electronics	2,957	0.00	RFQ	Datasheet	PA0512NL	Nonstandard	Tray	Obsolete	-	-	150 nH	±20%	24 A	30A	Shielded	0.32mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.276" L x 0.276" W (7.00mm x 7.00mm)	0.195" (4.96mm)
PA0512.700NL FIXED IND 72NH 31A 0.32 MOHM SMD Pulse Electronics	1,990	0.00	RFQ	Datasheet	PA0512NL	Nonstandard	Tray	Obsolete	-	-	72 nH	±20%	31 A	58A	Shielded	0.32mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.276" L x 0.276" W (7.00mm x 7.00mm)	0.195" (4.96mm)
PA0513.321NL FIXED IND 320NH 41A 0.32MOHM SMD Pulse Electronics	4,082	1.95	RFQ	Datasheet	PA0513NL	Nonstandard	Tray	Obsolete	-	-	320 nH	±20%	41 A	50A	Shielded	0.32mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.530" L x 0.510" W (13.46mm x 12.95mm)	0.315" (8.00mm)
PA0513.441NL FIXED IND 440NH 30A 0.32MOHM SMD Pulse Electronics	1,441	0.00	RFQ	Datasheet	PA0513NL	Nonstandard	Tray	Obsolete	-	-	440 nH	±20%	30 A	35A	Shielded	0.32mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.530" L x 0.510" W (13.46mm x 12.95mm)	0.315" (8.00mm)
PA1320.171NL FIXED IND 180NH 40A 0.48MOHM SMD Pulse Electronics	1,957	0.00	RFQ	Datasheet	PA1320NL	Nonstandard	Tray	Active	-	-	180 nH	±20%	40 A	44A	Shielded	0.48mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.410" L x 0.315" W (10.41mm x 8.00mm)	0.256" (6.50mm)

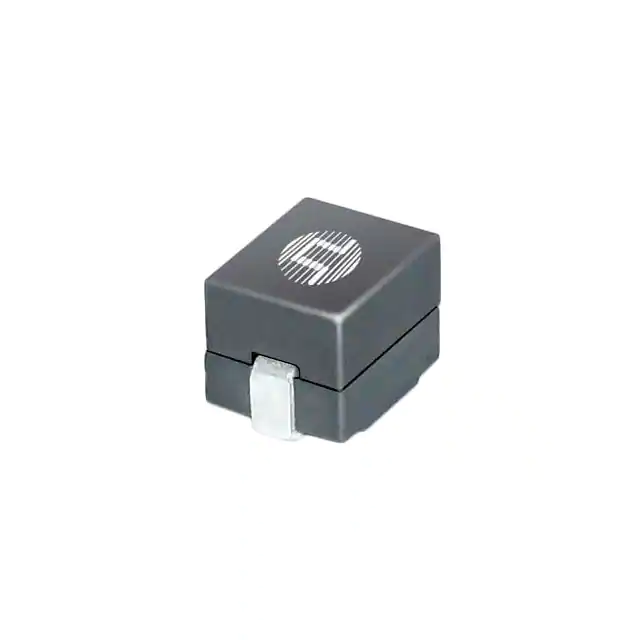

PA3288.221HL FIXED IND 220NH 64A 0.29MOHM SMD Pulse Electronics	4,464	0.00	RFQ	Datasheet	PA3288.XXXHL	Nonstandard	Tray	Active	-	-	220 nH	±15%	64 A	45A	Unshielded	0.29mOhm	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.362" L x 0.244" W (9.20mm x 6.20mm)	0.315" (8.00mm)
PA3288.301HL FIXED IND 300NH 64A 0.29MOHM SMD Pulse Electronics	3,448	0.00	RFQ	Datasheet	PA3288.XXXHL	Nonstandard	Tray	Active	-	-	300 nH	±15%	64 A	34A	Unshielded	0.29mOhm	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.362" L x 0.244" W (9.20mm x 6.20mm)	0.315" (8.00mm)

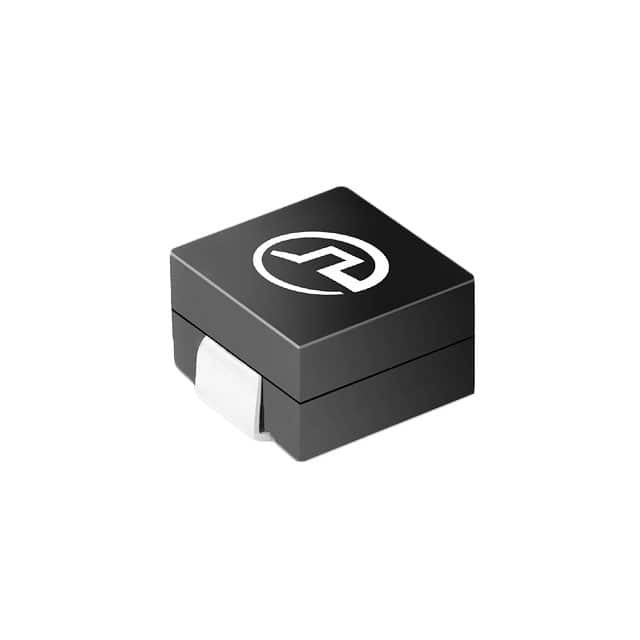

PA3790.181HL FIXED IND 180NH 57A 0.29MOHM SMD Pulse Electronics	2,850	0.00	RFQ	Datasheet	PA3790.XXXHL	Nonstandard	Tray	Active	-	-	180 nH	±15%	57 A	84A	Shielded	0.29mOhm	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.492" L x 0.315" W (12.50mm x 8.00mm)	0.315" (8.00mm)

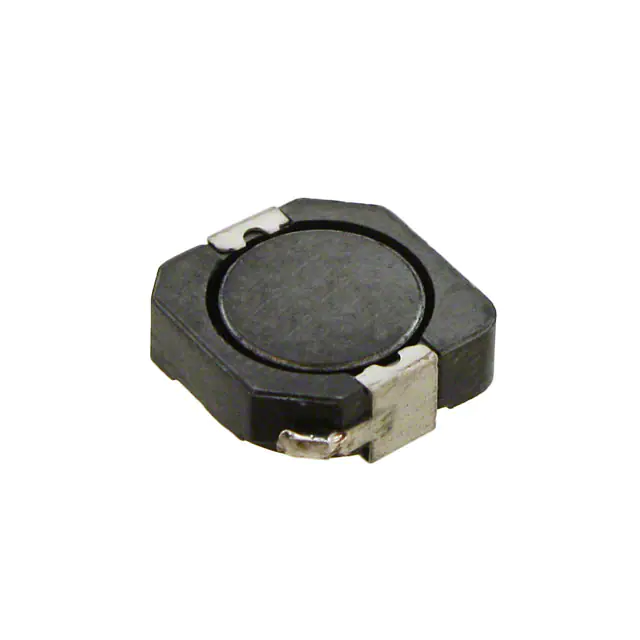

PF0560.522NL FIXED IND 5.2UH 5.4A 22 MOHM SMD Pulse Electronics	2,907	0.00	RFQ	Datasheet	PF0560NL	Nonstandard	Tray	Active	Wirewound	-	5.2 µH	±30%	5.4 A	5.5A	Shielded	22mOhm Max	-	34MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.409" L x 0.406" W (10.40mm x 10.30mm)	0.157" (4.00mm)
PG0642.102NL FIXED IND 1UH 14.5A 5.8 MOHM SMD Pulse Electronics	4,986	0.00	RFQ	Datasheet	PG0642NL	Nonstandard	Tray	Active	Wirewound	-	1 µH	±20%	14.5 A	22A	Shielded	5.8mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.311" L x 0.299" W (7.90mm x 7.60mm)	0.197" (5.00mm)
PG0642.222NL FIXED IND 2.2UH 10A 12.7MOHM SMD Pulse Electronics	3,211	0.00	RFQ	Datasheet	PG0642NL	Nonstandard	Tray	Active	Wirewound	-	2.2 µH	±20%	10 A	14A	Shielded	12.7mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.311" L x 0.299" W (7.90mm x 7.60mm)	0.197" (5.00mm)
PG0642.401NL FIXED IND 400NH 20A 3.3 MOHM SMD Pulse Electronics	4,094	0.00	RFQ	Datasheet	PG0642NL	Nonstandard	Tray	Active	Wirewound	-	400 nH	±20%	20 A	32A	Shielded	3.3mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.311" L x 0.299" W (7.90mm x 7.60mm)	0.197" (5.00mm)

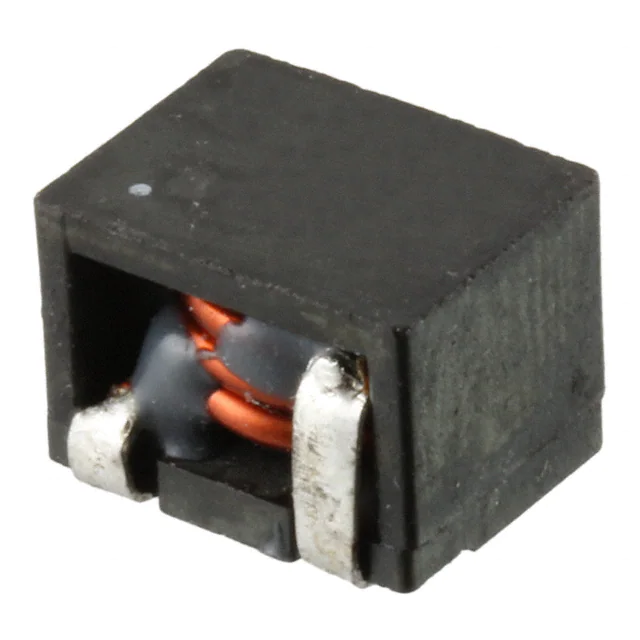

PG0702.102NL FIXED IND 1UH 26A 1.76 MOHM SMD Pulse Electronics	1,838	0.00	RFQ	Datasheet	PG0702NL	Nonstandard	Tray	Active	Wirewound	-	1 µH	±20%	26 A	26A	Shielded	1.76mOhm	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.425" L x 0.362" W (10.80mm x 9.20mm)	0.315" (8.00mm)

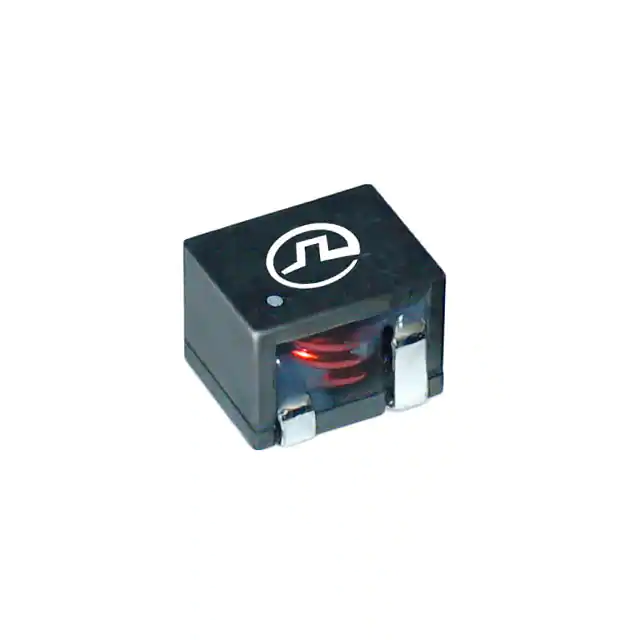

PG1083.682NL FIXED IND 6.8UH 22A 3.8 MOHM SMD Pulse Electronics	3,911	0.00	RFQ	Datasheet	PG1083NL	Nonstandard	Tray	Active	Wirewound	-	6.8 µH	±20%	22 A	20A	Unshielded	3.8mOhm Max	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.854" L x 0.846" W (21.70mm x 21.50mm)	0.492" (12.50mm)

Total 147749 Record«Prev 1... 7110 7111 7112 711371147115 7116 7117...7388 Next»
