Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

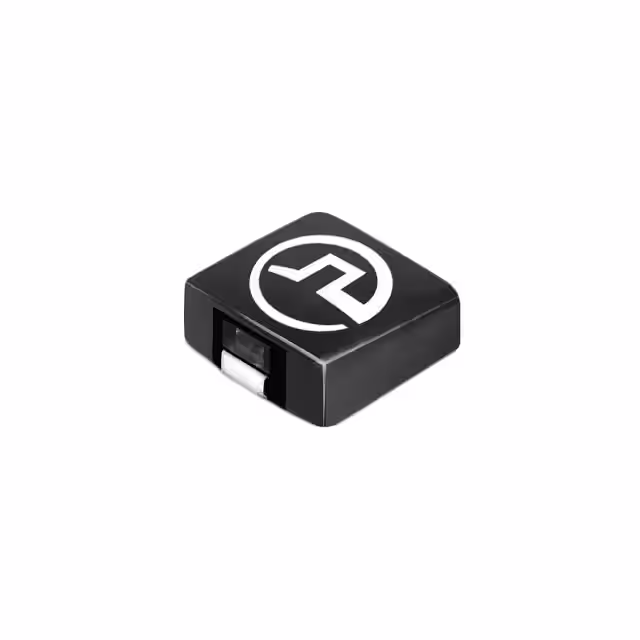

PG0255.401NLFIXED IND 400NH 29A 1.15MOHM SMD |
1,039 | 0.00 |
|
Datasheet |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±15% | 29 A | 29A | Shielded | 1.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PA0513.261NLFIXED IND 260NH 45A 0.32MOHM SMD |
4,464 | 0.00 |
|
Datasheet |
PA0513NL | Nonstandard | Tray | Obsolete | - | - | 260 nH | ±20% | 45 A | 60A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|

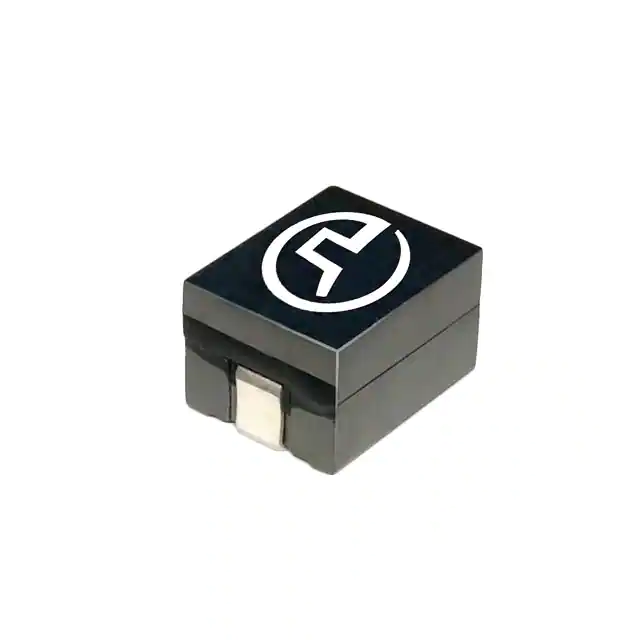

PA2202.181NLFIXED IND 180NH 36A 0.48MOHM SMD |
2,201 | 0.00 |
|
Datasheet |
PA2202.XXXNL | Nonstandard | Tray | Active | - | - | 180 nH | ±15% | 36 A | 64A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.476" L x 0.394" W (12.10mm x 10.00mm) | 0.236" (6.00mm) |
|

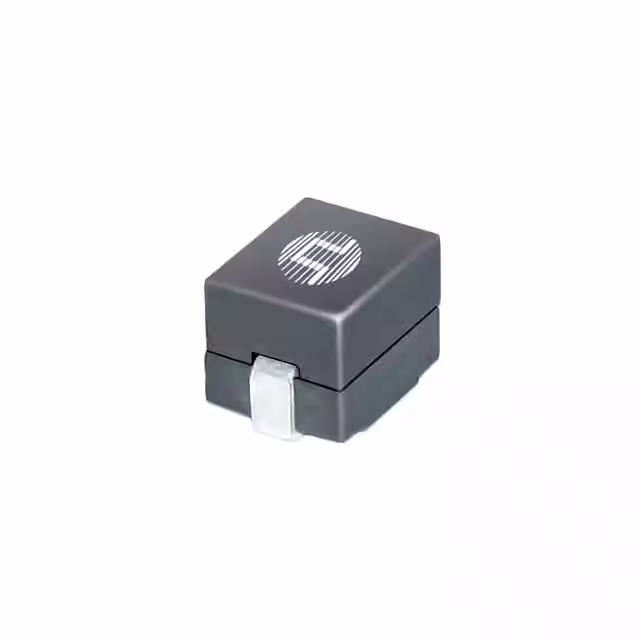

PA3136.211HLFIXED IND 210NH 50A 0.23MOHM SMD |
4,614 | 0.00 |
|
Datasheet |
PA3136.XXXHL | Nonstandard | Tray | Active | - | - | 210 nH | ±15% | 50 A | 25A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.315" W (13.80mm x 8.00mm) | 0.157" (4.00mm) |
.jpg)
|
36401E0N4ATDFFIXED IND 0.4NH 800MA 100MOHM SM |
3,470 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.4 nH | ±0.2nH | 800 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 14GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E1N5BTDFFIXED IND 1.5NH 700MA 250MOHM SM |
2,507 | 0.10 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.5 nH | ±0.1nH | 700 mA | - | Unshielded | 250mOhm Max | 13 @ 500MHz | 10GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E13N8GTDFFIXED IND 13.8NH 180MA 1.75 OHM |
1,125 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 13.8 nH | ±2% | 180 mA | - | Unshielded | 1.75Ohm Max | 13 @ 500MHz | 3.7GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E2N1ATDFFIXED IND 2.1NH 440MA 350MOHM SM |
1,104 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.1 nH | ±0.2nH | 440 mA | - | Unshielded | 350mOhm Max | 13 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E2N4ATDFFIXED IND 2.4NH 440MA 350MOHM SM |
1,146 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.4 nH | ±0.2nH | 440 mA | - | Unshielded | 350mOhm Max | 13 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E2N6ATDFFIXED IND 2.6NH 440MA 350MOHM SM |
1,418 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.6 nH | ±0.2nH | 440 mA | - | Unshielded | 350mOhm Max | 13 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E2N8ATDFFIXED IND 2.8NH 380MA 450MOHM SM |
2,651 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.8 nH | ±0.2nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E22NGTDFFIXED IND 22NH 90MA 2.65 OHM SMD |
4,003 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 22 nH | ±2% | 90 mA | - | Unshielded | 2.65Ohm Max | 13 @ 500MHz | 2.8GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N1ATDFFIXED IND 3.1NH 380MA 450MOHM SM |
3,064 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.1 nH | ±0.2nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N2ATDFFIXED IND 3.2NH 380MA 450MOHM SM |
2,310 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.2 nH | ±0.2nH | 380 mA | - | Unshielded | 450mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N4ATDFFIXED IND 3.4NH 380MA 550MOHM SM |
1,357 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.4 nH | ±0.2nH | 380 mA | - | Unshielded | 550mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N5ATDFFIXED IND 3.5NH 380MA 550MOHM SM |
2,856 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.5 nH | ±0.2nH | 380 mA | - | Unshielded | 550mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N7ATDFFIXED IND 3.7NH 340MA 550MOHM SM |
1,208 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.7 nH | ±0.2nH | 340 mA | - | Unshielded | 550mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E3N8ATDFFIXED IND 3.8NH 340MA 550MOHM SM |
4,475 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 3.8 nH | ±0.2nH | 340 mA | - | Unshielded | 550mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E5N9ATDFFIXED IND 5.9NH 280MA 850MOHM SM |
1,751 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 5.9 nH | ±0.2nH | 280 mA | - | Unshielded | 850mOhm Max | 13 @ 500MHz | 6GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E8N0ATDFFIXED IND 8NH 220MA 1.25 OHM SMD |
2,329 | 0.09 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 8 nH | ±0.2nH | 220 mA | - | Unshielded | 1.25Ohm Max | 13 @ 500MHz | 5.5GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
