Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

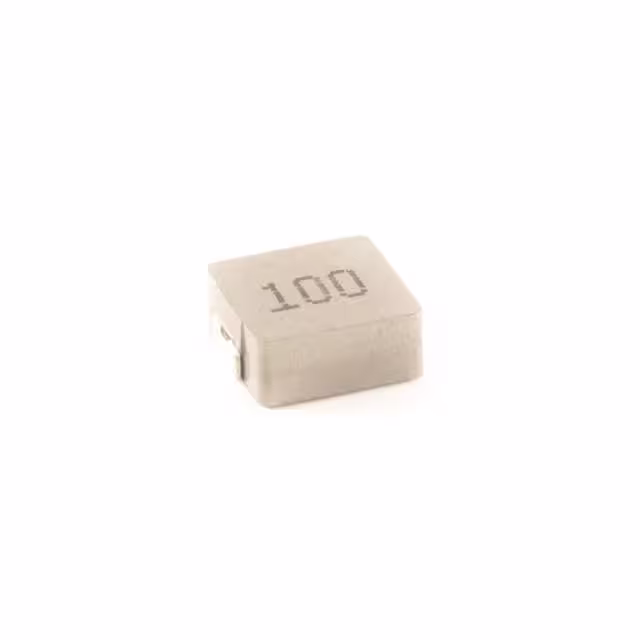

PCSFW630-100M10.0UH 20% SMD Molded Pwr Choke |
2,424 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.5 A | 5.5A | Shielded | 67mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

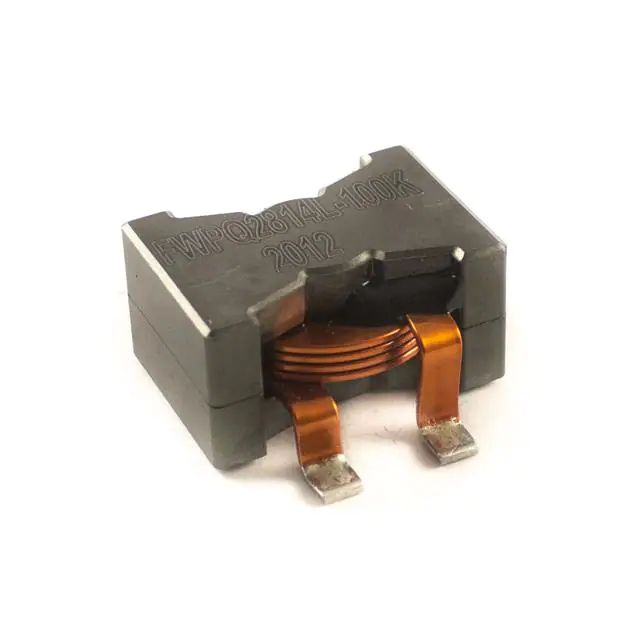

FWPQ2814L-100K10UH 10% Flat Wire SMD Pwr Ind |
1,477 | 7.98 |
|
Datasheet |
- | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 10 µH | ±10% | 30 A | 17.6A | Unshielded | 1.62mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | SMD | 1.102" L x 1.102" W (28.00mm x 28.00mm) | 0.571" (14.50mm) |
|
PCSE15Q8-1R0M-RC1.0UH 20% SMD Power Inductor |
3,112 | 0.98 |
|
Datasheet |
* | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3 A | 3.7A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
PCXA503-R80M.80uH 20% Shielded High Current |
2,129 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 800 nH | ±20% | 13.1 A | 18A | Shielded | 5.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PCXA503-1R5M1.5uH 20% Shielded High Current |
4,308 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 10.5 A | 12.5A | Shielded | 11.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PCXA503-3R3M3.3uH 20% Shielded High Current |
2,154 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 8.1 A | 8.7A | Shielded | 23.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PCXA503-2R2M2.2uH 20% Shielded High Current |
4,848 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9.7 A | 9A | Shielded | 14.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
PCXA503-1R0M1.0uH 20% Shielded High Current |
4,776 | 0.00 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 12.2 A | 14.3A | Shielded | 7.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|

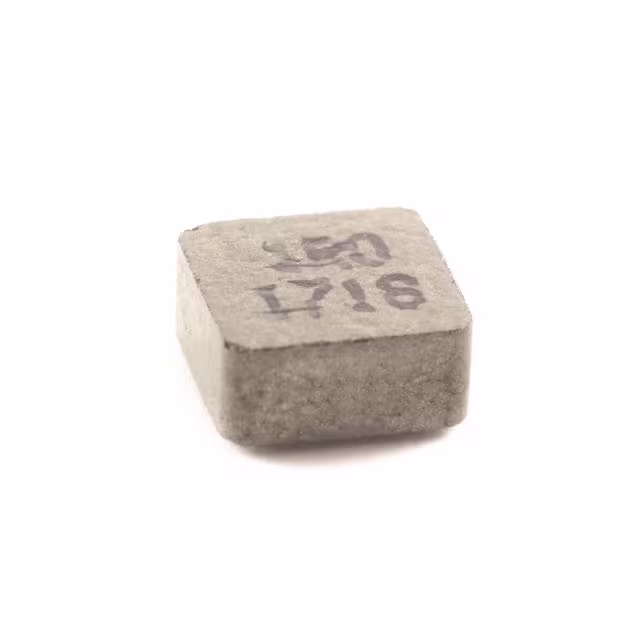

PCXA402-R72M.72uH 20% Shielded High Current |
4,337 | 0.98 |
|
Datasheet |
* | Nonstandard | Tape & Reel (TR) | Active | - | - | 720 nH | ±20% | 10.5 A | 10.6A | Shielded | 11.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PCXA402-1R5M1.5uH 20% Shielded High Current |
2,358 | 0.98 |
|
Datasheet |
* | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 7.6 A | 7.4A | Shielded | 23.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

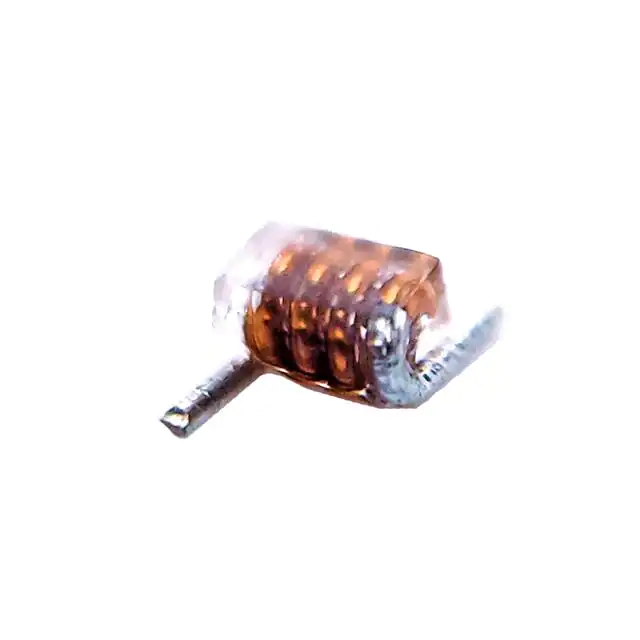

SMAC10-2K-RC1.65nH 10% SMD AirCore Inductor |
1,778 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 1.65 nH | ±10% | 1.6 A | - | Shielded | 4mOhm Max | 100 @ 800MHz | 10.2GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | 0.060" (1.52mm) |
|
|
SMAC10-3J-RC2.55nH 5% SMD Air Core Inductor |
4,818 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 2.55 nH | ±5% | 1.6 A | - | Shielded | 5mOhm Max | 100 @ 800MHz | 8.2GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | 0.060" (1.52mm) |
|
|
SMAC10-4G-RC3.85nH 2% SMD Air Core Inductor |
1,755 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 3.85 nH | ±2% | 1.6 A | - | Shielded | 6mOhm Max | 100 @ 800MHz | 7.5GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | 0.060" (1.52mm) |
|
SMAC15-9J-RC9.85nH 5% SMD Air Core Inductor |
1,324 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 9.85 nH | ±5% | 1.6 A | - | Shielded | 13mOhm Max | 100 @ 800MHz | 5.2GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|

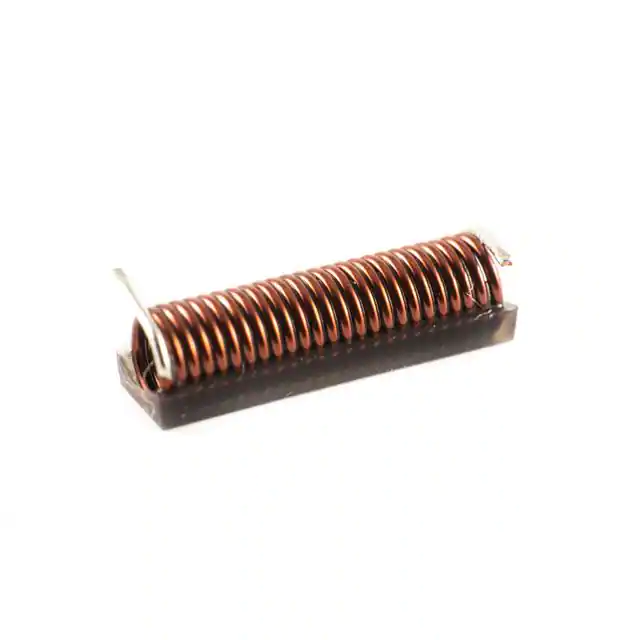

SMAC60-R10L-RC100NH 15% SMD AIR COIL INDUCTOR |
4,355 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±15% | - | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.465" L x 0.190" W (11.80mm x 4.83mm) | 0.140" (3.55mm) |
|
SMAC25-33J-RC33NH 5% SMD AIR CORE INDUCTOR |
4,803 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±5% | 3 A | - | Unshielded | 4.8mOhm Max | 100 @ 150MHz | 2.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-27G-RC27NH 2% SMD AIR CORE INDUCTOR |
1,950 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27 nH | ±2% | 3.5 A | - | Unshielded | 4mOhm Max | 100 @ 150MHz | 2.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-22G-RC22NH 2% SMD AIR CORE INDUCTOR |
2,341 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±2% | 3 A | - | Unshielded | 4.2mOhm Max | 100 @ 150MHz | 3.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-27J-RC27NH 5% SMD AIR CORE INDUCTOR |
4,855 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27 nH | ±5% | 3.5 A | - | Unshielded | 4mOhm Max | 100 @ 150MHz | 2.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-100G-RC100nH 2% SMD Air core Inductor |
4,254 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±2% | 1.7 A | - | Unshielded | 12.3mOhm Max | 100 @ 150MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
