Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAC25-39G-RC39NH 2% SMD AIR CORE INDUCTOR |
1,707 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±2% | 3 A | - | Unshielded | 4.4mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
SMAC30-9J-RC35.5nH 5% SMD Air Core Inductor |
2,771 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 35.5 nH | ±5% | 4 A | - | Unshielded | 6.8mOhm Max | 112 @ 150MHz | 1.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|

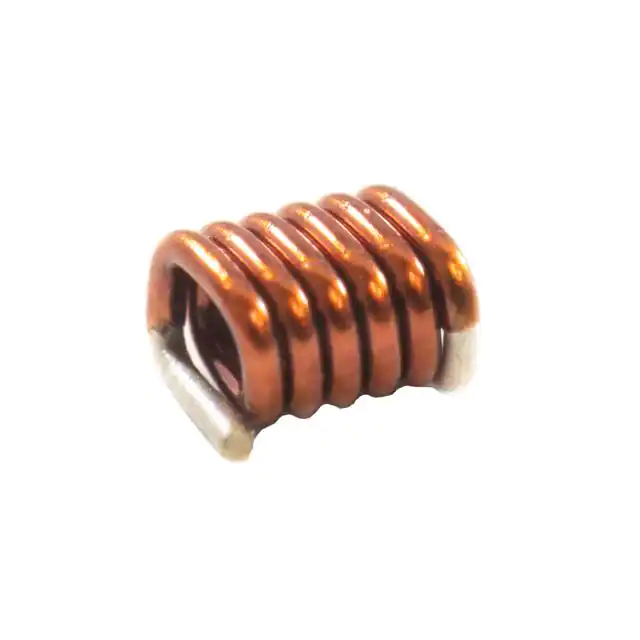

SQAC0806-16NJ-RC15.7nH 5% Square Wound Coil |
3,737 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 15.7 nH | ±5% | 2.9 A | - | Unshielded | 9mOhm Max | 90 @ 400MHz | 4.4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.090" L x 0.072" W (2.29mm x 1.83mm) | 0.059" (1.50mm) |
|
|
SQAC0806-19NJ-RC19.4nH 5% Square Wound Coil |
1,370 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 19.4 nH | ±5% | 2.9 A | - | Unshielded | 10mOhm Max | 90 @ 400MHz | 4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.102" L x 0.072" W (2.59mm x 1.83mm) | 0.059" (1.50mm) |
|
SQAC0807-10NJ-RC10.2nH 5% Square Air Coil |
2,640 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 10 nH | ±5% | 2.7 A | - | Unshielded | 7mOhm Max | 100 @ 400MHz | 4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.064" L x 0.072" W (1.63mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0807-11NJ-RC11.2nH 5% Square Air Coil |
4,093 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 11 nH | ±5% | 2.7 A | - | Unshielded | 6.3mOhm Max | 90 @ 400MHz | 3.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.061" L x 0.072" W (1.55mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0806-8N9J-RC8.9nH 5% Square Wound Coil |
3,543 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 8.9 nH | ±5% | 2.9 A | - | Unshielded | 7mOhm Max | 90 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.064" L x 0.072" W (1.63mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0806-5N5J-RC5.5nH 5% Square Wound Coil |
4,439 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 5.5 nH | ±5% | 2.9 A | - | Unshielded | 3.4mOhm Max | 60 @ 400MHz | 4.9GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.053" L x 0.072" W (1.35mm x 1.83mm) | 0.059" (1.50mm) |
|
|
SQAC0807-14NJ-RC13.7nH 5% Square Air Coil |
2,563 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 13.7 nH | ±5% | 2.7 A | - | Unshielded | 8mOhm Max | 100 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.076" L x 0.072" W (1.93mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0807-6N9J-RC6.9nH 5% Square Air Coil |
2,501 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 6.9 nH | ±5% | 2.7 A | - | Unshielded | 6mOhm Max | 100 @ 400MHz | 4.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.051" L x 0.072" W (1.30mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0807-22NJ-RC22nH 5% Square Air Coil |
3,816 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 22 nH | ±5% | 2.7 A | - | Unshielded | 10mOhm Max | 100 @ 400MHz | 3.5GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.102" L x 0.072" W (2.59mm x 1.83mm) | 0.070" (1.78mm) |
|

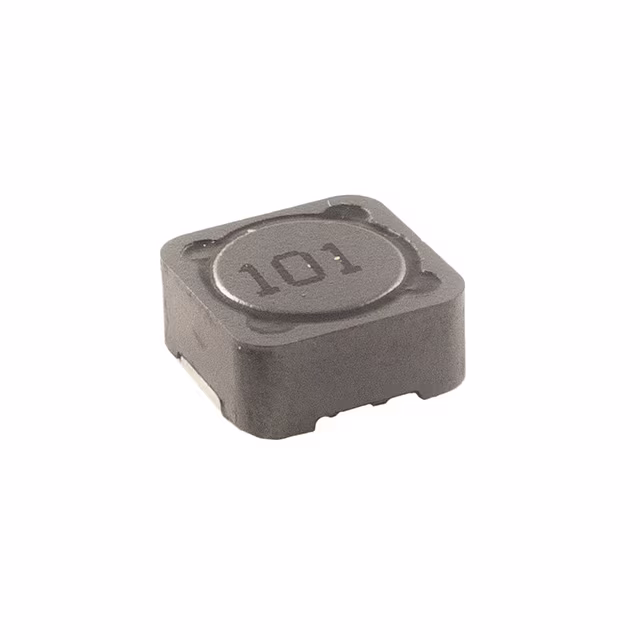

PCS125-151M-RC150uH 20% Power Chip Shielded |
2,579 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1 A | - | Shielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
74479888233FIXED IND |
4,446 | 0.00 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Bulk | Obsolete | Multilayer | - | 3.3 µH | ±20% | 1.1 A | 1.1A | Shielded | 312.5mOhm Max | 15 @ 1MHz | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74479888222FIXED IND |
1,495 | 0.00 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Bulk | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.2 A | 1.4A | Shielded | 250mOhm Max | 15 @ 1MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74479778268FIXED IND |
1,138 | 0.00 |
|
Datasheet |
WE-PMI | 0806 (2016 Metric) | Bulk | Obsolete | Multilayer | - | 6.8 µH | ±20% | 1.2 A | 200mA | Shielded | 212.5mOhm Max | 20 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
74479762222CFIXED IND |
4,206 | 0.00 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74479888268FIXED IND |
4,616 | 0.00 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Bulk | Obsolete | Multilayer | - | 6.8 µH | ±20% | 900 mA | 300mA | Shielded | 562.5mOhm Max | 15 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74479776215FIXED IND |
1,460 | 0.00 |
|
Datasheet |
WE-PMI | 0806 (2016 Metric) | Bulk | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1.3 A | 800mA | Shielded | 138mOhm Max | 18 @ 1MHz | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

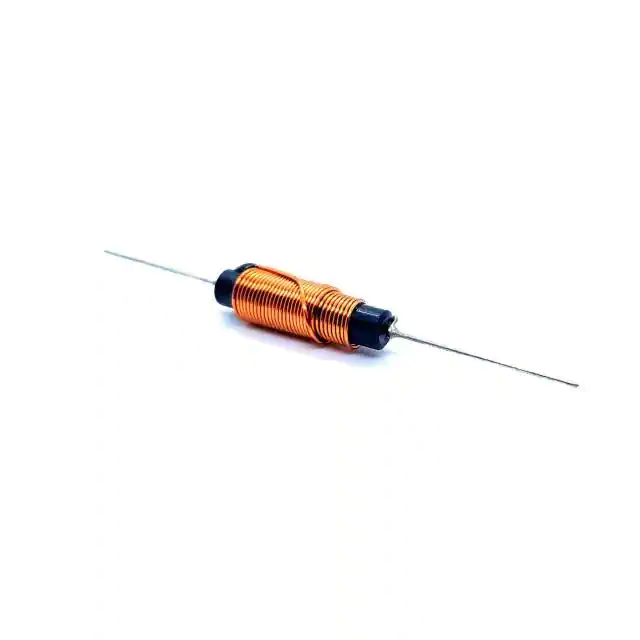

AHC50-251M-RC250UH 20% AXIAL HASH CHOKE |
4,456 | 2.75 |
|
Datasheet |
- | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | 2.5 A | - | Unshielded | 170mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.453" Dia x 1.380" L (11.51mm x 35.05mm) | - |
|
|
AHC50-3R35M-RC3.5UH 20% AXIAL HASH CHOKE |
4,898 | 2.75 |
|
Datasheet |
- | Axial | Tray | Active | Drum Core, Wirewound | Iron | 3.35 µH | ±20% | 20 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.600" Dia x 0.790" L (15.24mm x 20.07mm) | - |
