Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCSV62-220M-RC22UH 20% SMD PWR CHIP INDUCTOR |
4,736 | 0.98 |
|
Datasheet |
- | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.5 A | 1.6A | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
ASPC80-104K-RC100MH 10% PWR SHIELDED INDUCTOR |
3,727 | 4.25 |
|
Datasheet |
- | Axial | Bag | Active | - | - | 100 mH | ±10% | 176 mA | - | Shielded | 8.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|

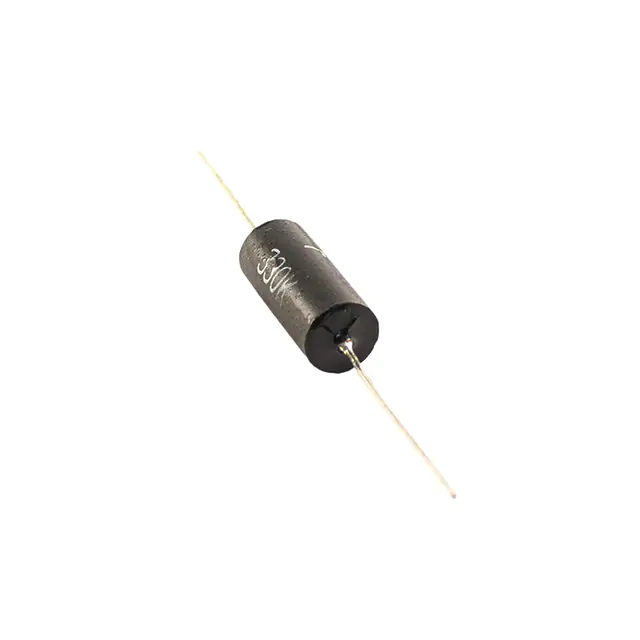

ASPC60-501K-RC500UH 10% PWR SHIELDED INDUCTOR |
3,427 | 2.50 |
|
Datasheet |
- | Axial | Bag | Active | - | - | 500 µH | ±10% | 880 mA | 44mA | Shielded | 390Ohm Max | 25 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.273" Dia x 0.530" L (6.94mm x 13.46mm) | - |
|
|
ASPC80-474K-RC470MH 10% PWR SHIELDED INDUCTOR |
4,956 | 4.25 |
|
Datasheet |
- | Axial | Bag | Active | - | - | 470 mH | ±10% | 71 mA | - | Shielded | 39.48Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|
|
ASPC80-564K-RC560MH 10% PWR SHIELDED INDUCTOR |
1,498 | 4.25 |
|
Datasheet |
- | Axial | Bag | Active | - | - | 560 mH | ±10% | 71 mA | - | Shielded | 46.68Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.550" Dia x 1.000" L (13.97mm x 25.40mm) | - |
|

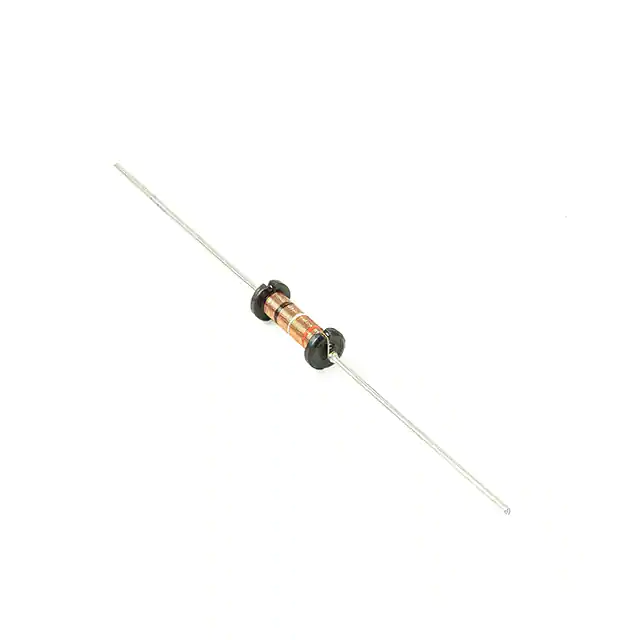

AVC40I-101J100UH 5% AXIAL VARNISHED CHOKE |
3,622 | 0.98 |
|
Datasheet |
- | Axial | Bag | Active | - | Ferrite | 100 µH | ±5% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.290" Dia x 0.875" L (7.37mm x 22.23mm) | - |
|
MLC05-1R5M-RC1.5UH 20% 0603 MULTILAYER CHIP |
4,619 | 0.98 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 25 mA | - | Shielded | 800mOhm Max | 35 @ 10MHz | 55MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MLC10-R22K-RC.22UH 10% 0704 MULTILAYER CHIP |
3,228 | 0.98 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 220 nH | ±10% | 250 mA | - | Shielded | 500mOhm Max | 25 @ 25MHz | 170MHz | - | -25°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLC10-1R2K-RC1.2UH 10% 0704 MULTILAYER CHIP |
1,284 | 0.98 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.2 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 65MHz | - | -25°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLC20-5R6K-RC5.6UH 10% 1203 MULTILAYER CHIP |
3,738 | 0.98 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 5.6 µH | ±10% | 25 mA | - | Shielded | 700mOhm Max | 45 @ 4MHz | 32MHz | - | -40°C ~ 125°C | 4 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
MLC20-R39K-RC.39UH 10% 1203 MULTILAYER CHIP |
1,836 | 0.98 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 390 nH | ±10% | 200 mA | - | Shielded | 500mOhm Max | 25 @ 25MHz | 135MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
MLC20-R068M-RC.068UH 20% 1203 MULTILAYER CHIP |
4,968 | 0.98 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 68 nH | ±20% | 300 mA | - | Shielded | 250mOhm Max | 20 @ 50MHz | 280MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
MLC20-2R7K-RC2.7UH 10% 1203 MULTILAYER CHIP |
2,332 | 0.98 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.7 µH | ±10% | 60 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 45MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|

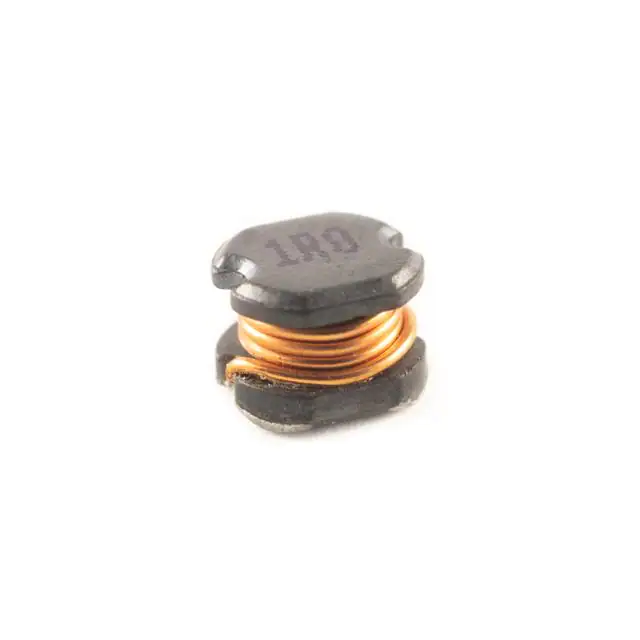

PC0403-102K-RC1000UH 10% POWER CHIP INDUCTOR |
3,755 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 140 mA | - | Unshielded | 15.6Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
MLC05-R33M-RC.33UH 20% 0603 MULTILAYER CHIP |
2,782 | 0.98 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±20% | 35 mA | - | Shielded | 850mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLC10-R33K-RC.33UH 10% 0704 MULTILAYER CHIP |
1,645 | 0.98 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±10% | 250 mA | - | Shielded | 550mOhm Max | 25 @ 25MHz | 145MHz | - | -25°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
AE90-470K-RC47UH 10% AXIAL EPOXY COATED |
2,879 | 0.98 |
|
Datasheet |
AE90 | Axial | Bag | Active | Wirewound | - | 47 µH | ±10% | 1.8 A | 2.1A | Unshielded | 180mOhm Max | 30 @ 2.52MHz | 4.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-682K-RC6800UH 10% AXIAL EPOXY COATED |
4,460 | 0.98 |
|
Datasheet |
AE90 | Axial | Bag | Active | Wirewound | - | 6.8 mH | ±10% | 150 mA | 180mA | Unshielded | 26Ohm Max | 25 @ 252kHz | 290kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-220K-RC22UH 10% AXIAL EPOXY COATED |
4,664 | 0.98 |
|
Datasheet |
AE90 | Axial | Bag | Active | Wirewound | - | 22 µH | ±10% | 2.03 A | 3.1A | Unshielded | 150mOhm Max | 50 @ 2.52MHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|
|
AE90-103K-RC10MH 10% AXIAL EPOXY COATED |
4,941 | 0.98 |
|
Datasheet |
AE90 | Axial | Bag | Active | Wirewound | - | 10 mH | ±10% | 120 mA | 150mA | Unshielded | 40Ohm Max | 60 @ 79.6kHz | 200kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
