Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

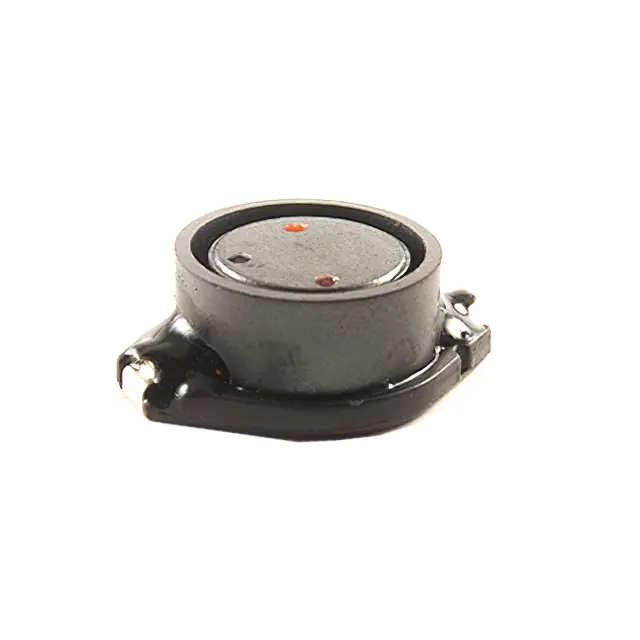

PCIS60-331M-RC330uH +/-20% Power Chip Inductor |
1,863 | 1.25 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 860 mA | 860mA | Shielded | 780mOhm Max | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|

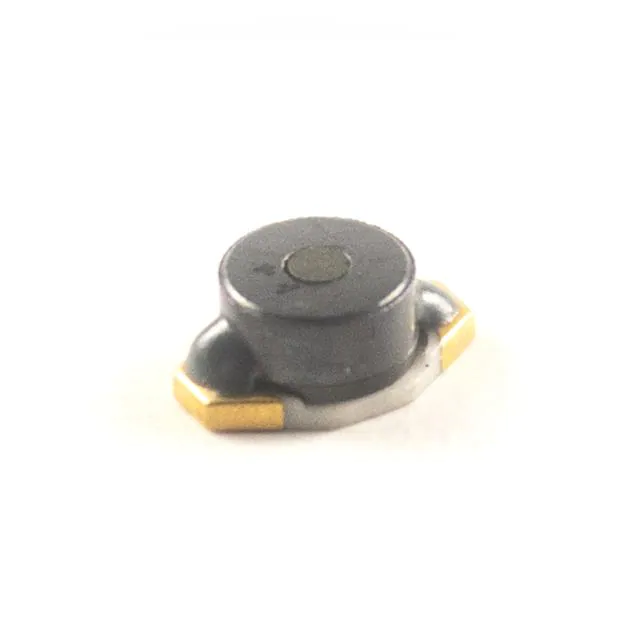

PCIT40-6R8M-RC6.8uH +/-20% Power Chip Inductor |
2,107 | 1.10 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.5 A | - | Shielded | 50mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
PCXLR402-1R0M1.0uH +/-20% Hi-Curr. Pwr. Choke |
3,944 | 1.25 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 8A | Shielded | 11.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

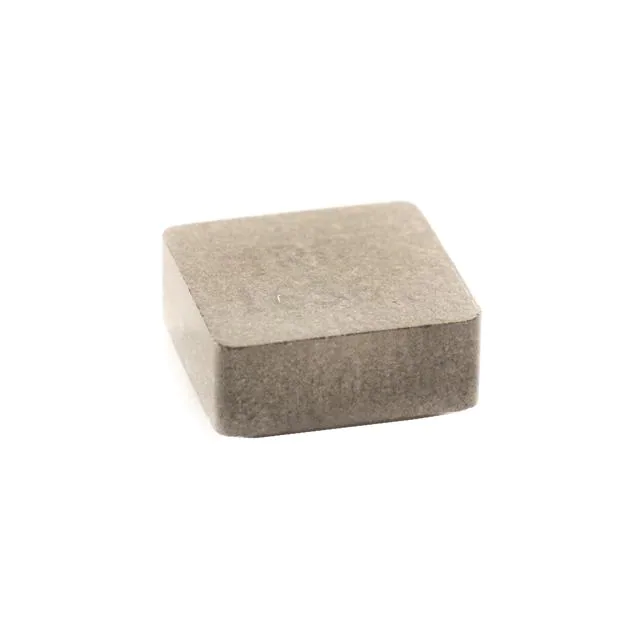

PCXA603-1R0M1.0uH +/-20% Hi-Curr. Pwr. Choke |
4,403 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 18 A | 18A | Shielded | 6.05mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|

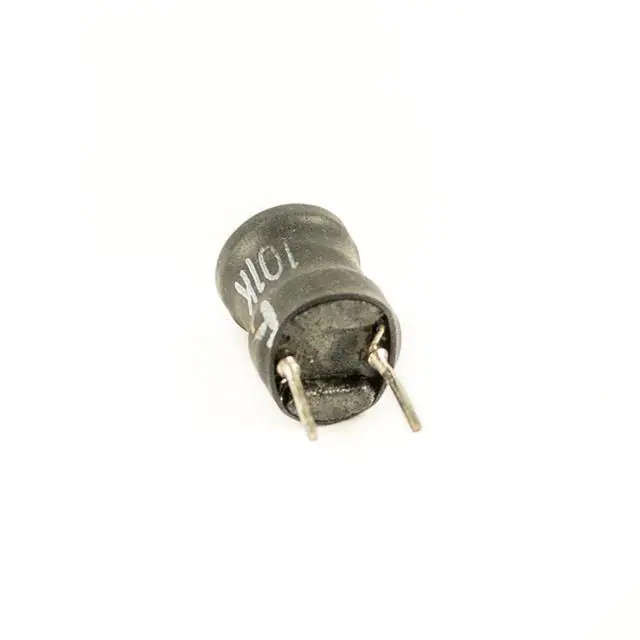

RB30-150K-RC15uH +/-10% Radial Bobbin Ind. |
1,181 | 0.98 |
|
Datasheet |
- | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 15 µH | ±10% | - | 2.3A | Unshielded | 56mOhm Max | 40 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | Radial | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

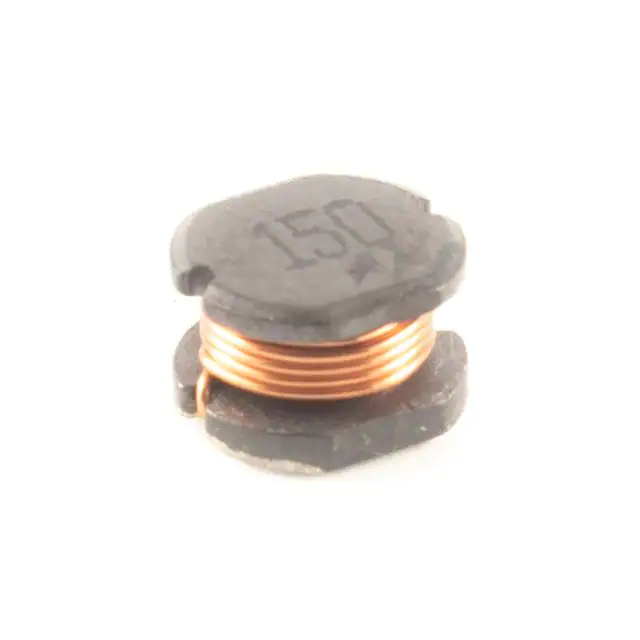

PC0705-101M-RC100uH +/-20% Power Chip Inductor |
3,697 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 720 mA | - | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
RB30-104K-RC100MH 10% RADIAL BOBBIN IND. |
1,943 | 0.98 |
|
Datasheet |
RB30 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 mH | ±10% | - | 20mA | Unshielded | 235Ohm Max | 20 @ 25kHz | 100kHz | - | -55°C ~ 125°C | 25 kHz | - | Through Hole | Radial | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|

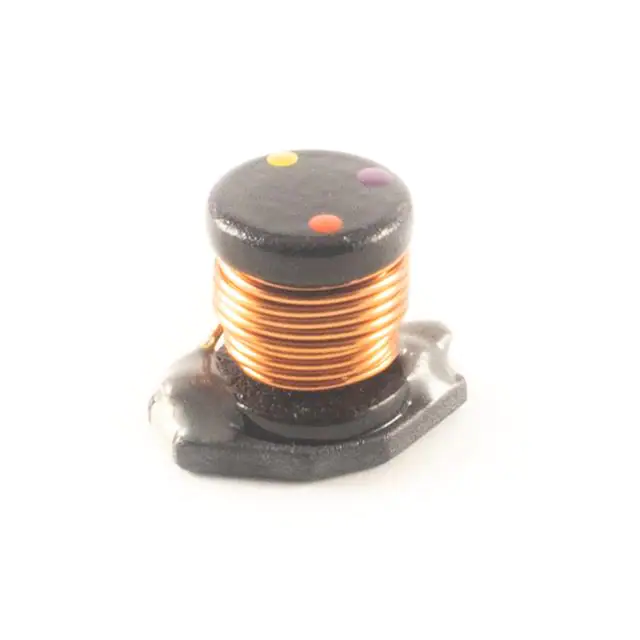

PCI50-102M-RC1000uH +/-20% Power Chip Induct. |
1,626 | 1.25 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 100 mA | 800mA | Unshielded | 2Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
PCI50-681M-RC680uH +/-20% Power Chip Inductor |
1,301 | 1.25 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 200 mA | 1A | Unshielded | 1.2Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|

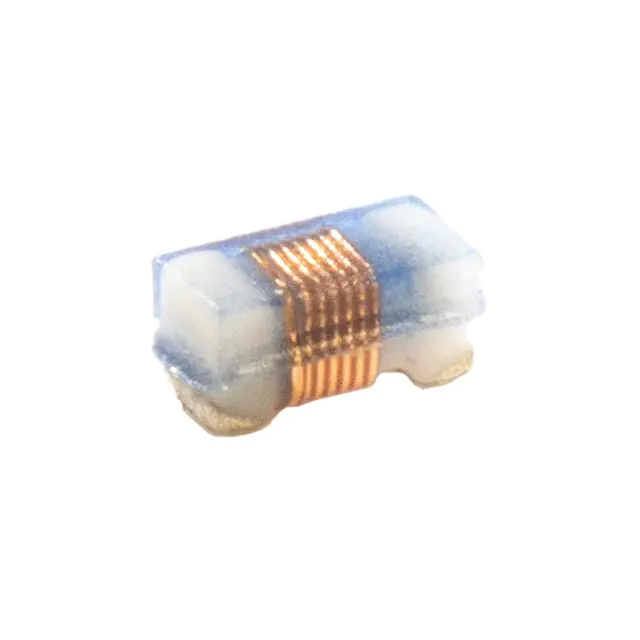

CC02-10NG-RC10nH +/-2% Ceramic Core Chip |
4,628 | 0.98 |
|
Datasheet |
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±2% | - | 480mA | Unshielded | 195mOhm Max | 21 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CC02-12NG-RC12nH +/-2% Ceramic Core Chip |
2,235 | 0.98 |
|
Datasheet |
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 nH | ±2% | - | 640mA | Unshielded | 120mOhm Max | 24 @ 250MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CC02-33NG-RC33nH +/- 2% Ceramic Core Chip |
4,295 | 0.98 |
|
Datasheet |
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±2% | - | 400mA | Unshielded | 350mOhm Max | 24 @ 250MHz | 2.35GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CC02-40NG-RC39nH +/-2% Ceramic Core Chip |
1,767 | 0.98 |
|
Datasheet |
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 40 nH | ±2% | - | 320mA | Unshielded | 50mOhm Max | 24 @ 250MHz | 2.24GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

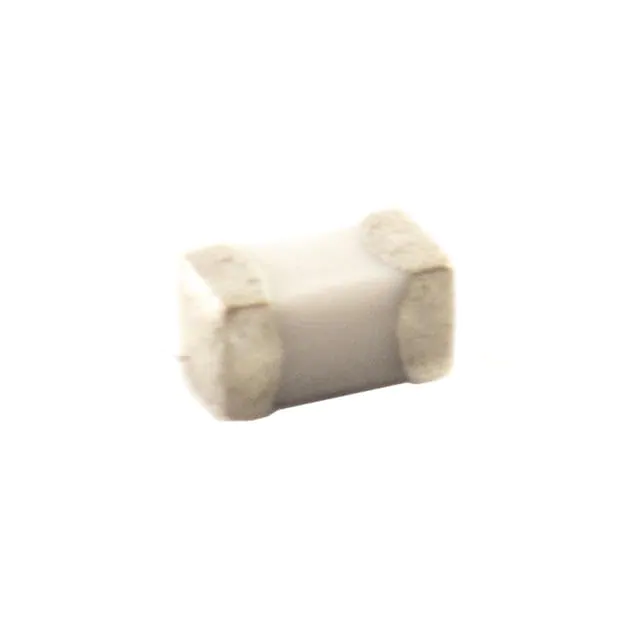

HFC05-1N0S-RC1.0nH +/-0.3nH 0603 Hi-Freq Chip |
2,952 | 0.98 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.3nH | 600 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-100NK-RC100nH +/-10% 0603 Hi-Freq. Chip |
4,459 | 0.98 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±10% | 300 mA | - | Unshielded | 1.2Ohm Max | 12 @ 100MHz | 770MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-15NJ-RC15nH +/-5% 0603 Hi-Freq. Chip |
4,439 | 0.98 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 320mOhm Max | 12 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-22NJ-RC22nH +/-5% 0603 High Freq Chip |
3,821 | 0.98 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 500 mA | - | Unshielded | 400mOhm Max | 12 @ 100MHz | 2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFC05-82NJ-RC82nH +/-5% 0603 High Freq Chip |
4,787 | 0.98 |
|
Datasheet |
HFC05 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 82 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 12 @ 100MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
HFQ02-1N0B-RC1.0nH +/-0.1nH 0201 High Q Chip |
3,472 | 0.98 |
|
Datasheet |
HFQ02 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.1nH | - | 850mA | Unshielded | 70mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LS03-R15J-RC.15uH +/-5% Ferrite Core Chip |
1,998 | 0.98 |
|
Datasheet |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±5% | - | 1.45A | Unshielded | 150mOhm Max | 17 @ 7.9MHz | 1.35GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
