Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTRL5480F-4-102K1000UH RADIAL FIXED INDUCTR |
2,612 | 6.94 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 490 mA | 880mA | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|

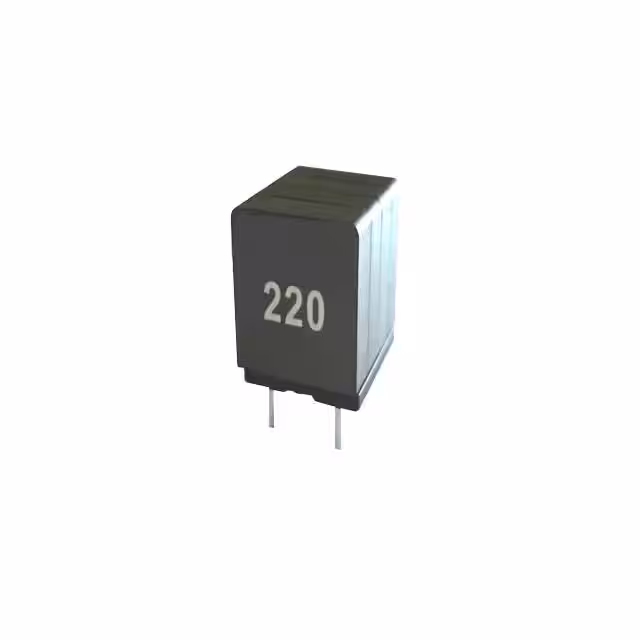

CTDAT1415F-100MSMD SHLD PWR INDUCTOR FOR DIG AM |
4,282 | 7.24 |
|
Datasheet |
CTDAT1415F | Vertical, 4 PC Pin | Bulk | Active | - | - | 10 µH | ±20% | 8 A | 13A | Shielded | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|

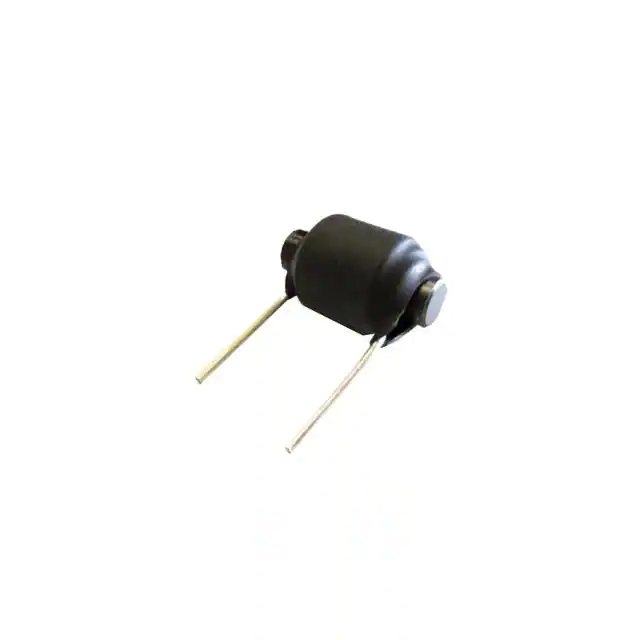

CTHR15F-500K50UH FILTER INDUCTOR |
3,690 | 8.69 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 15 A | 10A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.000" Dia (25.40mm) | 1.625" (41.28mm) |
|
CTDR3F-821K820UH RADIAL DRUM CORE INDUCTOR |
4,506 | 8.93 |
|
Datasheet |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 820 µH | ±10% | - | 2.8A | Unshielded | 288mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|

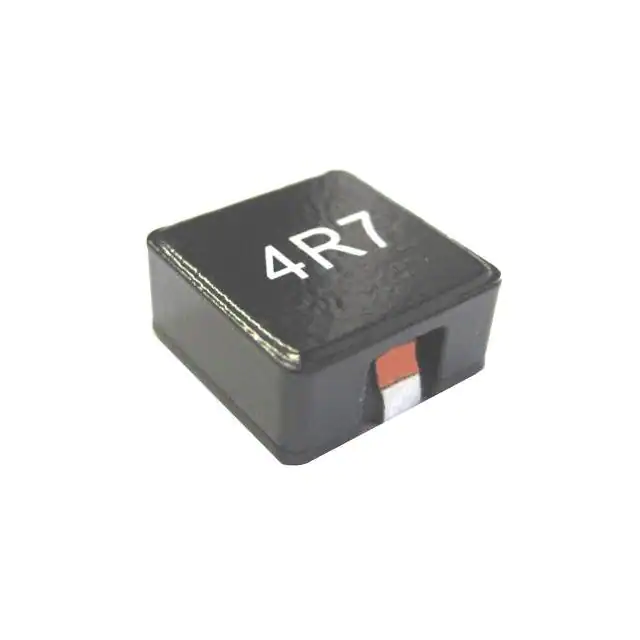

CTSFW1890F-6R8MSMD FLAT WIRE POWER INDUCTOR |
4,089 | 11.15 |
|
Datasheet |
CTSFW1890F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18.5 A | 28A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
CTSFW1890F-100MSMD FLAT WIRE POWER INDUCTOR |
3,887 | 11.15 |
|
Datasheet |
CTSFW1890F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 15 A | 21.5A | Shielded | 7.6mOhm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|

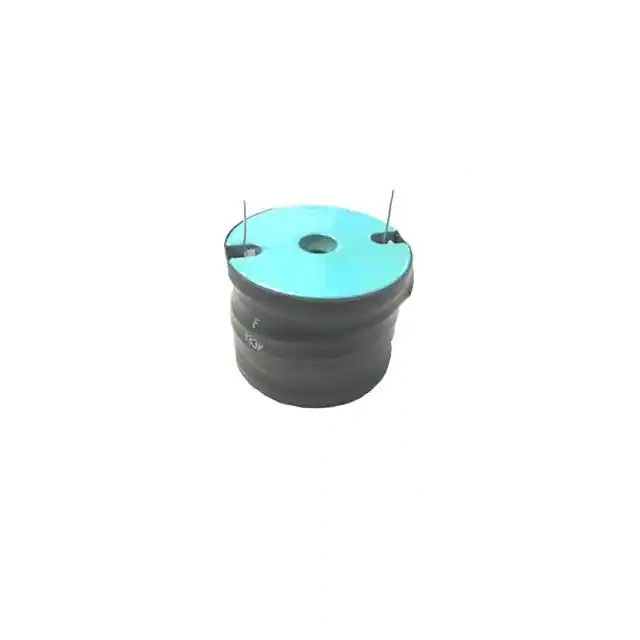

CTDR5F-152KRADIAL LEADED DRUM CORE INDUCTOR |
4,604 | 15.53 |
|
Datasheet |
CTDR5F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1.5 mH | ±10% | 5.5 A | 5A | Unshielded | 274mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.449" (36.80mm) |
|
L101374SP-26RESONANT INDUCTOR 33UH 20.5A 6M |
3,734 | 0.00 |
|
Datasheet |
L101374SP | Radial, Vertical | Bulk | Active | Wirewound | - | 33 µH | ±10% | 28 A | 16.5A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.319" L x 1.201" W (33.50mm x 30.50mm) | 1.102" (28.00mm) |
|
|
L101374SP-25RESONANT INDUCTOR 22UH 32.5A 6M |
4,574 | 0.00 |
|
Datasheet |
L101374SP | Radial, Vertical | Bulk | Active | Wirewound | - | 22 µH | ±10% | 28 A | 26.5A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.319" L x 1.201" W (33.50mm x 30.50mm) | 1.102" (28.00mm) |
|
|
L101374SP-24RESONANT INDUCTOR 18UH 40A 6M |
2,669 | 0.00 |
|
Datasheet |
L101374SP | Radial, Vertical | Bulk | Active | Wirewound | - | 18 µH | ±10% | 28 A | 32A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | Radial | 1.319" L x 1.201" W (33.50mm x 30.50mm) | 1.102" (28.00mm) |
|

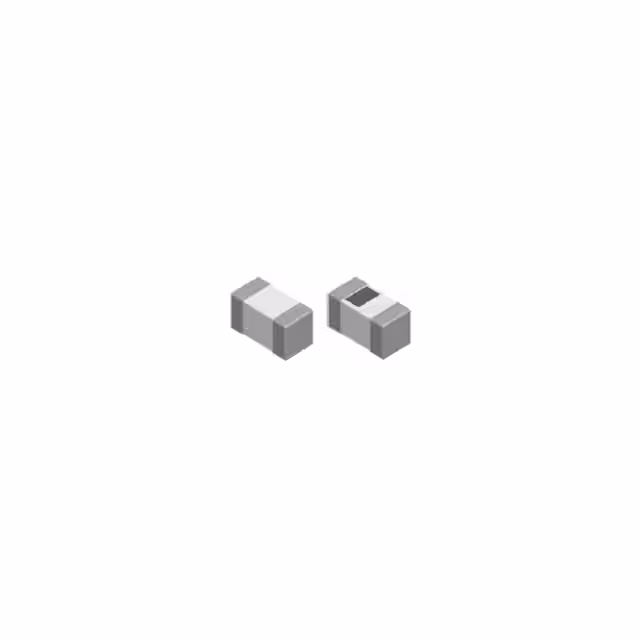

CL01JTQ10N-SFIXED IND 10NH 160MA 800MOHM SMD |
15,000 | 0.00 |
|
Datasheet |
CL-S | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 nH | ±5% | 160 mA | - | Unshielded | 800mOhm Max | 13 @ 500MHz | 3.8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.014" (0.35mm) |
|
PCSAU127-560M-RC56UH, POWER INDUCTOR |
2,336 | 1.50 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | - | 4.8A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

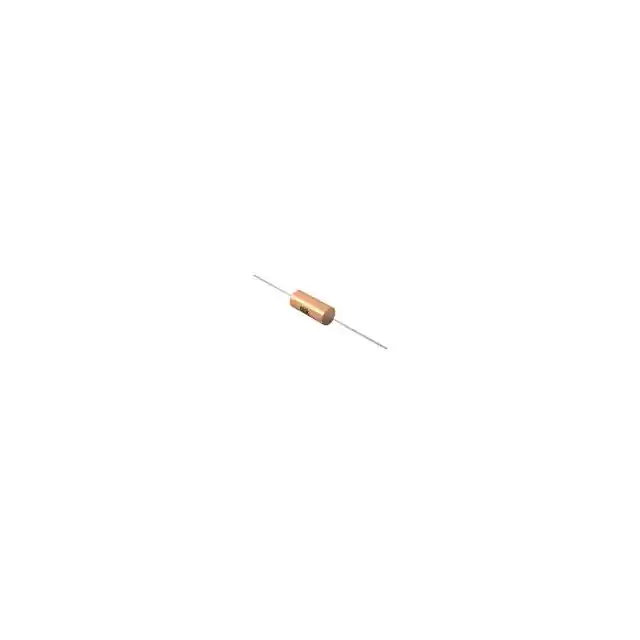

CTS4F-223K22000UH XIALSHIELDED INDUCTR |
2,258 | 4.90 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 22 mH | ±10% | 40 mA | 9mA | Shielded | 145Ohm Max | 50 @ 79kHz | 570kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-821K820UH XIALSHIELDED INDUCTOR |
3,284 | 4.90 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 820 µH | ±10% | 151 mA | 45mA | Shielded | 10Ohm Max | 70 @ 790kHz | 4.8MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
CTS7F-224KAXIAL LEADED SHIELDED INDUCTOR |
4,644 | 3.04 |
|
Datasheet |
CTS7F | Axial | Bulk | Active | - | - | 220 mH | ±10% | 27 mA | - | Shielded | 90Ohm | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.300" Dia x 0.725" L (7.62mm x 18.41mm) | - |
|

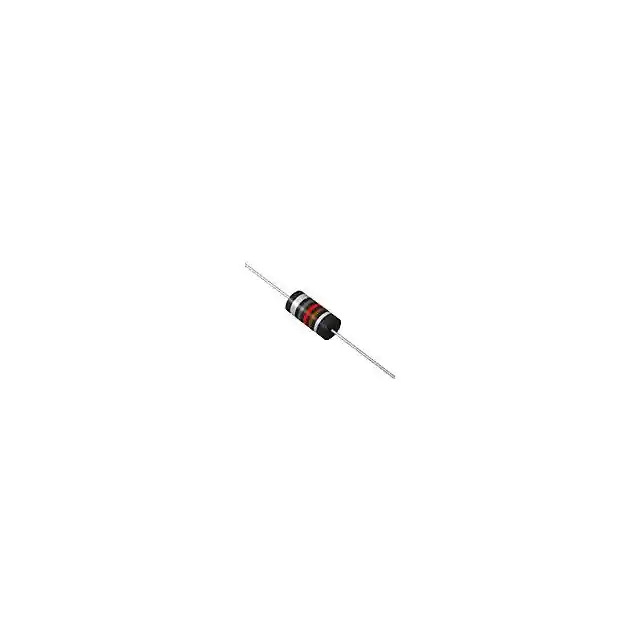

CTM2F-101J100UH AXIAL MOLDED INDUCTOR |
4,372 | 1.09 |
|
Datasheet |
CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±5% | 151 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
CTTF0402F-27NGFIXED IND 27NH2% SMD |
2,925 | 0.06 |
|
Datasheet |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 27 nH | ±2% | 75 mA | - | Unshielded | 2.5Ohm Max | 13 @ 500MHz | 3.25GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|

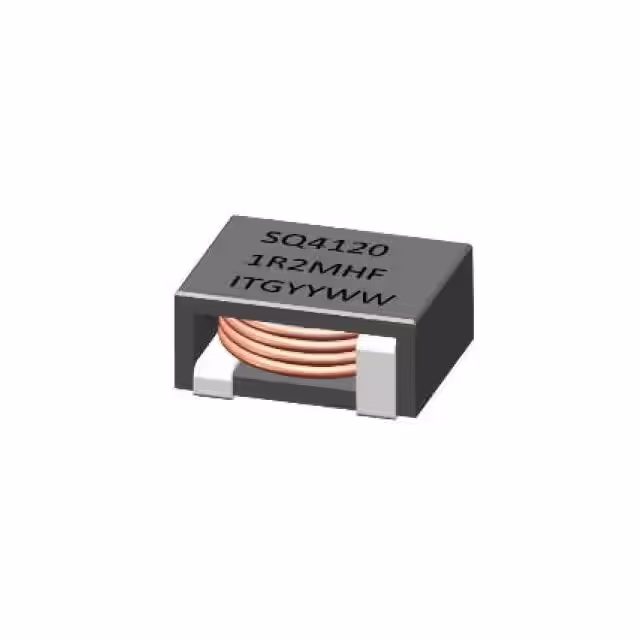

SQ4120-1R5MHF1.5UH, 0.95MOHM, 8.0A MAX. FLAT |
4,511 | 2.00 |
|
Datasheet |
SQ4120 | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 23 A | 8A | - | 0.95mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | 3-SMD | 0.406" L x 0.319" W (10.30mm x 8.10mm) | 0.197" (5.00mm) |
|

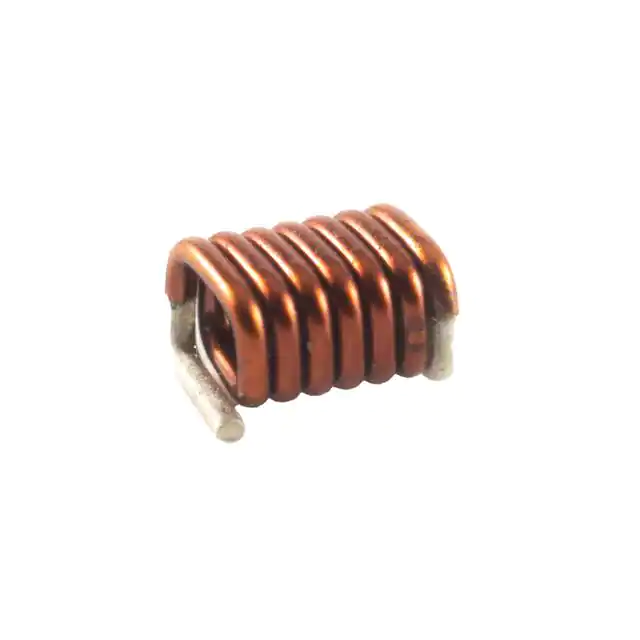

SQAC0807-17NJ-RC17nH 5% Square Air Coil |
4,781 | 0.98 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 17 nH | ±5% | 2.7 A | - | Unshielded | 9mOhm Max | 100 @ 400MHz | 4GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.090" L x 0.072" W (2.29mm x 1.83mm) | 0.070" (1.78mm) |
|
AC30-101J-RC100UH 5% AXIAL INDUCTOR |
1,373 | 0.98 |
|
Datasheet |
AC30 | Axial | Box | Active | - | - | 100 µH | ±5% | 275 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 4.8MHz | - | -20°C ~ 100°C | 2.52 MHz | - | Through Hole | Axial | 0.157" Dia x 0.394" L (3.99mm x 10.01mm) | - |
