Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9204202XAIC SW SP4TX2 100OHM 16FLATPACK |
4,867 | 0.00 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
DG1411EEQ-T1-GE3IC SWITCH SPST-NC X 4 1.8OHM |
4,680 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 1.8Ohm | 80mOhm | 4.5V ~ 24V | ±4.5V ~ 15V | 150ns, 120ns | 210MHz | -20pC | 11pF, 24pF | 500pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | - | - |
|
DG2788ADN-T1-E4IC SW DPDTX2 500MOHM 16MINIQFN |
3,801 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | DPDT | 2:1 | 2 | 500mOhm | 50mOhm | 1.8V ~ 5.5V | - | 50µs, 1µs | 338MHz | -245pC | - | 100nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
ADG506AKPZ-REELIC MUX 16:1 300OHM 28PLCC |
3,965 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKP-REELIC MUX 16:1 300OHM 28PLCC |
3,421 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKPZ-RLIC MUX 16:1 300OHM 28PLCC |
4,212 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
.jpg)
|
ADG731BCP_REEL7IC MUX 32:1 5.5OHM 48LFCSP |
1,797 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 32:1 | 1 | 5.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | - | 18MHz | 1pC | 13pF, 260pF | 250pA | -72dB @ 1MHz | -40°C ~ 80°C (TA) | - | - | Surface Mount | 48-LFCSP (7x7) |
|

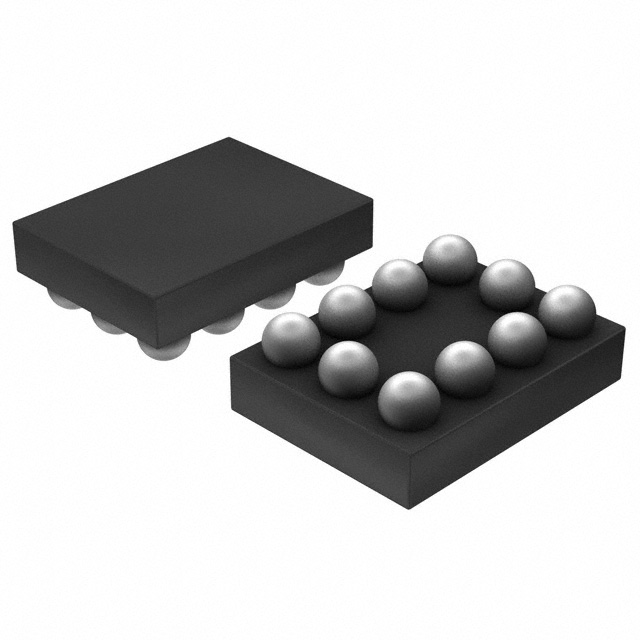

ADG787BCB-REELIC SWITCH SPDT X 2 3OHM 10WLCSP |
3,351 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
ADG802BRT-1REELIC SW SPST-NCX1 300MOHM SOT23-6 |
2,364 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG802BRT-1REEL7IC SW SPST-NCX1 300MOHM SOT23-6 |
4,769 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG1202BRJZ-R2IC SW SPST-NOX1 200OHM SOT23-6 |
3,752 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 200Ohm | - | - | ±5V ~ 16.5V | 170ns, 105ns | 660MHz | -0.8pC | 2.4pF, 2.8pF | 100pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG1202BRJZ-REEL7IC SW SPST-NOX1 200OHM SOT23-6 |
3,453 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 200Ohm | - | - | ±5V ~ 16.5V | 170ns, 105ns | 660MHz | -0.8pC | 2.4pF, 2.8pF | 100pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG426BRSZ-REEL7IC MUX 16:1 80OHM 28SSOP |
1,011 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 80Ohm | 4Ohm | 12V | ±15V | 160ns, 150ns | - | 8pC | 5pF, 50pF | 500pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
ADG774BRQ-500RL7IC SWITCH SPDT X 4 2.2OHM 16QSOP |
1,698 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 2.2Ohm (Typ) | 150mOhm | 3V ~ 5V | - | 15ns, 8ns | 240MHz | 10pC | 10pF, 20pF | 500pA | -75dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
ADG787-BCB-500RL7IC SWITCH SPDT X 2 3OHM 10WLCSP |
4,454 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
|
ADG787BCB-500RL7U1IC SWITCH SPDT X 2 3OHM 10WLCSP |
4,178 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
|
ADG508ATCHIPSIC MUX 8:1 300OHM DIE |
2,529 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | 8:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | Die |
|
|
ADG526ATCHIPSIC MUX 16:1 450OHM DIE |
3,111 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
ADG528ATCHIPSIC MUX 8:1 450OHM DIE |
2,969 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | 8:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
ADG802BRM-1IC SW SPST-NCX1 300MOHM 8MSOP |
4,511 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
