Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4509CPEIC SWITCH SP4T X 2 400OHM 16DIP |
4,888 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 15Ohm (Max) | 9V ~ 36V | ±4.5V ~ 20V | 275ns, 200ns | - | 2pC | 10pF, 14pF | 500pA | -62dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX4533EAP-TIC SWITCH SPDT X 4 175OHM 20SSOP |
3,841 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 175Ohm | 1Ohm | 9V ~ 36V | ±4.5V ~ 18V | 250ns, 150ns | - | 1.5pC | 5pF | 20nA | -66dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SSOP |
|
MAX4659EUAIC SWITCH SPDT X 1 25OHM 8UMAX |
3,543 | 7.08 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX4659EUA-TIC SWITCH SPDT X 1 25OHM 8UMAX |
1,191 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
MAX4662CAEIC SW SPST-NOX4 2.5OHM 16SSOP |
2,329 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 275ns, 175ns | - | 300pC | 55pF, 55pF | 500pA | -59dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SSOP |
|
|
MAX4662EPEIC SWITCH SPST-NOX4 2.5OHM 16DIP |
3,071 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 275ns, 175ns | - | 300pC | 55pF, 55pF | 500pA | -59dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4665CPE+IC SW QUAD ANLG 5 OHM SPST 16DIP |
3,370 | 11.86 |
|
Datasheet |
* | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MAX4560CPE+IC SWITCH SPDT X 3 160OHM 16DIP |
2,636 | 0.00 |
|
- |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2pF, 4pF | 1nA | -93dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
DG201AMSE/PR+IC SWITCH SPST-NC X 4 200OHM |
2,069 | 0.00 |
|
- |
- | Tube | Active | SPST - NC | 1:1 | 4 | 200Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C | - | - | - | - |
|
|
DG201AMSE/PRIC SWITCH SPST-NC X 4 200OHM |
1,438 | 9.88 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 200Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C | - | - | - | - |
|
5962-9073101MEAIC SW SPST-NCX4 100OHM 16CDIP |
3,985 | 0.00 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 100Ohm | - | - | - | 250ns, 125ns | - | 100pC | - | 20nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
ISL43141WR5435IC SWITCH SPST-NO X 4 65OHM |
2,609 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 65Ohm | 2Ohm | 2.7V ~ 12V | ±2.6V ~ 6V | 80ns, 30ns | - | 1pC | 7pF, 7pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | - | - |
|
|
ISL43141WR5472IC SWITCH SPST-NO X 4 65OHM |
4,091 | 0.00 |
|
- |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 65Ohm | 2Ohm | 2.7V ~ 12V | ±2.6V ~ 6V | 80ns, 30ns | - | 1pC | 7pF, 7pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | - | - |
|
|
ISL43681WR5345IC MUX 8:1 60OHM |
3,629 | 0.00 |
|
- |
- | Tube | Obsolete | - | 8:1 | 1 | 60Ohm | 1.3Ohm (Typ) | 2V ~ 12V | ±2V ~ 6V | 50ns, 35ns | - | 0.3pC | 3pF, 21pF | 100pA | -110dB @ 100kHz | -40°C ~ 85°C | - | - | - | - |
|

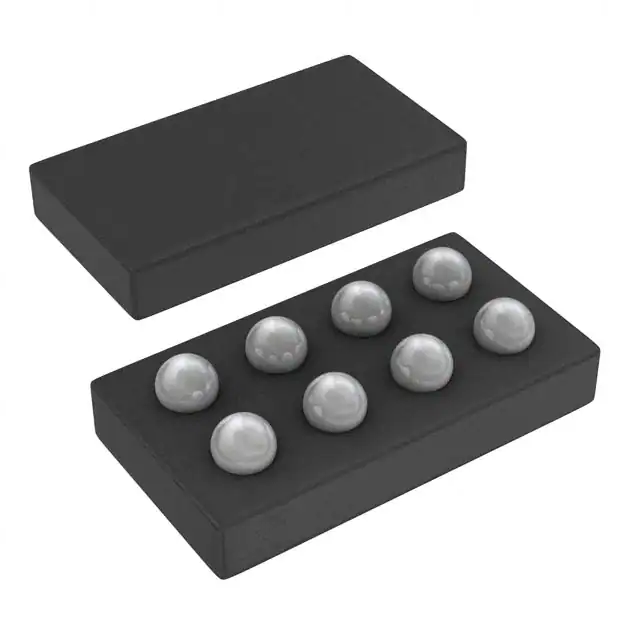

NLX2G66FCTAGIC SW SPST-NOX2 5.5OHM 8WLCSP |
4,872 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 5.5Ohm | 4.5Ohm | 1.65V ~ 5.5V | - | 4.9ns, 6ns | 270MHz | - | 6pF | 100nA | -100dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-WLCSP (1.89x0.89) |
|
|
PI3A3899ZTEXIC SWITCH DPDT X 2 2.4OHM 16UQFN |
4,476 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 2.4Ohm | 200mOhm | 1.65V ~ 4.3V | - | - | 330MHz | 13pC | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
PI5A23159UEIC SWITCH SPDT X 2 1.2OHM 10MSOP |
2,763 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 1.2Ohm | 10mOhm | 1.65V ~ 5.5V | - | 12ns, 5ns (Typ) | 150MHz | 35pC | 3.5pF | 20nA | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
PI5A3157BC6E+DMXIC SWITCH SPDTX1 13OHM SOT363-6 |
3,388 | 0.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 11Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 4.5ns | 350MHz | 7pC | 2.5pF | 100nA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|
|
PI5A3157BC6EX-1507IC SWITCH SPDTX1 13OHM SOT363-6 |
3,651 | 0.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 11Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 4.5ns | 350MHz | 7pC | 2.5pF | 100nA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363-6 (SC-70) |
|

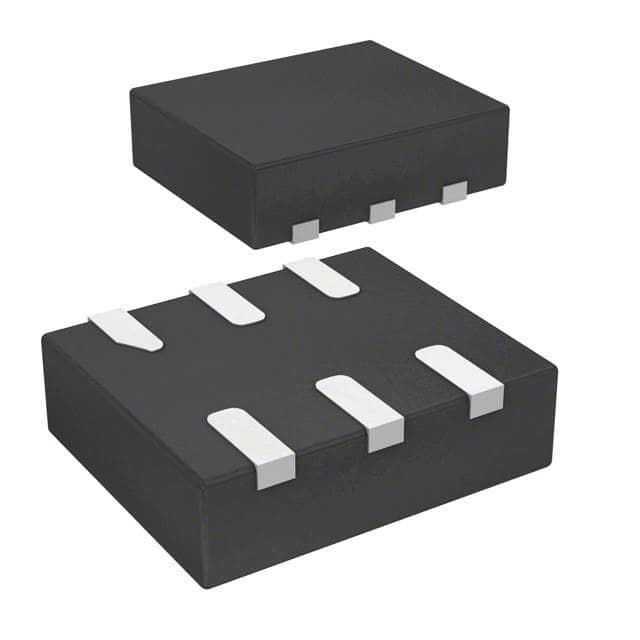

PI5A3157BZUE+DMXIC SWITCH SPDT X 1 13OHM 6UDFN |
3,092 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 11Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 4.5ns | 350MHz | 7pC | 2.5pF | 100nA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UDFN (1x1) |
