Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX22701EASA+DGTL ISO 3KV 1CH GATE DVR 8SOIC |
1,068 | 4.85 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3000Vrms | 300kV/µs | 36ns, 36ns | 2ns | 3.6ns, 2.5ns | 4A, 2.85A | - | - | - | 13V ~ 36V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | UL |
|
ACNW3190-300EOPTOISO 5KV 1CH GATE DVR 8SMD |
716 | 7.15 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | CSA, IEC/EN/DIN, UR |
|
SI8233BD-D-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
6,876 | 6.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
MAX22702EASA+DGTL ISO 3KV 1CH GATE DVR 8SOIC |
751 | 4.61 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3000Vrms | 300kV/µs | 36ns, 36ns | 2ns | 3.6ns, 1.8ns (Max) | 2.35A, 3.7A | - | - | - | 6V ~ 36V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, cUL, UL |
|
NCV57001DWR2GDGTL ISO 1.2KV 1CH GT DVR 16SOIC |
4,788 | 5.59 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 1200Vrms | 100kV/µs | 90ns, 90ns | - | 10ns, 15ns | 7.8A, 7.1A | - | - | - | 0V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C (TA) | Surface Mount | 16-SOIC | UL, VDE |
|
ADUM3223ARZDGTL ISO 3KV 2CH GATE DVR 16SOIC |
1,004 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 59ns, 59ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
SI8273GB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
428 | 5.53 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
1EDI3050ASXUMA1ISOLATED_HVGD |
244 | 0.00 |
|
Datasheet |
- | 36-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 8000Vpk | 150kV/µs | 120ns, 120ns | 20ns | 35ns, 45ns (Max) | 20A, 20A | 20A | - | - | 4.55V ~ 5.5V, 14V ~ 21.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-36-85 | IEC/EN/DIN, UL |
|
TLP5214A(D4-TP,EOPTOISO 5KV 1CH GATE DVR 16SO |
3,427 | 7.62 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 32ns, 18ns | 3A, 3A | 4A | 1.7V (Max) | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SO | - |
|
|
UCC21756QDWRQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
1,446 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 33ns, 27ns | 10A, 10A | 10A | - | - | 13V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | UL, VDE |
|
|
HCPL-315J-500EOPTOISO 5KV 2CH GATE DVR 16SO |
2,941 | 8.27 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width), 12 Leads | Tape & Reel (TR) | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ADUM3123ARZDGTL ISO 3KV 1CH GATE DVR 8SOIC |
1,911 | 6.49 |
|
Datasheet |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 1 | 3000Vrms | 50kV/µs | 68ns, 68ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
1ED3890MU12MXUMA1DIGITAL ISO 1CH GT DVR DSO16-28 |
1,899 | 8.61 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 15ns, 15ns | - | 9A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
|

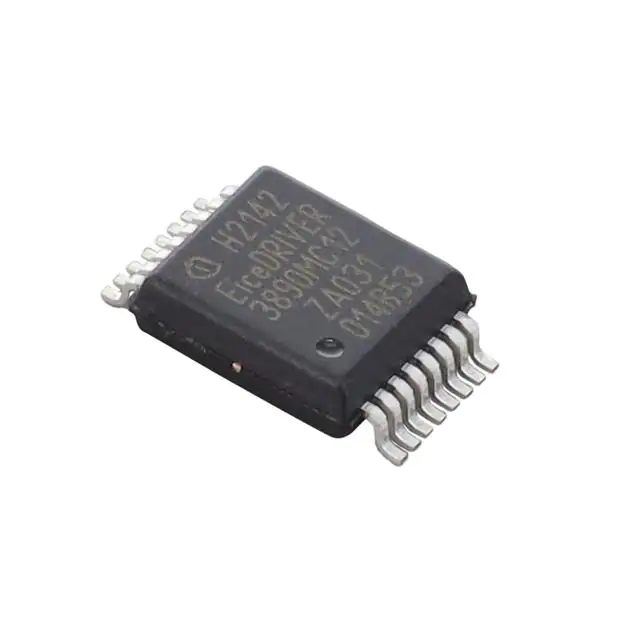

1ED3890MC12MXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 |
2,480 | 8.78 |
|
Datasheet |
EiceDRIVER™ | 16-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200V/ns | 270ns, 262ns | - | 15ns, 15ns | 9A, 9A | 9A | - | - | 13V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-16-28 | UL, VDE |
|
|
ACPL-339J-500EOPTOISO 5KV 1CH GATE DVR 16SO |
3,659 | 9.01 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 300ns, 300ns | 150ns | - | 1A, 1A | 5.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ADUM4223ARWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
315 | 8.08 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 59ns, 59ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
|
ADUM4223BRWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
104 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|

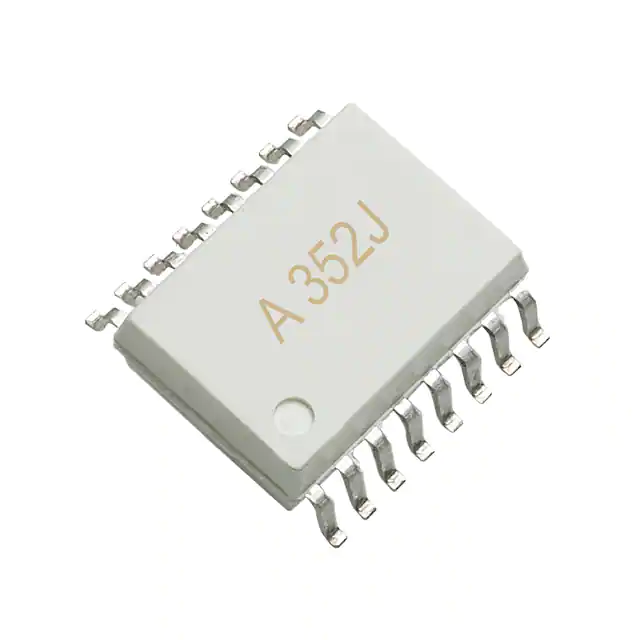

ACPL-352J-000EOPTOISO 5KV 1CH GATE DVR 16SO |
3,476 | 9.31 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 50ns | 37ns, 30ns | 4.5A, 4.5A | 5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ADUM4120CRIZDGTL ISO 5KV 1CH GATE DRVR 6SOIC |
338 | 6.43 |
|
Datasheet |
iCoupler® | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 69ns, 79ns | 16.5ns | 18ns, 18ns | - | 2.3A | - | - | 11.6V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC-IC | CSA, UR, VDE |
|
|
ADUM4120ARIZDGTL ISO 5KV 1CH GATE DRVR 6SOIC |
245 | 6.43 |
|
Datasheet |
iCoupler® | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 69ns, 79ns | 16.5ns | 18ns, 18ns | - | 2.3A | - | - | 4.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC-IC | CSA, UR, VDE |
