Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC21542DWRDGTL ISO 1.5KV 2CH GT DVR 14SOIC |
3,667 | 4.25 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 1500Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | 4A, 6A | 4A | - | - | 9.2V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, UL, VDE |
|
1EDI30I12MFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 |
2,370 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 9ns, 6ns | - | - | - | - | 13V ~ 18V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
|
|
UCC5320ECDRDGTL ISO 3KV 1CH GATE DVR 8SOIC |
2,250 | 2.61 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 72ns, 75ns | 20ns | 12ns, 10ns | 2.4A, 2.2A | 4.3A | - | - | 13.2V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|

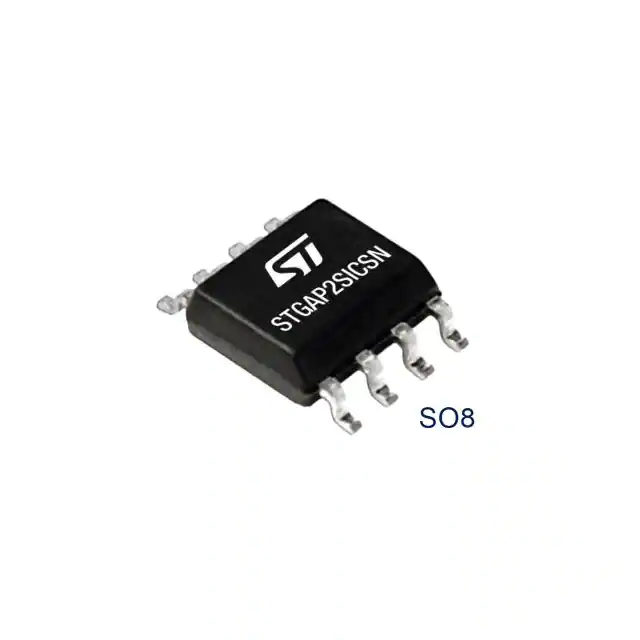

STGAP2SICSNTRDIGITAL ISO 4KV 1CH GATE DVR 8SO |
1,837 | 3.41 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 4000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 16.4V ~ 26V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | UL |
|
STGAP2SCMTRDGTL ISO 1.7KV 1CH GATE DVR 8SO |
16,806 | 2.78 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | - |
|
IS314POPTOISO 5KV 1CH GATE DVR 6SO |
2,367 | 1.95 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 70ns | 35ns, 35ns | 800mA, 800mA | 1A | 1.37V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | - |
|
|
IS480POPTOISO 5KV 1CH GATE DRIVER 6SO |
2,121 | 1.95 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 220ns | 120ns | 35ns, 35ns | 200mA, 200mA | - | 1.33V | 10 mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | - |
|
TLP352(TP1,F)OPTOISO 3.75KV 1CH GATE DVR 8SMD |
6,740 | 1.99 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 200ns, 200ns | 50ns | 15ns, 8ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD | CSA, cUL, UL |
|
UCC23313QDWYRQ1DGTL ISO 3.75KV 1CH GT DVR 6SOIC |
770 | 3.00 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A, 5.3A | 2.1V | 25 mA | 14V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SOIC | UL, VDE |
|
|
UCC23313BQDWYRQ1DGTL ISO 3.75KV 1CH GT DVR 6SOIC |
452 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A, 5.3A | 2.1V | 25 mA | 10V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SOIC | UL, VDE |
|
FOD8342TR2OPTOISO 5KV 1CH GATE DVR 6SOP |
205 | 1.69 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | UR |
|
HCPL-T251-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
3,355 | 2.45 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 1µs, 1µs | - | - | -, 100mA | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
TLP5751H(D4TP4,EOPTOISO 5KV 1CH GATE DVR 6SO |
1,600 | 1.85 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
FOD3120SDVOPTOISO 5KV 1CH GATE DVR 8SMD |
197 | 2.10 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | IEC, UL |
|
|
FOD8314OPTOISO 5KV 1CH GATE DVR 6SOP |
306 | 2.12 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 40ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 16V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | UL |
|
FOD3150OPTOISO 5KV 1CH GATE DVR 8DIP |
176 | 1.91 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UL |
|
|
UCC23511QDWYRQ1DGTL ISO 5.7KV 1CH GT DVR 6SOIC |
21,101 | 2.80 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 1A, 1A | 1.5A, 2A | 2.1V | 25 mA | 14V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SOIC | CQC, UL, VDE |
|
1ED3127MU12FXUMA1DGTL ISO 3KV 1CH GT DVR DSO8-72 |
550 | 0.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3000Vrms | 200kV/µs | 100ns, 100ns | 5ns | 30ns, 30ns (Max) | 4A, 4A | 10A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-72 | - |
|
|
TLP5752H(TP4,EOPTOISO 5KV 1CH GATE DVR 6SO |
2,882 | 1.95 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
|
2EDR9259XXUMA1DGTL ISO 5.7KV 2CH GT DVR DSO14 |
1,298 | 4.39 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5700Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL, VDE |
