Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8235AB-D-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
475 | 5.70 |
|
Datasheet |
- | 14-VFLGA | Tray | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
VOW3120-X017TOPTOISO 5.3KV 1CH GATE DVR 8SMD |
750 | 4.79 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5300Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2.5A, 2.5A | 2.5A | 1.36V | 25 mA | 15V ~ 32V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | CQC, cUR, UR VDE |
|
FDA217OPTOISO 3.75KV 2CH GATE DVR 8DIP |
513 | 4.52 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 2 | 3750Vrms | - | 2ms, 0.5ms | - | - | - | - | 1.26V | 5 mA | - | - | - | -40°C ~ 85°C | Through Hole | 8-DIP | EN, IEC, TUV |
|
ISO5452QDWRQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
3,880 | 6.76 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 50kV/µs | 110ns, 110ns | - | 18ns, 20ns | 1.5A, 3.4A | 2.7A, 5.5A | - | - | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, TUV, UL, VDE |
|
BM61M41RFV-CE2DGT ISO 3.75KV 1CH GT DVR 10SSOP |
1,365 | 4.95 |
|
Datasheet |
- | 10-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3750Vrms | 100kV/µs | 65ns, 65ns | 60ns | 15ns, 15ns | 4A, 4A | - | - | - | 9V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 10-SSOP-BW | UL |
|
NCD57001FDWR2GDGTL ISO 5KV 1CH GATE DVR 16SOIC |
118 | 5.13 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 15ns | 10ns, 15ns | - | 7.8A, 7.1A | - | 10 mA | 0V ~ 24V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 16-SOIC | UL, VDE |
|
NCD57253DWR2GDGTL ISO 5KV 2CH GATE DVR 16SOIC |
1,586 | 5.06 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 80ns, 80ns | 20ns | 12ns, 10ns | 6.5A, 3.5A, 6.5A, 3.5A | 6.5A, 3.5A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
SI8233BD-D-ISRDGTL ISO 5KV 2CH GATE DVR 16SOIC |
3,015 | 6.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8238BD-D-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
278 | 6.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82394CD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
10,066 | 6.80 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82390BD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
411 | 6.80 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82390CD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
123 | 6.80 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
BM61S41RFV-CE2DGT ISO 3.75KV 1CH GT DVR 10SSOP |
16,169 | 5.22 |
|
Datasheet |
- | 10-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3750Vrms | 100kV/µs | 65ns, 65ns | 60ns | 15ns, 15ns | 4A, 4A | - | - | - | 16V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 10-SSOP-BW | UL |
|
ACPL-333J-000EOPTOISO 5KV 1CH GATE DVR 16SO |
884 | 6.58 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ACNT-H313-000EOPTOISO 7.5KV 1CH GATE DVR 8SO |
2,790 | 7.76 |
|
Datasheet |
- | 8-SOIC (0.535", 13.60mm Width) | Bulk | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
ADUM4120-1CRIZDGTL ISO 5KV 1CH GATE DRVR 6SOIC |
3,814 | 6.43 |
|
Datasheet |
iCoupler® | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 58ns | 16.5ns | 18ns, 18ns | - | 2.3A | - | - | 11.6V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC-IC | CSA, UR, VDE |
.JPG)
|
ACNU-3430-000EOPTOISO 5KV 1CH GATE DVR 8SO |
1,553 | 7.08 |
|
Datasheet |
- | 8-SOIC (0.378", 9.60mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 20ns, 10ns | 4A, 4A | 5A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|

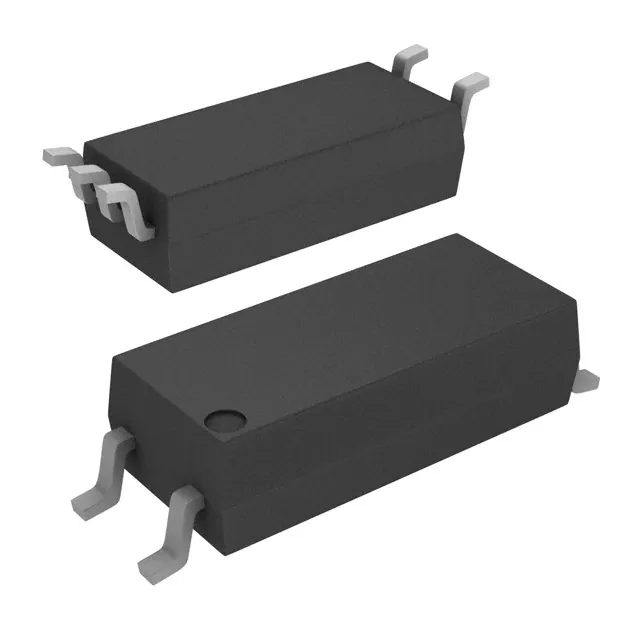

FOD8321R2OPTOISO 5KV 1CH GATE DVR 5SOP |
840 | 7.00 |
|
Datasheet |
- | 6-SOIC (0.346", 8.80mm Width), 5 Leads | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 16V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP | UL |
|
|
SI8237BD-D-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
637 | 5.20 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
ACNW3190-500EOPTOISO 5KV 1CH GATE DVR 8SO |
1,557 | 7.15 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, IEC/EN/DIN, UR |
