Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

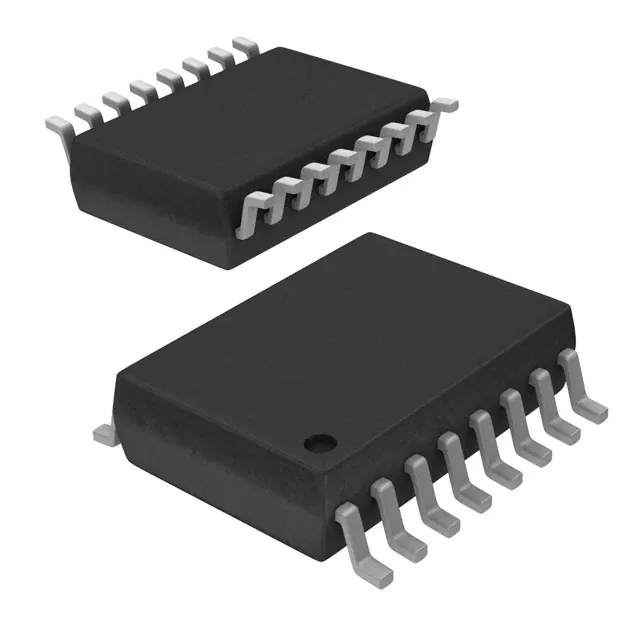

FOD8332VOPTOISO 4.243KV 1CH GT DVR 16SO |
5,317 | 8.82 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2.5A, 2.5A | 3A | 1.45V | 25 mA | 3V ~ 15V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | IEC/EN/DIN, UL |
|
|
FOD8316R2VOPTOISO 4.243KV 1CH GT DVR 16SO |
750 | 9.08 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 500ns, 500ns | 300ns | 34ns, 34ns | 2.5A, 2.5A | 3A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | IEC/EN/DIN, UL |
|
|
FOD8333R2VOPTOISO 4.243KV 1CH GT DVR 16SO |
234 | 4.61 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2.5A, 2.5A | 3A | 1.45V | 25 mA | 3V ~ 15V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | IEC/EN/DIN, UL |
|
SI8233AD-D-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
10,318 | 6.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8235AD-D-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
2,007 | 6.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8235BD-D-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
304 | 6.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
SI8274AB1-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
133 | 5.53 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
ADUM3223CRZDGTL ISO 3KV 2CH GATE DVR 16SOIC |
690 | 7.30 |
|
Datasheet |
iCoupler® | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 11.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
SI8273ABD-IS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
8,913 | 5.53 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8235AB-D-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
775 | 5.53 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8274AB4D-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
111 | 5.53 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|

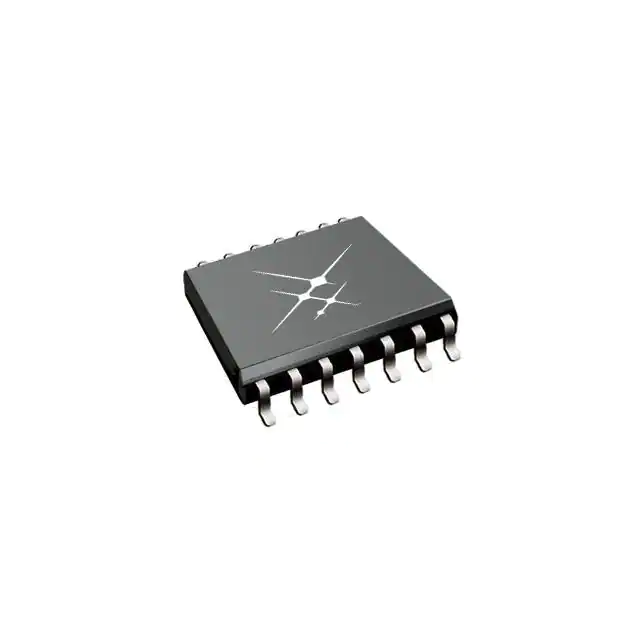

SI82393CD-IS3DGT ISO 3.25KV 2CH GT DVR 14SOIC |
462 | 6.80 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
|
|
SI82394AD-IS3DGT ISO 3.25KV 2CH GT DVR 14SOIC |
184 | 6.80 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 55ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
|
|
SI82397CD-IS3DGT ISO 3.25KV 2CH GT DVR 14SOIC |
108 | 6.80 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
|
|
ACPL-32JT-000EOPTOISO 5KV 1CH GATE DVR 16SOIC |
806 | 10.03 |
|
Datasheet |
R²Coupler™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 250ns | 140ns | 70ns, 35ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 18V ~ 22V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, IEC/EN/DIN, UR |
|
SI8234AB-D-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
313 | 5.70 |
|
Datasheet |
- | 14-VFLGA | Tray | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
ADUM1233BRWZ-RLDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,748 | 1.00 |
|
Datasheet |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 75kV/µs | 160ns, 160ns | 8ns | 25ns, 25ns (Max) | - | 100mA | - | - | 12V ~ 18V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC | UR, VDE |
|
|
SI823H8BD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC |
416 | 7.19 |
|
Datasheet |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H3AD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC |
222 | 7.19 |
|
Datasheet |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 116ns, 116ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
ADUM7223ACCZ-RL7DGTL ISO 2.5KV 2CH GT DVR 13LGA |
1,280 | 6.26 |
|
Datasheet |
iCoupler® | 13-VFLGA | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 50kV/µs | 68ns, 68ns | - | 12ns, 12ns | - | 4.5A | - | - | 4.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 13-LGA (5x5) | - |
