Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-3020-360EOPTOISO 3.75KV 1CH GT DVR 8DIP |
1,096 | 0.91 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
HCPL-3150-060EOPTOISO 3.75KV 1CH GATE DVR 8DIP |
1,529 | 1.28 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
1EDI10I12MFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 |
3,360 | 0.90 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | 9ns, 6ns | - | - | - | - | 13V ~ 18V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
|
|
1EDI05I12AFXUMA1DIGITAL ISO 1CH GATE DVR DSO8-51 |
1,634 | 1.94 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-51 | - |
|
PS9531L3-V-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
3,210 | 3.33 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD | CSA, SEMKO, UL, VDE |
|
SI8271ABD-ISRDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
2,500 | 2.10 |
|
Datasheet |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 1 | 2500Vrms | 150kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
SI8271DBD-ISRDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
2,500 | 2.10 |
|
Datasheet |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 1 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
ACPL-K312-060EOPTOISO 5KV 1CH GATE DVR 8SO |
4,973 | 1.77 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
SI8261ACD-C-ISRDGTL ISO 5KV 1CH GT DVR 6SDIP GW |
10,000 | 2.18 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 400mA, 600mA | 600mA | 2.8V (Max) | 30 mA | 13.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CQC, CSA, UR, VDE |
|
|
SI8261AAD-C-ISRDGTL ISO 5KV 1CH GT DVR 6SDIP GW |
1,000 | 2.18 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 400mA, 600mA | 600mA | 2.8V (Max) | 30 mA | 6.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CQC, CSA, UR, VDE |
|
FOD3184TSR2OPTOISO 5KV 1CH GATE DVR 8SMD |
700 | 1.87 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
|
|
ACPL-3130-360EOPTOISO 3.75KV 1CH GT DVR 8DIP |
2,233 | 2.03 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
UCC23513DWYDGTL ISO 5.7KV 1CH GT DVR 6SOIC |
4,009 | 2.95 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 3A, 3.5A | 2.1V | 25 mA | 14V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC | CQC, UL, VDE |
|
|
UCC23513BDWYDGTL ISO 5.7KV 1CH GT DVR 6SOIC |
9,996 | 2.95 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 4.5A, 5.3A | 4.5A, 5.3A | 2.1V | 25 mA | 10V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC | CQC, UL, VDE |
|
|
UCC23313DWYDGTL ISO 3.75KV 1CH GT DVR 6SOIC |
2,377 | 2.34 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 3750Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 4.5A, 5.3A | 4.5A, 5.3A | 2.1V | 16 mA | 14V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC | CQC, UL, VDE |
|
|
HCPL-3120#300OPTOISO 3.75KV 1CH GT DVR 8DIP |
3,250 | 2.25 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
UCC23511DWYDGTL ISO 5.7KV 1CH GT DVR 6SOIC |
11,934 | 2.75 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns | 1.5A, 2A | 2A, 1.5A | 2.1V | 16 mA | 14V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 6-SOIC | CQC, UL, VDE |
|
|
SI823H9AC-ISRSNGL GATE DRIVER 8SOIC |
2,500 | 2.93 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOIC | - |
|
|
SI823H9BC-ISRDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
2,500 | 2.93 |
|
Datasheet |
Si823Hx | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|

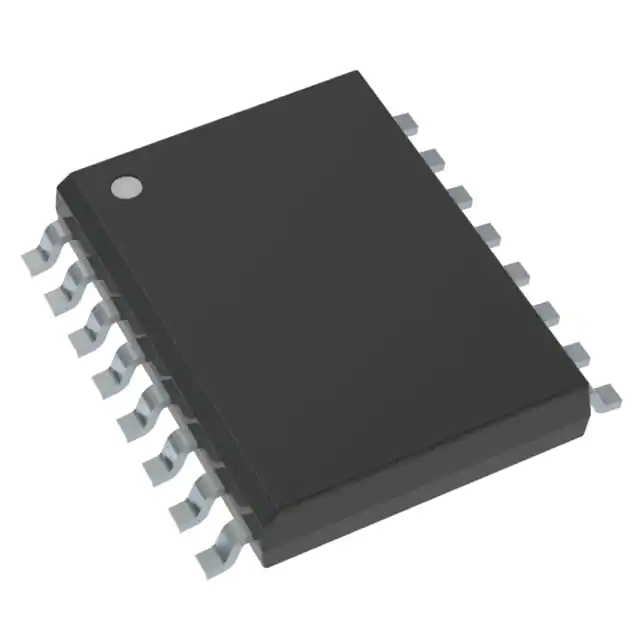

1EDS5663HXUMA1DGT ISO 5.7KV 1CH GT DVR DSO16 |
4,548 | 3.57 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Last Time Buy | Magnetic Coupling | 1 | 5700Vrms | 150V/ns | 44ns, 44ns | 18ns (Typ) | 6.5ns, 4.5ns | 4A, 8A | - | - | - | 3.13V ~ 3.47V | - | - | -40°C ~ 85°C | Surface Mount | PG-DSO-16-30 | CQC, CSA, UL, VDE |
