Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PS9331L-AXOPTOISO 5KV 1CH GATE DVR 6SDIP |
4,186 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CSA, SEMKO, UL |
|
|
PS9331L2-AXOPTOISO 5KV 1CH GATE DVR 6SDIP |
4,653 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CSA, SEMKO, UL |
|
ADUM4121-1BRIZ-RLDGTL ISO 5KV 1CH GATE DVR 8SOIC |
1,711 | 4.31 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 7.5V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
|
ADUM4121-1CRIZ-RLDGTL ISO 5KV 1CH GATE DVR 8SOIC |
1,593 | 4.31 |
|
Datasheet |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 11.6V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
PS9307AL2-AXOPTOISO 5KV 1CH GATE DVR 6SMD |
1,834 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 150ns, 150ns | 50ns | 30ns, 30ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SMD | - |
|
SI8261BBC-C-IPRDGT ISO 3.75KV 1CH GT DVR 8DIP |
1,364 | 3.93 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 1 | 3750Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 500mA, 1.2A | 4A | 2.8V (Max) | 30 mA | 9.4V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-DIP Gull Wing | CQC, CSA, UR, VDE |
|
UCC5350MCQDQ1DGTL ISO 3KV 1CH GATE DVR 8SOIC |
3,289 | 3.62 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 100ns, 100ns | 20ns | 10ns, 10ns | 5A, 5A | 10A | - | - | 13.2V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
ADUM1420BRWZDGT ISO 1.667KV GT DVR 28SOIC |
3,392 | 3.50 |
|
Datasheet |
iCoupler® | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | 4 | 1667Vrms | 75kV/µs | 128ns, 128ns | 8ns | 25ns, 25ns (Max) | - | 100mA | - | - | 12V ~ 18V | - | - | -40°C ~ 105°C | Surface Mount | 28-SOIC | - |
|
|
UCC21541DWDGTL ISO 5.7KV 2CH GT DVR 16SOIC |
15,665 | 4.25 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 40ns, 40ns | 6.5ns | 8ns, 9ns | - | 1.5A, 2.5A | - | - | 9.2V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
UCC5350MCQDWVQ1DGTL ISO 5KV 1CH GATE DVR 8SOIC |
644 | 2.71 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 100ns, 100ns | 20ns | 10ns, 10ns | 5A, 5A | 5A | - | - | 13.2V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
ACPL-P347-500EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
2,000 | 1.57 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
ACNW3430-300EOPTOISO 5KV 1CH GATE DVR 8SMD GW |
2,458 | 3.55 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 80ns | 20ns, 10ns | 4A, 4A | 5A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SMD Gull Wing | CSA, IEC/EN/DIN, UR |
|
|
ADUM3220WARZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC |
1,114 | 3.95 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|

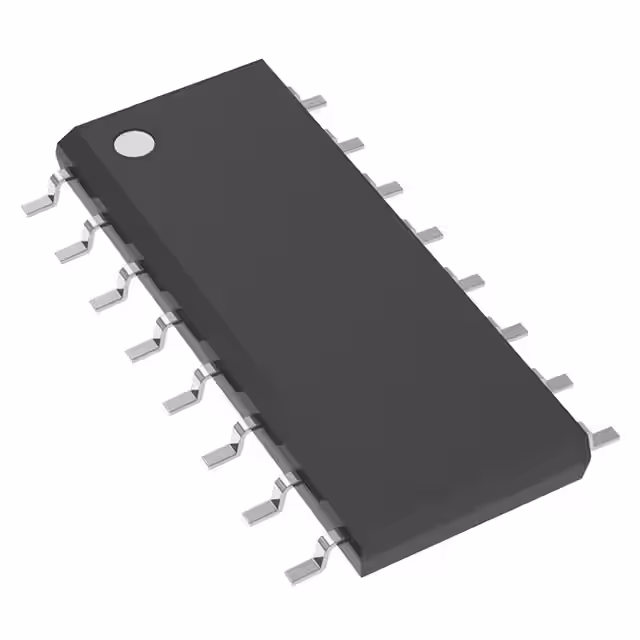

UCC21220DDGTL ISO 3KV 2CH GATE DVR 16SOIC |
1,910 | 4.67 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Last Time Buy | Capacitive Coupling | 2 | 3000Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | 4A, 6A | - | - | - | 9.2V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
UCC21220ADDGTL ISO 3KV 2CH GATE DVR 16SOIC |
990 | 4.67 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Last Time Buy | Capacitive Coupling | 2 | 3000Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | - | 4A, 6A | - | - | 6V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
ADUM4224WBRWZ-RLDGTL ISO 5KV 2CH GATE DVR 16SOIC |
1,199 | 4.82 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5000Vrms | 25kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | - |
|
|
NSI6602VB-DSWR2-CHANNEL ISO GATE DRIVER |
685 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Cut Tape (CT) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 35ns, 35ns | 8ns | 15ns, 15ns | 6A, 8A | - | - | - | 8.9V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21540DWDGTL ISO 5.7KV 2CH GT DVR 16SOIC |
263 | 5.10 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 40ns, 40ns | 5.5ns | 5ns, 6ns | - | 4A, 6A | - | - | 9.2V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, UL, VDE |
|
|
PS9331L2-V-AXOPTOISO 5KV 1CH GATE DVR 6SDIP |
1,651 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CSA, SEMKO, UL, VDE |
|
|
NSI6602VB-DSWKR2-CHANNEL ISO GATE DRIVER |
956 | 0.00 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Cut Tape (CT) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 35ns, 35ns | 8ns | 15ns, 15ns | 6A, 8A | - | - | - | 8.9V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
