LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMB1507-R108-000F0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
1,014 | 0.00 |
|
Datasheet |
XLamp® CMB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 945lm | 400mA | 85°C | 16.8V | 141 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMA1306-0000-00PF0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
100 | 0.00 |
|
Datasheet |
XLamp® CMA1306 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 888lm | 400mA | 85°C | 18V | 123 lm/W | 1.2A | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CMA1306-0000-00PF0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
2,702 | 0.00 |
|
Datasheet |
XLamp® CMA1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 868lm | 400mA | 85°C | 18V | 121 lm/W | 1.2A | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CMA1306-0000-00PC0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
4,901 | 0.00 |
|
Datasheet |
XLamp® CMA1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 868lm | 800mA | 85°C | 9V | 121 lm/W | 2.4A | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
SPHWHAHDNE25YZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
3,433 | 5.43 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2478lm (Typ) | 450mA | 85°C | 33.6V | 164 lm/W | 1.15A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
CXA1512-0000-000N0YJ230GLED COB XLAMP WARM WHT SQ 3000K |
4,444 | 4.06 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CLU02Q-1204E1-352M2X2LED COB CLU02Q WARM WHT SQ 3500K |
1,488 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2072lm (Typ) | 360mA | 85°C | 33.8V | 158 lm/W | 920mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|

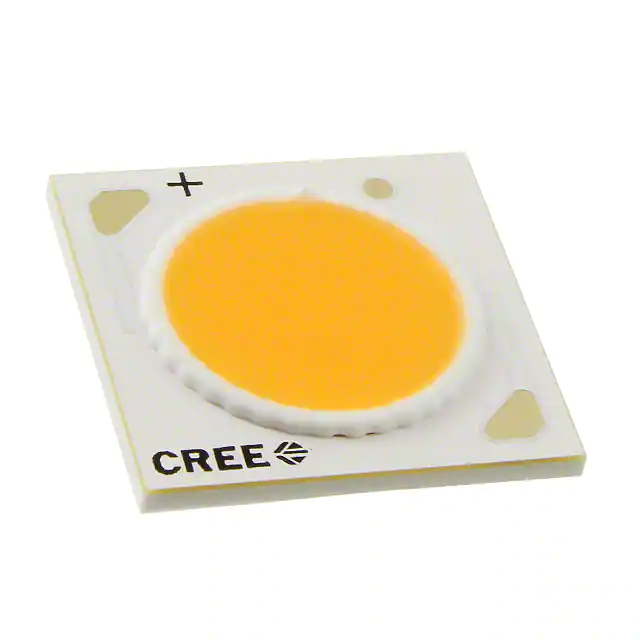

CXA1820-0000-000N0HQ450FLED COB XLAMP COOL WHT SQU 5000K |
3,125 | 4.12 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2780lm) | 550mA | 85°C | 37V | 115 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
SPHWHAHDNH27YZW3DCLED COB D GEN3 WARM WHT SQ 2700K |
2,341 | 6.96 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3955lm (Typ) | 900mA | 85°C | 33.7V | 131 lm/W | 1.8A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
LST1-01F05-3070-01LED MOD OSLON WHT STARBRD 3000K |
3,927 | 5.07 |
|
Datasheet |
OSLON® SSL 80 | Tray | Not For New Designs | LED Module | White, Warm | 3000K | - | Starboard | 130lm (Typ) | 350mA | - | 3.2V | 130 lm/W | 1.3A | 70 | - | - | 19.89mm Dia | 1.70mm | - | Domed |
|
|
CLU7A3-1201E1-273H5X3LED COB CLU7A3 WARM WHT SQ 2700K |
1,752 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 730lm | 175mA | 85°C | 36.5V | 107 lm/W | 300mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU7A3-1201E1-273M2X2LED COB CLU7A3 WARM WHT SQ 2700K |
3,297 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 852lm | 175mA | 85°C | 36.5V | 125 lm/W | 300mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU7A3-1201E1-243H5X3LED COB CLU7A3 WARM WHT SQ 2400K |
3,968 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 2400K 3-Step MacAdam Ellipse | - | Square | 673lm (Typ) | 175mA | 85°C | 36.5V | 98 lm/W | 300mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CMB1510-R108-000N0H0A27GLED COB XLAMP NEUT WHT SQU 2700K |
4,384 | 0.00 |
|
Datasheet |
XLamp® CMB1510 | Tray | Active | Chip On Board (COB) | White, Neutral | 2700K 3-Step MacAdam Ellipse | - | Square | 1711lm | 350mA | 85°C | 34V | 144 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1510-R108-000N0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
2,935 | 0.00 |
|
Datasheet |
XLamp® CMB1510 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1831lm | 350mA | 85°C | 34V | 154 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMT1412-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
2,167 | 5.40 |
|
Datasheet |
XLamp® CMT1412 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1641lm (Typ) | 350mA | 85°C | 34.5V | 136 lm/W | 630mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CLU7A3-1201E1-303H7X5LED COB CLU7A3 WM WHT SQ 3000K |
2,064 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 682lm (Typ) | 175mA | 85°C | 36.5V | 100 lm/W | 300mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CXA1512-0000-000F00K227FLED COB XLAMP WARM WHT SQU 2700K |
4,964 | 4.58 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CLU02Q-1203E1-302H7X5LED COB CLU02Q WARM WHT SQ 3000K |
2,230 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1191lm (Typ) | 270mA | 85°C | 33.8V | 121 lm/W | 690mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CMB1516-R108-000N0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
1,878 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2372lm | 450mA | 85°C | 34V | 155 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
