LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB3590-0000-000N0HCD50ELED COB XLAMP COOL WHT SQU 5000K |
4,011 | 33.14 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
BXRC-50G10K1-C-83LED COB VERO 29C WHT ROUND 5000K |
4,077 | 41.31 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 14439lm (Typ) | 1.3A | 25°C | 66.7V | 167 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-65E10K1-C-83LED COB VERO 29C WHT ROUND 6500K |
1,668 | 41.31 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 16232lm (Typ) | 1.3A | 25°C | 66.7V | 187 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
CLU05Q-1825E1-503L7X4LED COB CLU05Q COOL WHT SQ 5000K |
1,029 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 21028lm (Typ) | 2.25A | 85°C | 50.7V | 172 lm/W | 5.75A | 70 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-1825E1-352M2X2LED COB CLU05Q WARM WHT SQ 3500K |
4,417 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 19501lm (Typ) | 2.25A | 85°C | 50.7V | 160 lm/W | 5.75A | 80 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXB3590-0000-000N0HCD40GLED COB XLAMP NEUT WHT SQU 4000K |
2,652 | 37.56 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
AB-FA01240-19712-8A1LED MOD AB-FA WH LNR STRP 4000K |
3,901 | 49.88 |
|
Datasheet |
AB-FA | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 720lm | 660mA | 25°C | 12V | 91 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|

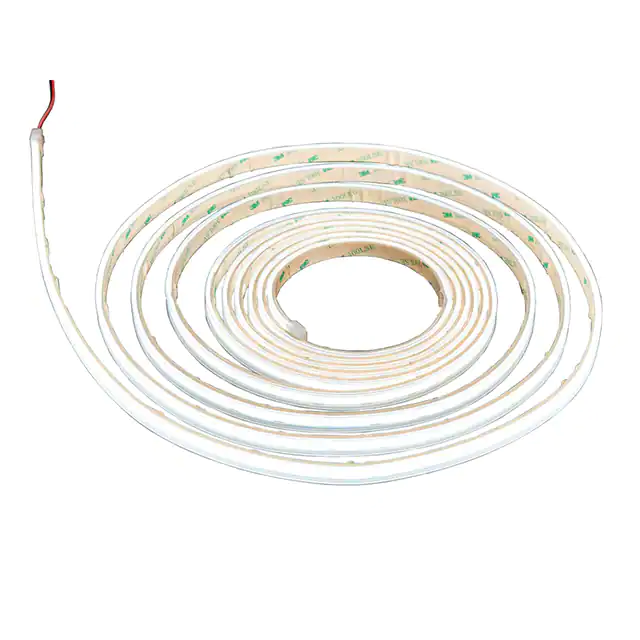

4839LED COB CL WHT LNR STRIP 6500K |
2,102 | 49.95 |
|
Datasheet |
- | Bulk | Active | Chip On Board (COB) | White, Cool | 6500K | - | Linear Light Strip, Flexible | 1100lm | - | - | 9V ~ 12V | - | - | 90 | 180° | IP20, IP65 | 5000.00mm L x 8.00mm W | - | - | Flat |
|
4840LED COB WM WHT LNR STRP 3000K |
4,222 | 49.95 |
|
Datasheet |
- | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K | - | Linear Light Strip, Flexible | 1100lm | - | - | 9V ~ 12V | - | - | 90 | 180° | IP20, IP65 | 5000.00mm L x 8.00mm W | - | - | Flat |
|
AB-FC02465-19712-8A1LED MOD AB-FC WH LNR STRP 6500K |
4,679 | 54.37 |
|
Datasheet |
AB-FC | Bag | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 760lm | 330mA | - | 24V | 96 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC012BL-19712-XA1LED MOD AB-FC BLUE LNR STRIP |
3,891 | 53.57 |
|
Datasheet |
AB-FC | Bag | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 152lm | 660mA | - | 12V | 19 lm/W | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC01230-19712-8A1LED MOD AB-FC WH LNR STRP 3000K |
1,802 | 54.37 |
|
Datasheet |
AB-FC | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 720lm | 660mA | - | 12V | 91 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC01240-19712-8A1LED MOD AB-FC WH LNR STRP 4000K |
4,765 | 53.57 |
|
Datasheet |
AB-FC | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 720lm | 660mA | - | 12V | 91 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC02440-19712-8A1LED MOD AB-FC WH LNR STRP 4000K |
3,549 | 53.57 |
|
Datasheet |
AB-FC | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 760lm | 330mA | - | 24V | 96 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC024BL-19712-XA1LED MOD AB-FC BLUE LNR STRIP |
1,774 | 57.05 |
|
Datasheet |
AB-FC | Bag | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 152lm | 330mA | - | 24V | 19 lm/W | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
AB-FA02408-19712-8A1LED MOD AB-FA RGBW LNR STRIP |
3,608 | 76.72 |
|
Datasheet |
AB-FA | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 523nm Green, 468nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 590mA Red, 590mA Green, 590mA Blue, 590mA White | - | 24V | 6 lm/W Red, 16 lm/W Green, 4 lm/W Blue, 24 lm/W White | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | - | - | Flat |
|
AB-FA01206-19712-XA2LED MOD AB-FA RGB LNR STRIP |
1,578 | 72.90 |
|
Datasheet |
AB-FA | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | 25°C | 12V | - | - | - | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|

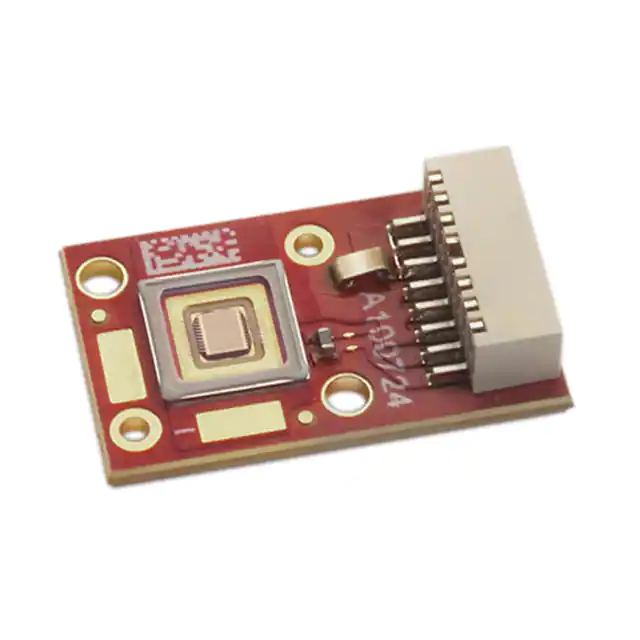

PT-39-DR-L51-BD100LED MOD PT-39 RED RECT |
1,527 | 72.97 |
|
Datasheet |
PT-39 | Tray | Active | LED Module | Red | - | - | Rectangle | 2700mW (2600mW ~ 2800mW) | 7.5A | 40°C | 2.3V | - | 10A | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.87mm L x 2.09mm W | Flat |
|
|

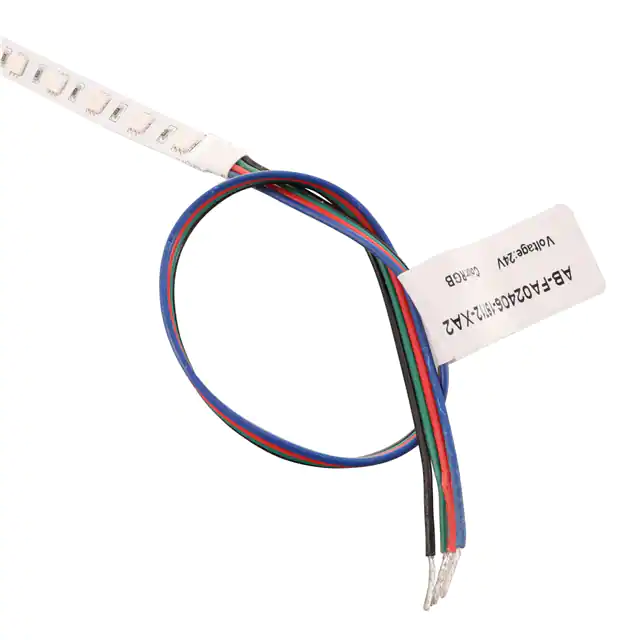

AB-FA02406-19712-XA2LED MOD AB-FA RGB LNR STRIP |
1,699 | 72.90 |
|
Datasheet |
AB-FA | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | - | 25°C | 24V | - | - | - | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
|
ZFS-105000-24NWLED NEUT WHT LNR LGT STRIP 4250K |
2,727 | 0.00 |
|
Datasheet |
- | Bulk | Active | LED Module | White, Neutral | 4250K | - | Linear Light Strip, Flexible | 9120lm (Typ) | - | 25°C | 24V | - | 2.5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
