LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMT2850-0000-000N0Z0AL5ALED COB XLAMP NEUT WHT SQU 4000K |
3,030 | 0.00 |
|
Datasheet |
XLamp® CMT2850 | Bulk | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5739lm (Typ) | 1.4A | 85°C | 33.8V | 121 lm/W | 3.5A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.45mm | 22.00mm Dia | Flat |
|
|
CXB3050-0000-000N0UX440QLED COB XLAMP NEUT WHT SQ 4000K |
3,473 | 0.00 |
|
- |
XLamp® CXB3050 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 6220lm (6010lm ~ 6430lm) | 1.4A | 85°C | 34V | 131 lm/W | 2.5A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
PTM-40X-RA-L34-MPMIC |
3,273 | 0.00 |
|
- |
PTM-40X-RA | Tray | Active | LED Module | Amber-Red | - | 615nm (609nm ~ 620nm) | Rectangle | 1855lm (1530lm ~ 2180lm) | 8A | 25°C | 7.1V | 33 lm/W | 6A | - | - | - | 27.00mm L x 15.50mm W | 1.52mm | 1.55mm L x 2.70mm W | Flat |
|
|
CLU044-1212B8-42GV1F6LED COB VIVID WHITE SQUARE |
4,946 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Chip On Board (COB) | - | - | - | Square | 4289lm (Typ) | 1.08A | 25°C | 35.7V | 111 lm/W | 2.16A | 94 (Typ) | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU044-1212B8-34GV1F6LED COB WARM WHT SQUARE |
1,913 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Chip On Board (COB) | White, Warm | - | - | Square | 4030lm (Typ) | 1.08A | 25°C | 35.7V | 105 lm/W | 2.16A | 95 (Typ) | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|

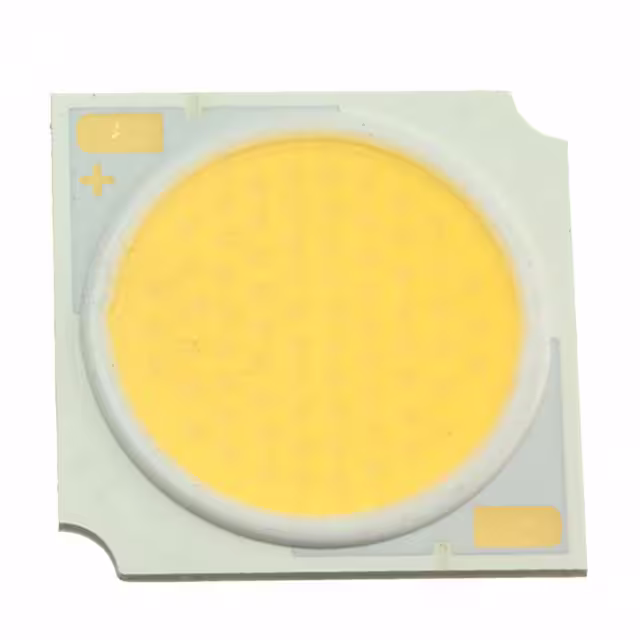

CLU044-1212B8-32GV1F6LED COB WARM WHT SQUARE |
1,725 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Chip On Board (COB) | White, Warm | - | - | Square | 3948lm (Typ) | 1.08A | 25°C | 35.7V | 102 lm/W | 2.16A | 95 (Typ) | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CMU2258-R040-000P0H0A30HLED COB XLAMP WARM WHT SQU 3000K |
1,890 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8651lm (Typ) | 1.08A | 85°C | 50.5V | 159 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2258-R040-000P0H0A35HLED COB XLAMP WARM WHT SQU 3500K |
3,273 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 8797lm (Typ) | 1.08A | 85°C | 50.5V | 161 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2258-R040-000P0H0A27HLED COB XLAMP WARM WHT SQU 2700K |
1,696 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 8292lm (Typ) | 1.08A | 85°C | 50.5V | 152 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2258-R040-000P0H0A40HLED COB XLAMP NEUT WHT SQU 4000K |
1,660 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 8870lm (Typ) | 1.08A | 85°C | 50.5V | 163 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0H0A22GLED COB XLAMP WARM WHT SQU 2200K |
2,214 | 17.14 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 10656lm (Typ) | 1.62A | 85°C | 50.5V | 130 lm/W | 4.32A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A31QLED COB XLAMP WARM WHT SQ 3100K |
1,088 | 17.14 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3100K 3-Step MacAdam Ellipse | - | Square | 10480lm (Typ) | 1.62A | 85°C | 50.5V | 128 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A27HLED COB XLAMP WARM WHT SQU 2700K |
1,801 | 17.14 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 10549lm (Typ) | 1.62A | 85°C | 50.5V | 129 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A35HLED COB XLAMP WARM WHT SQU 3500K |
4,743 | 17.14 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 11135lm (Typ) | 1.62A | 85°C | 50.5V | 136 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A40HLED COB XLAMP NEUT WHT SQU 4000K |
1,311 | 17.14 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 11140lm (Typ) | 1.62A | 85°C | 50.5V | 136 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A30QLED COB XLAMP WARM WHT SQ 3000K |
3,325 | 17.14 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 10755lm (Typ) | 1.62A | 85°C | 50.5V | 131 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A30ULED COB XLAMP WARM WHT SQ 3000K |
3,692 | 17.14 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 10316lm (Typ) | 1.62A | 85°C | 50.5V | 126 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-00PP0U0A50GXLAMP CMU LED WHITE PRO9 |
3,485 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 13517lm (Typ) | 1.62A | 85°C | 50.5V | 165 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-00PP0U0A35GXLAMP CMU LED WHITE PRO9 |
1,351 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 13557lm (Typ) | 1.62A | 85°C | 50.5V | 166 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-00PP0U0A30GXLAMP CMU LED WHITE PRO9 |
3,302 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 13361lm (Typ) | 1.62A | 85°C | 50.5V | 163 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
