LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-40C10K1-C-83-SELED COB VERO SE 29C WH RND 4000K |
1,025 | 41.47 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 17227lm (Typ) | 1.3A | 25°C | 66.7V | 199 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
CXM-32-27-80-54-AC30-F4-3LED COB CXM-32 GEN3 WHT SQ 2700K |
2,165 | 35.35 |
|
Datasheet |
CXM-32 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 16370lm (Typ) | 2.2A | 85°C | 51V | 146 lm/W | 4.5A | 80 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
CMA3090-0000-000Q0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
2,564 | 30.00 |
|
Datasheet |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9909lm (Typ) | 1.8A | 85°C | 45V | 122 lm/W | 3.6A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,565 | 30.00 |
|
Datasheet |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 10652lm (Typ) | 1.8A | 85°C | 45V | 132 lm/W | 3.6A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
CXB3590-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
1,687 | 0.00 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 2.4A | 85°C | 36V | - | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-00PR0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
3,336 | 0.00 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 1.2A | 85°C | 72V | - | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CMA3090-0000-000R0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
2,126 | 30.00 |
|
Datasheet |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 11720lm (Typ) | 1.2A | 85°C | 68V | 144 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXB3590-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,733 | 0.00 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 2.4A | 85°C | 36V | - | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CMA3090-0000-000R0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,077 | 30.00 |
|
Datasheet |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12372lm (Typ) | 1.2A | 85°C | 68V | 152 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
CLU048-1818C4-403M2K1LED COB CLU048 NEUT WHT SQ 4000K |
4,515 | 53.29 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12249lm (Typ) | 1.62A | 85°C | 52V | 145 lm/W | 4.14A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
BXRC-40G10K0-C-83LED COB VERO 29C WHT ROUND 4000K |
4,500 | 39.35 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13778lm (Typ) | 1.3A | 25°C | 66.7V | 159 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
CLU048-1818C4-50AL7K3LED COB CLU048 COOL WHT SQ 5000K |
2,271 | 42.50 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 13162lm (Typ) | 1.62A | 85°C | 52V | 156 lm/W | 4.14A | 70 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|

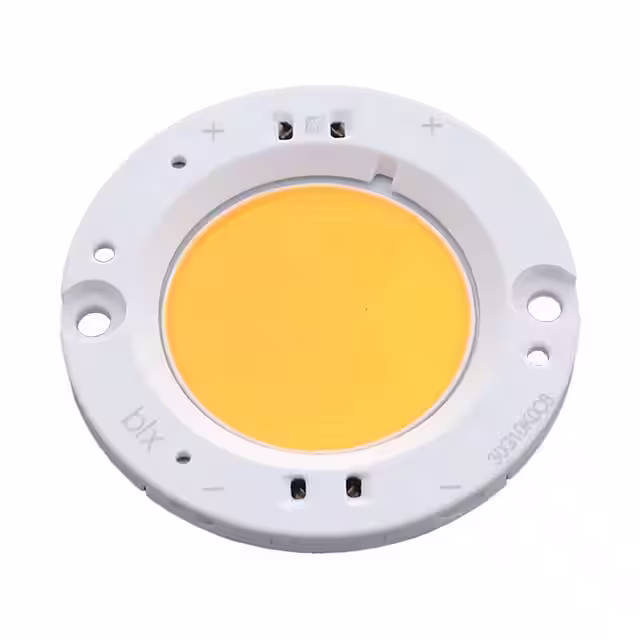

BXRC-30G10K0-C-83-SELED COB VERO SE29C WH RND 3000K |
2,794 | 39.46 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12991lm (Typ) | 1.3A | 25°C | 66.7V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-35E10K0-C-83-SELED COB VERO SE 29C WH RND 3500K |
3,800 | 39.46 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 16379lm (Typ) | 1.3A | 25°C | 66.7V | 189 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
CMB3090-R050-000R0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
3,281 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9381lm | 1.2A | 85°C | 68.1V | 115 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-R050-000Q0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
2,694 | 0.00 |
|
Datasheet |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9381lm | 1.8A | 85°C | 45.4V | 115 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-00PQ0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
4,104 | 0.00 |
|
Datasheet |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 11382lm | 1.8A | 85°C | 45V | 141 lm/W | 3.6A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-00PQ0U0A30GLED COB XLAMP WARM WHT SQU 3000K |
3,825 | 0.00 |
|
Datasheet |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 11134lm | 1.8A | 85°C | 45V | 137 lm/W | 3.6A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
L2C5-SPR11825G3200LED COB SUNPLUS COB PINK SQU |
3,840 | 57.87 |
|
Datasheet |
SunPlus CoB Line Horticulture | Bulk | Active | Chip On Board (COB) | Pink | - | - | Square | - | 2.25A | 85°C | 51.7V | - | 4.5A | - | 115° | - | 38.00mm L x 38.00mm W | 1.50mm | 32.00mm Dia | Flat |
|
L2C5-SPP11825G3200LED COB SUNPLUS COB VIOLET SQU |
2,576 | 58.07 |
|
Datasheet |
SunPlus CoB Line Horticulture | Bulk | Active | Chip On Board (COB) | Violet | - | - | Square | - | 2.25A | 85°C | 51.7V | - | 4.5A | - | 115° | - | 38.00mm L x 38.00mm W | 1.50mm | 32.00mm Dia | Flat |
