LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU2258-0000-000P0Z0A40HLED COB XLAMP NEUT WHT SQU 4000K |
2,573 | 18.14 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 6896lm (Typ) | 1.08A | 85°C | 50.5V | 126 lm/W | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

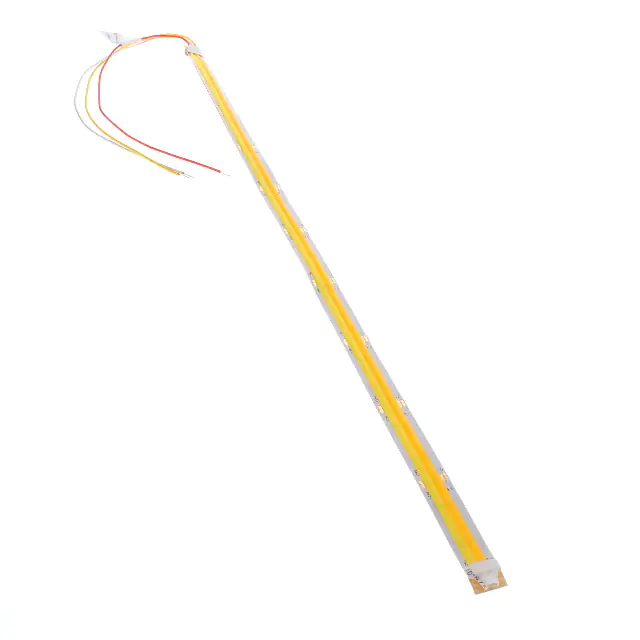

AB-FO02401-02012-9A1LED COB AB-FO WH LNR STRP 6500K |
1,898 | 0.00 |
|
Datasheet |
AB-FO | Bag | Active | Chip On Board (COB) | White, Warm / White, Cool | 3000K ~ 6500K | - | Linear Light Strip, Flexible | 840lm Warm White, 960lm Cool White | 250mA | - | 24V | 70 lm/W Warm White, 80 lm/W Cool White | - | 90 | 150° | IP65 | 508.00mm L x 14.00mm W | 2.20mm | - | Flat |
|
|
CMB2550-R060-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
1,105 | 0.00 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5665lm | 1.4A | 85°C | 34V | 119 lm/W | 3.6A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMU2287-0000-000P0H0A30HLED COB XLAMP WARM WHT SQU 3000K |
3,192 | 19.20 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 12625lm (Typ) | 1.62A | 85°C | 50.5V | 154 lm/W | 4.32A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
BXRC-30G10K0-B-73LED COB VERO 29 WM WH RND 3000K |
4,057 | 23.56 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12437lm (Typ) | 1.8A | 25°C | 52V | 133 lm/W | 3.6A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
L2C5-SPP11211E1900LED COB SUNPLUS COB VIOLET SQU |
1,486 | 34.01 |
|
Datasheet |
SunPlus CoB Line Horticulture | Bulk | Active | Chip On Board (COB) | Violet | - | - | Square | - | 1.2A | 85°C | 34.8V | - | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 19.00mm Dia | Flat |
|
BXRC-20B10K1-D-73LED COB VERO 29 WM WHT RND 2000K |
3,621 | 24.74 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 11793lm (Typ) | 2.1A | 25°C | 37.6V | 149 lm/W | 4.2A | 65 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-35E10K0-C-73-SELED COB VERO SE 29 WHT RND 3500K |
3,650 | 25.40 |
|
Datasheet |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 19463lm (Typ) | 1.71A | 25°C | 69.4V | 164 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-30G10K0-C-73-SELED COB VERO WHT RND 3000K |
4,624 | 25.40 |
|
Datasheet |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 15784lm (Typ) | 1.71A | 25°C | 69.4V | 133 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
CLU048-1212C4-353H5K2LED COB CLU048 WARM WHT SQ 3500K |
2,540 | 28.93 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4682lm (Typ) | 1.08A | 85°C | 34.6V | 125 lm/W | 2.76A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-303H7K4LED COB CLU048 WM WHT SQ 3000K |
4,951 | 28.93 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4191lm (Typ) | 1.08A | 85°C | 34.6V | 112 lm/W | 2.76A | 97 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-403M2K1LED COB CLU048 NEUT WHT SQ 4000K |
1,218 | 28.93 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5734lm (Typ) | 1.08A | 85°C | 34.6V | 153 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLM-22-HS-11-36-AC30-P1-7LED COB CLM22 HORT WHITE SQU |
4,369 | 27.89 |
|
Datasheet |
CLM-22 Horticulture | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 1.1A | 85°C | 34.7V | - | 2.2A | - | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
BXRC-17E10K0-C-74-SELED COB VERO SE 29 WHT RND 1750K |
4,590 | 26.67 |
|
Datasheet |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 10443lm (Typ) | 1.71A | 25°C | 69.4V | 88 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
CLU048-1812C4-403M2K1LED COB CLU048 NEUT WHT SQ 4000K |
2,774 | 41.45 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8392lm (Typ) | 1.08A | 85°C | 52V | 149 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
CXM-22-50-70-54-AC30-F4-3LED COB CXM-22 GEN3 WHT SQ 5000K |
3,533 | 28.99 |
|
Datasheet |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9425lm (Typ) | 1.1A | 85°C | 51V | 168 lm/W | 2.4A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
BXRC-27G1KH0-C-83-SELED COB VERO SE 29C WH RND 2700K |
3,710 | 39.46 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12962lm (Typ) | 1.3A | 25°C | 66.7V | 149 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-27E10K0-C-83-SELED COB VERO SE 29C WH RND 2700K |
3,641 | 39.46 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 15062lm (Typ) | 1.3A | 25°C | 66.7V | 174 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
CXA3070-0000-000N00Z240FLED COB XLAMP NEUT WHT SQU 4000K |
2,748 | 27.68 |
|
Datasheet |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.925A | 85°C | 38.5V | 103 lm/W | 2.8A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 23.00mm Dia | Flat |
|
SI-B8UZ91B20WWLED MOD F-SER GEN3 LNR STR 3500K |
1,687 | 40.23 |
|
Datasheet |
F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 17600lm (15840lm ~ 19555lm) | 2.24A | 65°C | 46V | 171 lm/W | 3.6A | 80 | - | - | 1120.00mm L x 39.80mm W | 5.20mm | - | Flat |
