LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000N00BD50HLED COB XLAMP COOL WHT SQU 5000K |
1,004 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N0HAD40HLED COB XLAMP NEUT WHT SQU 4000K |
3,244 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N0HBB50HLED COB XLAMP COOL WHT SQU 5000K |
4,209 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|

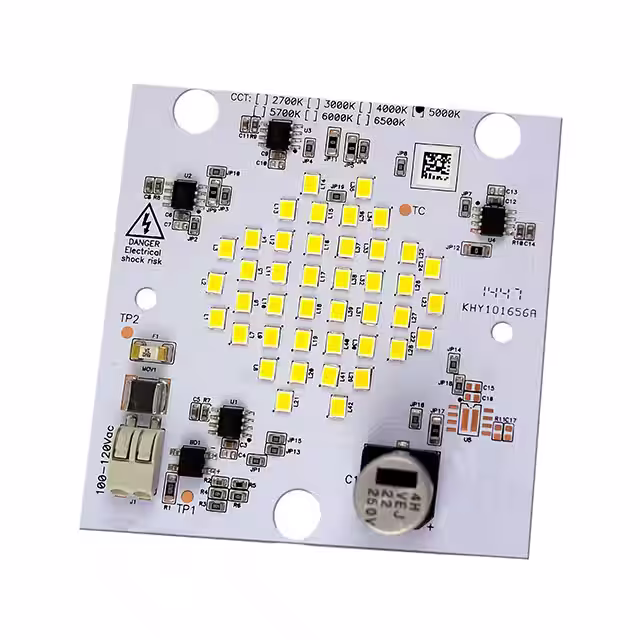

AB-GES-R08136W401N2LED ENG AB-GES WH SQUARE 4000K |
2,314 | 33.76 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K | - | Square | 3600lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 78.40mm L x 78.40mm W | - | - | Flat |
|
AB-GES-C14224W401N2LED ENG AB-GES NEUT WH RND 4000K |
1,945 | 27.78 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 2700lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 140.00mm Dia | - | - | Flat |
|
|
CXM-32-35-90-54-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
1,780 | 0.00 |
|
Datasheet |
CXM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 17120lm (Typ) | 2.4A | 85°C | 50.8V | 140 lm/W | 5A | 90 | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 32.80mm Dia | Flat |
|
|
CXM-32-65-80-54-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
2,069 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-32-35-80-54-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
4,003 | 0.00 |
|
Datasheet |
CXM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 20150lm (Typ) | 2.4A | 85°C | 50.8V | 165 lm/W | 5A | 80 | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 32.80mm Dia | Flat |
|
CXA3070-0000-000N00AB35GLED COB XLAMP WARM WHT SQU 3500K |
4,808 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.9A | 85°C | 36V | 128 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N00Z427GLED COB XLAMP WARM WHT SQU 2700K |
3,033 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.9A | 85°C | 36V | 120 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0HAD40GLED COB XLAMP NEUT WHT SQU 4000K |
3,740 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.9A | 85°C | 36V | 135 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0UY440GLED COB XLAMP NEUT WHT SQU 4000K |
4,603 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 7150lm (6910lm ~ 7390lm) | 1.9A | 85°C | 36V | 105 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0UZ250GLED COB XLAMP COOL WHT SQU 5000K |
2,796 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.9A | 85°C | 36V | 112 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0YX427GLED COB XLAMP WARM WHT SQU 2700K |
3,171 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.9A | 85°C | 36V | 91 lm/W | 2.8A | 93 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0YY230GLED COB XLAMP WARM WHT SQ 3000K |
2,469 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.9A | 85°C | 36V | 98 lm/W | 2.8A | 93 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0YY235GLED COB XLAMP WARM WHT SQU 3500K |
1,833 | 32.50 |
|
Datasheet |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.9A | 85°C | 36V | 98 lm/W | 2.8A | 93 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXM-32-35-95-54-TC60-F7-2CXM-32-35-95-54-TC60-F7-2 |
4,759 | 0.00 |
|
Datasheet |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 16660lm (Typ) | 2.4A | 85°C | 50.2V | 138 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-27-95-54-TC60-F7-2CXM-32-27-95-54-TC60-F7-2 |
1,294 | 0.00 |
|
Datasheet |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 15120lm (Typ) | 2.4A | 85°C | 50.2V | 125 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-30-90-54-TC62-F7-2CXM-32-30-90-54-TC62-F7-2 |
3,194 | 0.00 |
|
Datasheet |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 18230lm (Typ) | 2.4A | 85°C | 50.2V | 151 lm/W | 5.6A | 90 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-35-90-54-TC64-F7-2CXM-32-35-90-54-TC64-F7-2 |
3,088 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
