LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-32-40-95-54-TC60-F7-2CXM-32-40-95-54-TC60-F7-2 |
4,858 | 0.00 |
|
Datasheet |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 17560lm (Typ) | 2.4A | 85°C | 50.2V | 146 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-30-95-54-TC60-F7-2CXM-32-30-95-54-TC60-F7-2 |
2,029 | 0.00 |
|
Datasheet |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 15950lm (Typ) | 2.4A | 85°C | 50.2V | 132 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-50-95-54-TC60-F7-2CXM-32-50-95-54-TC60-F7-2 |
2,570 | 0.00 |
|
Datasheet |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 18410lm (Typ) | 2.4A | 85°C | 50.2V | 153 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-35-90-54-TC62-F7-2CXM-32-35-90-54-TC62-F7-2 |
1,764 | 0.00 |
|
Datasheet |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 18690lm (Typ) | 2.4A | 85°C | 50.2V | 155 lm/W | 5.6A | 90 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CMT2890-0000-000P0U0A30ULED COB XLAMP WARM WHT SQ 3000K |
4,111 | 0.00 |
|
Datasheet |
XLamp® CMT2890 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9875lm (Typ) | 1.6A | 85°C | 51.2V | 121 lm/W | 3.3A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.45mm | 22.00mm Dia | Flat |
|
|
CMT2890-0000-000P0U0A30QLED COB XLAMP WARM WHT SQU 3000K |
2,264 | 0.00 |
|
Datasheet |
XLamp® CMT2890 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9875lm (Typ) | 1.6A | 85°C | 51.2V | 121 lm/W | 3.3A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.45mm | 22.00mm Dia | Flat |
|
|
CMT2890-0000-000P0U0A31QLED COB XLAMP WARM WHT SQ 3100K |
1,987 | 0.00 |
|
Datasheet |
XLamp® CMT2890 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3100K 3-Step MacAdam Ellipse | - | Square | 9875lm (Typ) | 1.6A | 85°C | 51.2V | 121 lm/W | 3.3A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.45mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-00PP0Z0AL7CXLAMP CMU LED WHITE PRO9 |
2,144 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 11978lm (Typ) | 1.62A | 85°C | 50.5V | 146 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXA3590-0000-000R0YZ430HLED COB XLAMP WARM WHT SQU 3000K |
3,760 | 40.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8073lm (7945lm ~ 8500lm) | 1.2A | 85°C | 77V | 87 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|

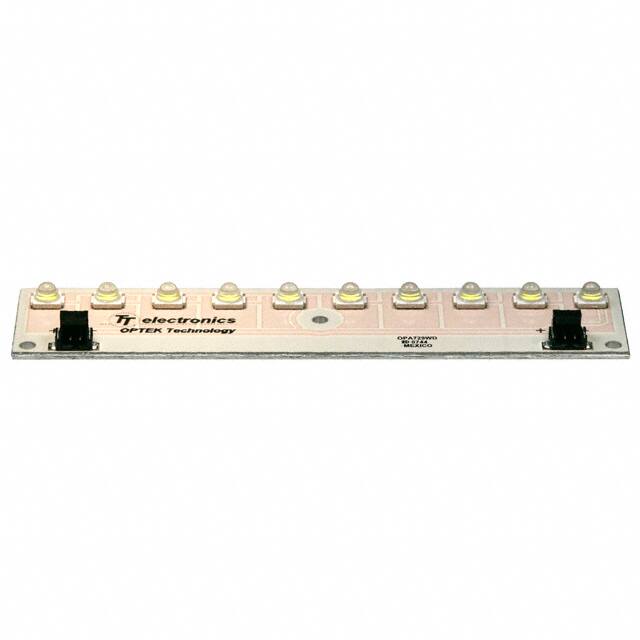

OPA729WDLED MOD OPA729 WH LNR STR 6500K |
3,368 | 0.00 |
|
Datasheet |
OPA729 | - | Obsolete | LED Module | White, Cool | 6500K | - | Linear Light Strip | 480lm (Typ) | 700mA | 25°C | 18V | 38 lm/W | 700mA | - | 40° | With Connector | 127.00mm L x 29.21mm W | 5.89mm | - | Flat |
|
|
CMU2258-R040-00PP0Z0AL7CXLAMP CMU LED WHITE PRO9 |
4,561 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | - | - | - | Square | - | 1.08A | 85°C | 50.5V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXB3590-0000-000R0HCD50ELED COB XLAMP COOL WHT SQU 5000K |
3,701 | 27.52 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 72V | 145 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UAD27GLED COB XLAMP WARM WHT SQU 2700K |
3,823 | 27.52 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UBB30GLED COB XLAMP WARM WHT SQ 3000K |
3,014 | 27.52 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UBB40GLED COB XLAMP NEUT WHT SQU 4000K |
2,600 | 27.52 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A30HXLAMP CMU LED WHITE PRO9 |
2,958 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A40HXLAMP CMU LED WHITE PRO9 |
1,992 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A27HXLAMP CMU LED WHITE PRO9 |
4,086 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A31QXLAMP CMU LED WHITE PRO9 |
1,456 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3100K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A35HXLAMP CMU LED WHITE PRO9 |
2,023 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
