LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMJE3V12W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
3,545 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 1360lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 50.00mm Dia | 2.50mm | - | Flat |
|
|
SMJE3V08W1P3-HALED ENG ACRICH2 WM WH RND 2700K |
2,495 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | 650lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|

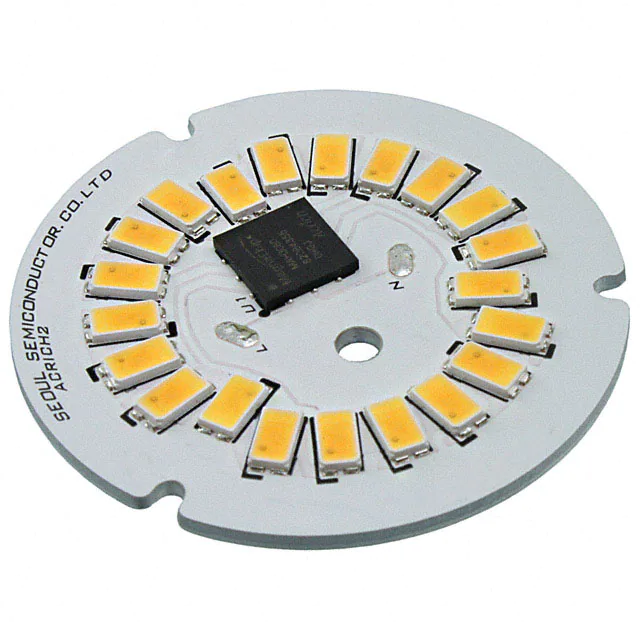

SMJE2V08W1P3-HALED ENG ACRICH2 WM WH RND 2700K |
4,840 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | 650lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|
|
SMJE2V08W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
3,714 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 910lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|
|
SMJE3V04W1P3-HALED ENG ACRICH2 WM WH RND 2700K |
3,053 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | 330lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 33.00mm Dia | 2.50mm | - | Flat |
|
SMJE2V04W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
3,121 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 420lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 33.00mm Dia | 2.50mm | - | Flat |
|

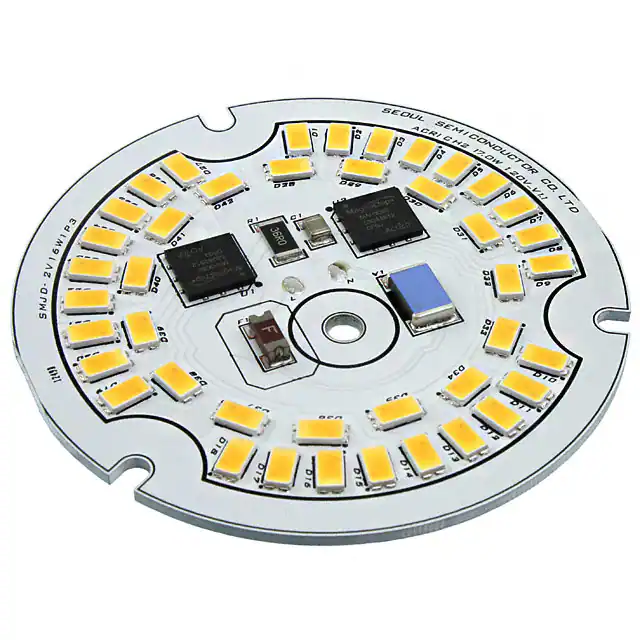

SMJD2V16W1P3-GALED ENG ACRICH2 WM WH RND 3000K |
1,446 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 1300lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 70.00mm Dia | - | - | Flat |
|

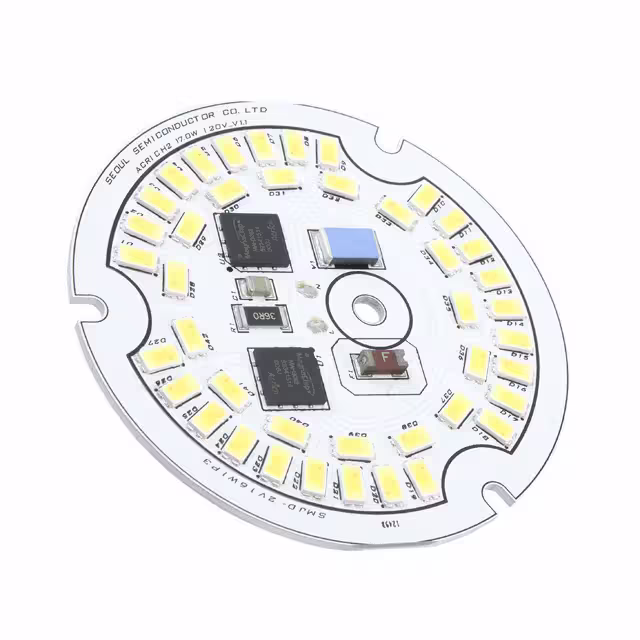

SMJD2V16W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
4,869 | 0.00 |
|
Datasheet |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 1780lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 70.00mm Dia | - | - | Flat |
|

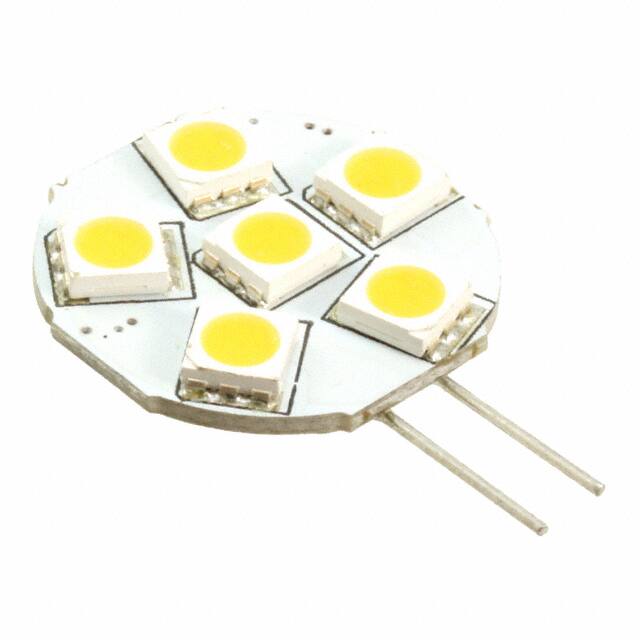

Z-G4-WWLED ENG WARM WHT ROUND 3600K |
3,008 | 0.00 |
|
Datasheet |
- | - | Obsolete | LED Engine | White, Warm | 3600K | - | Round | 50lm (Typ) | 170mA | 25°C | 12V | 25 lm/W | 170mA | - | - | - | 23.00mm Dia | - | - | Flat |
|
BXRA-40E2200-B-03LED COB ES NEUT WHT RECT 4000K |
3,434 | 0.00 |
|
Datasheet |
ES | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 2750lm (Typ) | 700mA | 25°C | 37V | 106 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
BXRA-40E7500-J-03LED COB RS NEUT WHT SQUARE 4000K |
3,145 | 0.00 |
|
Datasheet |
RS | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9010lm (Typ) | 2.8A | 25°C | 29.4V | 109 lm/W | 3.5A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-40E4500-H-03LED COB RS NEUT WHT SQUARE 4000K |
4,424 | 0.00 |
|
Datasheet |
RS | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5700lm (Typ) | 2.1A | 25°C | 23.5V | 116 lm/W | 2.8A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-40E1350-B-03LED COB ES NEUT WHT RECT 4000K |
3,687 | 0.00 |
|
Datasheet |
ES | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1690lm (Typ) | 500mA | 25°C | 29.6V | 114 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
|
BXRA-30G2000-B-03LED COB ES WARM WHT RECT 3000K |
4,164 | 0.00 |
|
Datasheet |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2000lm (Typ) | 700mA | 25°C | 37V | 77 lm/W | 750mA | 90 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
|
BXRA-30E7000-J-03LED COB RS WARM WHT SQU 3000K |
4,757 | 0.00 |
|
Datasheet |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8050lm (Typ) | 2.8A | 25°C | 29.4V | 98 lm/W | 3.5A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-35E7000-J-03LED COB RS WARM WHT SQUARE 3500K |
2,293 | 0.00 |
|
Datasheet |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8530lm (Typ) | 2.8A | 25°C | 29.4V | 104 lm/W | 3.5A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-35E4000-H-03LED COB RS WARM WHT SQUARE 3500K |
4,194 | 0.00 |
|
Datasheet |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5340lm (Typ) | 2.1A | 25°C | 23.5V | 108 lm/W | 2.8A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-30G4000-H-03LED COB RS WARM WHT SQU 3000K |
1,091 | 0.00 |
|
Datasheet |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4260lm (Typ) | 2.1A | 25°C | 23.5V | 86 lm/W | 2.8A | 90 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
BXRA-30G0740-A-03LED COB ES WH STARBRD 3000K |
3,874 | 0.00 |
|
Datasheet |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 780lm (Typ) | 350mA | 25°C | 27.3V | 82 lm/W | 350mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
|
BXRA-40E0810-A-03LED COB ES STAR WH STARBRD 4000K |
3,097 | 0.00 |
|
Datasheet |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1030lm (Typ) | 350mA | 25°C | 27.3V | 108 lm/W | 350mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
