LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-40E4000-F-Z2LED COB VERO 18 ARRAY RND 4000K |
2,972 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 3511lm (Typ) | 1.05A | 85°C | 28.8V | 116 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-40E4000-F-Z3LED COB VERO 18 ARRAY RND 4000K |
2,884 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 3511lm (Typ) | 1.05A | 85°C | 28.8V | 116 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
BXRC-40G10K0-L-02LED COB VERO 29 ARRAY RND 4000K |
4,501 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 9060lm (Typ) | 2.1A | 25°C | 38.6V | 112 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-40G2000-C-02LED COB VERO 13 ARRAY RND 4000K |
4,856 | 0.00 |
|
Datasheet |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 1810lm (Typ) | 500mA | 25°C | 32.5V | 111 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-40G4000-F-02LED COB VERO 18 ARRAY RND 4000K |
1,778 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 3515lm (Typ) | 1.05A | 25°C | 29.5V | 113 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-50C2000-C-Z4LED COB VERO 13 ARRAY RND 5000K |
1,323 | 0.00 |
|
- |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 2037lm (Typ) | 500mA | 85°C | 31.3V | 130 lm/W | 1.05A | 70 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-50E2000-C-Z4LED COB VERO 13 ARRAY RND 5000K |
4,280 | 0.00 |
|
- |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1936lm (Typ) | 500mA | 85°C | 31.3V | 124 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-50E4000-F-Z4LED COB VERO 18 ARRAY RND 5000K |
4,432 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 3696lm (Typ) | 1.05A | 85°C | 28.6V | 123 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|

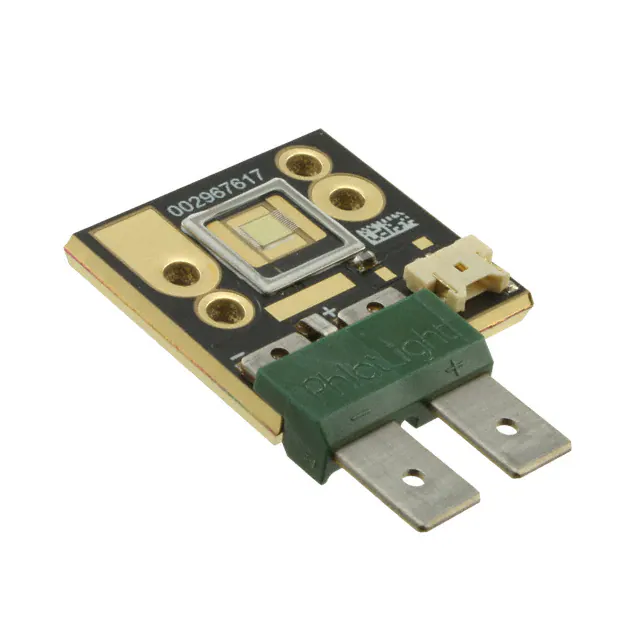

CBT-90-G-L11-CM100LED MOD CBT-90 GREEN RECT |
4,321 | 0.00 |
|
Datasheet |
CBT-90 | Tray | Discontinued at Digi-Key | LED Module | Green | - | 525nm (510nm ~ 540nm) | Rectangle | 2150lm (2000lm ~ 2300lm) | 13.5A | 40°C | 4.5V | 35 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CBT-90-G-L11-CM101LED MOD CBT-90 GREEN RECT |
3,309 | 0.00 |
|
Datasheet |
CBT-90 | Tray | Discontinued at Digi-Key | LED Module | Green | - | 528nm (520nm ~ 535nm) | Rectangle | 2150lm (2000lm ~ 2300lm) | 13.5A | 40°C | 4.5V | 35 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

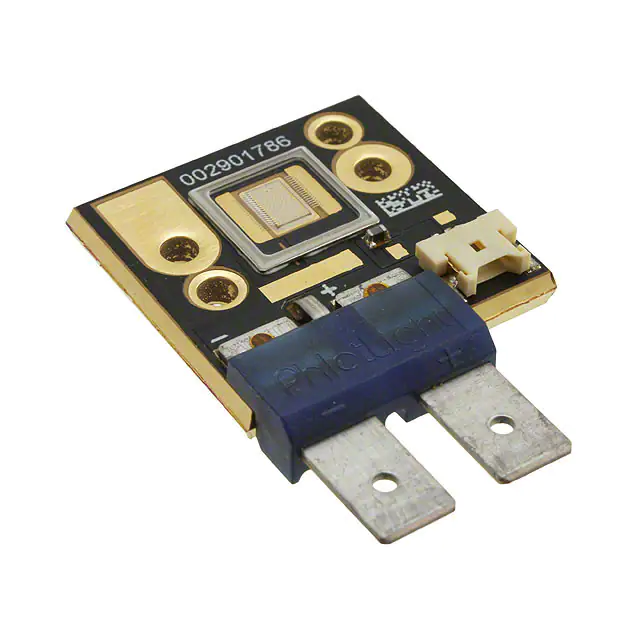

PT-120-B-L11-EPDLED MOD PT-120 BLUE RECT |
2,583 | 77.75 |
|
Datasheet |
PT-120 | Tray | Obsolete | LED Module | Blue | - | 462nm | Rectangle | 910lm (750lm ~ 1070lm) | 18A | 40°C | 3.9V | 13 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 2.60mm L x 4.60mm W | Flat |
|
PT-40-RAX-L55-MPHLED MOD PT-40 AMBER RECT |
1,990 | 42.12 |
|
Datasheet |
PT-40 | Tray | Obsolete | LED Module | Amber | - | 613nm | Rectangle | 928lm (800lm ~ 1055lm) | 9.8A | 40°C | 3.1V | 31 lm/W | - | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.61mm L x 2.42mm W | Flat |
|
|
PT-40-RAX-L55-MPJLED MOD PT-40 AMBER RECT |
1,199 | 45.61 |
|
Datasheet |
PT-40 | Tray | Obsolete | LED Module | Amber | - | 613nm | Rectangle | 993lm (860lm ~ 1125lm) | 9.8A | 40°C | 3.1V | 33 lm/W | - | - | - | With Connector | 21.85mm L x 15.00mm W | 3.70mm | 1.61mm L x 2.42mm W | Flat |
|

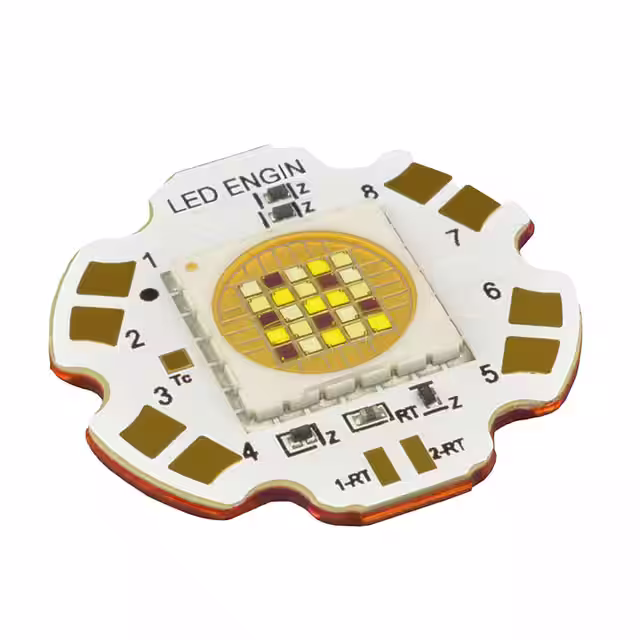

LZP-L4MD00-0000LED MOD LZP RGBW STARBRD 6450K |
3,026 | 0.00 |
|
Datasheet |
LZP | Tray | Obsolete | LED Module | Red, Green, Blue, White - Cool | 6450K | 624nm Red, 525nm Green, 457nm Blue | Starboard | 493lm Red, 800lm Green, 170lm Blue, 1453lm White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 25°C | 15V Red, 21.6V Green, 19.2V Blue, 22.4V White | 47 lm/W Red, 53 lm/W Green, 13 lm/W Blue, 93 lm/W | 1A Red, 1A Green, 1A Blue, 1A White | 75 (Typ) | 120° | - | 27.60mm Dia | 2.80mm | 11.70mm L x 11.70mm W | Flat |
|
L202-3080033C30001LED MOD LUXEON WH LNR STR 3000K |
2,534 | 0.00 |
|
Datasheet |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Linear Light Strip | 1403lm (Typ) | 300mA | 25°C | 33V | 142 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|
|
L202-3580033C30001LED MOD LUXEON WH LNR STR 3500K |
2,594 | 0.00 |
|
Datasheet |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 1469lm (Typ) | 300mA | 25°C | 33V | 148 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|
|
L202-4080033C30001LED MOD LUXEON WH LNR STR 4000K |
4,369 | 0.00 |
|
Datasheet |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1502lm (Typ) | 300mA | 25°C | 33V | 152 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|
|
L202-5080033C30000LED MOD LUXEON WH LNR STR 5000K |
1,063 | 0.00 |
|
Datasheet |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Cool | 5000K | - | Linear Light Strip | 1502lm (Typ) | 300mA | 25°C | 33V | 152 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|
|
L202-5080033C30001LED MOD LUXEON WH LNR STR 5000K |
3,208 | 0.00 |
|
Datasheet |
LUXEON XR-3535L | Tray | Obsolete | LED Module | White, Cool | 5000K | - | Linear Light Strip | 1502lm (Typ) | 300mA | 25°C | 33V | 152 lm/W | 600mA | 80 | - | With Connector | 280.00mm L x 55.00mm W | 1.20mm | - | Flat |
|
|
LZ4-40DB00-R000LED MOD LZ4 BLUE STARBOARD |
3,853 | 0.00 |
|
Datasheet |
LZ4 | Bulk | Obsolete | LED Module | Blue | - | 460nm | Starboard | 270mW (240mW ~ 300mW) | 700mA | 25°C | 3.5V | - | 1A | - | 110° | - | 19.90mm Dia | 5.90mm | 6.20mm Dia | Domed |
