LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZC-C0GW00-0030LED MOD LUXIGEN WH STARBRD |
3,240 | 0.00 |
|
Datasheet |
LuxiGen™ LZC | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1391lm (1085lm ~ 1696lm) | 2 x 700mA | 25°C | 19.4V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
|
LZP-D0GW00-0030LED MOD LUXIGEN WH STARBRD |
2,362 | 0.00 |
|
Datasheet |
LuxiGen™ LZP | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 2775lm (2350lm ~ 3200lm) | 4 x 700mA | 25°C | 19.4V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LTPL-M13706ZS27-T2LED COB M13 WARM WHT SQU 2700K |
1,090 | 0.00 |
|
Datasheet |
M13 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 398lm (Typ) | 400mA | 85°C | 8.9V | 112 lm/W | 600mA | 80 | 120° | Dimming | 13.35mm L x 13.35mm W | 1.60mm | 6.30mm Dia | Flat |
|
|
LTPL-M13706ZS30-T2LED COB M13 WM WH SQUARE 3000K |
1,364 | 0.00 |
|
Datasheet |
M13 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 414lm (Typ) | 400mA | 85°C | 8.9V | 116 lm/W | 600mA | 80 | 120° | Dimming | 13.35mm L x 13.35mm W | 1.60mm | 6.30mm Dia | Flat |
|
|
LTPL-M13710ZS30-T2LED COB M13 WM WH SQUARE 3000K |
2,553 | 0.00 |
|
Datasheet |
M13 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 801lm (Typ) | 800mA | 85°C | 8.9V | 113 lm/W | 1.2A | 80 | 120° | Dimming | 13.35mm L x 13.35mm W | 1.60mm | 6.30mm Dia | Flat |
|
|
LTPL-M13710ZS40-T2LED COB M13 NEUT WHT SQU 4000K |
3,674 | 0.00 |
|
Datasheet |
M13 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 849lm (Typ) | 800mA | 85°C | 8.9V | 119 lm/W | 1.2A | 80 | 120° | Dimming | 13.35mm L x 13.35mm W | 1.60mm | 6.30mm Dia | Flat |
|
L2C2-30801202E0900LED COB LUXEON WHT RECT 3000K |
1,708 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 925lm (Typ) | 200mA | 85°C | 34.5V | 134 lm/W | 400mA | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
L2C2-30801205E1300LED COB LUXEON WHT RECT 3000K |
4,521 | 21.02 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2700lm (Typ) | 600mA | 85°C | 35V | 129 lm/W | 1.2A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
L2C2-30801208E1500LED COB LUXEON WHT RECT 3000K |
4,483 | 0.00 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 4050lm (Typ) | 900mA | 85°C | 35V | 129 lm/W | 1.8A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia | Flat |
|
L2C2-30801211E1900LED COB LUXEON WM WHT SQ 3000K |
3,850 | 39.01 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5400lm (Typ) | 1.2A | 85°C | 35V | 129 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
BXRC-35A4001-F-23LED COB DECOR WM WH ROUND 3500K |
4,803 | 0.00 |
|
Datasheet |
Décor Series™ Class A Vero® 18 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2868lm (Typ) | 1.05A | 70°C | 28.6V | 96 lm/W | 2.1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
SI-B8P11225001LED MOD FINGER-SQ30B RECT 6500K |
3,467 | 0.00 |
|
- |
Finger-SQ30B | Box | Obsolete | LED Module | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Rectangle | 1490lm (Typ) | 700mA | 35°C | 15V | 142 lm/W | 900mA | 80 | 115° | With Connector | 259.00mm L x 250.00mm W | 5.80mm | - | Flat |
|

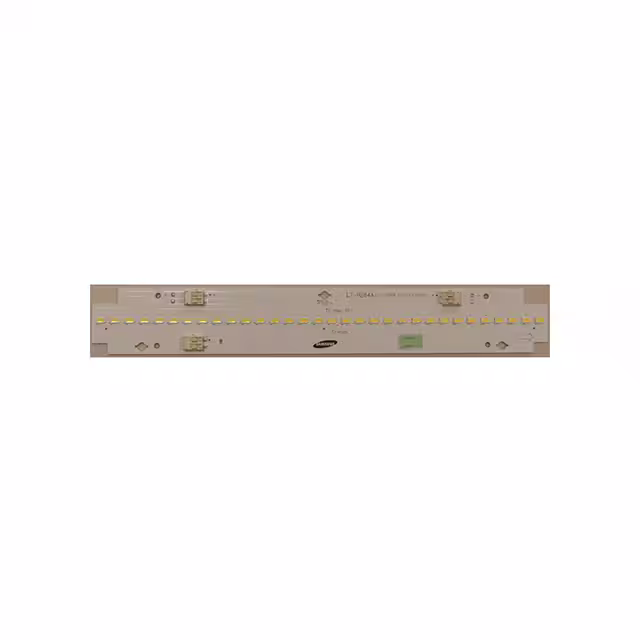

SI-B8R08128001LED MOD LT-H284A LNR STRP 5000K |
1,923 | 0.00 |
|
- |
LT-H284A | Box | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1300lm (Typ) | 700mA | 45°C | 11.6V | 160 lm/W | 1.2A | 80 | 115° | With Connector | 280.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
SI-B8R08228001LED MOD LT-E284A LNR STRP 5000K |
2,217 | 0.00 |
|
- |
LT-E284A | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1190lm (Typ) | 700mA | 45°C | 12.1V | 141 lm/W | 750mA | 80 | 115° | With Connector | 280.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
|
SI-B8R10125001LED MOD FINGER-SQ64B RECT 5000K |
4,318 | 0.00 |
|
- |
Finger-SQ64B | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 1400lm (Typ) | 700mA | 35°C | 12V | 167 lm/W | 1.6A | 80 | 115° | With Connector | 259.00mm L x 250.00mm W | 6.70mm | - | Flat |
|
|
SI-B8R10128001LED MOD FINGER-RT64B RECT 5000K |
1,937 | 0.00 |
|
- |
Finger-RT64B | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 1400lm (Typ) | 700mA | 35°C | 12V | 167 lm/W | 1.6A | 80 | 115° | With Connector | 230.00mm L x 273.00mm W | 6.70mm | - | Flat |
|
|
SI-B8R11125001LED MOD LAM-SQ30B WHT RECT 5000K |
3,731 | 0.00 |
|
- |
LAM-SQ30B | Box | Obsolete | LED Module | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Rectangle | 1480lm (Typ) | 700mA | 35°C | 15V | 141 lm/W | 900mA | 80 | 145° | With Connector | 259.00mm L x 250.00mm W | 6.70mm | - | Flat |
|
SI-B8R16256001LED MOD LT-E564A LNR STRP 5000K |
3,847 | 0.00 |
|
- |
LT-E564A | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2380lm (Typ) | 700mA | 45°C | 24.3V | 140 lm/W | 750mA | 80 | 115° | With Connector | 560.00mm L x 40.00mm W | 5.60mm | - | Flat |
|
|
SI-B8R201560WWLED MOD LT-H562A LNR STRP 5000K |
3,041 | 0.00 |
|
- |
LT-H562A | Box | Obsolete | LED Module | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 2785lm (Typ) | 300mA | 50°C | 68V | 137 lm/W | 360mA | 80 | - | With Connector | 560.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
|
SI-B8R341550WWLED MOD LT-F552A LNR STRP 5000K |
2,665 | 0.00 |
|
- |
LT-F552A | Tray | Obsolete | LED Module | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 4650lm (Typ) | 1.35A | 60°C | 24.7V | 139 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.20mm | - | Flat |
