LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRA-35H4000-H-03LED COB RS WARM WHT RECT 3500K |
2,320 | 0.00 |
|
Datasheet |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 3345lm (Typ) | 2.1A | 85°C | 23.5V | 68 lm/W | 3A | 97 | 120° | - | 49.50mm W x 45.30mm H | 2.60mm | 35.00mm Dia | Flat |
|
|
BXRA-50C1000-A-04LED COB ES STAR WH STARBRD 5000K |
1,440 | 0.00 |
|
Datasheet |
ES STAR | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1000lm (Typ) | 350mA | 85°C | 27.3V | 105 lm/W | 350mA | 70 | 120° | - | 20.20mm Dia | 3.00mm | 10.90mm Dia | Flat |
|
BXRC-35A1001-B-23LED COB DECOR WHT STARBRD 3500K |
3,238 | 0.00 |
|
Datasheet |
Décor Series™ Class A Vero® 10 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 807lm (Typ) | 350mA | 85°C | 25.5V | 90 lm/W | 700mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35G1000-B-22LED COB VERO WHT STARBRD 3500K |
2,873 | 0.00 |
|
Datasheet |
Vero® 10 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1066lm (Typ) | 350mA | 25°C | 26.5V | 115 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35G1000-B-23LED COB VERO WHT STARBRD 3500K |
3,652 | 0.00 |
|
Datasheet |
Vero® 10 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1066lm (Typ) | 350mA | 25°C | 26.5V | 115 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-35G10K0-L-22LED COB VERO 29 ARRAY RND 3500K |
4,639 | 0.00 |
|
- |
Vero® 29 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 9705lm (Typ) | 2.1A | 25°C | 38V | 122 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-35G10K0-L-23LED COB VERO 29 ARRAY RND 3500K |
3,239 | 0.00 |
|
- |
Vero® 29 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 9705lm (Typ) | 2.1A | 25°C | 38V | 122 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|

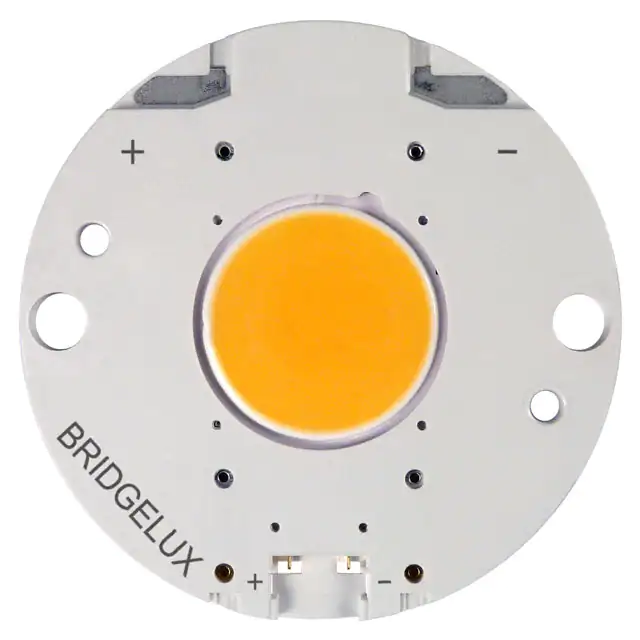

BXRC-35G2000-C-22LED COB VERO 13 ARRAY RND 3500K |
1,280 | 0.00 |
|
Datasheet |
Vero® 13 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 1868lm (Typ) | 500mA | 25°C | 32.3V | 116 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-35G2000-C-23LED COB VERO 13 ARRAY RND 3500K |
3,684 | 0.00 |
|
Datasheet |
Vero® 13 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1868lm (Typ) | 500mA | 25°C | 32.3V | 116 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
BXRC-35G4000-F-22LED COB VERO 18 ARRAY RND 3500K |
1,581 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 3655lm (Typ) | 1.05A | 25°C | 29.5V | 118 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-40A10K1-L-23LED COB DECOR WHT ROUND 4000K |
3,853 | 0.00 |
|
Datasheet |
Décor Series™ Class A Vero® 29 | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 7718lm (Typ) | 2.1A | 85°C | 36.8V | 100 lm/W | 4.2A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRE-35E0400-A-23LED COB V6 ARRAY WM WHT SQ 3500K |
1,523 | 0.00 |
|
Datasheet |
V6 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 403lm (Typ) | 175mA | 25°C | 18V | 128 lm/W | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 6.10mm Dia | Flat |
|
|
BXRE-35E0400-B-23LED COB V6 ARRAY WM WHT SQ 3500K |
3,056 | 0.00 |
|
Datasheet |
V6 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 403lm (Typ) | 350mA | 25°C | 9V | 128 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 6.10mm Dia | Flat |
|
|
BXRE-35E0800-A-23LED COB V8 ARRAY WM WHT SQ 3500K |
1,711 | 0.00 |
|
- |
V8 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 723lm (Typ) | 175mA | 85°C | 34.6V | 119 lm/W | 350mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRE-35E0800-B-23LED COB V8 ARRAY WM WHT SQ 3500K |
2,387 | 0.00 |
|
- |
V8 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 723lm (Typ) | 350mA | 85°C | 17.4V | 119 lm/W | 700mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRE-35E1000-B-23LED COB V10 ARRAY WHT SQU 3500K |
1,803 | 0.00 |
|
Datasheet |
V10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1234lm (Typ) | 350mA | 25°C | 26.5V | 133 lm/W | 700mA | 80 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia | Flat |
|
|
BXRE-35E3001-D-23LED COB V15 ARRAY WHT SQU 3500K |
4,854 | 0.00 |
|
- |
V15 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3284lm (Typ) | 700mA | 25°C | 36V | 130 lm/W | 1.4A | 80 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 15.20mm Dia | Flat |
|
|
BXRE-35G0400-A-23LED COB V6 ARRAY WM WHT SQ 3500K |
1,862 | 0.00 |
|
Datasheet |
V6 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 344lm (Typ) | 175mA | 25°C | 18V | 109 lm/W | 350mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 6.10mm Dia | Flat |
|
|
BXRE-35G0400-B-23LED COB V6 ARRAY WM WHT SQ 3500K |
1,750 | 0.00 |
|
Datasheet |
V6 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 344lm (Typ) | 350mA | 25°C | 9V | 109 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 6.10mm Dia | Flat |
|
|
BXRE-35G0800-A-23LED COB V8 ARRAY WM WHT SQ 3500K |
2,165 | 0.00 |
|
- |
V8 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 598lm (Typ) | 175mA | 85°C | 34.6V | 99 lm/W | 350mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
