LED COBs, Engines, Modules, Strips

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Color	CCT (K)	Wavelength	Configuration	Luminous Flux @ Current/Temperature	Current - Test	Temperature - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Max	CRI (Color Rendering Index)	Viewing Angle	Features	Size / Dimension	Height	Light Emitting Surface (LES)	Lens Type

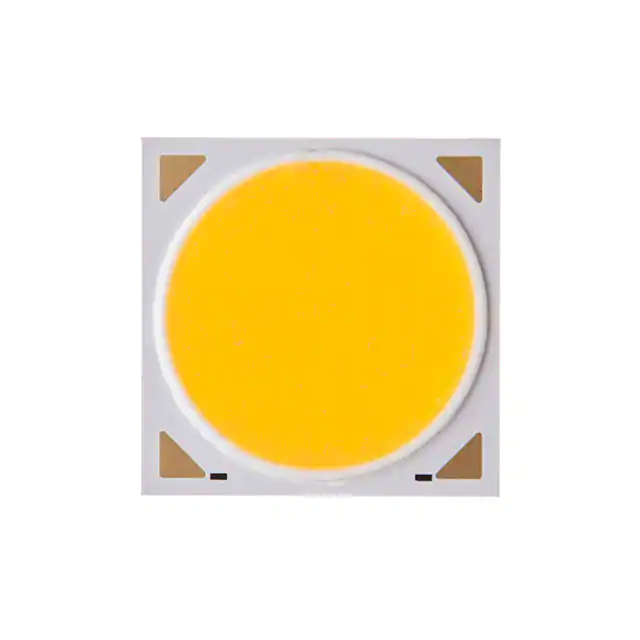

BXRE-35G0800-B-23 LED COB V8 ARRAY WM WHT SQ 3500K Bridgelux	4,574	0.00	RFQ	-	V8 Array	Tray	Obsolete	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	598lm (Typ)	350mA	85°C	17.4V	98 lm/W	700mA	90	120°	-	12.50mm L x 12.50mm W	1.70mm	8.10mm Dia	Flat
BXRE-35G1000-B-23 LED COB V10 ARRAY WHT SQU 3500K Bridgelux	3,376	0.00	RFQ	Datasheet	V10 Array	Tray	Obsolete	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	1068lm (Typ)	350mA	25°C	26.5V	115 lm/W	700mA	90	120°	-	15.80mm L x 15.80mm W	1.70mm	9.90mm Dia	Flat
BXRE-35G2000-C-23 LED COB V13 ARRAY WHT SQU 3500K Bridgelux	2,160	0.00	RFQ	Datasheet	V13 Array	Tray	Obsolete	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	1868lm (Typ)	500mA	25°C	32.3V	116 lm/W	1.05A	80	120°	-	15.80mm L x 15.80mm W	1.70mm	13.40mm Dia	Flat
BXRE-35G3001-D-23 LED COB V15 ARRAY WHT SQU 3500K Bridgelux	3,670	0.00	RFQ	Datasheet	V15 Array	Tray	Obsolete	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	2711lm (Typ)	700mA	25°C	36V	108 lm/W	1.4A	90	120°	-	21.00mm L x 21.00mm W	1.70mm	15.20mm Dia	Flat
BXRE-35G4000-F-23 LED COB V18 ARRAY WHT SQU 3500K Bridgelux	2,871	0.00	RFQ	Datasheet	V18 Array	Tray	Obsolete	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Square	3655lm (Typ)	1.05A	25°C	29.5V	118 lm/W	2.1A	90	120°	-	21.00mm L x 21.00mm W	1.70mm	18.60mm Dia	Flat
VAOL-SA1XAX-SA LED MOD 1W STAR AMB STARBOARD Visual Communications Company - VCC	2,345	0.00	RFQ	Datasheet	1W STAR	Tray	Obsolete	LED Module	Amber	-	590nm	Starboard	50lm (Typ)	350mA	25°C	2.5V	57 lm/W	350mA	-	120°	-	19.90mm Dia	6.10mm	-	Domed
VAOL-SB1XAX-SA LED MOD 1W STAR BLUE STARBOARD Visual Communications Company - VCC	2,115	0.00	RFQ	Datasheet	1W STAR	Tray	Obsolete	LED Module	Blue	-	468nm	Starboard	35lm (Typ)	350mA	25°C	3.7V	27 lm/W	350mA	-	150°	-	19.90mm Dia	6.10mm	-	Domed
VAOL-SR1XAX-SA LED MOD 1W STAR RED STARBOARD Visual Communications Company - VCC	2,538	0.00	RFQ	Datasheet	1W STAR	Tray	Obsolete	LED Module	Red	-	625nm	Starboard	50lm (Typ)	350mA	25°C	2.5V	57 lm/W	350mA	-	120°	-	19.90mm Dia	6.10mm	-	Domed
VAOL-ST1XAX-SA LED MOD 1W STAR GRN STARBOARD Visual Communications Company - VCC	1,345	0.00	RFQ	Datasheet	1W STAR	Tray	Obsolete	LED Module	Green	-	525nm	Starboard	90lm (Typ)	350mA	25°C	3.4V	76 lm/W	350mA	-	150°	-	19.90mm Dia	6.10mm	-	Domed
VAOL-SX1XAX-SA LED MOD 1W WH STARBRD 3300K Visual Communications Company - VCC	2,112	0.00	RFQ	Datasheet	1W STAR	Tray	Obsolete	LED Module	White, Warm	3300K	-	Starboard	80lm (Typ)	350mA	25°C	3.7V	62 lm/W	350mA	-	130°	-	19.90mm Dia	6.10mm	-	Domed
L2C2-27801203E0900 LED COB LUXEON WM WHT RECT 2700K Lumileds	1,526	12.62	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	1283lm (Typ)	300mA	85°C	34.5V	124 lm/W	600mA	80	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia	Flat

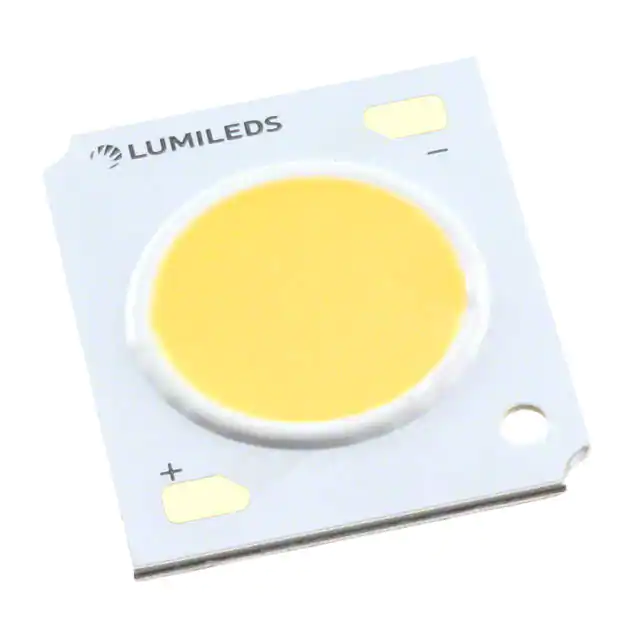

L2C2-27801204E1300 LED COB LUXEON WM WHT RECT 2700K Lumileds	4,294	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	1924lm (Typ)	450mA	85°C	35V	122 lm/W	900mA	80	115°	-	20.00mm L x 24.00mm W	1.50mm	13.00mm Dia	Flat
L2C2-27801208E1500 LED COB LUXEON WM WHT RECT 2700K Lumileds	3,891	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	3848lm (Typ)	900mA	85°C	35V	122 lm/W	1.8A	80	115°	-	20.00mm L x 24.00mm W	1.50mm	15.00mm Dia	Flat
L2C2-27801211E1900 LED COB LUXEON WARM WHT SQ 2700K Lumileds	1,576	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	5130lm (Typ)	1.2A	85°C	35V	122 lm/W	2.4A	80	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia	Flat
L2C2-27901202E0900 LED COB LUXEON WM WHT RECT 2700K Lumileds	3,206	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	768lm (Typ)	200mA	85°C	34.5V	111 lm/W	400mA	90	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia	Flat
L2C2-27901203E0900 LED COB LUXEON WM WHT RECT 2700K Lumileds	2,302	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	1121lm (Typ)	300mA	85°C	34.5V	108 lm/W	600mA	90	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia	Flat
L2C2-27901204E1300 LED COB LUXEON WM WHT RECT 2700K Lumileds	4,892	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	1681lm (Typ)	450mA	85°C	35V	107 lm/W	900mA	90	115°	-	20.00mm L x 24.00mm W	1.50mm	13.00mm Dia	Flat
L2C2-27901205E1300 LED COB LUXEON WM WHT RECT 2700K Lumileds	4,557	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	2241lm (Typ)	600mA	85°C	35V	107 lm/W	1.2A	90	115°	-	20.00mm L x 24.00mm W	1.50mm	13.00mm Dia	Flat
L2C2-27901208E1500 LED COB LUXEON WM WHT RECT 2700K Lumileds	3,107	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Rectangle	3362lm (Typ)	900mA	85°C	35V	107 lm/W	1.8A	90	115°	-	20.00mm L x 24.00mm W	1.50mm	15.00mm Dia	Flat
L2C2-27901211E1900 LED COB LUXEON WARM WHT SQ 2700K Lumileds	4,864	0.00	RFQ	Datasheet	LUXEON CoB Core Range	Tube	Obsolete	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Square	4482lm (Typ)	1.2A	85°C	35V	107 lm/W	2.4A	90	115°	-	28.00mm L x 28.00mm W	1.50mm	18.50mm Dia	Flat

Total 32298 Record«Prev 1... 1502 1503 1504 150515061507 1508 1509...1615 Next»
