LED COBs, Engines, Modules, Strips

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Color	CCT (K)	Wavelength	Configuration	Luminous Flux @ Current/Temperature	Current - Test	Temperature - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Max	CRI (Color Rendering Index)	Viewing Angle	Features	Size / Dimension	Height	Light Emitting Surface (LES)	Lens Type
SST-50-W40S-F21-H3500 LED COB SST-50 NEUT WH SQ 4000K Luminus Devices Inc.	2,379	11.43	RFQ	Datasheet	SST-50	Tray	Obsolete	Chip On Board (COB)	White, Neutral	4000K	-	Square	413lm (400lm ~ 425lm)	1.75A	25°C	3.2V	74 lm/W	5A	70	100°	-	7.30mm L x 9.00mm W	4.30mm	5.60mm Dia	Domed
BXRC-30C4001-C-84-SE LED COB VERO SE 18C WH RND 3000K Bridgelux	3,993	16.82	RFQ	Datasheet	Gen 8 Vero® SE 18 Array	Tray	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Round	6614lm (Typ)	1.05A	25°C	33.9V	186 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia	Flat
BXRC-65C4001-C-84-SE LED COB VERO SE 18C WH RND 6500K Bridgelux	3,151	16.82	RFQ	Datasheet	Gen 8 Vero® SE 18 Array	Tray	Active	Chip On Board (COB)	White, Cool	6500K 4-Step MacAdam Ellipse	-	Round	6651lm (Typ)	1.05A	25°C	33.9V	187 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia	Flat
BXRC-65E4001-C-84-SE LED COB VERO SE 18C WH RND 6500K Bridgelux	3,991	16.82	RFQ	Datasheet	Gen 8 Vero® SE 18 Array	Tray	Active	Chip On Board (COB)	White, Cool	6500K 4-Step MacAdam Ellipse	-	Round	6391lm (Typ)	1.05A	25°C	33.9V	180 lm/W	3A	80	120°	-	36.20mm Dia	3.60mm	18.50mm Dia	Flat
BXRC-57C4001-C-84-SE LED COB VERO SE 18C WH RND 5700K Bridgelux	2,029	16.82	RFQ	Datasheet	Gen 8 Vero® SE 18 Array	Tray	Active	Chip On Board (COB)	White, Cool	5700K 4-Step MacAdam Ellipse	-	Round	6651lm (Typ)	1.05A	25°C	33.9V	187 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia	Flat

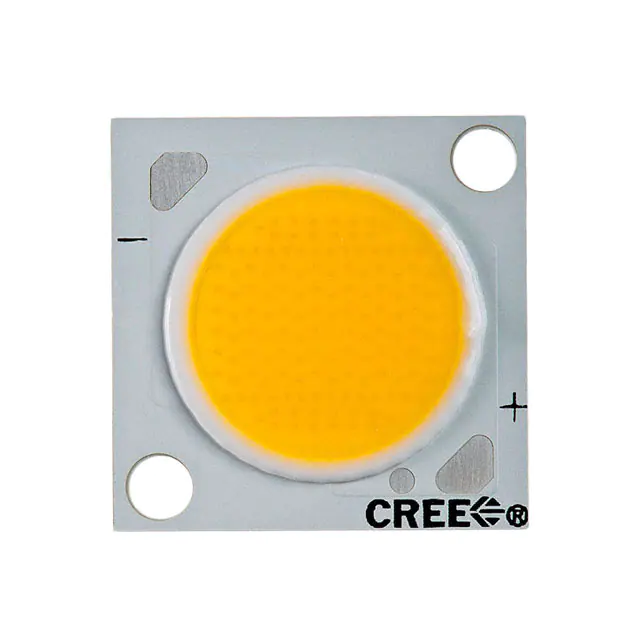

CXA2011-0000-000P00H00E7 LED COB XLAMP WARM WHT SQ 3000K Cree LED	3,619	12.16	RFQ	-	XLamp® CXA2011	Tube	Obsolete	Chip On Board (COB)	White, Warm	3000K	-	Square	970lm (900lm ~ 1040lm)	270mA	85°C	40V	90 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-	Flat
SPHWHAHDNM271ZR3DB LED COB D GEN2 COOL WHT SQ 5000K Samsung Semiconductor, Inc.	2,436	12.34	RFQ	Datasheet	COB D Gen2 Plus	Box	Last Time Buy	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Square	13196lm (Typ)	1.62A	85°C	51.1V	159 lm/W	3.24A	90	115°	-	28.00mm L x 28.00mm W	1.50mm	22.00mm Dia	Flat
4850 LED COB PINK LINEAR STRIP Adafruit Industries LLC	4,379	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Chip On Board (COB)	Pink	-	-	Linear Light Strip, Flexible	-	-	-	9V ~ 12V	-	800mA	-	-	-	-	-	-	Flat
SI-B8R11156HUS LED MOD LT-H562D LNR STRP 5000K Samsung Semiconductor, Inc.	3,831	11.44	RFQ	Datasheet	LT-H562D	Bulk	Active	LED Module	White, Cool	5000K	-	Linear Light Strip	2080lm (Typ)	480mA	50°C	22.5V	193 lm/W	-	80	-	With Connector	560.00mm L x 18.00mm W	5.80mm	-	Flat
SPHWHAHDNF27Y3WRT1 LED COB T-SERIES WHITE SQ 3850K Samsung Semiconductor, Inc.	2,167	12.42	RFQ	Datasheet	COB T-Series	Bulk	Active	Chip On Board (COB)	White, Warm / White, Cool	3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse	-	Square	2116lm (1956lm ~ 2275lm)	-	25°C	35.5V	-	800mA	90	115°	-	19.00mm L x 19.00mm W	1.60mm	-	Flat
BXRC-57E4001-C-83 LED COB VERO 18C WHT ROUND 5700K Bridgelux	100	17.64	RFQ	Datasheet	Gen 8 Vero® 18 Array	Tray	Active	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Round	6400lm (Typ)	1.05A	25°C	33.9V	180 lm/W	3A	80	120°	-	36.20mm Dia	1.80mm	18.50mm Dia	Flat
BXRC-57C4001-C-83 LED COB VERO 18C WHT ROUND 5700K Bridgelux	100	17.64	RFQ	Datasheet	Gen 8 Vero® 18 Array	Tray	Active	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Round	6739lm (Typ)	1.05A	25°C	33.9V	189 lm/W	3A	70	120°	-	36.20mm Dia	1.80mm	18.50mm Dia	Flat
BXRC-65E4001-C-83 LED COB VERO 18C WHT ROUND 6500K Bridgelux	2,671	17.64	RFQ	Datasheet	Gen 8 Vero® 18 Array	Tray	Active	Chip On Board (COB)	White, Cool	6500K 3-Step MacAdam Ellipse	-	Round	6475lm (Typ)	1.05A	25°C	33.9V	182 lm/W	3A	80	120°	-	36.20mm Dia	1.80mm	18.50mm Dia	Flat
CXA2011-0000-000P00G00E7 LED COB XLAMP WARM WHT SQ 3000K Cree LED	1,518	14.16	RFQ	-	XLamp® CXA2011	Tube	Obsolete	Chip On Board (COB)	White, Warm	3000K	-	Square	840lm (780lm ~ 900lm)	270mA	85°C	40V	78 lm/W	1A	80	120°	-	22.00mm L x 22.00mm W	2.28mm	-	Flat
CLU03Q-1210E1-402H5X3 LED COB CLU03Q NEUT WHT SQ 4000K Citizen	2,265	0.00	RFQ	Datasheet	CLU03Q	Tray	Active	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Square	4800lm	900mA	85°C	33.8V	147 lm/W	2.3A	90	-	With Connector	19.00mm L x 19.00mm W	1.40mm	14.50mm Dia	Flat
CLU03Q-1210E1-402M2X2 LED COB CLU03Q NEUT WHT SQ 4000K Citizen	2,162	0.00	RFQ	Datasheet	CLU03Q	Tray	Active	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Square	5194lm (Typ)	900mA	85°C	33.8V	159 lm/W	2.3A	80	-	With Connector	19.00mm L x 19.00mm W	1.40mm	14.50mm Dia	Flat
CLU03Q-1210E1-403L7X4 LED COB CLU03Q NEUT WHT SQ 4000K Citizen	3,478	0.00	RFQ	Datasheet	CLU03Q	Tray	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	5534lm (Typ)	900mA	85°C	33.8V	169 lm/W	2.3A	70	-	With Connector	19.00mm L x 19.00mm W	1.40mm	14.50mm Dia	Flat
CLU04Q-1212E1-352M2X2 LED COB CLU04Q WARM WHT SQ 3500K Citizen	4,626	0.00	RFQ	Datasheet	CLU04Q	Tray	Active	Chip On Board (COB)	White, Warm	3500K 2-Step MacAdam Ellipse	-	Square	6493lm (Typ)	1.08A	85°C	33.8V	165 lm/W	2.76A	80	-	With Connector	28.00mm L x 28.00mm W	1.40mm	22.00mm Dia	Flat

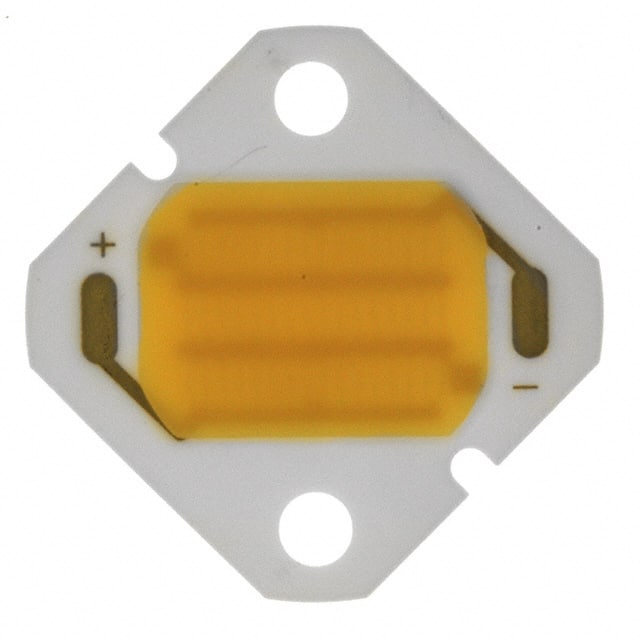

GW5BDF15L00 LED MOD 7WATT ZENIGATA 2800K Sharp Microelectronics	4,626	12.27	RFQ	Datasheet	-	Tray	Obsolete	LED Module	White, Warm	2800K	-	Square	400lm (Typ)	640mA	25°C	10.2V	-	700mA	-	-	-	18.00mm L x 18.00mm W	2.00mm	-	Flat
L2C5-40801202E0900 LED COB LUXEON WHT RECT 4000K Lumileds	1,539	12.37	RFQ	Datasheet	LUXEON CoB Core Range Gen 3	Tube	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Rectangle	999lm (Typ)	200mA	85°C	34.5V	145 lm/W	400mA	80	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia	Flat

Total 32298 Record«Prev 1... 147 148 149 150151152 153 154...1615 Next»
