LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU038-1205C4-303M2K1LED COB CLU038 WM WHT SQ 3000K |
1,599 | 12.44 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2309lm (Typ) | 450mA | 85°C | 34.6V | 148 lm/W | 1.15A | 80 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1205C4-403H5K2LED COB CLU038 NEUT WHT SQ 4000K |
4,255 | 12.44 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1965lm (Typ) | 450mA | 85°C | 34.6V | 126 lm/W | 1.15A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
BXRC-50C2001-C-83LED COB VERO 13C WHT ROUND 5000K |
2,954 | 11.39 |
|
Datasheet |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 3225lm (Typ) | 500mA | 25°C | 33.4V | 193 lm/W | 1.75A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
CXA2540-0000-000N00V435HLED COB XLAMP WARM WHT SQU 3500K |
3,481 | 9.96 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
BXRC-40G4000-C-73LED COB VERO 18 WHT RND 4000K |
3,637 | 11.96 |
|
Datasheet |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 5038lm (Typ) | 1.17A | 85°C | 34.1V | 126 lm/W | 2.34A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-50C4001-C-74LED COB VERO 18 WHT RND 5000K |
2,746 | 11.96 |
|
Datasheet |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 6453lm (Typ) | 1.17A | 85°C | 34.1V | 162 lm/W | 2.34A | 70 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
CXA2540-0000-000N00W257FLED COB XLAMP COOL WHT SQU 5700K |
1,819 | 10.34 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 37V | 124 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
LSR1-04C32-4070-00LED MOD XP-G3 NEUT WH RECT 4000K |
3,857 | 10.27 |
|
Datasheet |
XP-G3 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 656lm (Typ) | 350mA | 85°C | 10.92V | 171 lm/W | 2A | 70 | - | - | 59.59mm L x 45.01mm W | - | - | Domed |
|
|
CLU038-1205C4-353H5K2LED COB CLU038 WARM WHT SQ 3500K |
4,829 | 12.88 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1943lm (Typ) | 450mA | 85°C | 34.6V | 125 lm/W | 1.15A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
BXRE-27E6500-B-73LED COB V22 WARM WHT SQU 2700K |
3,573 | 12.32 |
|
Datasheet |
Gen 7 V22 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8163lm (Typ) | 1.17A | 85°C | 50.7V | 138 lm/W | 2.34A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
|
|
CLU038-1205C4-30AL7K3LED COB CLU038 WM WHT SQ 3000K |
2,380 | 12.88 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2439lm (Typ) | 450mA | 85°C | 34.6V | 157 lm/W | 1.15A | 70 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1205C4-273M2K1LED COB CLU038 WARM WHT SQ 2700K |
4,182 | 12.88 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2209lm (Typ) | 450mA | 85°C | 34.6V | 142 lm/W | 1.15A | 80 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1205C4-273H5K2LED COB CLU038 WARM WHT SQ 2700K |
4,770 | 12.88 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1825lm (Typ) | 450mA | 85°C | 34.6V | 117 lm/W | 1.15A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1205C4-273H7K4LED COB CLU038 WARM WHT SQ 2700K |
2,303 | 12.88 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1665lm (Typ) | 450mA | 85°C | 34.6V | 107 lm/W | 1.15A | 97 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
CXA2530-0000-000N00T227FLED COB XLAMP WARM WHT SQU 2700K |
4,208 | 10.42 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CLU038-1208C4-303M2K1LED COB CLU038 WM WHT SQ 3000K |
4,904 | 20.19 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3586lm (Typ) | 720mA | 85°C | 34.6V | 144 lm/W | 1.84A | 80 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1208C4-273H7K4LED COB CLU038 WARM WHT SQ 2700K |
1,590 | 20.19 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2586lm (Typ) | 720mA | 85°C | 34.6V | 104 lm/W | 1.84A | 97 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1208C4-273H5K2LED COB CLU038 WARM WHT SQ 2700K |
3,584 | 20.19 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2835lm (Typ) | 720mA | 85°C | 34.6V | 114 lm/W | 1.84A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
SI-B8T14256SWWLED MOD LT-S562F LNR STRP 4000K |
1,130 | 13.91 |
|
Datasheet |
LT-S562F | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2250lm (Typ) | 800mA | 50°C | 17.6V | 160 lm/W | 1.44A | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - | Flat |
|

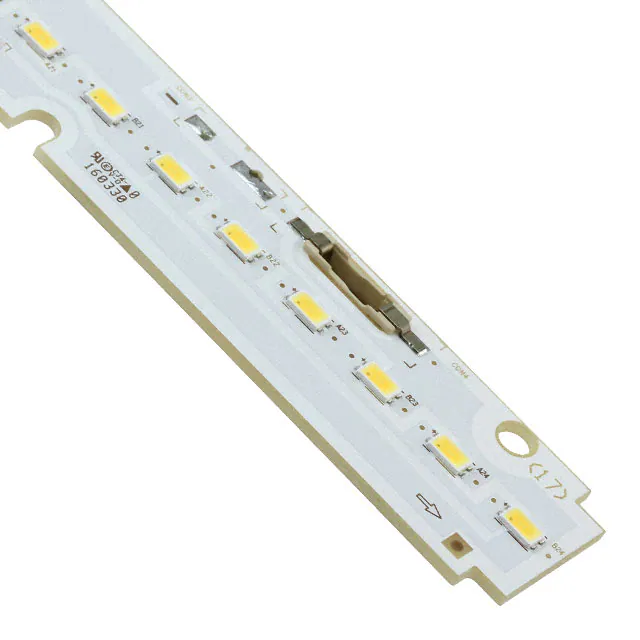

SI-B8V14256HWWLED MOD LT-S562H LNR STRP 3000K |
4,026 | 13.91 |
|
Datasheet |
LT-S562H | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 300mA | 50°C | 46.9V | 155 lm/W | 540mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 7.40mm | - | Flat |
