LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLM-22-30-90-36-AC30-F4-3LED COB CLM-22 GEN3 WH SQ 3000K |
3,739 | 17.34 |
|
Datasheet |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4835lm (Typ) | 1.1A | 85°C | 33.8V | 130 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
CXA2530-0000-000N0US240FLED COB XLAMP NEUT WHT SQU 4000K |
1,619 | 11.18 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 800mA | 85°C | 37V | 97 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
BXRC-30H4000-C-83LED COB VERO 18C WHT RND 3000K |
3,842 | 17.64 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4706lm (Typ) | 1.05A | 25°C | 33.9V | 132 lm/W | 3A | 97 (Typ) | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
CTM-22-6527-90-36-TW01LED MOD CTM WHITE SQUARE 6500K |
3,879 | 18.14 |
|
Datasheet |
CTM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Square | 2840lm Warm White, 3160lm Cool White | 875mA | 85°C | 37V | 88 lm/W Warm White, 98 lm/W Cool White | 1.1A | 90 | 130° | - | 28.00mm L x 28.00mm W | 1.58mm | 22.00mm Dia | Flat |
|

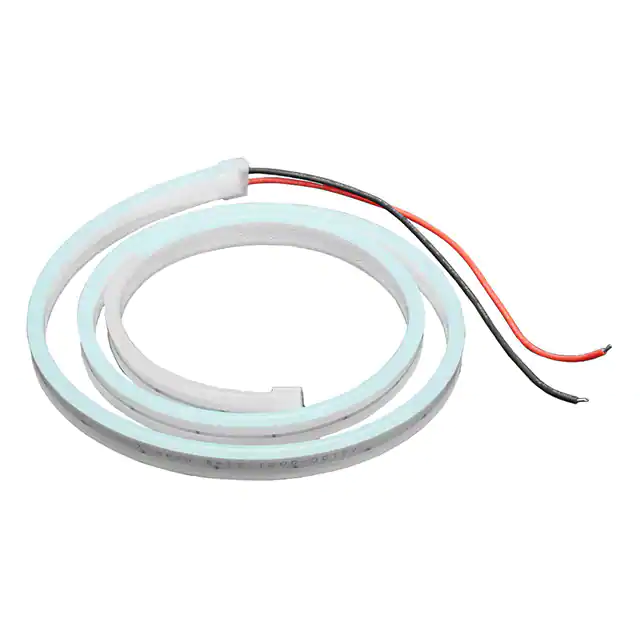

3861LED ENG BLUE LINEAR STRIP |
4,395 | 13.95 |
|
Datasheet |
- | Bulk | Active | LED Engine | Blue | - | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | - | IP65 | 1000.00mm L | - | - | - |
|
CLU721-1206C4-403H5K2LED COB CLU721 NEUT WH SQ 4000K |
3,452 | 15.41 |
|
Datasheet |
CLU721 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3922lm (Typ) | 1.05A | 85°C | 37.6V | 99 lm/W | 1.38A | 90 | - | - | 19.00mm L x 19.00mm W | - | 11.00mm Dia | Flat |
|
CLU038-1206C4-303M2K1LED COB CLU038 WM WHT SQ 3000K |
2,501 | 15.41 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2742lm (Typ) | 540mA | 85°C | 34.6V | 147 lm/W | 1.38A | 80 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1206C4-353H5K2LED COB CLU038 WARM WHT SQ 3500K |
1,537 | 15.41 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2309lm (Typ) | 540mA | 85°C | 34.6V | 124 lm/W | 1.38A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1206C4-403H5K2LED COB CLU038 NEUT WHT SQ 4000K |
3,051 | 15.41 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2333lm (Typ) | 540mA | 85°C | 34.6V | 125 lm/W | 1.38A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU038-1210C4-303H5K2LED COB CLU038 WM WHT SQ 3000K |
2,025 | 23.85 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3621lm (Typ) | 900mA | 85°C | 34.6V | 116 lm/W | 2.3A | 90 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
CDM-18-3018-90-36-DW02LED MOD CDM WARM WHT RECT 3000K |
1,643 | 14.65 |
|
Datasheet |
CDM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 2700lm (Typ) | 900mA | 85°C | 35.5V | 85 lm/W | 1.08A | 97 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 16.80mm Dia | Flat |
|
BXRE-30E6500-C-73LED COB V22 WM WH SQUARE 3000K |
2,064 | 14.64 |
|
Datasheet |
Gen 7 V22 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 10467lm (Typ) | 1.44A | 85°C | 50.7V | 143 lm/W | 2.88A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
|
CXB2540-0000-000N0UU430GLED COB XLAMP WARM WHT SQ 3000K |
4,392 | 12.28 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 1.1A | 85°C | 36V | 103 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
SSB2-24G09-5090-00LED MOD SSB2 WHT LNR STRP 5000K |
2,322 | 9.00 |
|
Datasheet |
SSB2, New Energy™ | Tray | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 912lm (Typ) | 180mA | 25°C | 31.8V | 159 lm/W | 480mA | 90 | - | - | 279.50mm L x 22.00mm W | 6.00mm | - | Flat |
|

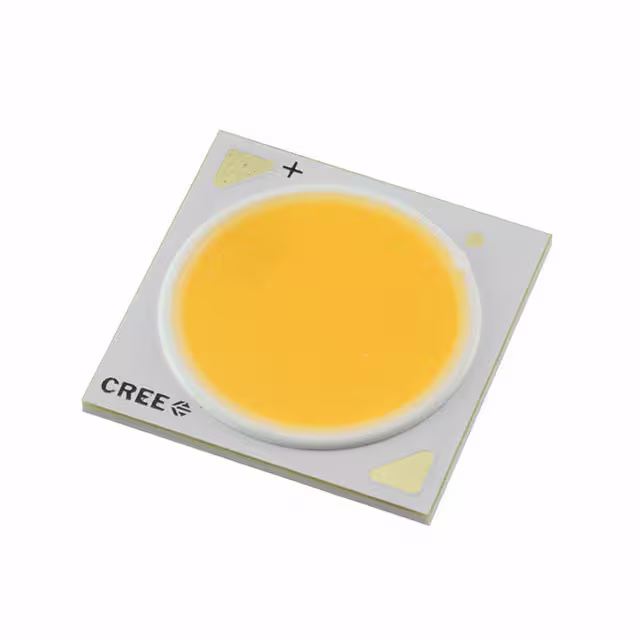

CXA2540-0000-000N00V40E7LED COB XLAMP WARM WHT SQ 3000K |
4,057 | 12.70 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
BXRC-30G40H0-C-83LED COB VERO 18C WHT RND 3000K |
2,769 | 16.80 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5440lm (Typ) | 1.05A | 25°C | 33.9V | 153 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|

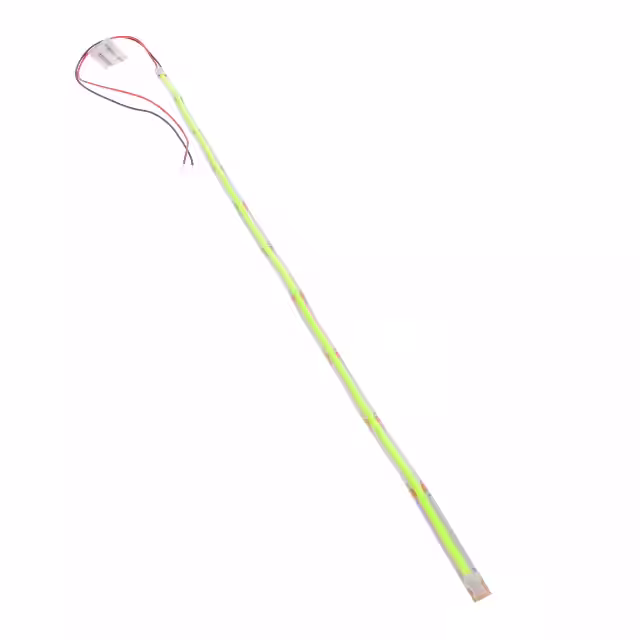

AB-FO024GN-02012-XA1LED COB AB-FO GREEN LNR STRIP |
2,766 | 20.35 |
|
Datasheet |
AB-FO | Bag | Active | Chip On Board (COB) | Green | - | 525nm | Linear Light Strip, Flexible | 600lm | 250mA | - | 24V | 54 lm/W | 250mA | - | 150° | IP65 | - | 2.20mm | - | Flat |
|
CXA2540-0000-000N00V430FLED COB XLAMP WARM WHT SQU 3000K |
3,669 | 13.56 |
|
Datasheet |
XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
L2C5-MM001211E1900LED COB LUXEON NEUT WHT SQ 4500K |
1,036 | 30.91 |
|
Datasheet |
LUXEON CoB FreshFocus | Tube | Active | Chip On Board (COB) | White, Neutral | 4500K 3-Step MacAdam Ellipse | - | Square | 2960lm (Typ) | 1.2A | 85°C | 34.8V | 70 lm/W | 2.4A | - | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
BXRC-30G40H0-C-83-SELED COB VERO SE18C WH RND 3000K |
3,107 | 16.82 |
|
Datasheet |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5369lm (Typ) | 1.05A | 25°C | 33.9V | 151 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
