LED COBs, Engines, Modules, Strips

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Type	Color	CCT (K)	Wavelength	Configuration	Luminous Flux @ Current/Temperature	Current - Test	Temperature - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Max	CRI (Color Rendering Index)	Viewing Angle	Features	Size / Dimension	Height	Light Emitting Surface (LES)	Lens Type
CTM-9-5022-90-36-TW01 LED COB CTM9 WHITE Luminus Devices Inc.	349	5.29	RFQ	Datasheet	Salud™	Tray	Active	Chip On Board (COB)	White, Warm / White, Cool	2200K ~ 5000K	-	Rectangle	675lm (Typ)	200mA	85°C	37V	91 lm/W	220mA	90	-	-	15.00mm L x 12.00mm W	1.58mm	9.50mm Dia	Flat
SPHWHAHDNE25YZV3D4 LED COB D GEN4 WM WHT SQ 3000K Samsung Semiconductor, Inc.	250	5.43	RFQ	Datasheet	COB D Gen4	Bulk	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	2552lm (Typ)	450mA	85°C	33.6V	169 lm/W	1.15A	80	115°	-	19.00mm L x 19.00mm W	1.70mm	14.50mm Dia	Flat
SPHWHAHDNE25YZT3D4 LED COB D GEN4 NEUT WHT SQ 4000K Samsung Semiconductor, Inc.	240	5.43	RFQ	Datasheet	COB D Gen4	Bulk	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	2694lm (Typ)	450mA	85°C	33.6V	178 lm/W	1.15A	80	115°	-	19.00mm L x 19.00mm W	1.70mm	14.50mm Dia	Flat
LST1-01F04-5770-01 LED MOD OSLON WHT STARBRD 5700K New Energy	237	5.36	RFQ	Datasheet	OSLON® Square	Tray	Not For New Designs	LED Module	White, Cool	5700K	-	Starboard	330lm (Typ)	700mA	-	3.2V	165 lm/W	1.8A	70	-	-	19.89mm Dia	1.70mm	-	Domed

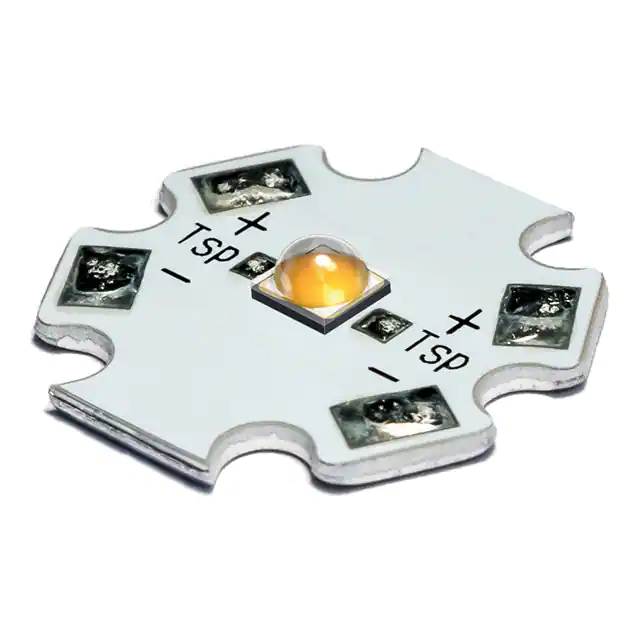

LST1-01F04-3070-01 LED MOD OSLON WHT STARBRD 3000K New Energy	166	5.36	RFQ	Datasheet	OSLON® Square	Tray	Not For New Designs	LED Module	White, Warm	3000K	-	Starboard	300lm (Typ)	700mA	-	3.2V	150 lm/W	1.8A	70	-	-	19.89mm Dia	1.70mm	-	Domed
SPHWHAHDNF25YZV3D4 LED COB D GEN4 WM WHT SQ 3000K Samsung Semiconductor, Inc.	176	6.31	RFQ	Datasheet	COB D Gen4	Bulk	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	3061lm (Typ)	540mA	85°C	33.6V	169 lm/W	1.38A	80	115°	-	19.00mm L x 19.00mm W	1.70mm	14.50mm Dia	Flat
CXA1512-0000-000F00M430F LED COB XLAMP WARM WHT SQU 3000K Cree LED	5,124	4.56	RFQ	Datasheet	XLamp® CXA1512	Tray	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Square	1538lm (1485lm ~ 1590lm)	700mA	85°C	18V	122 lm/W	1.2A	80	115°	-	15.85mm L x 15.85mm W	1.70mm	8.90mm Dia	Flat
L2C5-30801203E0900 LED COB LUXEON WHT RECT 3000K Lumileds	395	5.76	RFQ	Datasheet	LUXEON CoB Core Range Gen 3	Tube	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Rectangle	1432lm (Typ)	300mA	85°C	34.5V	138 lm/W	600mA	80	115°	-	16.00mm L x 19.00mm W	1.50mm	9.00mm Dia	Flat
BXRH-30G3000-D-83 LED COB V9 HD WARM WHT SQ 3000K Bridgelux	540	5.93	RFQ	Datasheet	Gen 8 V9 HD LED Array	Tube	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	2947lm (Typ)	700mA	25°C	36.6V	115 lm/W	1.2A	90	120°	-	19.00mm L x 19.00mm W	1.63mm	8.80mm Dia	Flat
BXRH-30E3000-D-83 LED COB V9 HD WARM WHT SQ 3000K Bridgelux	326	5.93	RFQ	Datasheet	Gen 8 V9 HD LED Array	Tube	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Square	3630lm (Typ)	700mA	25°C	36.6V	142 lm/W	1.2A	80	120°	-	19.00mm L x 19.00mm W	1.63mm	8.80mm Dia	Flat

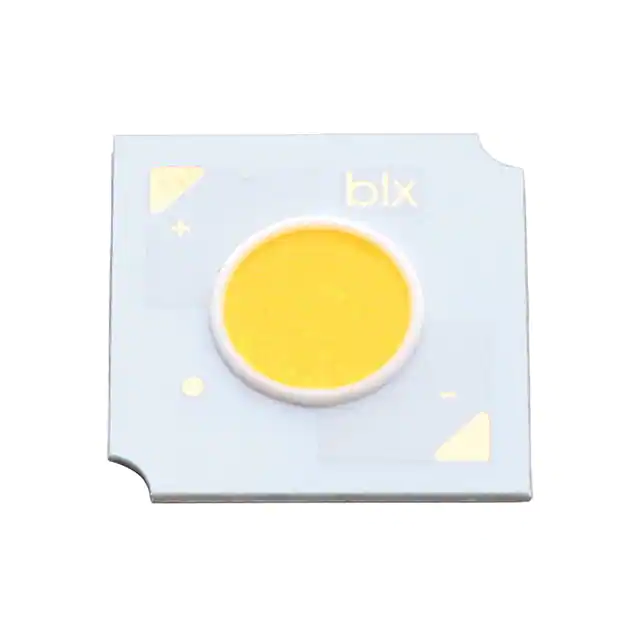

BXRH-40E3000-D-83 LED COB V9 HD NEUT WHT SQU 4000K Bridgelux	123	5.93	RFQ	Datasheet	Gen 8 V9 HD LED Array	Tube	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Square	3737lm (Typ)	700mA	25°C	36.6V	146 lm/W	1.2A	80	120°	-	19.00mm L x 19.00mm W	1.63mm	8.80mm Dia	Flat
BXRC-50C2001-D-74 LED COB VERO 13 WHT RND 5000K Bridgelux	196	5.51	RFQ	Datasheet	Gen 7 Vero® 13 Array	Tray	Active	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	2528lm (Typ)	500mA	85°C	30.9V	164 lm/W	1A	70	-	With Connector	36.20mm Dia	1.90mm	13.20mm Dia	Flat
BXRC-27E2000-D-73 LED COB VERO 13 WM WHT RND 2700K Bridgelux	107	5.51	RFQ	Datasheet	Gen 7 Vero® 13 Array	Tray	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	2129lm (Typ)	500mA	85°C	30.9V	138 lm/W	1A	80	-	With Connector	36.20mm Dia	1.90mm	13.20mm Dia	Flat
BXRE-27G10F0-C-82 LED COB V10 F90 WM WHT SQ 2700K Bridgelux	554	0.00	RFQ	Datasheet	V10 F90 Array	Tube	Active	Chip On Board (COB)	White, Warm	2700K	-	Square	1682lm (Typ)	-	25°C	31.6V	177 lm/W	300mA	90	120°	Dimming	13.50mm L x 13.50mm W	1.65mm	10.00mm Dia	Flat
BXRE-40G10F0-C-82 LED COB V10 F90 WHT SQ 4000K Bridgelux	237	0.00	RFQ	Datasheet	V10 F90 Array	Tube	Active	Chip On Board (COB)	White, Neutral	4000K	-	Square	1750lm (Typ)	-	25°C	30.9V	185 lm/W	300mA	90	120°	Dimming	13.50mm L x 13.50mm W	1.65mm	10.00mm Dia	Flat
BXRV-DR-1830G-3000-A-13 LED COB VESTA WM WHT RECT 2400K Bridgelux	236	5.66	RFQ	Datasheet	Vesta™	Tray	Active	Chip On Board (COB)	White, Warm	2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse	-	Rectangle	3725lm (Typ)	950mA	25°C	34.1V	115 lm/W	1.05A	90	110°	-	24.00mm L x 20.00mm W	1.70mm	16.20mm Dia	Flat
BXRC-40G2000-C-73-SE LED COB VERO SE 13 WHT RND 4000K Bridgelux	191	5.67	RFQ	Datasheet	Vero® SE 13 Array	Tray	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Round	2659lm (Typ)	630mA	85°C	34.1V	124 lm/W	1.26A	90	120°	-	36.20mm Dia	3.60mm	13.40mm Dia	Flat
BXRC-30G2000-C-73-SE LED COB VERO WHT RND 3000K Bridgelux	190	5.67	RFQ	Datasheet	Vero® SE 13 Array	Tray	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	2479lm (Typ)	630mA	85°C	34.1V	115 lm/W	1.26A	90	120°	-	36.20mm Dia	3.60mm	13.40mm Dia	Flat
BXEB-L0590U-35E1500-C-C3 LED MOD EB SER WH LNR STRP 3500K Bridgelux	144	7.50	RFQ	Datasheet	EB Series™ Slim Gen 3	Tray	Active	LED Module	White, Warm	3500K 3-Step MacAdam Ellipse	-	Linear Light Strip	2490lm (Typ)	700mA	25°C	19.1V	186 lm/W	1.7A	80	120°	With Connector	590.00mm L x 12.70mm W	4.30mm	-	Flat

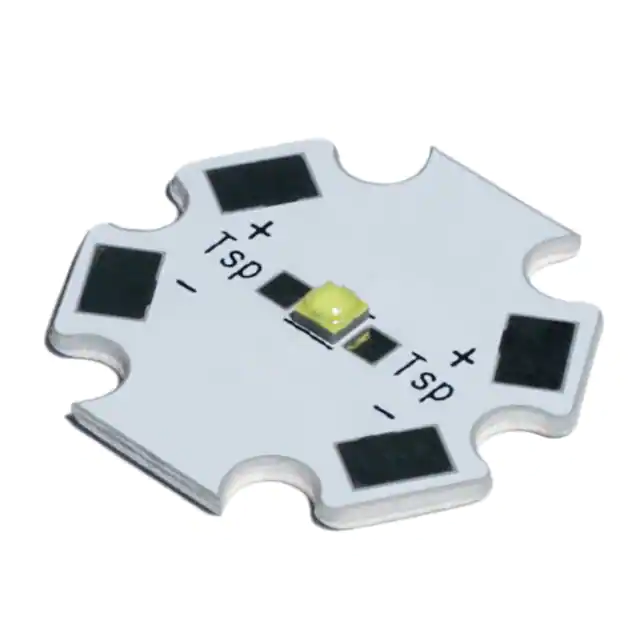

LST1-01H06-LME1-01 LED MOD LUXEON C LIME STARBRD New Energy	291	3.58	RFQ	Datasheet	LUXEON C	Tray	Active	LED Module	Lime	-	-	Starboard	-	350mA	85°C	2.75V	135 lm/W	1.23A	-	145°	-	19.89mm Dia	3.05mm	-	Domed

Total 32298 Record«Prev 1... 18 19 20 212223 24 25...1615 Next»
