LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27G1000-C-83LED COB VERO 10C WH STARBD 2700K |
290 | 6.94 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1274lm (Typ) | 300mA | 25°C | 30.7V | 138 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
BXRC-27E1000-C-83LED COB VERO 10C WH STARBD 2700K |
378 | 6.94 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1544lm (Typ) | 300mA | 25°C | 30.7V | 168 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
BXRC-27E2000-C-73LED COB VERO 13 WM WHT RND 2700K |
200 | 6.84 |
|
Datasheet |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2926lm (Typ) | 630mA | 85°C | 34.1V | 136 lm/W | 1.26A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-50C2001-C-74LED COB VERO 13 WHT RND 5000K |
116 | 6.84 |
|
Datasheet |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 3475lm (Typ) | 630mA | 85°C | 34.1V | 162 lm/W | 1.26A | 70 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-40G1000-C-83LED COB VERO 10C WH STARBD 4000K |
366 | 6.94 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1409lm (Typ) | 300mA | 25°C | 30.7V | 153 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
BXRC-30E1000-C-83LED COB VERO 10C STARBRD 3000K |
242 | 6.94 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1641lm (Typ) | 300mA | 25°C | 30.7V | 178 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
CMU1519-0000-000N0Z0A40HLED COB XLAMP NEUT WHT SQU 4000K |
207 | 5.76 |
|
Datasheet |
XLamp® CMU1519 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2322lm (Typ) | 540mA | 85°C | 33.7V | 128 lm/W | 1.44A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
CXM-14-40-80-36-AC40-F5-3LED COB CXM-14 GEN4 WHT SQ 4000K |
4,042 | 10.55 |
|
Datasheet |
CXM-14 Gen4 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4140lm (Typ) | 720mA | 85°C | 33.5V | 172 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia | Flat |
|
BXRE-35G20F0-B-83LED COB V13 F90 ARRAY SQ 3500K |
512 | 0.00 |
|
Datasheet |
V13 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 2278lm (Typ) | 350mA | 25°C | 33.4V | 190 lm/W | 900mA | 90 | 120° | Dimming | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|
BXRV-TR-2750G-30A0-A-23LED COB VESTA WHITE SQUARE 3850K |
196 | 7.02 |
|
Datasheet |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse | - | Square | 2884lm (Typ) | 650mA | 25°C | 35.5V | 125 lm/W | 950mA | 92 | 130° | - | 21.00mm L x 21.00mm W | 1.65mm | 16.30mm Dia | Flat |
|
L2C5-30901202E06C0LED COB LUXEON WHT RECT 3000K |
277 | 9.17 |
|
Datasheet |
LUXEON CoB, CrispWhite Gen 2 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 651lm (Typ) | 200mA | 85°C | 35V | 93 lm/W | - | 90 | 115° | - | 12.00mm L x 15.00mm W | 1.50mm | 6.50mm Dia | Flat |
|
|
SPHWHAHDNK27YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
158 | 7.43 |
|
Datasheet |
COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4923lm (Typ) | 1.08A | 85°C | 34V | 134 lm/W | 2.16A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
BXRC-30H1000-C-83LED COB VERO 10C STARBRD 3000K |
208 | 7.29 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | - | 300mA | 25°C | 30.7V | - | 1A | 97 (Typ) | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
SPHWHAHDNG25YZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
249 | 7.14 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 4282lm (Typ) | 720mA | 85°C | 33.6V | 177 lm/W | 1.84A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNK23YZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
139 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6962lm (Typ) | 1.08A | 85°C | 33.6V | 192 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
BXRC-50E1001-C-83LED COB VERO 10C WH STARBD 5000K |
137 | 7.29 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1709lm (Typ) | 300mA | 25°C | 30.7V | 186 lm/W | 1A | 80 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
CXA2520-0000-000N00Q430HLED COB XLAMP WARM WHT SQU 3000K |
102 | 5.96 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|

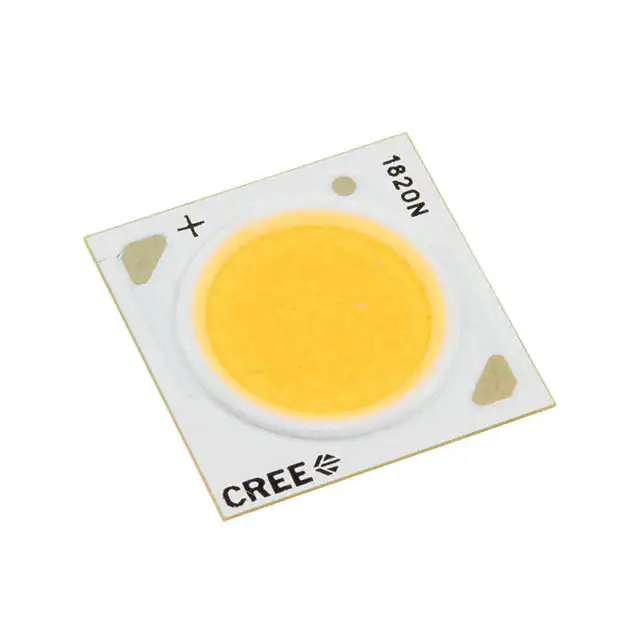

CXB1820-0000-000N0UQ230GLED COB XLAMP WARM WHT SQ 3000K |
101 | 5.96 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2180lm (2100lm ~ 2260lm) | 550mA | 85°C | 36V | 110 lm/W | 1.05A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
SPHWHAHDNH25YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
500 | 6.96 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5064lm (Typ) | 900mA | 85°C | 33.7V | 167 lm/W | 1.8A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
L2C5-30801205E1100LED COB LUXEON WHT RECT 3000K |
381 | 8.02 |
|
Datasheet |
LUXEON CoB Core Range | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3750lm (Typ) | 900mA | 85°C | 37V | 113 lm/W | 1.65A | 80 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 11.00mm Dia | Flat |
