LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-14-30-95-36-TS31-F4-3LED COB 3000K SQUARE |
672 | 15.61 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

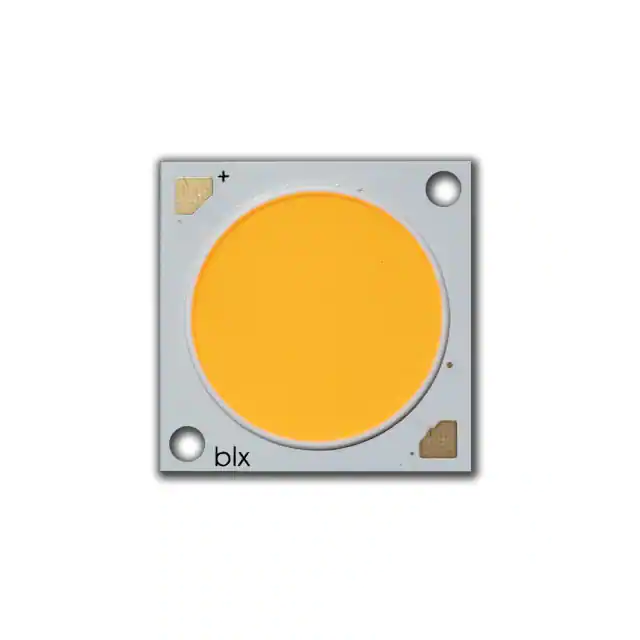

BXRE-40G6500-C-83LED COB V22 NEUT WHT SQU 4000K |
150 | 20.57 |
|
Datasheet |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9512lm (Typ) | 1.2A | 25°C | 50.7V | 156 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
BXRC-35G4000-C-83LED COB VERO 18C WM WH RND 3500K |
202 | 16.80 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 5384lm (Typ) | 1.05A | 25°C | 33.9V | 151 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
|
BXRC-40G4000-C-83LED COB VERO 18C WHT ROUND 4000K |
145 | 16.80 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 5496lm (Typ) | 1.05A | 25°C | 33.9V | 154 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
|
BXRC-35E4000-C-83LED COB VERO 18C WM WH RND 3500K |
200 | 16.80 |
|
Datasheet |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 6551lm (Typ) | 1.05A | 25°C | 33.9V | 184 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|

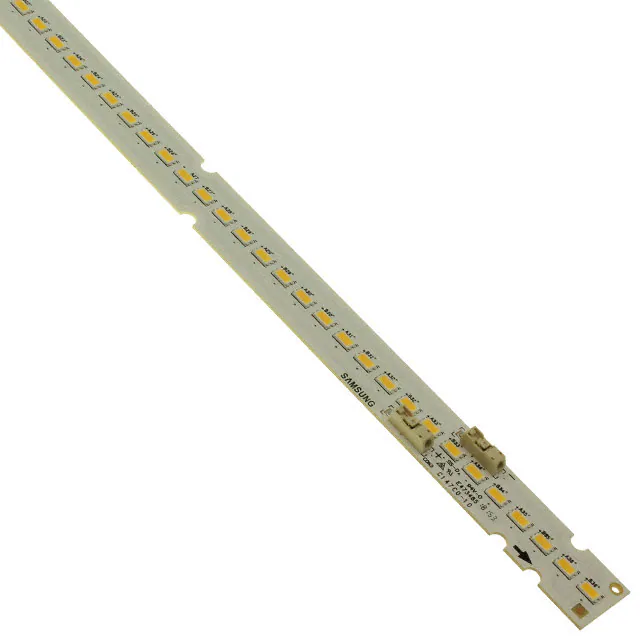

SI-B8T261560WWLED MOD F-SER GEN3 LNR 4000K |
983 | 12.93 |
|
Datasheet |
F-Series Gen3 | Bulk | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 4500lm (Typ) | 1.12A | 65°C | 23V | 175 lm/W | - | 80 | - | With Connector | 560.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

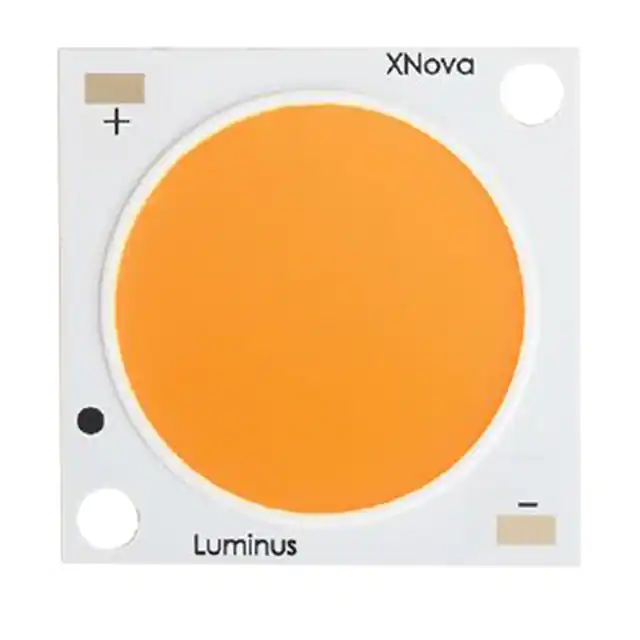

CXM-22-30-95-36-AC00-F2-3LED COB CXM-22 WM WHT SQ 3000K |
215 | 16.01 |
|
Datasheet |
CXM-22 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4240lm (Typ) | 1.28A | 85°C | 36V | 92 lm/W | 2.56A | 95 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|

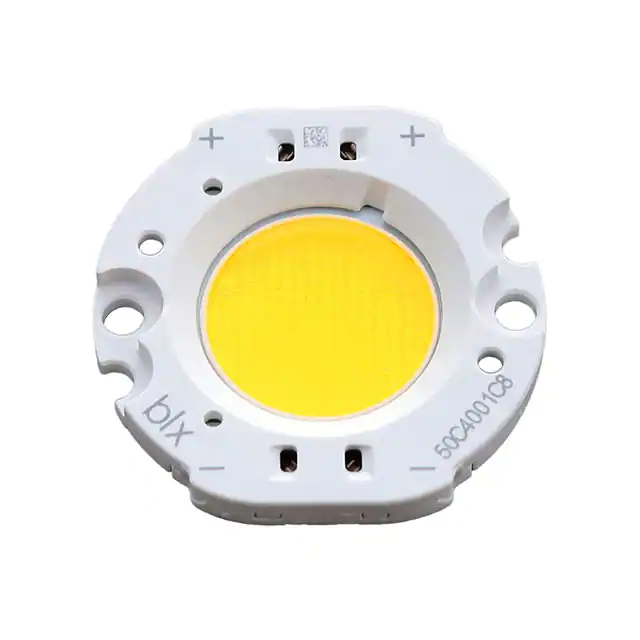

BXRC-50C4001-C-84-SELED COB VERO SE 18C WH RND 5000K |
200 | 16.82 |
|
Datasheet |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 6837lm (Typ) | 1.05A | 25°C | 33.9V | 192 lm/W | 3A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
BXRC-50E4001-C-84-SELED COB VERO SE 18C WH RND 5000K |
199 | 16.82 |
|
Datasheet |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 6577lm (Typ) | 1.05A | 25°C | 33.9V | 185 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
|
BXRE-35G40F0-C-82LED COB V18 F90 ARRAY SQ 3500K |
785 | 0.00 |
|
Datasheet |
V18 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 6781lm (Typ) | - | 25°C | 34.9V | 185 lm/W | 1.05A | 90 | 120° | Dimming | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
|
XPLAWT-H0-0000-000BV20E5-SB01LED MOD XLAMP WHT STARBRD 4000K |
115 | 13.20 |
|
Datasheet |
XLamp® XP-L | Tray | Active | LED Module | White, Neutral | 4000K | - | Starboard | 410lm (400lm ~ 420lm) | 1.05A | 85°C | 2.95V | 132 lm/W | 3A | 70 | 115° | - | 19.89mm Dia | - | - | Flat |
|
SI-B8T521560WWLED MOD F-SER GEN3 LNR 4000K |
229 | 22.43 |
|
Datasheet |
F-Series Gen3 | Bulk | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 9000lm (Typ) | 1.12A | 65°C | 46V | 175 lm/W | - | 80 | - | With Connector | 559.70mm L x 39.80mm W | 5.20mm | - | Flat |
|
SI-B8U521B20WWLED MOD F-SER GEN3 LNR 3500K |
834 | 23.19 |
|
Datasheet |
F-Series Gen3 | Bulk | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 8800lm (Typ) | 1.12A | 65°C | 46V | 171 lm/W | - | 80 | - | With Connector | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
BXEB-L1120Z-50S4000-C-C3LED MOD EB SER WH LNR STRP 5000K |
119 | 17.68 |
|
Datasheet |
EB Series™ Gen 3 Thrive | Bulk | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5380lm (Typ) | 960mA | 25°C | 40.6V | 138 lm/W | 1.92A | 98 (Typ) | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
|
XPLAWT-H0-0000-000BV20E1-SB01LED MOD XLAMP WHT STARBRD 6500K |
330 | 14.15 |
|
Datasheet |
XLamp® XP-L | Tray | Active | LED Module | White, Cool | 6500K | - | Starboard | 410lm (400lm ~ 420lm) | 1.05A | 85°C | 2.95V | 132 lm/W | 3A | 70 | 115° | - | 19.89mm Dia | - | - | Flat |
|
|
S4SM-1566409736-0C500H3S-00001LED COB SUNLIKE NEUT WH SQ 4000K |
238 | 20.07 |
|
Datasheet |
SunLike | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2540lm (Typ) | 720mA | 85°C | 35.2V | 100 lm/W | 1.44A | 97 (Typ) | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNM231ZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
146 | 19.80 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 15291lm (Typ) | 1.62A | 85°C | 50.5V | 187 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
BXRE-30E6500-C-83LED COB V22 WM WH SQUARE 3000K |
141 | 20.57 |
|
Datasheet |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 11076lm (Typ) | 1.2A | 25°C | 50.7V | 182 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|

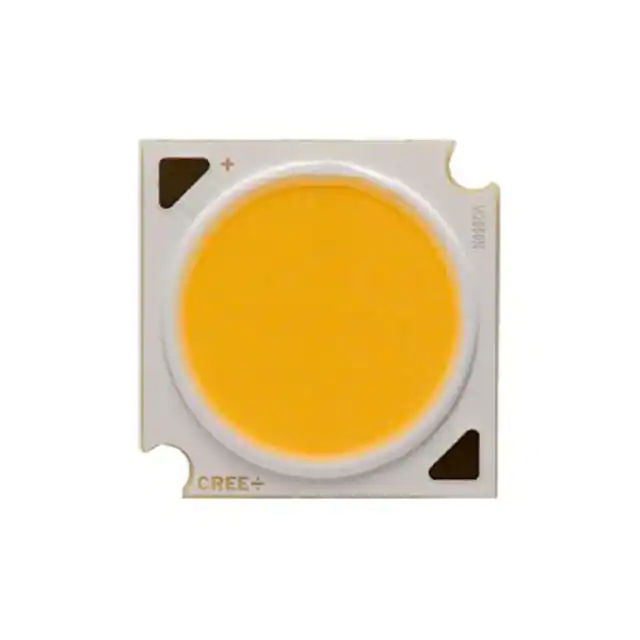

CMA2550-0000-000N0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,055 | 15.00 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6226lm (Typ) | 1.4A | 85°C | 34V | 131 lm/W | 3.3A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
SL-B8V2N80LAWWLED MOD H INFLUX LNR STRP 3000K |
170 | 15.60 |
|
Datasheet |
H inFlux | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 3960lm (Typ) | 1A | 55°C | 22.3V | 178 lm/W | 1.6A | 80 | 118° | - | 560.00mm L x 24.00mm W | 5.20mm | - | Flat |
