LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNK25YZU3D4LED COB D GEN4 WARM WHT SQ 3500K |
159 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 6340lm (Typ) | 1.08A | 85°C | 33.6V | 175 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
BXEB-TL-2750G-3000-A-13LED MOD VESTA WHT LNR STRP 5000K |
148 | 9.97 |
|
Datasheet |
Vesta™ | Tray | Active | LED Module | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 3192lm (Typ), 3352lm (Typ) | 1A | 25°C | 24.8V | 129 lm/W, 135 lm/W | 2A | 90 | 120° | - | 560.00mm L x 31.00mm W | 6.10mm | - | Flat |
|

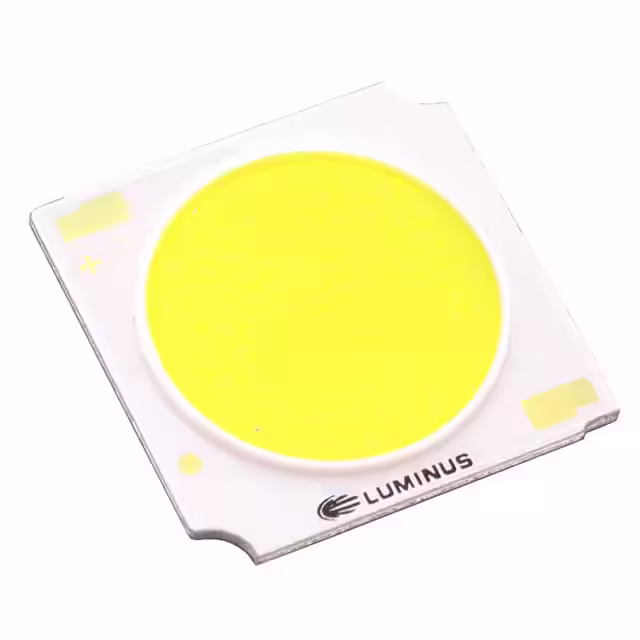

CXM-14-50-80-36-AC40-F5-3LED COB CXM-14 GEN4 WHT SQ 5000K |
246 | 10.55 |
|
Datasheet |
CXM-14 Gen4 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4190lm (Typ) | 720mA | 85°C | 33.5V | 174 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia | Flat |
|
CXM-14-30-80-36-AC40-F5-3LED COB CXM-14 GEN4 WH SQ 3000K |
207 | 10.55 |
|
Datasheet |
CXM-14 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3915lm (Typ) | 720mA | 85°C | 33.5V | 162 lm/W | 2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.50mm Dia | Flat |
|
|
CMU2239-0000-000N0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
165 | 8.40 |
|
Datasheet |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5212lm (Typ) | 1.08A | 85°C | 33.7V | 143 lm/W | 2.88A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

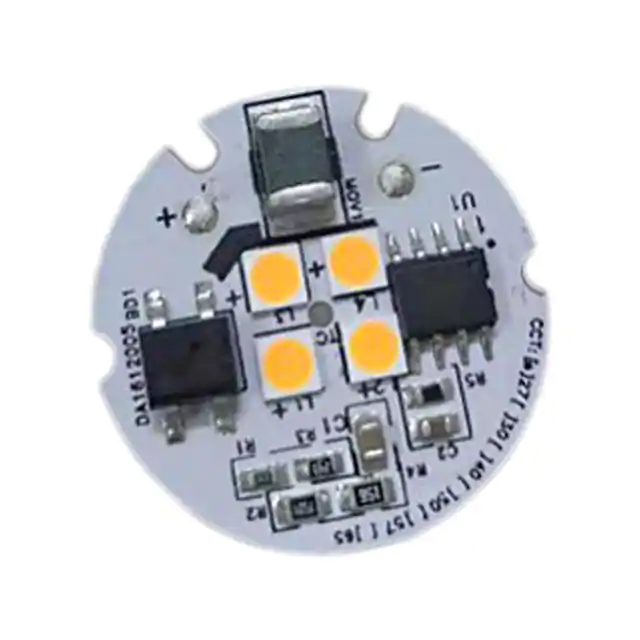

AB-GES-C02204W40NN2LED ENG AB-GES NEUT WH RND 4000K |
189 | 8.64 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 360lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 25.70mm Dia | - | - | Flat |
|
BXRC-27H2000-C-83LED COB VERO 13C WM WH RND 2700K |
122 | 11.39 |
|
Datasheet |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2051lm (Typ) | 500mA | 25°C | 33.4V | 123 lm/W | 1.75A | 97 (Typ) | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|

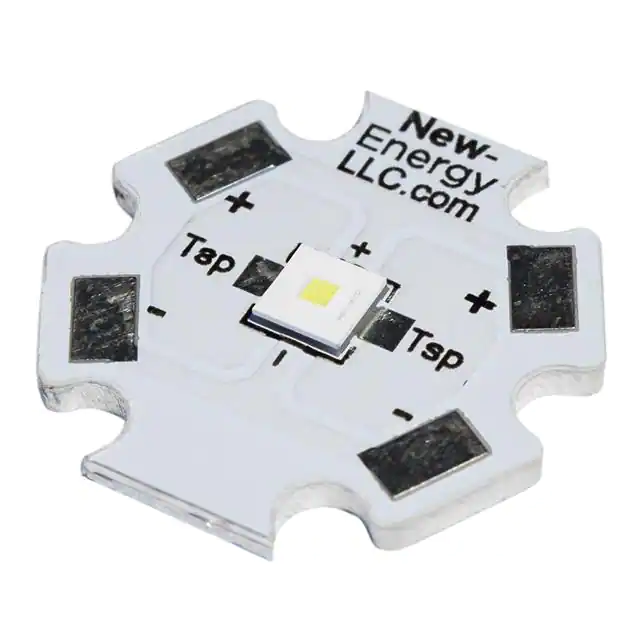

LST1-01C54-5765-01LED MOD CL WH STARBOARD 5700K |
162 | 11.24 |
|
Datasheet |
- | Tray | Active | LED Module | White, Cool | 5700K | - | Starboard | 360lm (Typ) | 1A | - | 3.98V | 116 lm/W | 3A | 65 | - | - | 19.89mm Dia | 1.70mm | - | Flat |
|

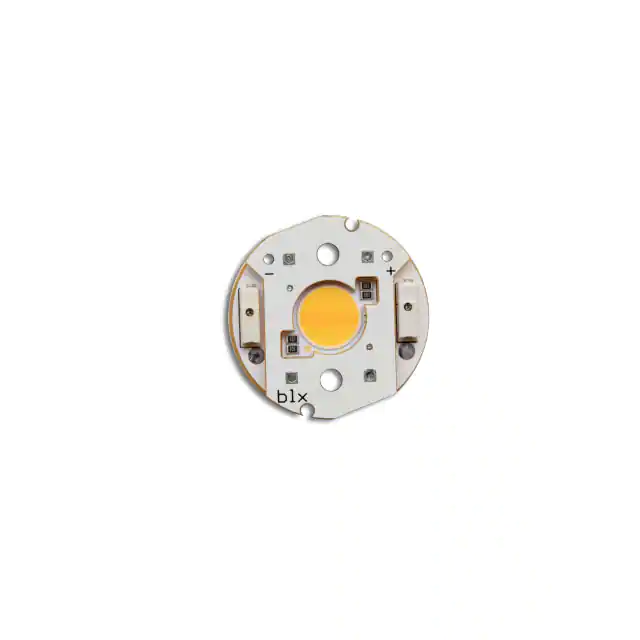

BXRV-DR-1830G-1000-B-13-S2LED COB VESTA SE WM WH RND 1800K |
199 | 10.66 |
|
Datasheet |
Vesta™ SE | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 1218lm (Typ) | 350mA | 25°C | 33.8V | 103 lm/W | 420mA | 90 | 110° | With Holder | 30.80mm Dia | 3.80mm | 9.10mm Dia | Flat |
|
BXRE-40E6500-D-73LED COB V22 NEUT WHT SQU 4000K |
220 | 10.53 |
|
Datasheet |
Gen 7 V22 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6956lm (Typ) | 1.4A | 85°C | 33.4V | 149 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
|
|
BXRE-27E6500-D-73LED COB V22 WARM WHT SQU 2700K |
128 | 10.53 |
|
Datasheet |
Gen 7 V22 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 6635lm (Typ) | 1.4A | 85°C | 33.4V | 142 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
|
|
BXRE-50C6501-D-74LED COB V22 CL WHT SQUARE 5000K |
120 | 10.53 |
|
Datasheet |
Gen 7 V22 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 7706lm (Typ) | 1.4A | 85°C | 33.4V | 165 lm/W | 2.8A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia | Flat |
|

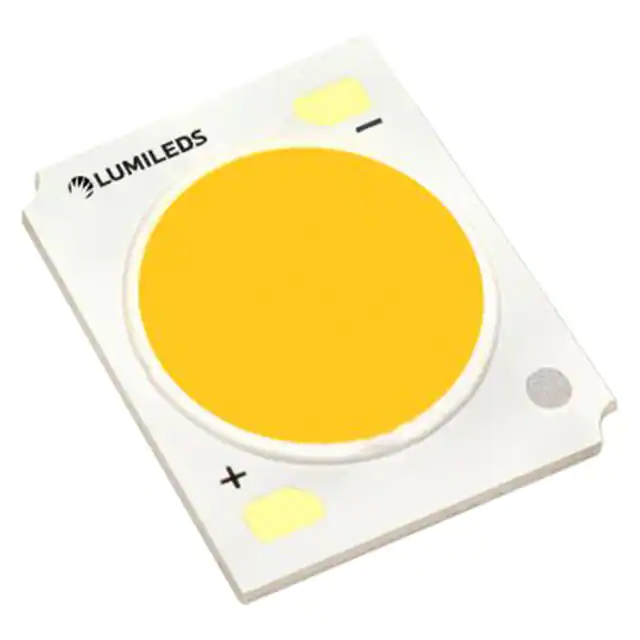

L2C5-40801208E1500LED COB LUXEON WHT RECT 4000K |
141 | 10.55 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 4542lm (Typ) | 900mA | 85°C | 34.8V | 145 lm/W | 1.8A | 80 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 15.00mm Dia | Flat |
|
BXRE-65E4001-C-83LED COB V18 CL WHT SQUARE 6500K |
460 | 14.27 |
|
Datasheet |
Gen 8 V18 Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 6475lm (Typ) | 1.05A | 25°C | 33.9V | 182 lm/W | 3A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
|
|
BXRE-57E4001-C-83LED COB V18 CL WHT SQUARE 5700K |
309 | 14.27 |
|
Datasheet |
Gen 8 V18 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 6400lm (Typ) | 1.05A | 25°C | 33.9V | 180 lm/W | 3A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
|
|
SPHWHAHDNK25YZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
160 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5918lm (Typ) | 1.08A | 85°C | 33.6V | 163 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
CTM-14-4018-90-36-TW01LED MOD CTM WHITE RECT 4000K |
188 | 10.73 |
|
Datasheet |
CTM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm / White, Neutral | 1800K ~ 4000K | - | Rectangle | 825lm Warm White, 1370lm Cool White | 400mA | 85°C | 37V | 56 lm/W Warm White, 93 lm/W Cool White | 440mA | 90 | 130° | - | 24.00mm L x 20.00mm W | 1.58mm | 14.50mm Dia | Flat |
|
|
CTM-14-6527-90-36-TWD2LED COB CTM14 WHITE |
315 | 11.69 |
|
- |
- | Tray | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K, 6500K | - | Rectangle | 3500lm (Typ), 3040lm (Typ) | - | 85°C | 33V | - | 900mA | 90 | 130° | - | 15.00mm L x 12.00mm W | 1.40mm | 9.30mm Dia | Flat |
|
BXRE-30G6500-D-83LED COB V SER GEN 8 WH SQ 3000K |
371 | 14.79 |
|
Datasheet |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5201lm (Typ) | 1.05A | 25°C | 33.5V | 147 lm/W | - | 90 | - | - | - | - | 22.00mm Dia | Flat |
|
|
BXRE-27G40F0-C-83LED COB V18 F90 ARRAY SQ 2700K |
398 | 0.00 |
|
Datasheet |
V18 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 11157lm | - | 85°C | 38V | 136 lm/W | 2.16A | 90 | 120° | Dimming | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
