LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-50E2001-C-83LED COB VERO 13C WHT ROUND 5000K |
131 | 11.39 |
|
Datasheet |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 3103lm (Typ) | 500mA | 25°C | 33.4V | 186 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
SPHWHAHDNL231ZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
157 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 10017lm (Typ) | 1.08A | 85°C | 50.5V | 184 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL231ZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
154 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 10308lm (Typ) | 1.08A | 85°C | 50.5V | 189 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL271ZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
140 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7245lm (Typ) | 1.08A | 85°C | 50.5V | 133 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SMJD-2316032G-XXN100D01E038ALLHE 3030 LINEAR MODULE 32LED 4000 |
194 | 9.73 |
|
Datasheet |
Square SE | Box | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 3010lm (Typ) | 700mA | 25°C | 22.7V | 190 lm/W | 800mA | 80 | - | - | 121.40mm L x 49.50mm W | 7.70mm | - | Flat |
|
SSB1-48F01-3580-00LED MOD SSB1 WHT LNR STRP 3500K |
4,544 | 6.90 |
|
Datasheet |
SSB1 | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 2280lm (Typ) | 400mA | 50°C | 34.4V | 164 lm/W | 600mA | 80 | - | - | 559.50mm L x 22.00mm W | 6.00mm | - | Flat |
|
BXRE-40E4000-C-83LED COB V SER GEN 8 WHT SQ 4000K |
600 | 13.60 |
|
Datasheet |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6357lm (Typ) | 1.05A | 25°C | 33.9V | 185 lm/W | - | 80 | - | - | - | - | 18.00mm Dia | Flat |
|

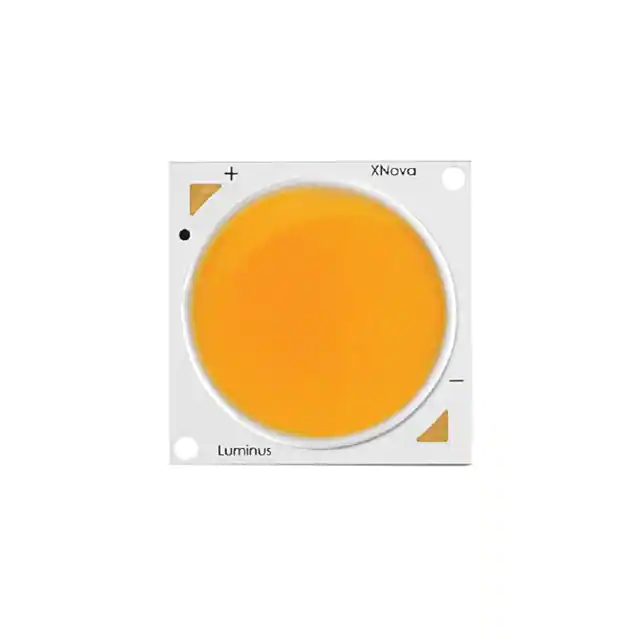

CXM-22-27-90-36-AC10-F3-3LED COB CXM-22 GEN 2 WH SQ 2700K |
494 | 14.67 |
|
Datasheet |
CXM-22 Gen 2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4390lm (Typ) | 1.28A | 85°C | 34V | 101 lm/W | 2.56A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-30-90-36-AC10-F3-3LED COB CXM-22 GEN 2 WH SQ |
318 | 14.67 |
|
Datasheet |
CXM-22 Gen 2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5050lm (Typ) | 1.28A | 85°C | 34V | 116 lm/W | 2.56A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CMU1532-0000-000N0Z0A35HLED COB XLAMP WARM WHT SQU 3500K |
214 | 7.58 |
|
Datasheet |
XLamp® CMU1532 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3703lm (Typ) | 900mA | 85°C | 33.7V | 122 lm/W | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1532-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
162 | 7.58 |
|
Datasheet |
XLamp® CMU1532 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3692lm (Typ) | 900mA | 85°C | 33.7V | 122 lm/W | 2.4A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
BXRC-50E4001-B-74LED COB VERO 18 WHT RND 5000K |
188 | 9.22 |
|
Datasheet |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4666lm (Typ) | 900mA | 85°C | 34.1V | 152 lm/W | 1.8A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
CMB1840-0000-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
237 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4912lm | 1.1A | 85°C | 34.4V | 130 lm/W | 2.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
|
SPHWHAHDNL271ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
120 | 12.70 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 8186lm (Typ) | 1.08A | 85°C | 50.6V | 150 lm/W | 2.16A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL231ZV3DBLED COB D GEN2 WM WHT SQ 3000K |
149 | 10.25 |
|
Datasheet |
COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9225lm (Typ) | 1.08A | 85°C | 51.1V | 167 lm/W | 2.16A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK23YZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
160 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6833lm (Typ) | 1.08A | 85°C | 33.6V | 188 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK27YZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
140 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4899lm (Typ) | 1.08A | 85°C | 33.6V | 135 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK25YZV3D4LED COB D GEN4 WM WHT SQ 3000K |
135 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6122lm (Typ) | 1.08A | 85°C | 33.6V | 169 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK25YZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
123 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 6527lm (Typ) | 1.08A | 85°C | 33.6V | 180 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK25YZP3D4LED COB D GEN4 COOL WHT SQ 6500K |
122 | 11.26 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 6421lm (Typ) | 1.08A | 85°C | 33.6V | 177 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
