LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNL251ZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9572lm (Typ) | 1.08A | 85°C | 50.5V | 176 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8762lm (Typ) | 1.08A | 85°C | 50.5V | 161 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 9664lm (Typ) | 1.08A | 85°C | 50.5V | 177 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZP3D4LED COB D GEN4 COOL WHT SQ 6500K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 9507lm (Typ) | 1.08A | 85°C | 50.5V | 174 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL271ZU3D4LED COB D GEN4 WARM WHT SQ 3500K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8017lm (Typ) | 1.08A | 85°C | 50.5V | 147 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
CXM-22-35-90-54-AC30-F4-3LED COB CXM-22 GEN3 WHT SQ 3500K |
1,053 | 20.68 |
|
Datasheet |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7105lm (Typ) | 1.1A | 85°C | 51V | 127 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-35-80-54-AC30-F4-3LED COB CXM-22 GEN3 WHT SQ 3500K |
397 | 20.68 |
|
Datasheet |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8530lm (Typ) | 1.1A | 85°C | 51V | 152 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-30-90-54-AC30-F4-3LED COB CXM-22 GEN3 WH SQ 3000K |
213 | 20.68 |
|
Datasheet |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6970lm (Typ) | 1.1A | 85°C | 51V | 124 lm/W | 2.4A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM231ZV3D3LED COB D GEN3 WM WHT SQ 3000K |
316 | 17.80 |
|
Datasheet |
COB D Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 14115lm (Typ) | 1.62A | 85°C | 50V | 174 lm/W | 4.14A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
BXRE-40G4000-C-83LED COB V18 NEUT WHT SQU 4000K |
443 | 13.60 |
|
Datasheet |
Gen 8 V18 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5496lm (Typ) | 1.05A | 25°C | 33.9V | 154 lm/W | 3A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
E1300.jpg)
|
L2C5-27901204E1300LED COB LUXEON WM WHT RECT 2700K |
475 | 17.93 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 1788lm (Typ) | 450mA | 85°C | 34.8V | 114 lm/W | 900mA | 90 | 115° | - | 20.00mm L x 24.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
CTM-18-5022-90-36-TW01LED COB CTM18 WHITE |
134 | 14.88 |
|
Datasheet |
Salud™ | Tray | Active | Chip On Board (COB) | White, Warm / White, Cool | 2200K ~ 5000K | - | Rectangle | 1930lm (Typ) | 550mA | 85°C | 37V | 95 lm/W | 660mA | 90 | - | - | 24.00mm L x 20.00mm W | 1.58mm | 17.50mm Dia | Flat |
|
|
SPHWHAHDNL251ZV3DCLED COB D GEN3 WM WHT SQ 3000K |
159 | 12.70 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8882lm (Typ) | 1.08A | 85°C | 50.6V | 163 lm/W | 2.16A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

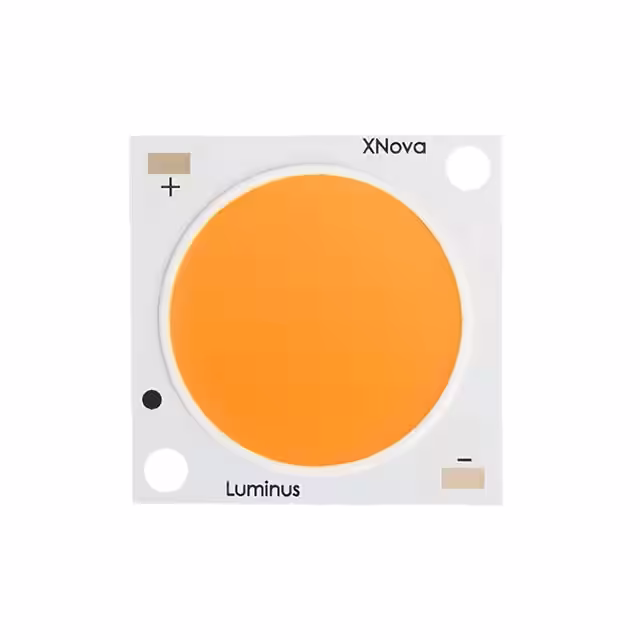

CXM-22-30-80-54-AC30-F4-3LED COB CXM-22 GEN3 WH SQ 3000K |
629 | 20.68 |
|
Datasheet |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8285lm (Typ) | 1.1A | 85°C | 51V | 148 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
CXM-22-27-80-54-AC30-F4-3LED COB CXM-22 GEN3 WHT SQ 2700K |
345 | 20.68 |
|
Datasheet |
CXM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7840lm (Typ) | 1.1A | 85°C | 51V | 140 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|

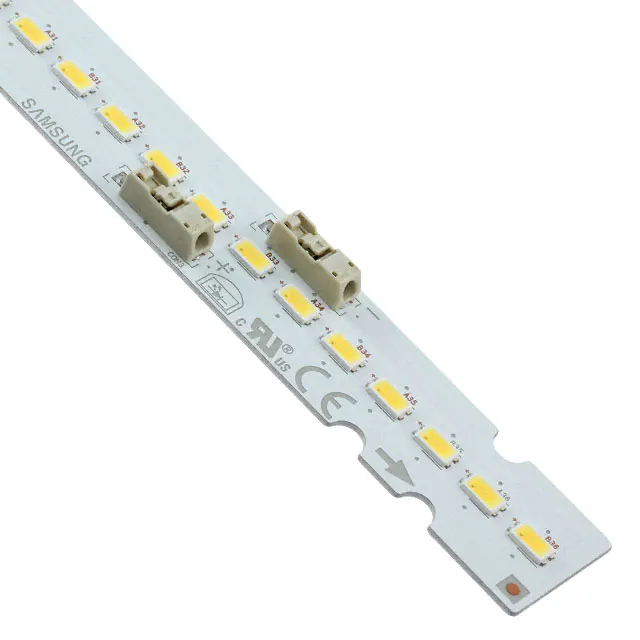

SI-B8V141560LDLED MOD LT-S562N LNR STRP 3000K |
195 | 14.24 |
|
Datasheet |
LT-S562N | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 400mA | 50°C | 35.2V | 155 lm/W | 720mA | 80 | 115° | With Connector | 560.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
CXM-22-30-90-54-AC40-F5-3LED COB CXM-22 GEN4 WH SQ 3000K |
459 | 21.08 |
|
Datasheet |
CXM-22 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7325lm (Typ) | 1.05A | 85°C | 50V | 140 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-30-80-54-AC40-F5-3LED COB CXM-22 GEN4 WH SQ 3000K |
279 | 21.08 |
|
Datasheet |
CXM-22 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8660lm (Typ) | 1.05A | 85°C | 50V | 165 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZU3D4LED COB D GEN4 WARM WHT SQ 3500K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9368lm (Typ) | 1.08A | 85°C | 50.5V | 172 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL271ZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
160 | 14.29 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8329lm (Typ) | 1.08A | 85°C | 50.5V | 153 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
