LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHSHDNB27YZR3D4LED COB D GEN4 WHT SQUARE 5000K |
500 | 0.00 |
|
Datasheet |
COB D Gen4 | Bulk | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1025lm (Typ) | 180mA | 85°C | 33.6V | 169 lm/W | 460mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
SPHWHSHDNB27YZW3D4LED COB D GEN4 WHT SQUARE 2700K |
500 | 0.00 |
|
Datasheet |
COB D Gen4 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 951lm (Typ) | 180mA | 85°C | 33.6V | 157 lm/W | 460mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
BXRH-40E1000-B-83LED COB V6 HD NEUT WHT SQU 4000K |
568 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1850lm (Typ) | 350mA | 25°C | 36.6V | 144 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-35E1000-B-83LED COB V6 HD WARM WHT SQU 3500K |
560 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1839lm (Typ) | 350mA | 25°C | 36.6V | 144 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-35H1000-G-83LED COB V6 HD WARM WHT SQU 3500K |
445 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1358lm (Typ) | 700mA | 25°C | 18.3V | 106 lm/W | 1.2A | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-35H0600-B-83LED COB V4 HD WARM WHT SQU 3500K |
598 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 656lm (Typ) | 350mA | 25°C | 18.3V | 102 lm/W | 600mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
|
BXRH-40E0600-B-83LED COB V4 HD NEUT WHT SQU 4000K |
596 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 894lm (Typ) | 350mA | 25°C | 18.3V | 140 lm/W | 600mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
|
BXRH-35H0600-A-83LED COB V4 HD WARM WHT SQU 3500K |
586 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 656lm (Typ) | 175mA | 25°C | 36.6V | 102 lm/W | 300mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
|
BXRH-27H0600-A-83LED COB V4 HD WARM WHT SQU 2700K |
564 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 597lm (Typ) | 175mA | 25°C | 36.6V | 93 lm/W | 300mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
|
BXRH-40H0600-A-83LED COB V4 HD NEUT WHT SQU 4000K |
427 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 674lm (Typ) | 175mA | 25°C | 36.6V | 105 lm/W | 300mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
CXB1304-0000-000C0HC230HLED COB XLAMP WARM WHT SQU 3000K |
253 | 1.77 |
|
Datasheet |
XLamp® CXB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
SPHWHAHDNC27YZT3DBLED COB D GEN2 NEUT WHT SQ 4000K |
475 | 2.42 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1285lm (Typ) | 270mA | 85°C | 34V | 140 lm/W | 540mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC25YZR3DBLED COB D GEN2 COOL WHT SQ 5000K |
489 | 2.42 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1513lm (Typ) | 270mA | 85°C | 34V | 165 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
SPHWHAHDNC25YZT3DBLED COB D GEN2 NEUT WHT SQ 4000K |
490 | 2.42 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1502lm (Typ) | 270mA | 85°C | 34V | 164 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC25YZW3DBLED COB D GEN2 WARM WHT SQ 2700K |
490 | 2.42 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1382lm (Typ) | 270mA | 85°C | 34V | 151 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC25YZU3DBLED COB D GEN2 WARM WHT SQ 3500K |
480 | 2.42 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1466lm (Typ) | 270mA | 85°C | 34V | 160 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|

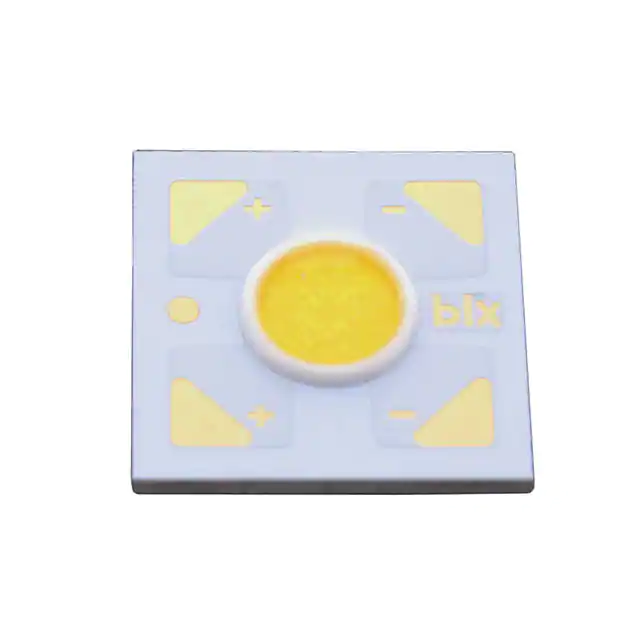

BXRH-57S0601-A-74LED COB V4HD THRIVE WHT SQ 5700K |
116 | 2.74 |
|
Datasheet |
V4 HD Thrive™ Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 675lm (Typ) | 175mA | 25°C | 36.4V | 106 lm/W | 240mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.50mm Dia | Flat |
|
|
SPHWHAHDNF25YZU3DBLED COB D GEN2 WARM WHT SQ 3500K |
250 | 4.08 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2921lm (Typ) | 540mA | 85°C | 34V | 159 lm/W | 1.08A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZW3DBLED COB D GEN2 WARM WHT SQ 2700K |
244 | 4.08 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2301lm (Typ) | 540mA | 85°C | 34V | 125 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHSHDNC27YZR3D4LED COB D GEN4 WHT SQUARE 5000K |
499 | 0.00 |
|
Datasheet |
COB D Gen4 | Bulk | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1539lm (Typ) | 270mA | 85°C | 33.6V | 170 lm/W | 690mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
