LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-57S1001-B-74LED COB V10 THRIVE WHT SQ 5700K |
134 | 2.92 |
|
Datasheet |
Gen 7 V10 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 1103lm (Typ) | 270mA | 85°C | 33.7V | 121 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|
|
SPHWHAHDND25YZU3DBLED COB D GEN2 WARM WHT SQ 3500K |
495 | 3.05 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1877lm (Typ) | 360mA | 85°C | 34V | 154 lm/W | 720mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
BXRE-35G0400-C-83LED COB V6 WARM WHT SQUARE 3500K |
600 | 3.09 |
|
Datasheet |
Gen 8 V6 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 390lm (Typ) | 80mA | 25°C | 33.7V | 145 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia | Flat |
|
|
BXRE-35E0400-C-83LED COB V6 WARM WHT SQUARE 3500K |
600 | 3.09 |
|
Datasheet |
Gen 8 V6 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 475lm (Typ) | 80mA | 25°C | 33.7V | 176 lm/W | 250mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia | Flat |
|
|
BXRE-35G08F0-E-83LED COB V8 F90 ARR WHT SQ 3500K |
600 | 0.00 |
|
Datasheet |
V8 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 1855lm | - | 85°C | 38V | 136 lm/W | 360mA | 90 | 120° | Dimming | 12.50mm L x 12.50mm W | 1.65mm | 8.50mm Dia | Flat |
|
|
BXRE-50G0401-C-83LED COB V6 COOL WHT SQUARE 5000K |
600 | 3.23 |
|
Datasheet |
Gen 8 V6 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 418lm (Typ) | 80mA | 25°C | 33.7V | 155 lm/W | 250mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.65mm | 6.30mm Dia | Flat |
|
SI-B8V08128CWWLED MOD LT-V282B LNR STRP 3000K |
618 | 3.18 |
|
Datasheet |
LT-V282B | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 965lm (Typ) | 300mA | 50°C | 25.2V | 128 lm/W | 360mA | 80 | 120° | With Connector | 275.00mm L x 18.00mm W | 5.50mm | - | Flat |
|
|
SI-B8U08128CWWLED MOD LT-V282B LNR STRP 3500K |
340 | 3.18 |
|
Datasheet |
LT-V282B | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 995lm (Typ) | 300mA | 50°C | 25.2V | 132 lm/W | 360mA | 80 | 120° | With Connector | 275.00mm L x 18.00mm W | 5.50mm | - | Flat |
|
|
BXRH-30E1000-B-83LED COB V6 HD WARM WHT SQ 3000K |
592 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1797lm (Typ) | 350mA | 25°C | 36.6V | 140 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|

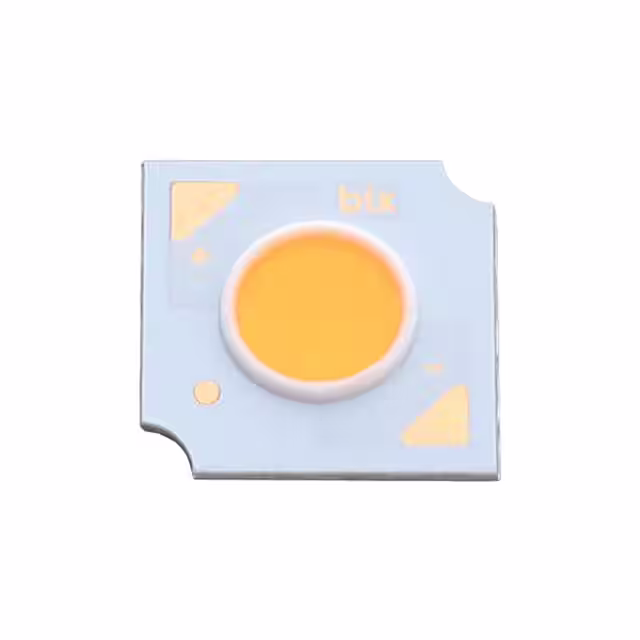

BXRH-40H1000-B-83LED COB V6 HD NEUT WHT SQU 4000K |
562 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 350mA | 25°C | 36.6V | 109 lm/W | 600mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-35H1000-B-83LED COB V6 HD WARM WHT SQU 3500K |
359 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1358lm (Typ) | 350mA | 25°C | 36.6V | 106 lm/W | 600mA | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-27G10H0-B-83LED COB V6 HD WARM WHT SQU 2700K |
574 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1448lm (Typ) | 350mA | 25°C | 36.6V | 113 lm/W | 600mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-40H1000-G-83LED COB V6 HD NEUT WHT SQU 4000K |
461 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 700mA | 25°C | 18.3V | 109 lm/W | 1.2A | 97 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
BXRH-27E1000-B-83LED COB V6 HD WARM WHT SQU 2700K |
398 | 3.48 |
|
Datasheet |
Gen 8 V6 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1691lm (Typ) | 350mA | 25°C | 36.6V | 132 lm/W | 600mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia | Flat |
|
|
SPHWHAHDNE27YZT3DBLED COB D GEN2 NEUT WHT SQ 4000K |
250 | 3.53 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2156lm (Typ) | 450mA | 85°C | 34V | 141 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHSHDND27YZR3D4LED COB D GEN4 WHT SQUARE 5000K |
500 | 0.00 |
|
Datasheet |
COB D Gen4 | Bulk | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2033lm (Typ) | 360mA | 85°C | 33.6V | 168 lm/W | 920mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
SPHWHSHDND27YZT3D4LED COB D GEN4 WHT SQUARE 4000K |
500 | 0.00 |
|
Datasheet |
COB D Gen4 | Bulk | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2002lm (Typ) | 360mA | 85°C | 33.6V | 166 lm/W | 920mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
SPHWHSHDND27YZW3D4LED COB D GEN4 WHT SQUARE 2700K |
500 | 0.00 |
|
Datasheet |
COB D Gen4 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1882lm (Typ) | 360mA | 85°C | 33.6V | 156 lm/W | 920mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
SPHWHSHDND27YZU3D4LED COB D GEN4 WHT SQUARE 3500K |
485 | 0.00 |
|
Datasheet |
COB D Gen4 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1976lm (Typ) | 360mA | 85°C | 33.6V | 163 lm/W | 920mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
SPHWHAHDNG25YZU3DBLED COB D GEN2 WARM WHT SQ 3500K |
249 | 5.20 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3872lm (Typ) | 720mA | 85°C | 34V | 158 lm/W | 1.44A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
