LED Color Lighting
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Wavelength | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | Luminous Flux @ Current/Temperature | Temperature - Test | Viewing Angle | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD W5AM-3T3U-35-ZLED DRAGON PLUS BLUE 455NM SMD |
1,237 | 0.00 |
|
Datasheet |
Golden DRAGON® Plus | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Blue | 455nm (449nm ~ 461nm) | 350mA | 3.2V | - | 1A | 493mW (355mW ~ 630mW) | 25°C | 170° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.122" (3.10mm) |
|
LR W5AM-HZJZ-1-ZLED DRAGON PLUS RED 625NM SMD |
4,695 | 0.00 |
|
Datasheet |
Golden DRAGON® Plus | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Red | 625nm (Typ) | 400mA | 2.2V | 60 lm/W | 1A | - | - | 170° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.122" (3.10mm) |
|

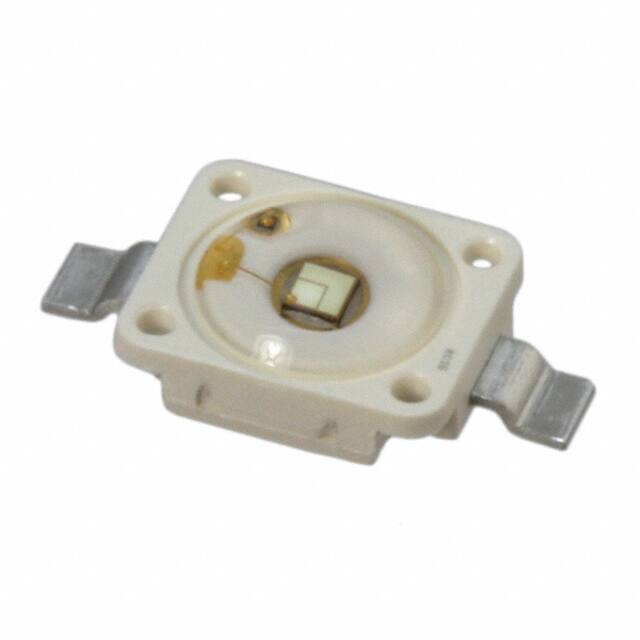

LT W5AM-JYKZ-36-ZLED DRAGON PLUS GREEN 531NM 2SMD |
2,763 | 0.00 |
|
Datasheet |
Golden DRAGON® Plus | 2-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Obsolete | Green | 531nm (519nm ~ 543nm) | 350mA | 3.3V | 71 lm/W | 1A | 82lm (52lm ~ 112lm) | 25°C | 170° | Surface Mount | 2-SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.122" (3.10mm) |
|
LY C9SM-BACB-36-1LED CERAMOS YELLOW 589NM SMD |
2,732 | 0.00 |
|
Datasheet |
CERAMOS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Yellow | 589nm (583nm ~ 595nm) | 140mA | 2.2V | 29 lm/W | 200mA | 9lm (6lm ~ 12lm) | 25°C | 120° | Surface Mount | SMD | 0.083" L x 0.065" W (2.10mm x 1.65mm) | 0.033" (0.85mm) |
|
LY W5AM-HYJZ-36-ZLED DRAGON PLUS YELLOW 589NM SMD |
4,371 | 0.00 |
|
Datasheet |
Golden DRAGON® Plus | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Yellow | 589nm (583nm ~ 595nm) | 400mA | 2.2V | 59 lm/W | 1A | 52lm (33lm ~ 71lm) | 25°C | 170° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.122" (3.10mm) |
|
XRCBLU-L1-0000-00G01LED XLAMP XRC BLUE 470NM SMD |
4,658 | 0.00 |
|
Datasheet |
XLamp® XR-C | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 470nm (465nm ~ 475nm) | 350mA | 3.5V | 13 lm/W | 500mA | 16lm (14lm ~ 18lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XRCGRN-L1-0000-00N02LED XLAMP XRC GREEN 525NM SMD |
1,178 | 0.00 |
|
Datasheet |
XLamp® XR-C | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Green | 525nm (520nm ~ 530nm) | 350mA | 3.7V | 46 lm/W | 500mA | 59lm (52lm ~ 67lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
XREBLU-L1-0000-00K03LED XLAMP XRE BLUE 475NM SMD |
2,917 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 475nm (470nm ~ 480nm) | 350mA | 3.3V | 30 lm/W | 1A | 35lm (31lm ~ 40lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREBLU-L1-0000-00K04LED XLAMP XRE BLUE 470NM SMD |
2,053 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 470nm (465nm ~ 475nm) | 350mA | 3.3V | 30 lm/W | 1A | 35lm (31lm ~ 40lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREGRN-L1-0000-00P01LED XLAMP XRE GREEN 528NM SMD |
4,515 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Green | 528nm (520nm ~ 535nm) | 350mA | 3.3V | 67 lm/W | 700mA | 77lm (67lm ~ 87lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREGRN-L1-0000-00P03LED XLAMP XRE GREEN 530NM SMD |
3,414 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Green | 530nm (525nm ~ 535nm) | 350mA | 3.3V | 67 lm/W | 700mA | 77lm (67lm ~ 87lm) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-0000-00A03LED XLAMP XRE BLUE 460NM SMD |
2,527 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (455nm ~ 465nm) | 350mA | 3.3V | - | 1A | 463mW (450mW ~ 475mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-R250-00A01LED XLAMP XRE BLUE 458NM SMD |
1,394 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 458nm (450nm ~ 465nm) | 350mA | 3.3V | - | 1A | 463mW (450mW ~ 475mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
LB W5SM-FYGZ-24-ZLED GOLDEN DRAGON BLUE 466NM SMD |
2,391 | 0.00 |
|
- |
Golden DRAGON® | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Blue | 466nm (459nm ~ 472nm) | 350mA | 3.2V | - | 1A | - | 25°C | 120° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.075" (1.90mm) |
|
|
LB W5SM-FZHX-35-0-350-R18-ZLED GOLDEN DRAGON BLUE SMD |
2,772 | 0.00 |
|
Datasheet |
Golden DRAGON® | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Blue | 470nm (464nm ~ 476nm) | 350mA | 3.2V | 21 lm/W | 1A | 24lm (15lm ~ 33lm) | 25°C | 120° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.075" (1.90mm) |
|
LD CN5M-1R1S-35-1-140-R18-ZLED OSLON SX BLUE 455NM SMD |
1,688 | 0.00 |
|
Datasheet |
OSLON® SX | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (449nm ~ 461nm) | 140mA | 3.3V | - | 250mA | 157mW (112mW ~ 201mW) | 25°C | 60° | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.100" (2.55mm) |
|
|
LD CN5M-4Q4R-35-1-140-R18-ZLED OSLON SX BLUE 455NM SMD |
3,124 | 0.00 |
|
Datasheet |
OSLON® SX | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (449nm ~ 461nm) | 140mA | 3.3V | - | 250mA | 140mW (100mW ~ 180mW) | 25°C | 60° | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.100" (2.55mm) |
|
|
LD G5AP-4M4N-35-1-100-R33-ZLED TOPLED ADV DEEP BLUE 4PLCC |
1,556 | 0.00 |
|
Datasheet |
Advanced Power TOPLED® Plus | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Blue | 457nm (448nm ~ 466nm) | 100mA | 3.3V | - | 200mA | - | 25°C | 145° | Surface Mount | SMD | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.069" (1.75mm) |
|
|
LD W5KM-1T4T-35LED GOLDEN DRAGON BLUE 455NM SMD |
1,411 | 0.00 |
|
Datasheet |
Golden DRAGON® ARGUS® | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Blue | 455nm (449nm ~ 461nm) | 350mA | 3.2V | - | 400mA | 365mW (280mW ~ 450mW) | 25°C | 160° | Surface Mount | SMD | 0.370" Dia (9.40mm) | 0.157" (4.00mm) |
|
|
LD W5SM-4S4T-35-0-350-R18-ZLED GOLDEN DRAGON 455NM BLUE SMD |
1,385 | 0.00 |
|
Datasheet |
Golden DRAGON® | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Blue | 455nm (449nm ~ 461nm) | 350mA | 3.2V | - | 1A | 350mW (250mW ~ 450mW) | 25°C | 120° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.075" (1.90mm) |
