LED Color Lighting
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Wavelength | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | Luminous Flux @ Current/Temperature | Temperature - Test | Viewing Angle | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZC-03MD07-0W60LED RGBW 624/525/457/6000K SMD |
3,803 | 0.00 |
|
Datasheet |
LZC | 3535 (9090 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 624nm Red, 525nm Green, 457nm Blue, 6000K White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 7V Red, 10.5V Green, 10.5V Blue, 10.5V White | 69 lm/W Red, 53 lm/W Green, 12 lm/W Blue, 71 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 340lm Red, 390lm Green, 89lm Blue, 525lm White | 25°C | 95° | Surface Mount | SMD | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.220" (5.60mm) |
|
|
LZC-03MD07-0W70LED RGBW 624/525/457/7000K SMD |
2,123 | 0.00 |
|
Datasheet |
LZC | 3535 (9090 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 624nm Red, 525nm Green, 457nm Blue, 7000K White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 7V Red, 10.5V Green, 10.5V Blue, 10.5V White | 69 lm/W Red, 53 lm/W Green, 12 lm/W Blue, 71 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 340lm Red, 390lm Green, 89lm Blue, 525lm White | 25°C | 95° | Surface Mount | SMD | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.220" (5.60mm) |
|

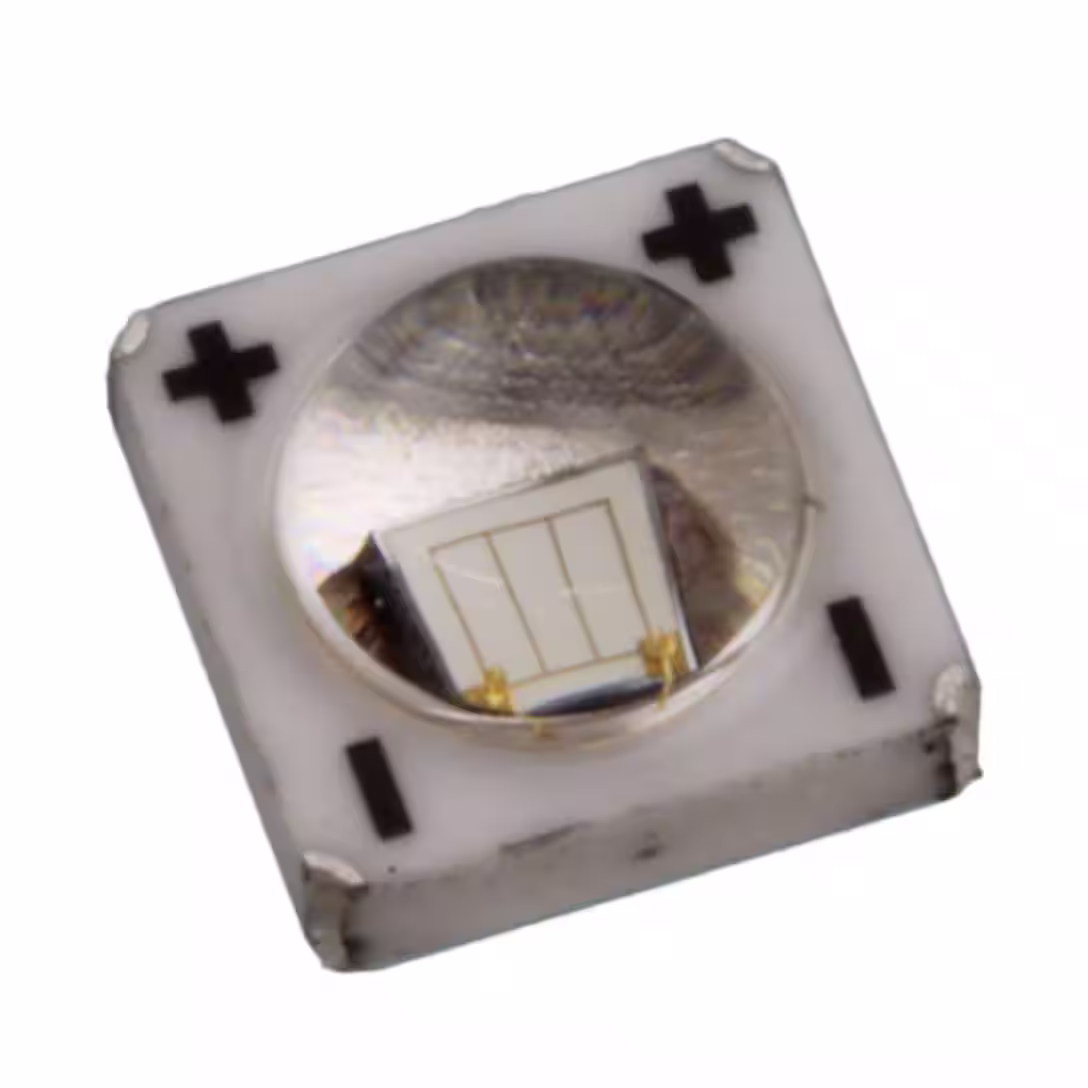

LZ1-00A100-0000LED LZ1 AMBER 593NM SMD |
2,206 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Amber | 593nm (588nm ~ 598nm) | 1A | 2.6V | 43 lm/W | 1.2A | 111lm (75lm ~ 146lm) | 25°C | 76° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.114" (2.90mm) |
|
|
LZ1-00B200-0000LED LZ1 BLUE 455NM SMD |
3,662 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 1A | 3.3V | 13 lm/W | 1.2A | 42lm (24lm ~ 60lm) | 25°C | 80° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.118" (3.00mm) |
|
LZ1-00DB00-0000LED LZ1 BLUE 460NM SMD |
2,694 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Blue | 460nm (457nm ~ 463nm) | 1A | 3.6V | - | 1.2A | 1025mW (800mW ~ 1250mW) | 25°C | 80° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.118" (3.00mm) |
|
|
LZ1-00G100-0G23LED LZ1 GREEN 525NM SMD |
1,482 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Green | 525nm (520nm ~ 530nm) | 1A | 3.75V | 57 lm/W | 1.2A | 215lm (145lm ~ 285lm) | 25°C | 80° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.114" (2.90mm) |
|
|
LZ1-00R200-0000LED LZ1 RED 663NM SMD |
2,332 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Red | 663nm (655nm ~ 670nm) | 1A | 2.5V | - | 1.2A | 820mW (640mW ~ 1000mW) | 25°C | 90° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.114" (2.90mm) |
|

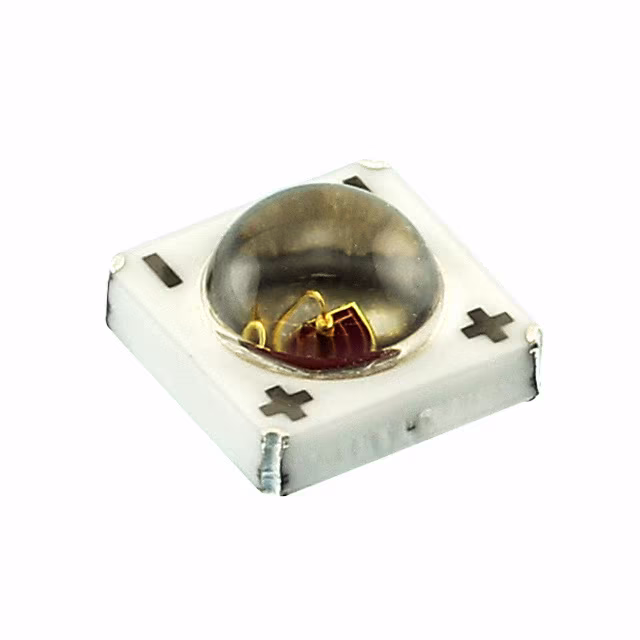

LZ1-00R300-0000LED LZ1 RED 734NM SMD |
2,211 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Red | 734nm (723nm ~ 745nm) | 1A | 2.4V | - | 1.2A | 531mW (262mW ~ 800mW) | 25°C | 76° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.114" (2.90mm) |
|
LZ4-00R208-0000LED LZ4 RED 663NM SMD |
3,061 | 0.00 |
|
Datasheet |
LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Red | 663nm (655nm ~ 670nm) | 700mA | 10.5V | - | 1A | 2500mW (2000mW ~ 3000mW) | 25°C | 95° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.154" (3.90mm) |
|
LZ4-04MDCA-0000LED LUXIGEN LZ4 RGBW SMD |
3,671 | 0.00 |
|
Datasheet |
LuxiGen™ LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 624nm Red, 525nm Green, 457nm Blue, 6500K White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White | 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W | 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White | 62lm Red, 133lm Green, 24lm Blue, 183nm White | 25°C | 110° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.065" (1.65mm) |
|
|
LZ1-00A102-0000LED LZ1 AMBER 593NM SMD |
4,173 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Amber | 593nm (588nm ~ 598nm) | 1A | 2.6V | 43 lm/W | 1.2A | 111lm (75lm ~ 146lm) | 25°C | 100° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.102" (2.60mm) |
|
LZ1-00G102-0000LED LZ1 GREEN 528NM SMD |
4,853 | 5.05 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Green | 528nm (520nm ~ 535nm) | 1A | 3.6V | 57 lm/W | 1.5A | 215lm (145lm ~ 285lm) | 25°C | 100° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.102" (2.60mm) |
|
|
LZ1-00G102-0G23LED LZ1 GREEN 525NM SMD |
2,744 | 0.00 |
|
Datasheet |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Green | 525nm (520nm ~ 530nm) | 1A | 3.6V | 57 lm/W | 1.5A | 215lm (145lm ~ 285lm) | 25°C | 100° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.102" (2.60mm) |
|
|
ASMT-AL31-NRS00LED BLUE 450NM 2SMD |
2,165 | 3.11 |
|
Datasheet |
- | 2-SMD, Gull Wing Exposed Pad | Tube | Obsolete | Blue | 450nm (440nm ~ 460nm) | 350mA | 3.2V | - | 700mA | 600mW (515mW ~ 685mW) | 25°C | 140° | Surface Mount | 2-SMD | 0.315" Dia (8.00mm) | 0.165" (4.20mm) |
|
|
ASMT-JL31-NRS01LED BLUE 450NM 3W |
1,592 | 2.02 |
|
Datasheet |
- | 6-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Blue | 450nm (440nm ~ 460nm) | 350mA | 3.2V | - | 700mA | 600mW (515mW ~ 685mW) | 25°C | 165° | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.077" (1.95mm) |
|
LY CP7P-JSJU-36-0-350-R18LED OSLON SSL80 YLW 589NM 2SMD |
4,466 | 0.00 |
|
Datasheet |
OSLON® SSL 80 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Yellow | 589nm (583nm ~ 595nm) | 350mA | 2.25V | 81 lm/W | 1A | 64lm (56lm ~ 71lm) | 25°C | 80° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LY CPDP-JSJU-36-0-350-R18LED OSLON SSL150 YLW 589NM 2SMD |
4,556 | 0.00 |
|
Datasheet |
OSLON® SSL 150 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Yellow | 589nm (583nm ~ 595nm) | 350mA | 2.25V | 81 lm/W | 1A | 64lm (56lm ~ 71lm) | 25°C | 150° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|

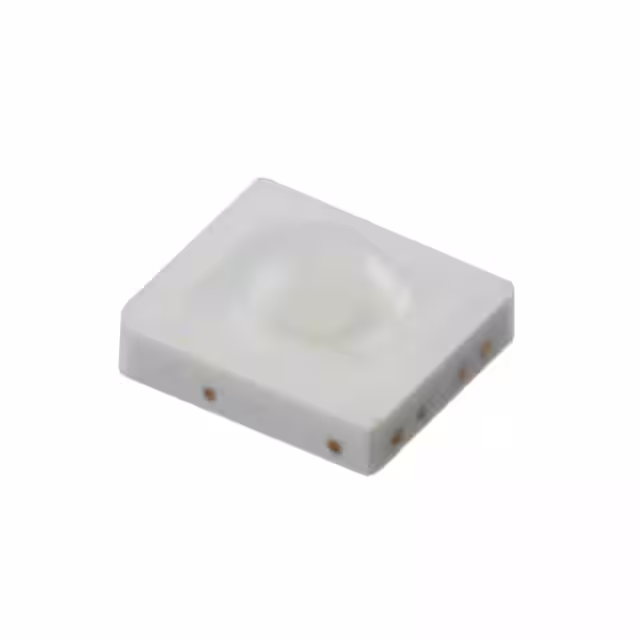

GB DASPA1.13-DTEP-24-1-100-R18LED DURIS P5 BLUE 466NM SMD |
4,382 | 0.00 |
|
Datasheet |
DURIS® P 5 | 1009 (2622 Metric) | Tape & Reel (TR) | Obsolete | Blue | 466nm (459nm ~ 472nm) | 100mA | 3.2V | 22 lm/W | 250mA | 7lm (6lm ~ 8lm) | 25°C | 120° | Surface Mount | SMD | 0.102" L x 0.087" W (2.60mm x 2.20mm) | 0.052" (1.31mm) |
|
SBT-70-B-F75-KF300LED SBT70 BLUE 445NM SMD |
3,240 | 50.28 |
|
Datasheet |
SBT-70 | 0404 (1010 Metric) | Tray | Obsolete | Blue | 445nm (435nm ~ 455nm) | 10.5A | 3.8V | 5 lm/W | 10.5A | 200lm (Typ) | 25°C | - | Surface Mount | SMD | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.067" (1.71mm) |
|
|
SBT-70-B-F75-KF301LED SBT70 BLUE 445NM SMD |
2,057 | 62.11 |
|
Datasheet |
SBT-70 | 0404 (1010 Metric) | Tray | Obsolete | Blue | 445nm (440nm ~ 450nm) | 10.5A | 3.8V | 5 lm/W | 10.5A | 200lm (Typ) | 25°C | - | Surface Mount | SMD | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.067" (1.71mm) |
