Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

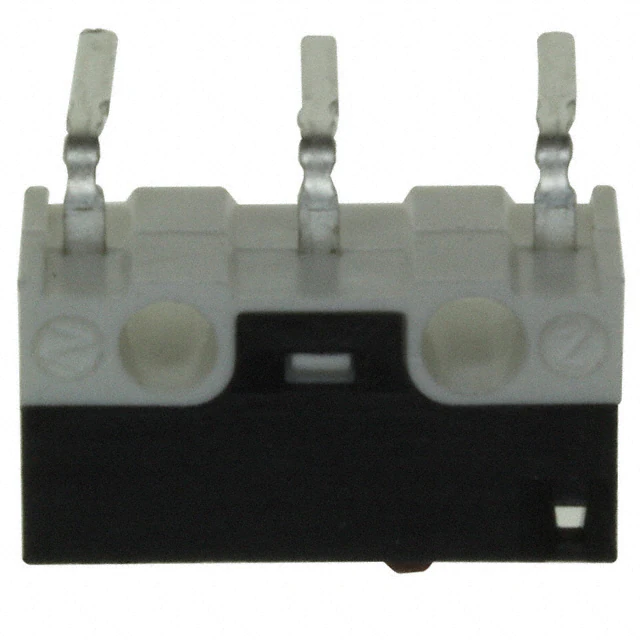

ZMCJF7P0RSWITCH SNAP ACTION SPDT 3A 125V |
206 | 3.01 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | - | 0.276" (7.0mm) | - | - | - | -30°C ~ 85°C |
|
D3V-11G4-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
783 | 4.06 |
|
Datasheet |
D3V | Tray | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3V-11G2-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
123 | 3.94 |
|
Datasheet |
D3V | Tray | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V15T16-EZ200A02-KSWITCH SNAP ACTION SPDT 16A 250V |
1,753 | 2.84 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 130gf | 35gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
|
V7-1C33E9SWITCH SNAP ACT SPST-NC 15A 125V |
4,052 | 3.43 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
V15S05-CZ025SWITCH SNAP ACTION SPDT 5A 125V |
2,004 | 2.97 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 25gf | - | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
|
V7-1C28E9-022SWITCH SNAP ACT SPST-NO 15A 125V |
4,863 | 4.00 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 85gf | 5.000gf | 0.600" (15.2mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
|
V7-7A17D8-374SWITCH SNAP ACTION SPDT 5A 125V |
1,302 | 1.71 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 273gf | - | - | - | - | - | -40°C ~ 85°C |
|

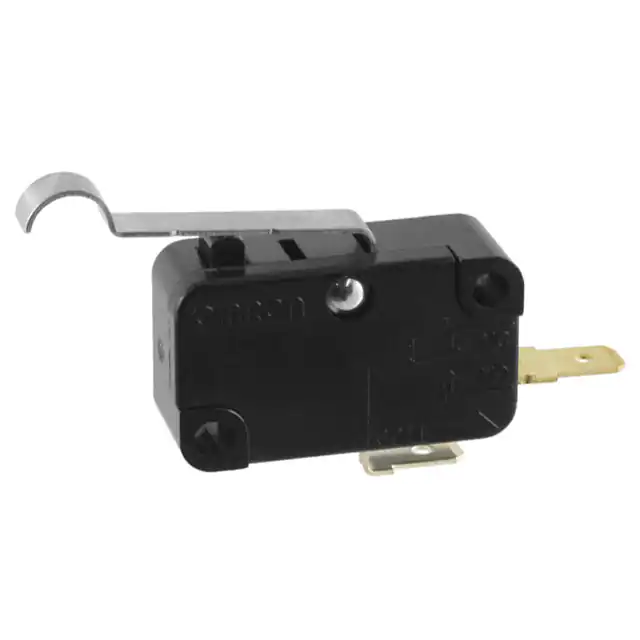

V-10G4-3C25-KSWITCH SNAP ACT SPST-NO 10A 250V |
120 | 4.20 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NO | Off-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
|
V7-7B17D8-140SWITCH SNAP ACTION SPDT 11A 125V |
2,923 | 3.59 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

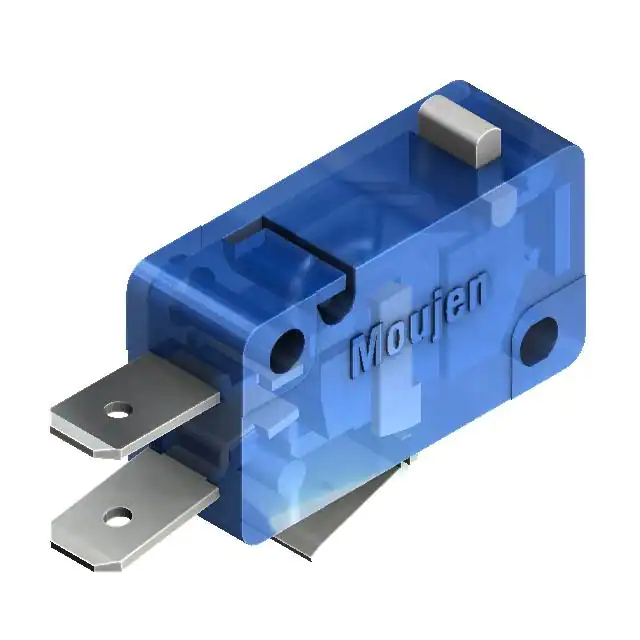

MVS-3200SWITCH SNAP ACTION SPDT 6A 250V |
950 | 4.50 |
|
Datasheet |
MVS | Retail Package | Active | SPDT | On-Mom | 6A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.13mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
V15T22-C1P100-01SWITCH SNAP ACT SPST-NO 22A 125V |
1,711 | 3.04 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
D453-R1AA-G2SWITCH SNAP ACTION SPDT 16A 250V |
2,787 | 3.56 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 408gf | 143gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|

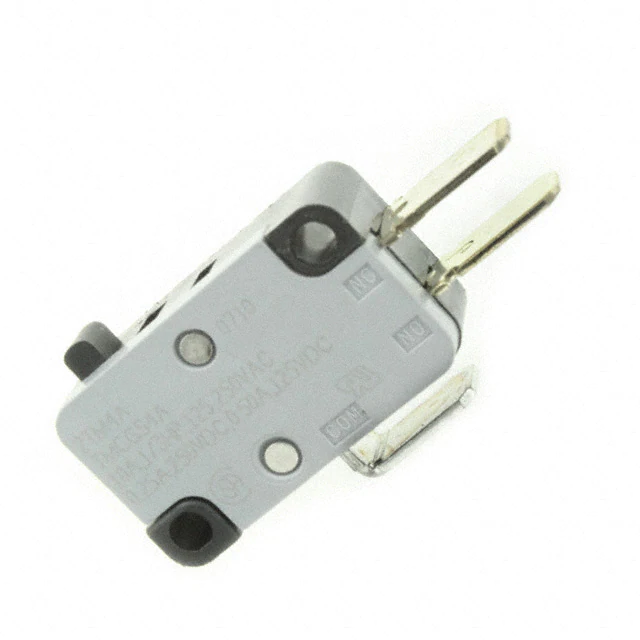

TMCGD6SP004ACSWITCH SNAP ACTION SPDT 10A 125V |
335 | 7.18 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
|
V15S05-CZ200A05-01SWITCH SNAP ACTION SPDT 5A 125V |
3,803 | 3.06 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
V15S05-EZ200-02SWITCH SNAP ACTION SPDT 5A 125V |
1,653 | 3.08 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
V15H16-CZ200A02SWITCH SNAP ACTION SPDT 16A 125V |
3,857 | 3.08 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 20gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 150°C |
|
|
E23-50KXSWITCH ROLLER SPDT 5A QC TERM |
188 | 3.38 |
|
- |
E | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | - |
|

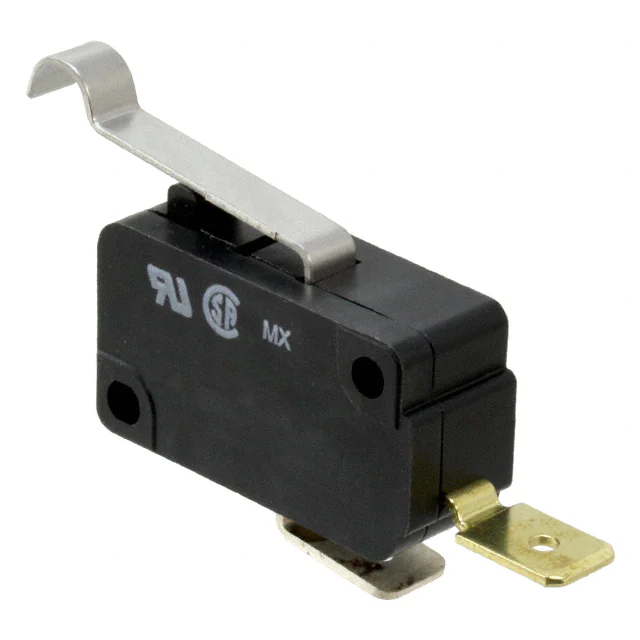

V7-1C27E9-263SWITCH SNAP ACT SPST-NO 15A 125V |
553 | 4.00 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 91gf | 9.000gf | 0.730" (18.5mm) | 0.106" (2.7mm) | 0.025" (0.6mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
DG23-B3RASWITCH SNAP ACT SPDT 0.05A 30V |
1,326 | 2.35 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 60gf | - | 0.488" (12.4mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
