Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

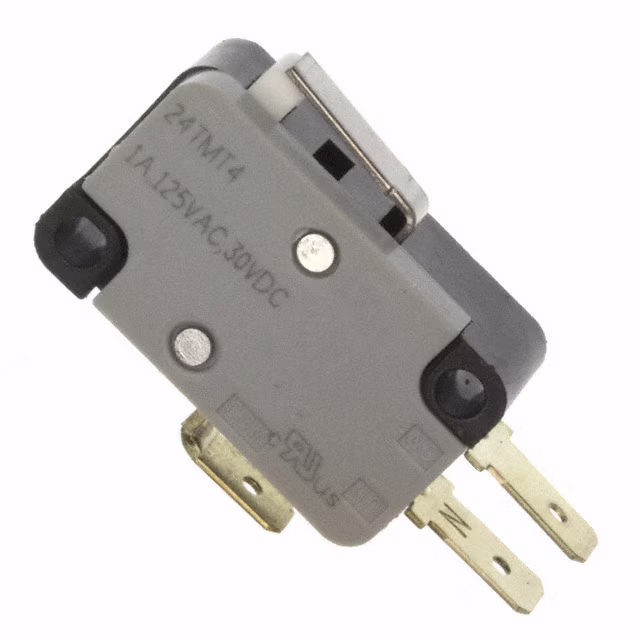

TMCGF5ST1040CSWITCH SNAP ACTION SPDT 1A 125V |
2,313 | 8.75 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.600" (15.2mm) | 0.080" (2.0mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
V7-7B17D8-481SWITCH SNAP ACTION SPDT 11A 125V |
176 | 0.00 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 178gf | 28gf | 0.770" (19.5mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
DB3C-A1RCSWITCH SNAP ACT SPDT 0.1A 125V |
3,187 | 2.47 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | - | 0.638" (16.2mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|
|
D443-R1LD-G2SWITCH SNAP ACTION SPDT 10A 250V |
3,106 | 2.52 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 147gf | 41gf | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.090" (2.3mm) | -40°C ~ 85°C |
|
|
V15H10-KZ100-ASWITCH BASIC |
1,104 | 2.62 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

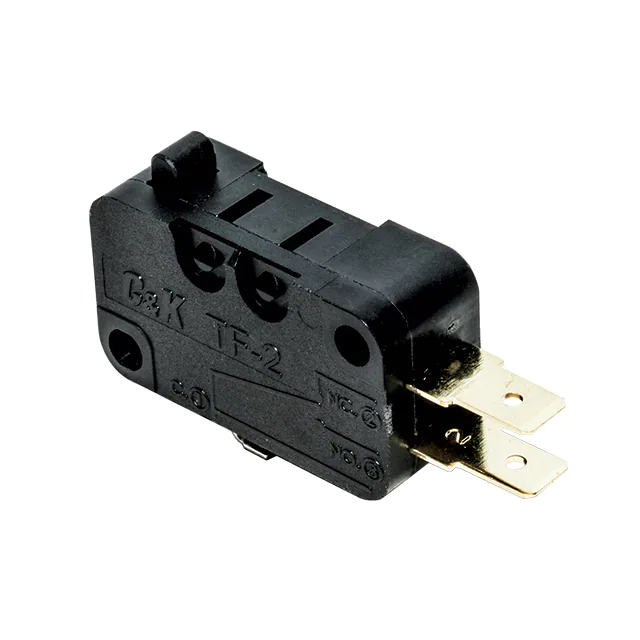

TF2CHK6SP0010CSWITCH SNAP ACTION SPDT 10A 125V |
276 | 2.65 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 75gf | 14gf | 0.579" (14.7mm) | 0.068" (1.72mm) | 0.016" (0.4mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
ABS1412403SWITCH SNAP ACTION SPDT 2A 125V |
134 | 2.95 |
|
Datasheet |
ABS | Bulk | Obsolete | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 35gf | 3.059gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
D3V-166M-1C25SWITCH SNAP ACTION SPDT 16A 250V |
200 | 3.73 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
D443-R1AA-G2SWITCH SNAP ACTION SPDT 10A 250V |
4,968 | 2.58 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 291gf | 102gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|

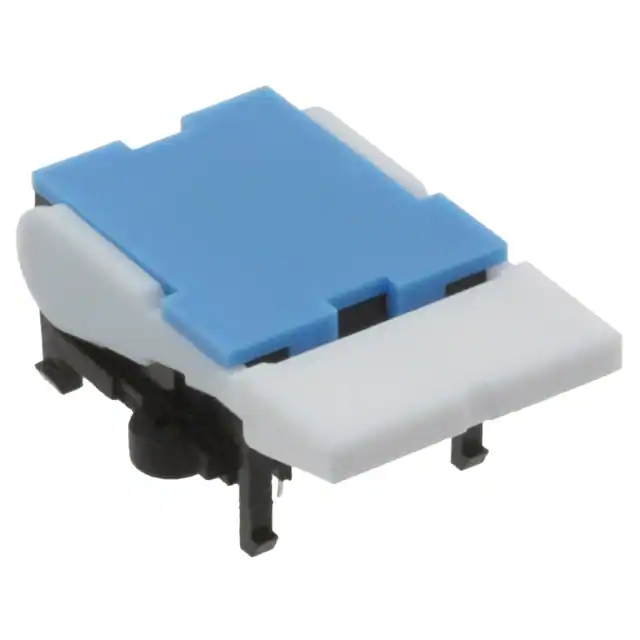

HS-2206-A1 NSSWITCH DETECTOR DPDT 200MA 30V |
2,886 | 2.37 |
|
Datasheet |
HS, COMAX | Tray | Active | DPDT | On-Mom | 200mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 50gf | - | 0.312" (7.9mm) | - | - | - | - |
|

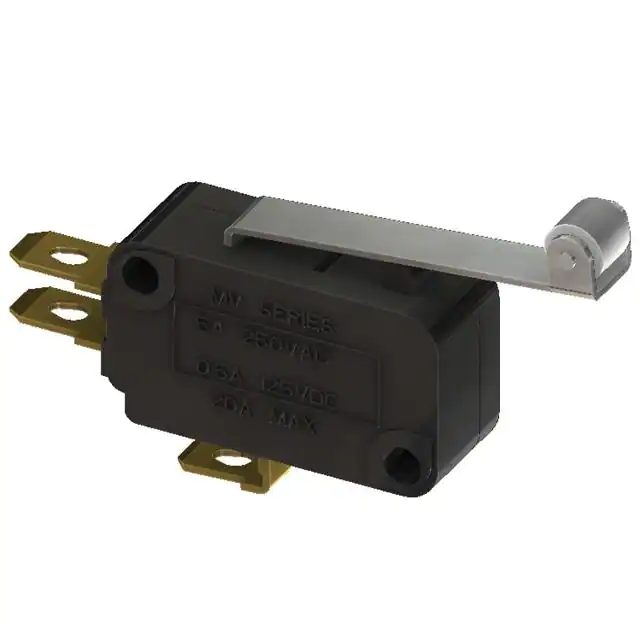

MV-3005A-PSWITCH SNAP ACTION SPDT 5A 250V |
6,000 | 4.16 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | POM Roller | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|

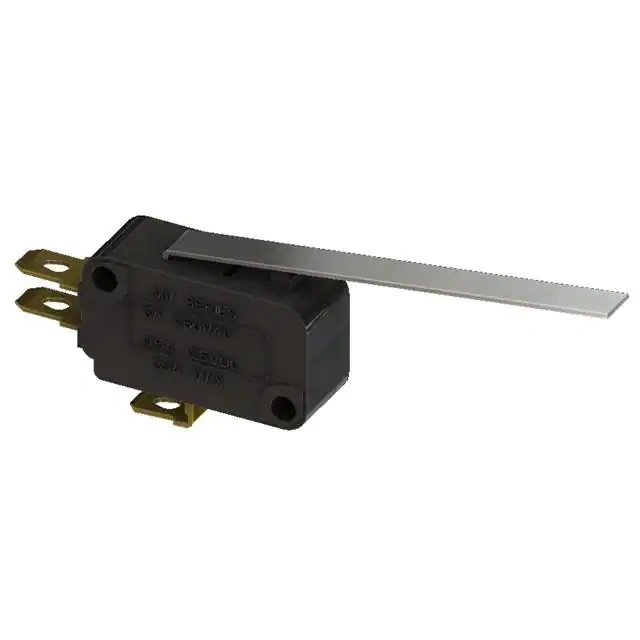

MV-3003ALSWITCH SNAP ACTION SPDT 5A 250V |
6,000 | 4.16 |
|
Datasheet |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | Long Lever | 112gf | 60gf | - | 0.244" (6.2mm) | 0.060" (1.5mm) | 0.164" (4.2mm) | -20°C ~ 80°C |
|
|
V15T22-CP100-KSWITCH SNAP ACT SPST-NO 22A 250V |
2,525 | 2.42 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 22A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
SS-5GL2-FD2SWITCH SNAP ACTION SPDT 5A 125V |
390 | 2.57 |
|
Datasheet |
SS | Tray | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 16gf | 2.039gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3V-11G54-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
109 | 5.61 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|

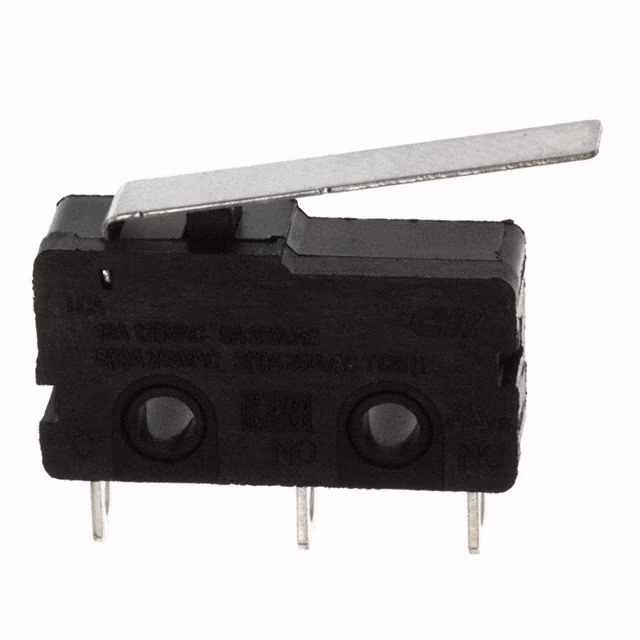

LCA10150T09SCSWITCH SNAP ACTION SPDT 10A 125V |
1,935 | 2.44 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 33gf | 2.000gf | 0.362" (9.2mm) | 0.170" (4.3mm) | 0.070" (1.8mm) | 0.029" (0.74mm) | -40°C ~ 125°C |
|
|
V19S05-N2Z200A06-KSWITCH SNAP ACTION SPDT 5A 125V |
4,720 | 2.09 |
|
Datasheet |
V19 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.107" (2.7mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
.jpg)
|
D3V-6-1A4SWITCH SNAP ACTION SPDT 6A 250V |
3,025 | 2.23 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|

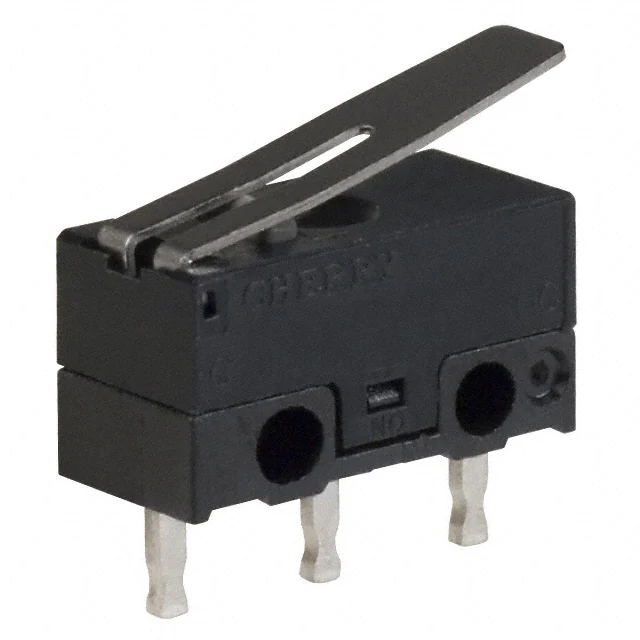

DG13-B1LASWITCH SNAP ACTION SPDT 3A 125V |
15,319 | 3.21 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 45gf | - | 0.268" (6.8mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
V19S05-CZ050B01SWITCH SNAP ACTION SPDT 5A 125V |
3,965 | 2.10 |
|
Datasheet |
V19 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 50gf | 8.000gf | 0.598" (15.2mm) | 0.063" (1.6mm) | 0.047" (1.2mm) | 0.031" (0.79mm) | -25°C ~ 85°C |
