Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11SM244-H4SWITCH SNAP ACTION SPDT 5A 250V |
210 | 16.53 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC), 300mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

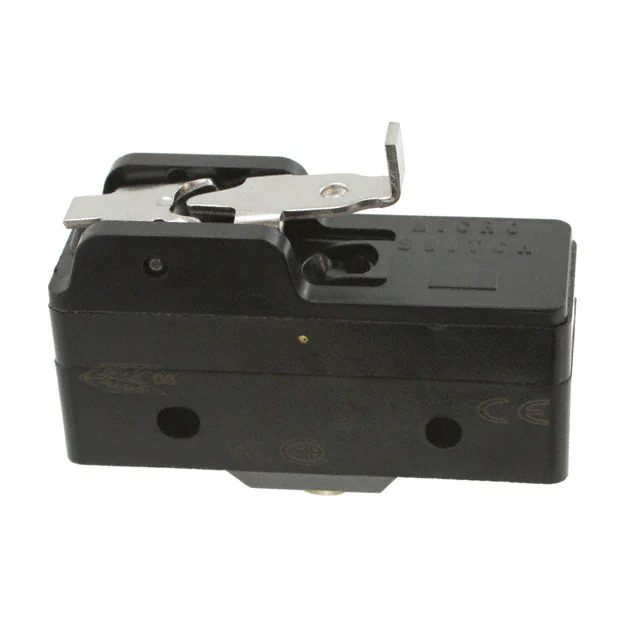

BZ-2RW80288-A2SWITCH SNAP ACTION SPDT 15A 125V |
187 | 19.42 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 85gf | 7.087gf | 0.961" (24.4mm) | - | 0.020" (0.5mm) | 0.100" (2.54mm) | -55°C ~ 85°C |
|
V7-7B37D8C4-732-1SWITCH SNAP ACT SPST-NC 11A 125V |
142 | 12.68 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 273gf | 45gf | 0.602" (15.3mm) | - | 0.012" (0.3mm) | 0.032" (0.81mm) | - |
|

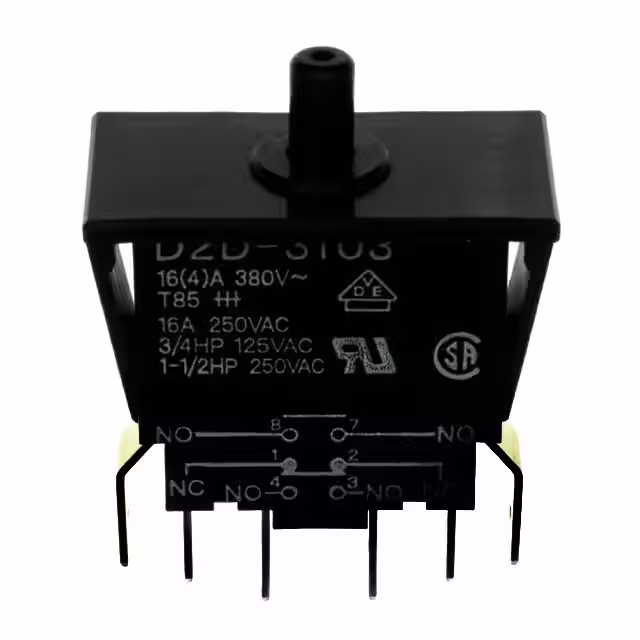

D2D-3103SWITCH SNAP ACTION SPDT 16A 250V |
146 | 14.56 |
|
Datasheet |
D2D | Tray | Active | SPDT (DB/DM) + SPST-NO (DB) | On-Mom, Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 300gf | - | 0.468" (11.9mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|
1SM1SWITCH SNAP ACTION SPDT 5A 250V |
173 | 16.63 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
V15W-WZ200A05-AW1SWITCH SNAP ACT SPDT 0.1A 125V |
920 | 10.86 |
|
Datasheet |
V15W | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | - | 0.810" (20.57mm) | 0.080" (2.0mm) | 0.020" (0.51mm) | 0.040" (1.02mm) | -40°C ~ 85°C |
|
D2SW-P2L2MSWITCH SNAP ACTION SPDT 2A 250V |
184 | 16.31 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|

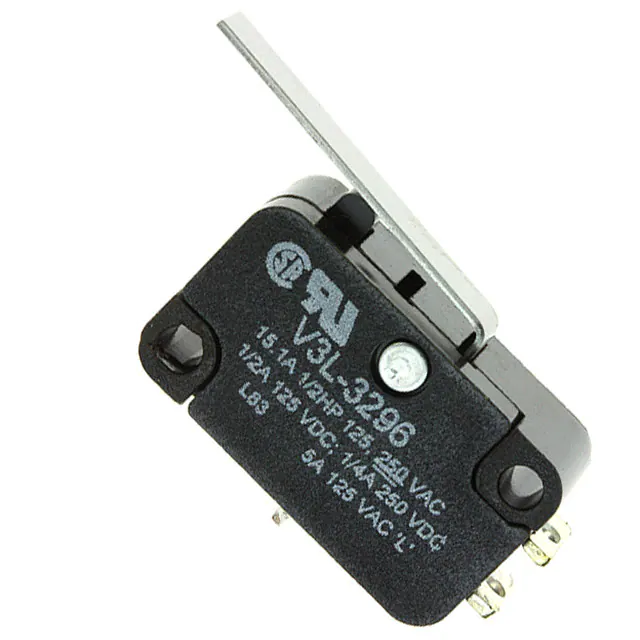

V3L-3296SWITCH SNAP ACTION SPDT 15A 125V |
449 | 13.19 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 88gf | 6.000gf | 0.600" (15.2mm) | 0.120" (3.0mm) | 0.032" (0.81mm) | 0.090" (2.3mm) | - |
|
311SM706-TSWITCH SNAP ACTION SPDT 4A 250V |
185 | 15.18 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 16gf | 3.059gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.013" (0.33mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|

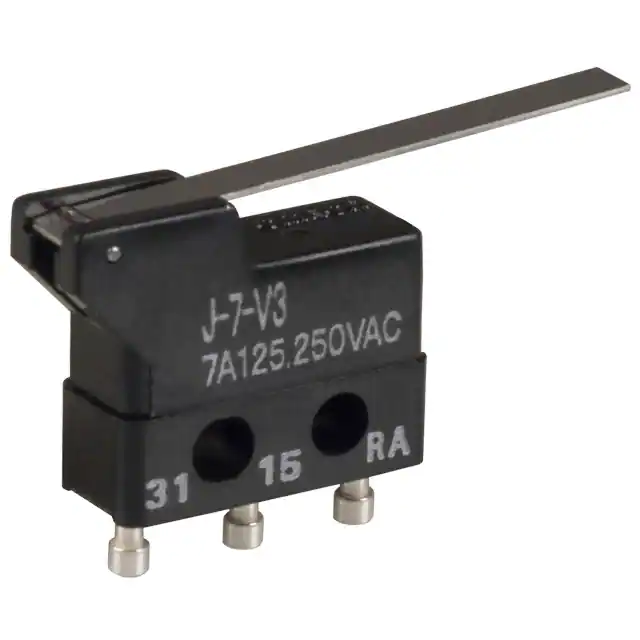

J-7-V3SWITCH SNAP ACTION SPDT 7A 250V |
749 | 18.12 |
|
Datasheet |
J | Tray | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Turret | IP40 | - | 30gf | 5.099gf | 0.328" (8.3mm) | 0.114" (2.9mm) | 0.027" (0.7mm) | 0.020" (0.5mm) | -10°C ~ 80°C |
|

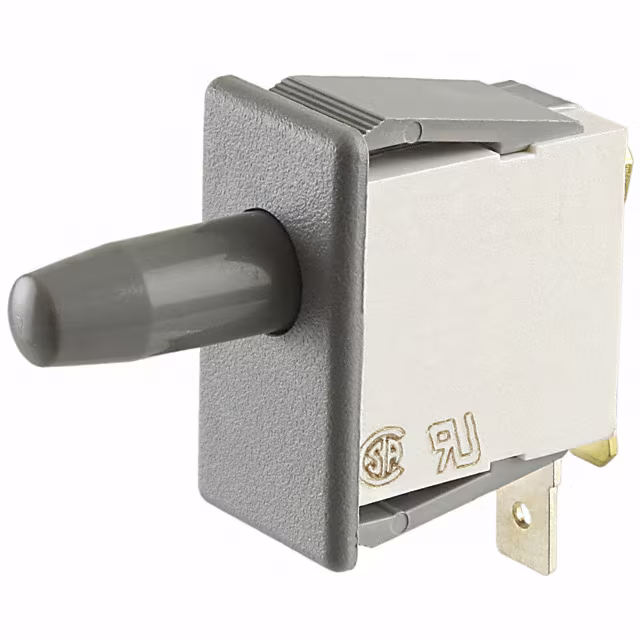

1DM176SWITCH SNAP ACTION SPDT 10A 125V |
143 | 12.81 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | 85gf | 0.750" (19.1mm) | - | 0.045" (1.1mm) | 0.375" (9.5mm) | -37°C ~ 82°C |
|

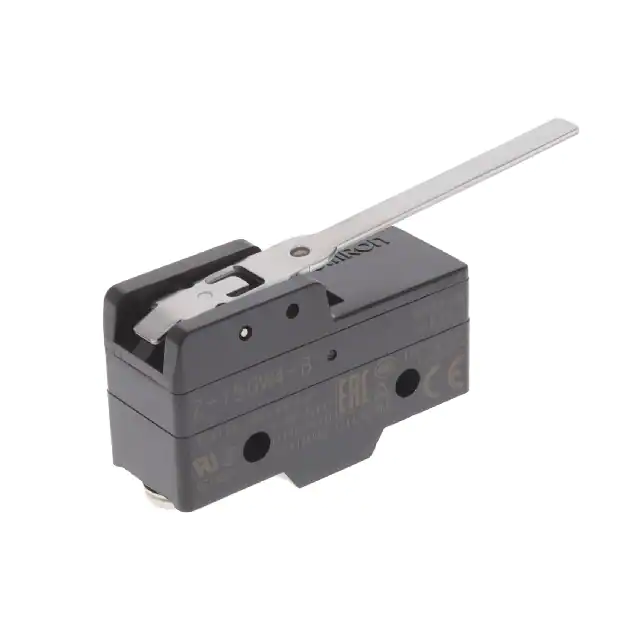

Z-15GW4-BSWITCH SNAP ACTION SPDT 15A 125V |
2,344 | 26.80 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 28gf | 3.500gf | 0.748" (19.0mm) | 0.394" (10.0mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|

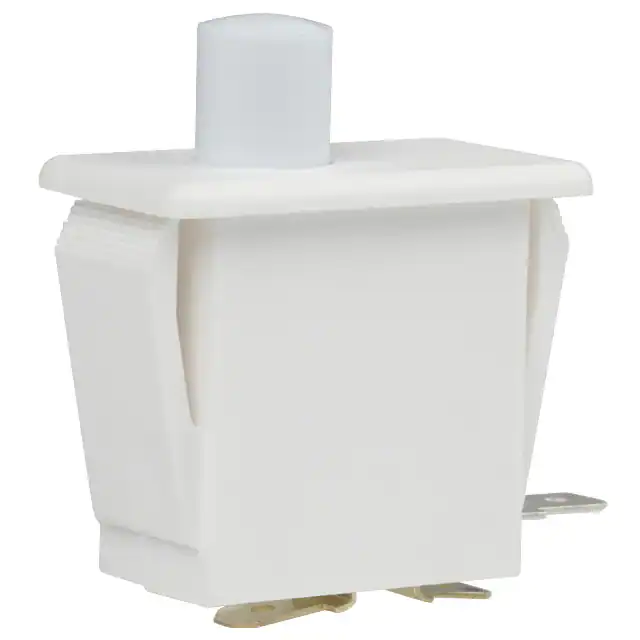

1DM21SWITCH SNAP ACTION SPDT 10A 125V |
295 | 20.27 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | 85gf | 0.355" (9.0mm) | - | 0.045" (1.1mm) | 0.235" (6.0mm) | -37°C ~ 82°C |
|
|
D2RV-L2GSWITCH SNAP SPST-NO 0.25A 100V |
154 | 19.84 |
|
Datasheet |
D2RV | Bulk | Active | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | - | 0.785" (19.9mm) | 0.157" (4.0mm) | 0.062" (1.6mm) | 0.040" (1.0mm) | -10°C ~ 60°C |
|

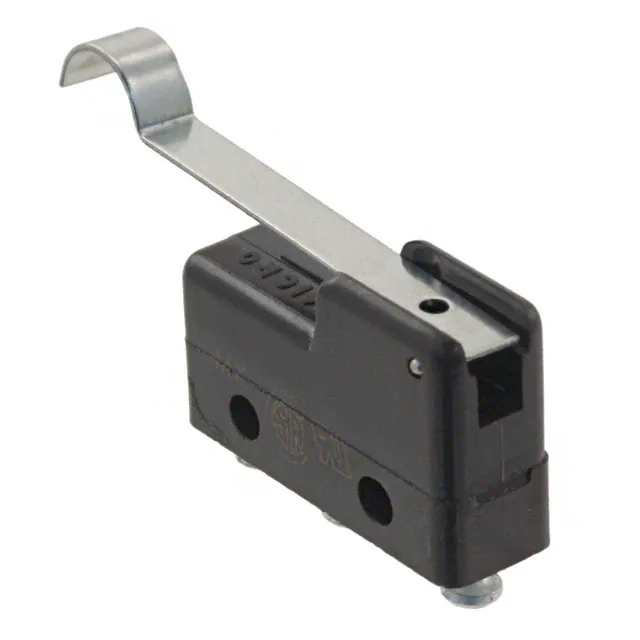

311SM705-TSWITCH SNAP ACTION SPDT 4A 250V |
180 | 16.66 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 12gf | 2.039gfm | 0.455" (11.6mm) | 0.120" (3.0mm) | 0.015" (0.38mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|

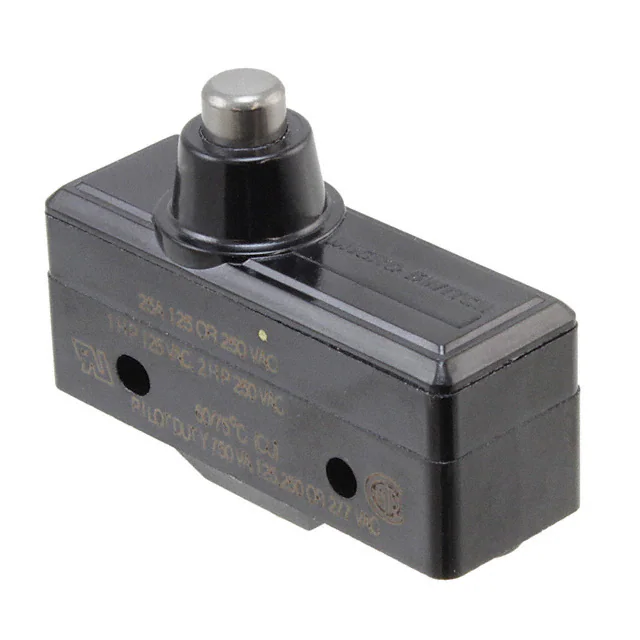

YE-2RB-A2SWITCH SNAP ACT SPST-NO 25A 125V |
131 | 18.15 |
|
Datasheet |
YE | Bulk | Active | SPST-NO | Off-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

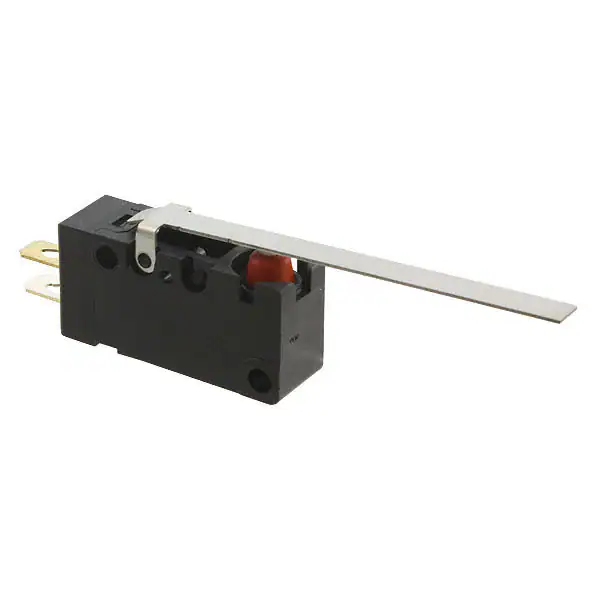

D2VW-5L1B-3HSSWITCH SNAP ACT SPST-NO 5A 125V |
129 | 20.21 |
|
Datasheet |
D2VW | Tray | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 60gf | 5.099gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|

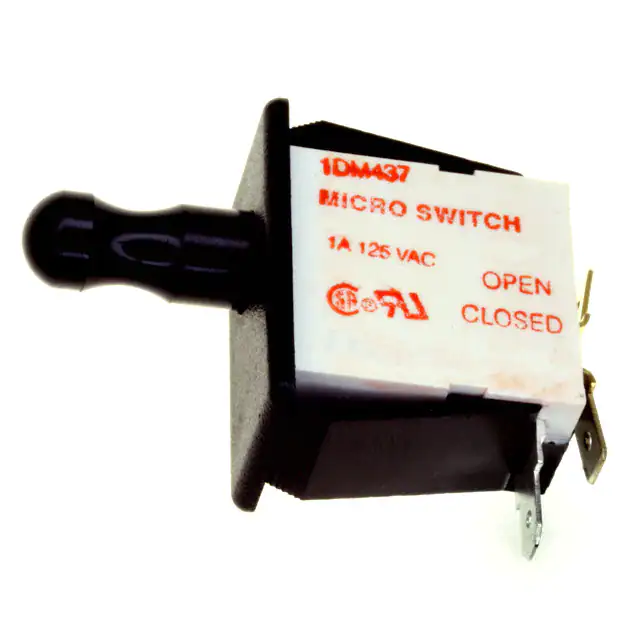

1DM437SWITCH SNAP ACTION SPDT 1A 125V |
192 | 19.82 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.755" (19.2mm) | - | - | 0.585" (14.9mm) | -37°C ~ 82°C |
|
111SM602-H4SWITCH SNAP ACTION SPDT 5A 250V |
207 | 16.05 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 198gf | 57gf | 0.562" (14.3mm) | 0.218" (5.5mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|

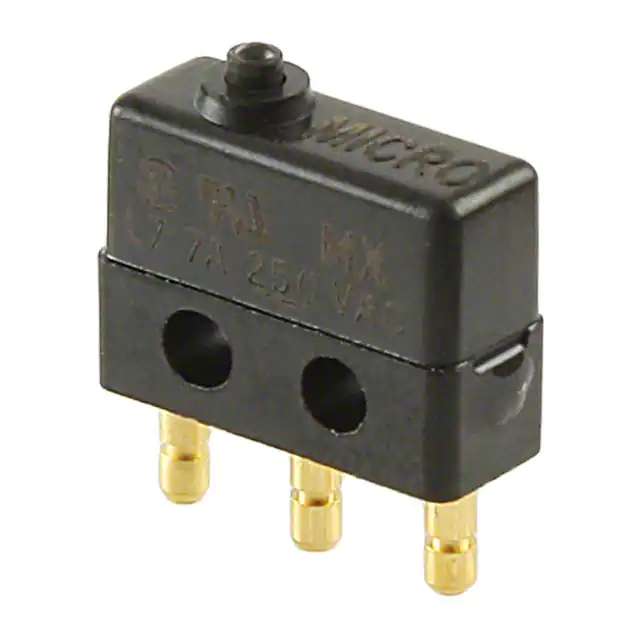

4SX37-H58SWITCH SNAP ACTION SPDT 7A 250V |
188 | 32.77 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -55°C ~ 204°C |
