Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

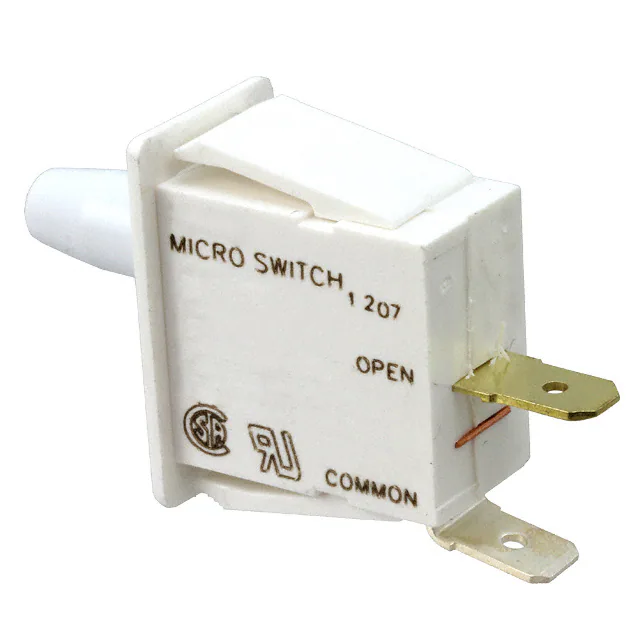

1DP5SWITCH SNAP ACT SPST-NO 14A 125V |
143 | 21.19 |
|
Datasheet |
DP | Bulk | Active | SPST-NO | Off-Mom | 14A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 454gf | 85gf | 0.595" (15.13mm) | - | - | 0.219" (5.6mm) | -37°C ~ 82°C |
|
BA-2RV-A2SWITCH SNAP ACTION SPDT 20A 125V |
154 | 20.77 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 15gf | 0.750" (19.1mm) | 0.630" (16.0mm) | 0.110" (2.8mm) | 0.077" (1.96mm) | -55°C ~ 85°C |
|

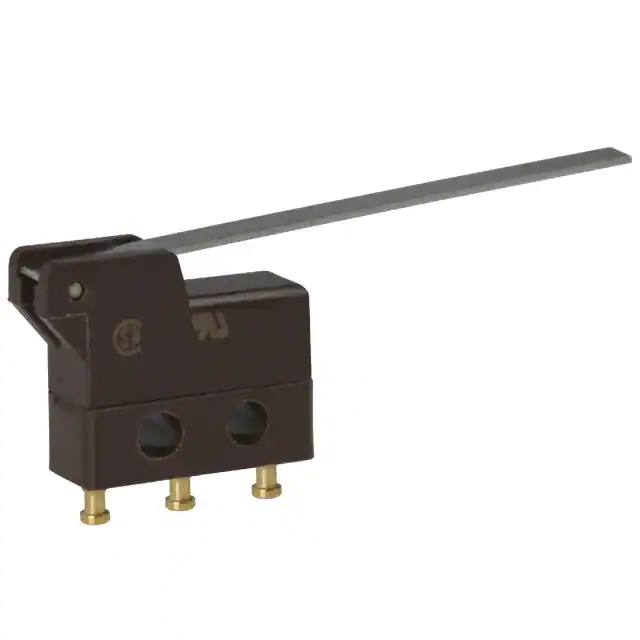

311SX3-TSWITCH SNAP ACTION SPDT 5A 125V |
167 | 26.12 |
|
Datasheet |
SX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 20gf | 3.059gf | 0.305" (7.75mm) | 0.185" (4.7mm) | 0.060" (1.5mm) | 0.025" (0.6mm) | -55°C ~ 125°C |
|

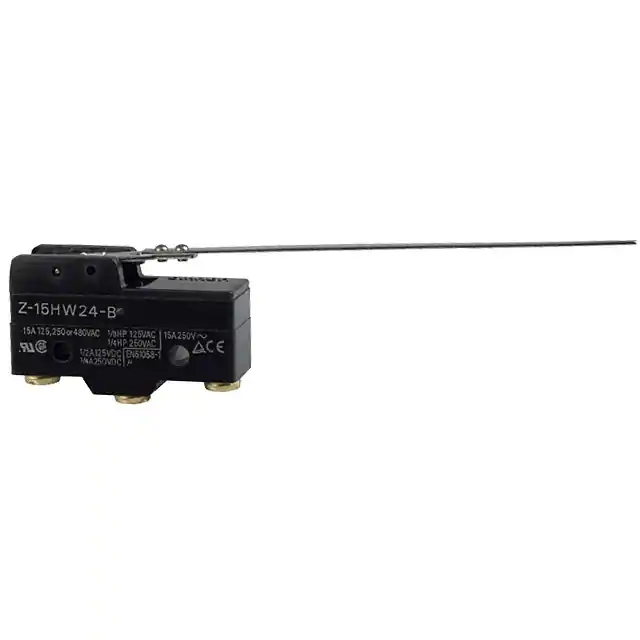

Z-15HW24-BSWITCH SNAP ACTION SPDT 15A 125V |
129 | 22.65 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 6.000gf | 0.500gf | 0.780" (19.8mm) | 0.780" (19.8mm) | 0.080" (2.0mm) | 0.394" (10.0mm) | -25°C ~ 80°C |
|
BA-1RV5435246-A2SWITCH SNAP ACTION SPDT 15A 125V |
187 | 27.44 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Screw Terminal | - | - | 42gf | 14gf | 0.875" (22.2mm) | 0.275" (7.0mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -55°C ~ 121°C |
|

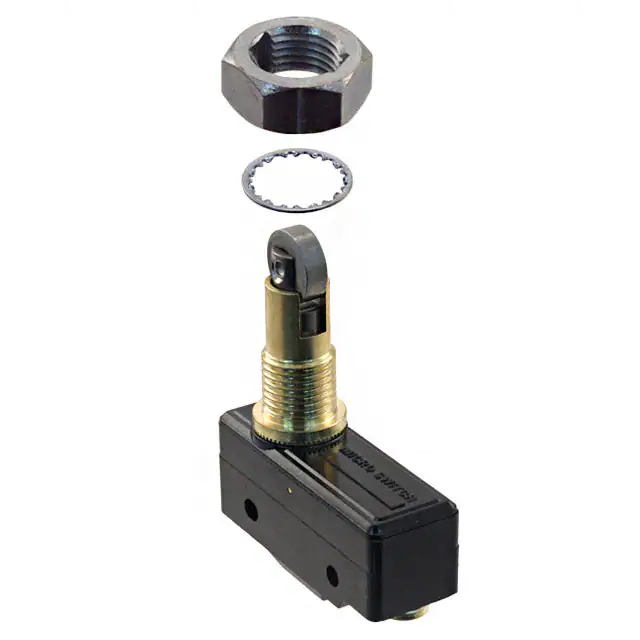

BZ-2RQ784SWITCH SNAP ACTION SPDT 15A 125V |
337 | 51.72 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.953" (49.6mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|

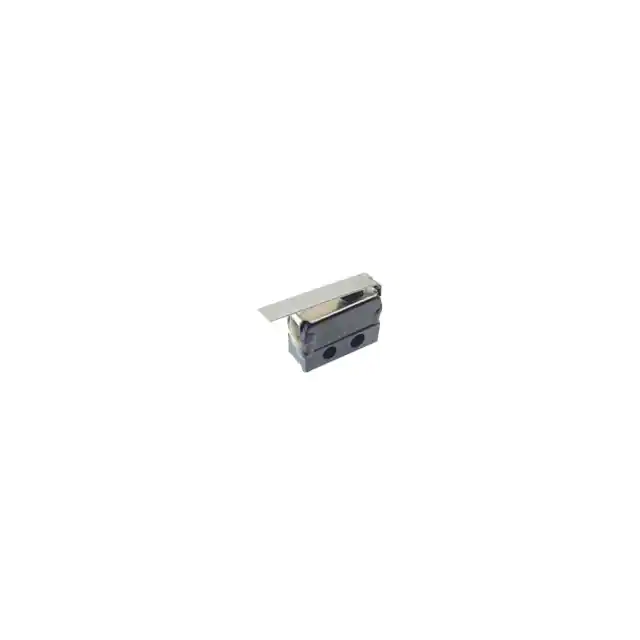

MMGGD1L0TSWITCH SNAP ACTION SPDT 7A 250V |
289 | 26.67 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
-1MS SERIES.jpg)
|
D2VW-01-1MSSWITCH SNAP ACT SPDT 0.1A 125V |
3,048 | 27.61 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

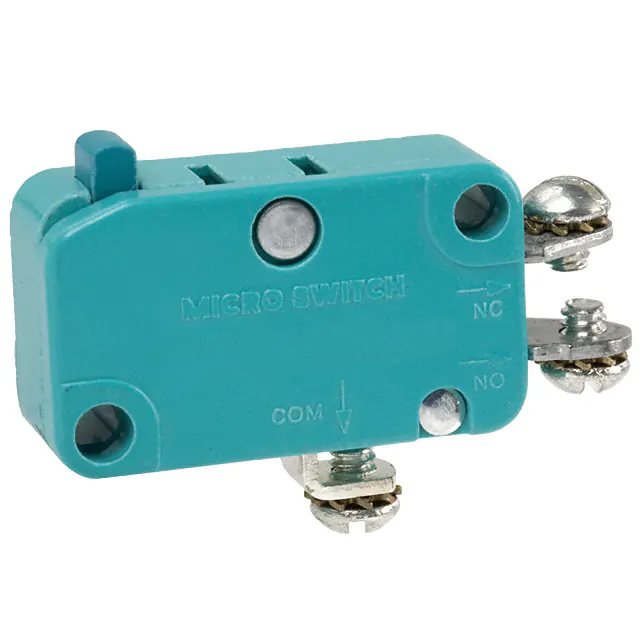

V3-1001SWITCH SNAP ACTION SPDT 10A 115V |
119 | 26.14 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|

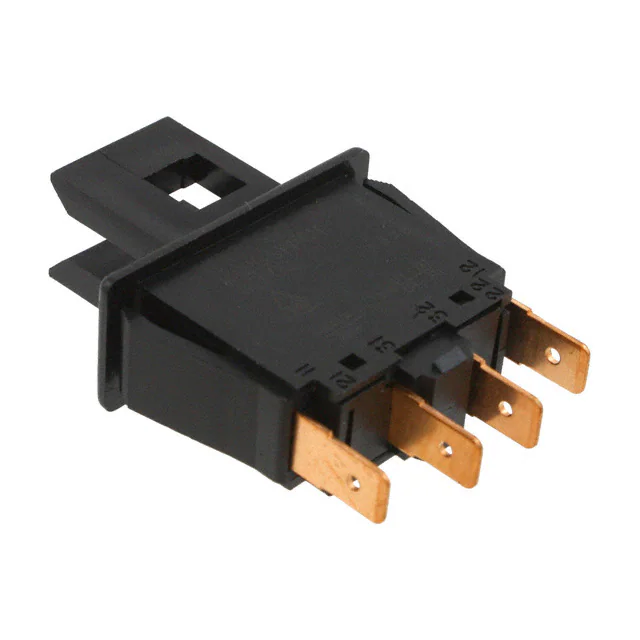

WW1G02A-D9SWITCH SNAP ACT DPST-NO 3A 125V |
123 | 22.73 |
|
Datasheet |
WW | Bulk | Active | DPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Button Guard | 907gf | - | 0.355" (9.0mm) | - | - | 0.079" (2.0mm) | - |
|
A-20GV2-BSWITCH SNAP ACTION SPDT 20A 125V |
309 | 27.04 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 90gf | 14gf | 1.188" (30.2mm) | 0.472" (12.0mm) | 0.086" (2.2mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
2DM6SWITCH SNAP ACTION DPDT 10A 125V |
168 | 29.31 |
|
Datasheet |
DM | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | 170gf | - | - | - | 0.120" (3.05mm) | -37°C ~ 82°C |
|

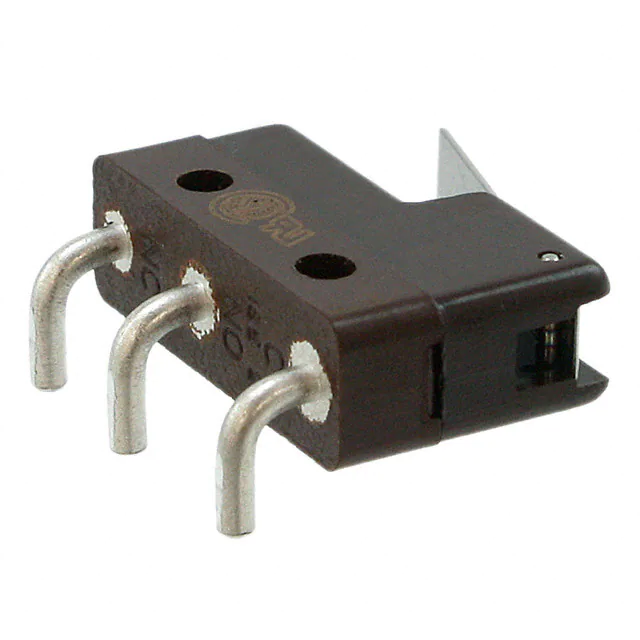

341SM169-H252SWITCH SNAP ACTION SPDT 11A 250V |
137 | 19.32 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 45gf | 7.138gf | 0.340" (8.6mm) | 0.080" (2.0mm) | 0.018" (0.45mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|

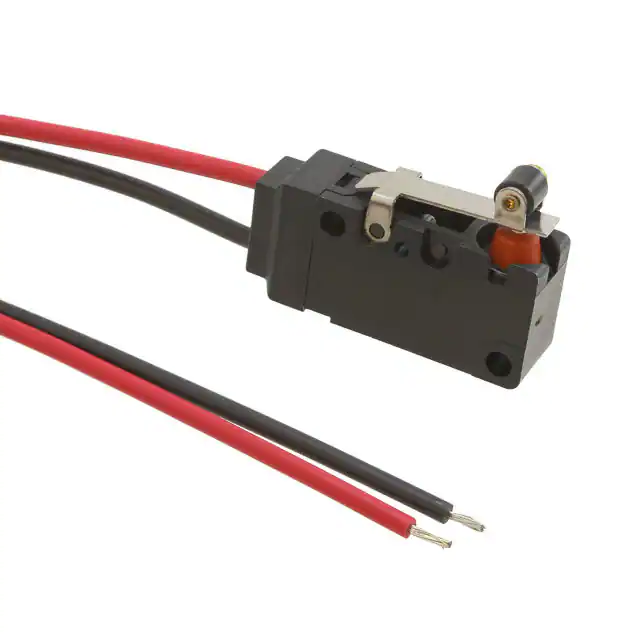

D2VW-5L2A-2MSSWITCH SNAP ACT SPST-NC 5A 125V |
451 | 33.87 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

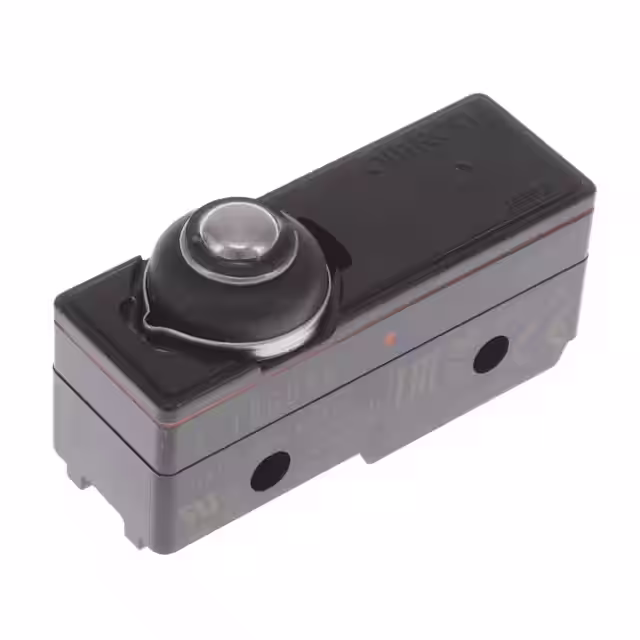

Z-15GD55SWITCH SNAP ACTION SPDT 15A 125V |
106 | 26.80 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP62 | - | 540gf | 114gf | 0.846" (21.5mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -15°C ~ 80°C |
|
W26-810SWITCH SNAP ACTION DPDT 6A 115V |
300 | 0.00 |
|
Datasheet |
W26 | Bulk | Active | DPDT (DB/DM) | On-On | 6A (AC), 8A (DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 510gf | 142gf | 0.394" (10.0mm) | 0.060" (1.5mm) | 0.025" (0.6mm) | 0.020" (0.51mm) | -65°C ~ 125°C |
|

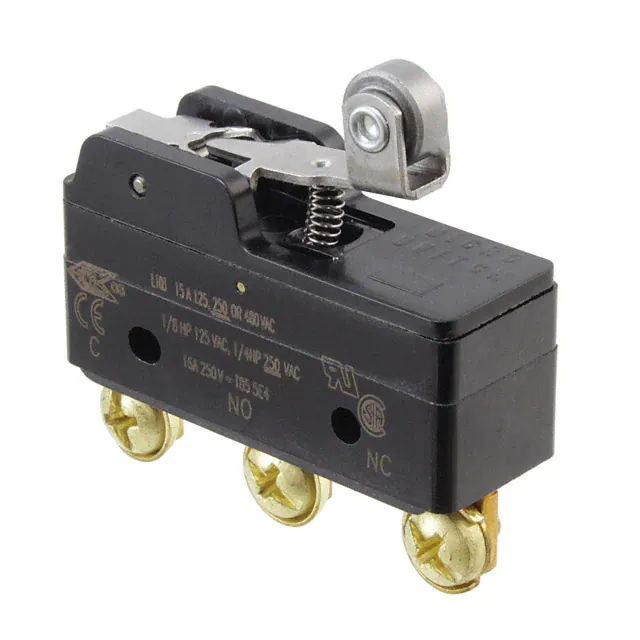

BZ-RW822-P4SWITCH SNAP ACTION SPDT 15A 125V |
123 | 31.92 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 156gf | 43gf | 1.188" (30.2mm) | - | 0.006" (0.15mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

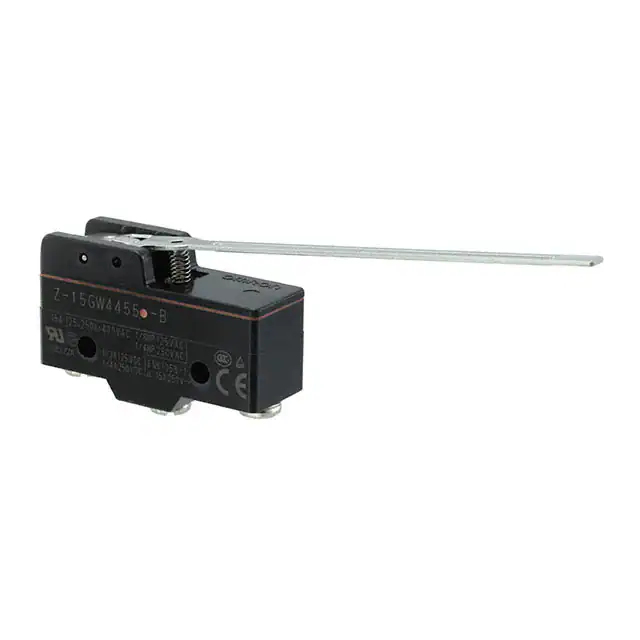

Z-15GW4455-BSWITCH SNAP ACTION SPDT 15A 125V |
996 | 30.93 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP62 | - | 90gf | 14gf | 0.748" (19.0mm) | - | 0.138" (3.5mm) | 0.219" (5.6mm) | -15°C ~ 80°C |
|

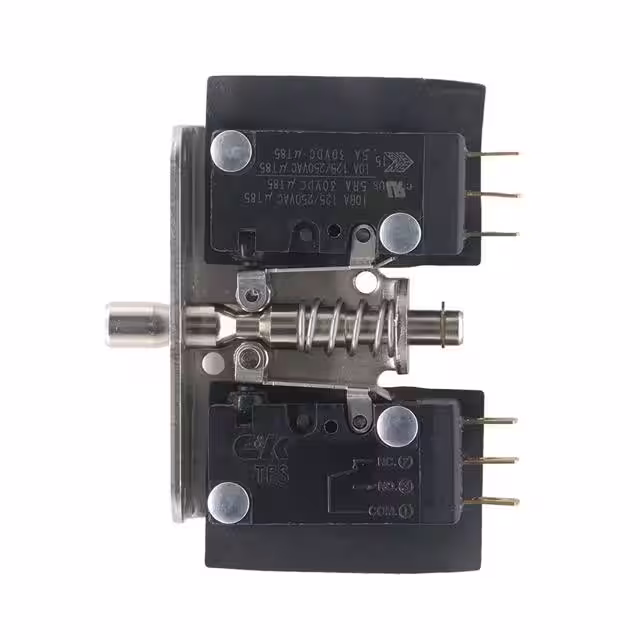

23SL40410SWITCH SNAP ACTION DPDT 10A 125V |
460 | 128.97 |
|
Datasheet |
SL | Box | Active | DPDT | On-On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | - | - | - | - | - | -40°C ~ 85°C |
|

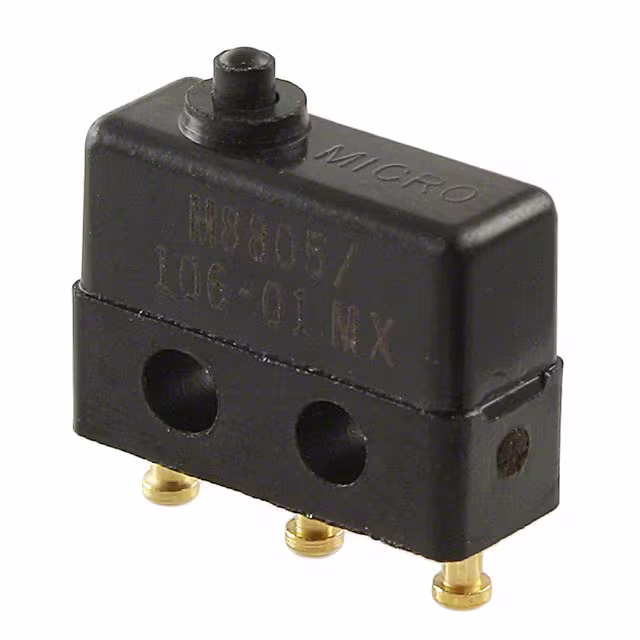

411SX21-TSWITCH SNAP ACTION SPDT 2A 28V |
848 | 25.21 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 2A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -53°C ~ 204°C |
