Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE-18R63DSWITCH DETECTOR SPST-NC 0.01A 5V |
4,860 | 1.11 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 0.130" (3.3mm) | - | - | - | -10°C ~ 60°C |
|
V19T16-P2P200A04SWITCH SNAP ACT SPST-NO 16A 125V |
957 | 1.78 |
|
Datasheet |
V19 | Box | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | PC Pin | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.138" (3.5mm) | 0.062" (1.6mm) | -25°C ~ 125°C |
|
|
V19T16-PZ100SWITCH SNAP ACTION SPDT 16A 125V |
205 | 1.78 |
|
Datasheet |
V19 | Box | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | PC Pin | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 125°C |
|
|
DM3CQF1005L00SWITCH LIMIT SPDT 3A 125V |
959 | 1.01 |
|
Datasheet |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 100gf | 50gf | 0.217" (5.5mm) | 0.028" (0.7mm) | 0.008" (0.2mm) | 0.004" (0.1mm) | -40°C ~ 85°C |
|
|
DM3CQF1004L00SWITCH LIMIT SPDT 3A 125V |
890 | 1.01 |
|
Datasheet |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 100gf | 50gf | 0.217" (5.5mm) | 0.028" (0.7mm) | 0.008" (0.2mm) | 0.004" (0.1mm) | -40°C ~ 85°C |
|

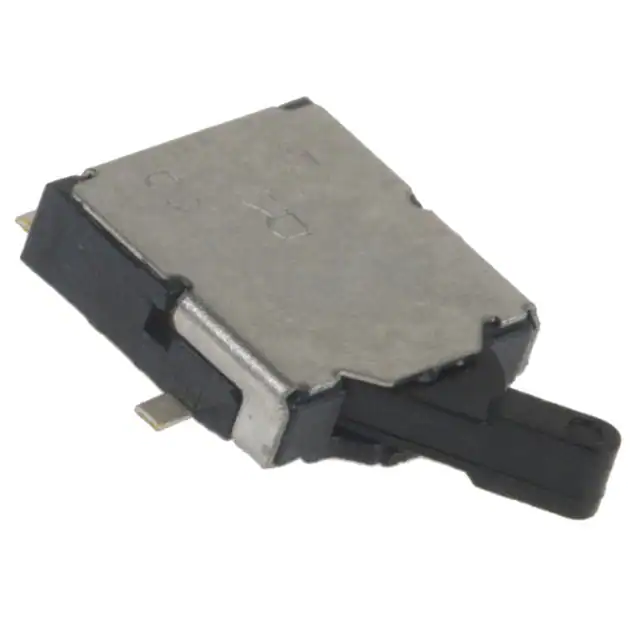

ESE-18L61CSWITCH DETECTOR SPST-NC 0.01A 5V |
6,327 | 1.14 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-18R61ASWITCH DETECTOR SPST-NC 0.01A 5V |
4,289 | 1.14 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18R61CSWITCH DETECTOR SPST-NC 0.01A 5V |
4,207 | 1.14 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

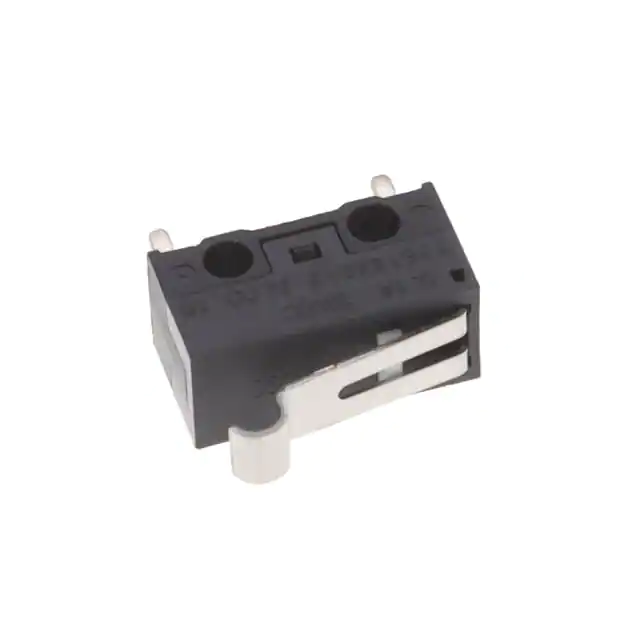

SAJ101XRHLN74SNCPTQSWITCH SNAP ACT SPST-NC 0.1A 30V |
997 | 1.11 |
|
Datasheet |
SAJ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | 2.000gf | 0.400" (10.2mm) | 0.150" (3.8mm) | 0.018" (0.45mm) | 0.020" (0.5mm) | -25°C ~ 75°C |
|

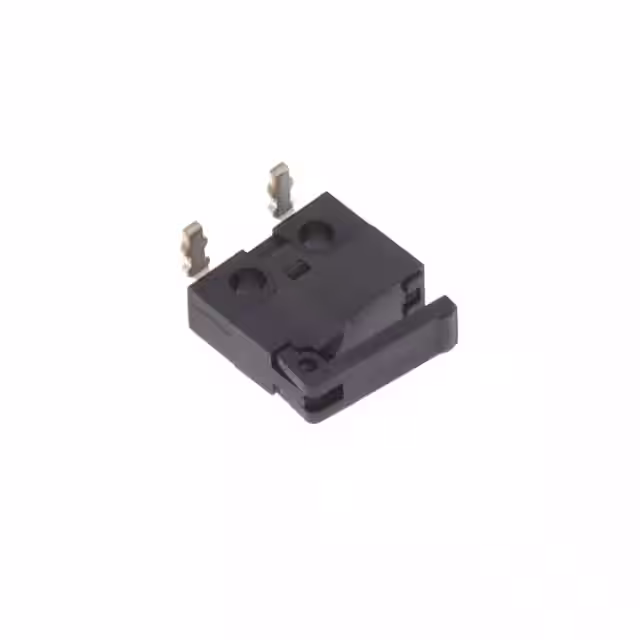

SAJ405XHL0N30SNCSRQSWITCH SNAP ACT SPST-NC 0.5A 30V |
979 | 1.54 |
|
Datasheet |
SAJ4 | Bulk | Active | SPST-NC | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | 0.028" (0.7mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
|
DM3CQF1005L01SWITCH LIMIT SPDT 3A 125V |
515 | 1.06 |
|
Datasheet |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 35gf | 15gf | 0.281" (7.15mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
SM3CQF3503L00SWITCH LIMIT SPDT 5A 125V |
118 | 1.26 |
|
Datasheet |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 350gf | 170gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|

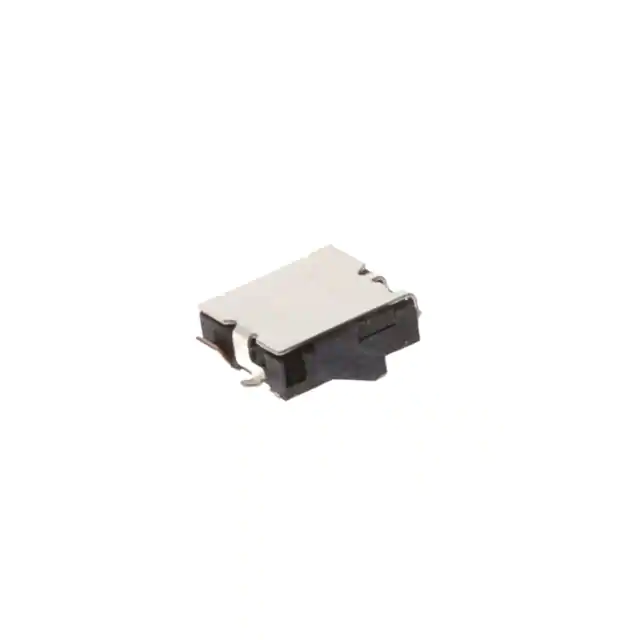

JJCHLUJ100NCPMRTRSWITCH DETECT SPST-NC 0.001A 5V |
6,916 | 1.10 |
|
Datasheet |
JJC | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 35gf | - | 0.120" (3.05mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|

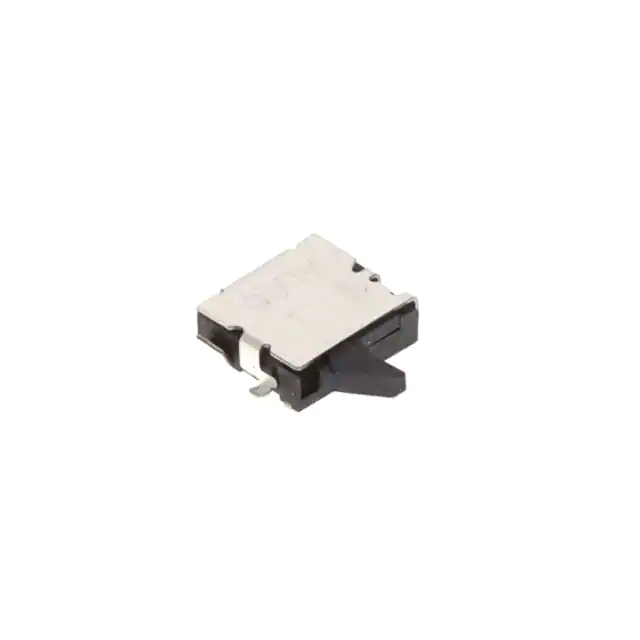

JJCHLUJ100NONMRTRSWITCH DETECT SPST-NO 0.001A 5V |
4,343 | 1.10 |
|
Datasheet |
JJC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 35gf | - | 0.120" (3.05mm) | 0.012" (0.3mm) | - | - | -10°C ~ 60°C |
|
D3SK-A0LSWITCH DETECT SPST-NO 0.001A 5V |
1,336 | 1.63 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Left Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
|
D3SK-A1LSWITCH DETECT SPST-NO 0.001A 5V |
984 | 1.63 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Board Guide, Left Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|
D3SK-B0RSWITCH DETECT SPST-NC 0.001A 5V |
302 | 1.63 |
|
Datasheet |
D3SK | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | Gull Wing | - | Right Operating Lever | 41gf | - | 0.185" (4.7mm) | - | - | - | -25°C ~ 85°C |
|

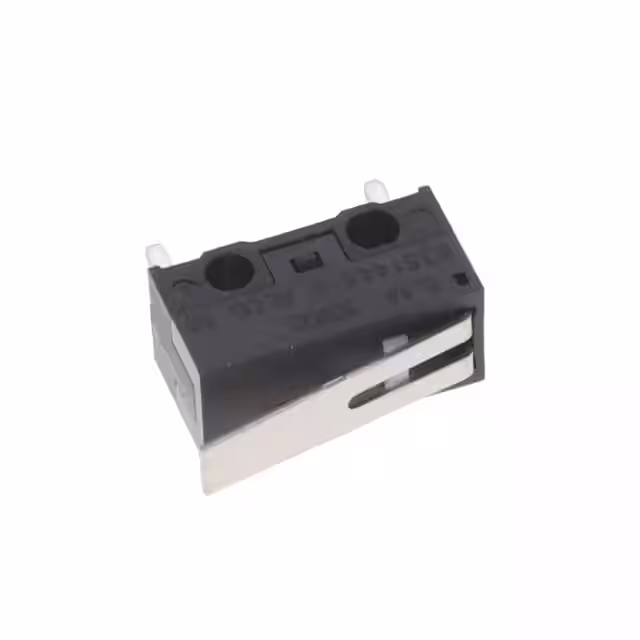

SAJ101XHL0N74SNCPTQSWITCH SNAP ACT SPST-NC 0.1A 30V |
118 | 1.09 |
|
Datasheet |
SAJ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 26gf | 2.000gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|
JJGH0UJ200NOHPMRTRSWITCH DETECTOR SPST-NO 0.1A 12V |
5,686 | 1.18 |
|
Datasheet |
JJG | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 100gf | - | 0.136" (3.45mm) | 0.012" (0.3mm) | - | - | -40°C ~ 85°C |
|

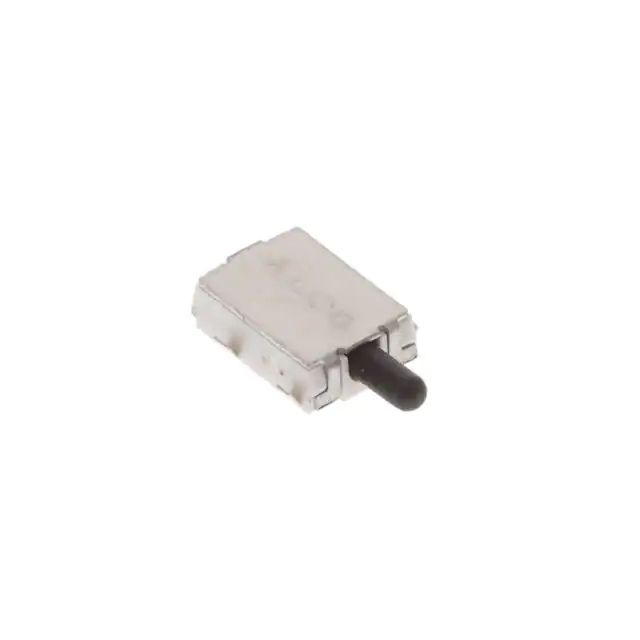

JJGH0UJ200NCHPMRTRSWITCH DETECTOR SPST-NC 0.1A 12V |
2,881 | 1.18 |
|
Datasheet |
JJG | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | Board Guide | 100gf | - | 0.136" (3.45mm) | 0.012" (0.3mm) | - | - | -40°C ~ 85°C |
