Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMV 03A 150 L14 P C A0SWITCH SNAP ACTION SPDT 3A 125V |
192 | 4.62 |
|
Datasheet |
ZMV | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 220gf | 38gf | 0.450" (11.4mm) | - | 0.020" (0.5mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
.jpg)
|
D3V-11G-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
4,797 | 3.60 |
|
Datasheet |
D3V | Tray | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
ZM190G10F01SWITCH SNAP ACTION SPDT 10A 125V |
1,548 | 1.74 |
|
Datasheet |
ZM1 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | - | - | - | - | - | - | -40°C ~ 125°C |
|
|
DB2C-A1LCSWITCH SNAP ACTION SPDT 10A 125V |
4,349 | 2.00 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 85gf | - | 0.437" (11.1mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
DB2C-B1LCSWITCH SNAP ACTION SPDT 10A 125V |
4,103 | 2.00 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 85gf | - | 0.437" (11.1mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
DB2C-A1MCSWITCH SNAP ACTION SPDT 10A 125V |
2,470 | 2.23 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 35gf | - | 0.492" (12.5mm) | 0.394" (10.0mm) | 0.070" (1.8mm) | 0.158" (4.0mm) | -40°C ~ 120°C |
|
|
DB1C-B1LCSWITCH SNAP ACTION SPDT 5A 125V |
3,040 | 2.00 |
|
Datasheet |
DB | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 50gf | - | 0.437" (11.1mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|

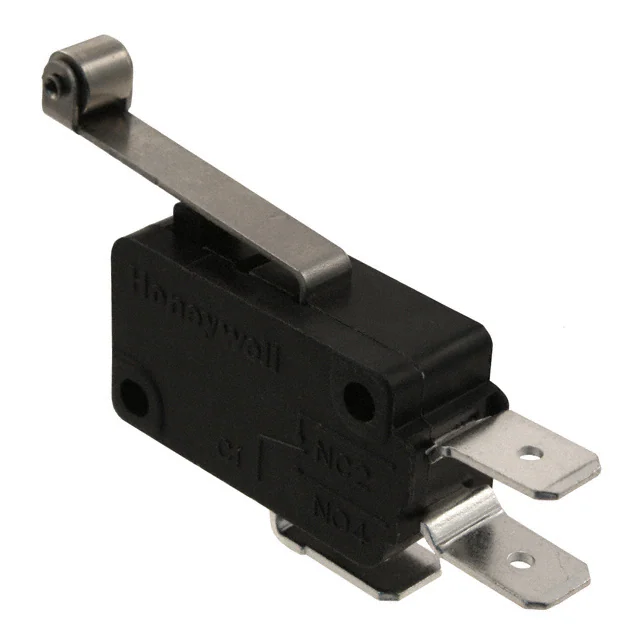

V15H22-CZ100A06-KSWITCH SNAP ACTION SPDT 22A 250V |
783 | 3.33 |
|
Datasheet |
V15 | Tray | Obsolete | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 150°C |
|
DC2C-A1RCSWITCH SEALED ROLLER 10A SS TERM |
6,160 | 1.93 |
|
- |
DC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 340gf | - | 0.331" (8.40mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.024" (0.6mm) | -40°C ~ 105°C |
|
D3V-16G1M-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
2,791 | 1.73 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
V7-3S39E9SWITCH SNAP SPST-NC 100MA 125V |
3,835 | 1.76 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NC | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 50gf | 5.000gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
D3V-6G6M-1C24-KSWITCH SNAP ACTION SPDT 6A 250V |
300 | 4.35 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
D3V-6G2M-2A4-KSWITCH SNAP ACT SPST-NC 6A 250V |
1,801 | 1.74 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NC | On-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3V-16G4M-2A5-KSWITCH SNAP ACT SPST-NC 16A 250V |
4,501 | 1.74 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|

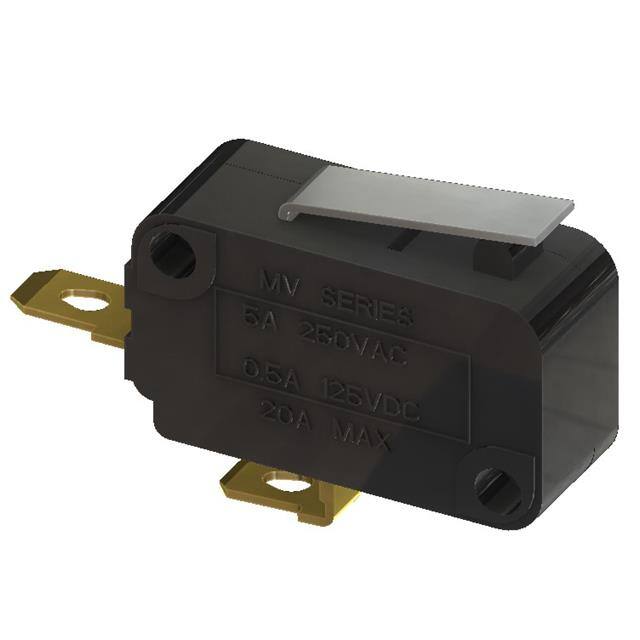

MV-3002A-NOSWITCH SNAP ACT SPST-NO 5A 250V |
6,000 | 3.87 |
|
Datasheet |
MV | Retail Package | Active | SPST-NO | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 50gf | - | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -20°C ~ 80°C |
|
D2F-01L3-D2SWITCH SNAP ACTION SPDT 0.1A 30V |
4,105 | 1.67 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
D3V-16G1-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
2,020 | 1.76 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
D3V-162M-1C25SWITCH SNAP ACTION SPDT 16A 250V |
4,786 | 1.77 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|

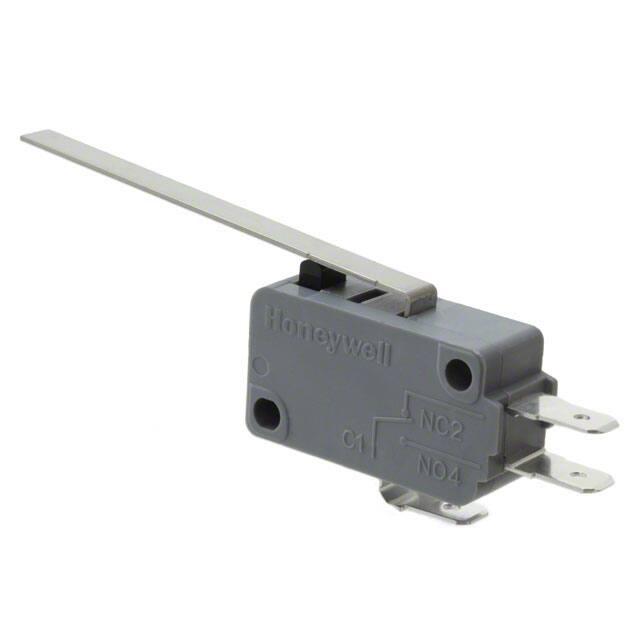

V15T16-EZ100A03SWITCH SNAP ACTION SPDT 16A 250V |
137 | 5.02 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 30gf | 5.000gf | 0.602" (15.3mm) | 0.252" (6.4mm) | 0.094" (2.4mm) | 0.102" (2.6mm) | -25°C ~ 125°C |
|
|
V7-1Y29E9SWITCH SNAP ACT SPST-NO 20A 277V |
4,873 | 2.16 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65 ~ 125gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
