Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC1026PNAND GATE, ECL, PDIP14 |
506 | 11.21 |
|
Datasheet |
MC1000 | 14-DIP (0.300", 7.62mm) | Bulk | Active | NOR/OR Gate | 2 | 7 Input (3, 4) | No | Differential | - | 5.2V | 0°C ~ 75°C | - | - | Through Hole | 14-PDIP |
|
AD14/083-0CMOS MULTIPLEXER IC |
274 | 12.33 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC1201LOR GATE |
3,924 | 12.67 |
|
Datasheet |
MC1201L | 14-DIP (0.300", 7.62mm) | Bulk | Active | NOR/OR Gate | 1 | 6 | No | - | - | 5.2V | -55°C ~ 125°C | - | - | Through Hole | TO-116 |
|
100102J-MILOR/NOR GATE, 100K SERIES |
650 | 12.67 |
|
Datasheet |
F100102 | 24-CDIP | Bulk | Active | NOR/OR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V | 0°C ~ 85°C | - | - | Through Hole | 24-CDIP |
|
100117W-MILOR-AND/-INVERT GATE, 100K SERIES |
301 | 12.67 |
|
Datasheet |
- | 24-CDIP | Bulk | Active | AND/OR Gate | 3 | 12 Input (2, 2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V | 0°C ~ 85°C | - | - | Through Hole | 24-CDIP |
|
JM38510/00501BDAAND-OR-INVERT GATE, 4-INPUT, TTL |
212 | 12.74 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC2100LAND-OR-INVERT GATE, TTL |
4,801 | 13.26 |
|
Datasheet |
MC2000 | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 1 | 8 Input (4, 4) | No | Single-Ended | - | 4.5V ~ 6V | -55°C ~ 125°C | - | - | Through Hole | TO-116 |
|
|
MC2102LGATE, TTL |
3,794 | 13.26 |
|
Datasheet |
MC2000 | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 1 | 10 Input (3, 2, 2, 3) | No | Differential | - | 4.5V ~ 6V | -55°C ~ 125°C | - | - | Through Hole | TO-116 |
|

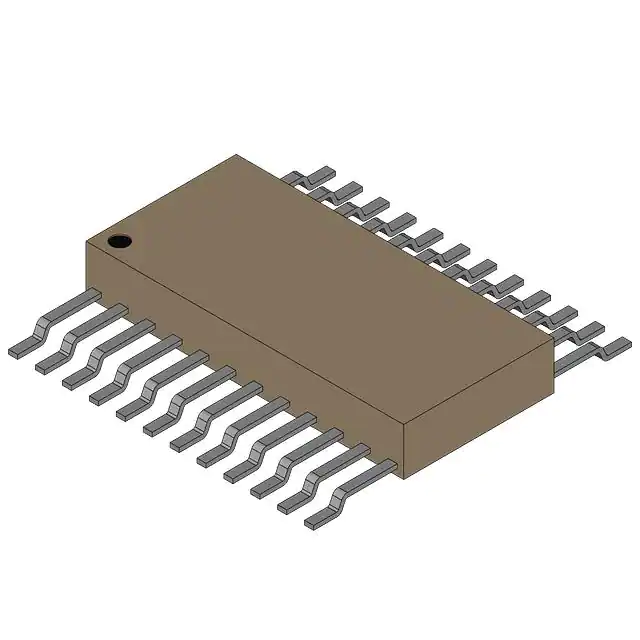

100104W-MILGATE, ECL100K |
2,219 | 13.33 |
|
Datasheet |
- | 24-CFlatPack | Bulk | Active | AND/NAND Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V | 0°C ~ 85°C | - | - | Surface Mount | 24-CFP |
|
|
MC504LAND-OR-INVERT GATE, TTL |
1,664 | 13.62 |
|
Datasheet |
MC500 | 14-CDIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 1 | 9 Input (3, 3, 3) | No | Single-Ended | 20mA, 1.5mA | 5V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
MC503LOR/NOR GATE, TTL |
3,973 | 13.88 |
|
Datasheet |
MC500 | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 2 | 9 Input (3, 3, 3) | No | Single-Ended | 20mA, 1.5mA | 5V | -55°C ~ 125°C | - | - | Through Hole | TO-116 |
|
|
MC2112LAND-OR-INVERT GATE, TTL |
609 | 14.00 |
|
Datasheet |
MC2000 | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 1 | 9 Input (3, 3, 3) | No | Single-Ended | - | 4.5V ~ 6V | -55°C ~ 125°C | - | - | Through Hole | TO-116 |
|
|
MC505LAND-OR-INVERT GATE, TTL |
4,980 | 14.15 |
|
Datasheet |
MC500 | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 1 | 8 Input (4, 4) | No | Single-Ended | 20mA, 1.5mA | 5V | -55°C ~ 125°C | - | - | Through Hole | TO-116 |
|
|
MC1204LOR GATE |
2,213 | 14.54 |
|
Datasheet |
MC1204L | 14-DIP (0.300", 7.62mm) | Bulk | Active | NOR/OR Gate | 2 | 4 | No | - | - | 5.2V | -55°C ~ 125°C | - | - | Through Hole | TO-116 |
|
|
MC2104LAND-OR-INVERT GATE, TTL |
2,625 | 14.56 |
|
Datasheet |
MC2100 | 14-CDIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 1 | 9 Input (2, 2, 2, 3) | No | Single-Ended | 22mA, 2.2mA | 5V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|

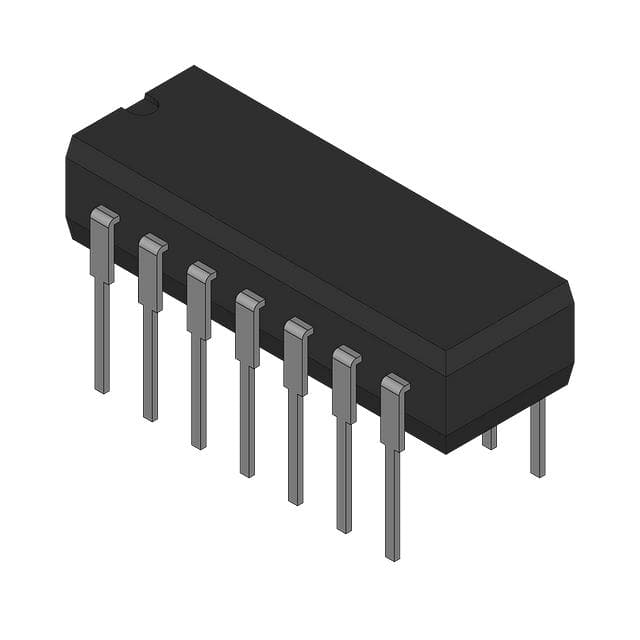

935DMINVERTER, DTL |
1,270 | 14.56 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC1201FOR/NOR GATE, ECL |
189 | 14.59 |
|
Datasheet |
MC1200 | 14-CFlatPack | Bulk | Active | NOR/OR Gate | 1 | 6 | No | Differential | - | 5.2V | -55°C ~ 125°C | - | - | Surface Mount | 14-CFlatPack |
|
|
100164J-MILMULTIPLEXER, 100K SERIES |
1,422 | 14.67 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CD4085BFAND-OR-INVERT GATE, 4-INPUT |
105 | 16.02 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
MC1226FNAND GATE, ECL |
1,292 | 15.95 |
|
Datasheet |
MC1200 | 14-CFlatPack | Bulk | Active | AND/NAND Gate | 2 | 7 Input (3, 4) | No | Differential | - | 5.2V | -55°C ~ 125°C | - | - | Surface Mount | 14-CFlatPack |
