Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4068BFCMOS 8-INPUT NAND/AND GATE 14-CD |
1,804 | 0.00 |
|
Datasheet |
4000B | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/NAND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|

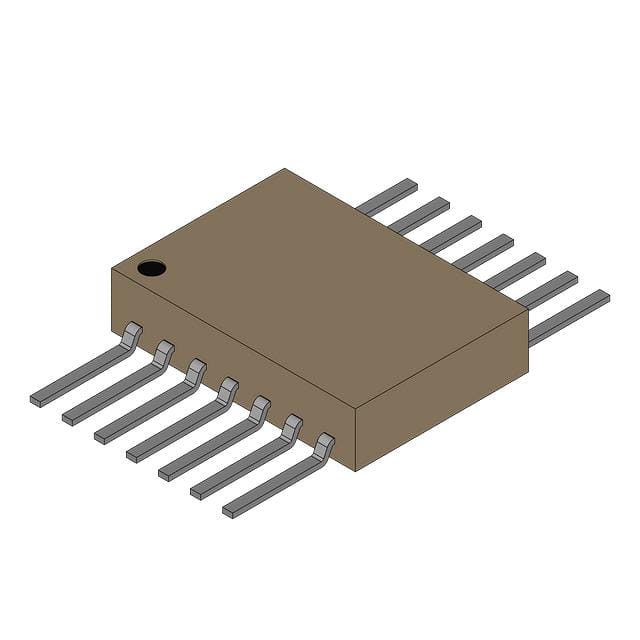

JM38510/07402BDA4-2-3-2 INPUT AND-OR-INVERT GATE |
3,125 | 24.80 |
|
Datasheet |
54S | 14-CFlatPack | Tube | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
CD4019BF3ACMOS QUAD AND/OR SELECT GATE 16- |
1,214 | 13.43 |
|
Datasheet |
4000B | 16-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 16-CDIP |
|

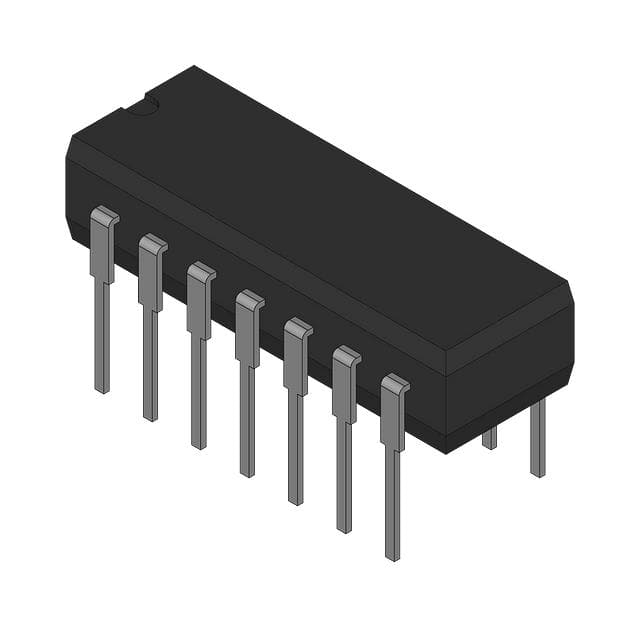

JM38510/00501BCADUAL 2-WIDE 2-INPUT AND-OR-INVER |
3,694 | 19.18 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 16mA, 400µA | 4.5V ~ 5.5V | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|
SN74LVC1G97YZPRBPROTOTYPE |
1,829 | 0.19 |
|
- |
74LVC | 6-XFBGA, DSBGA | Bulk | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
|
CD4078BFCMOS 8-INPUT NOR/OR GATE 14-CDIP |
1,062 | 1.00 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Tube | Active | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
CD4068BF3ACMOS 8-INPUT NAND/AND GATE 14-CD |
2,826 | 0.00 |
|
Datasheet |
4000B | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/NAND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
M38510/30401BCAAND-OR-INVERT GATES 14-CDIP -55 |
1,944 | 0.00 |
|
Datasheet |
54LS | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 4mA, 400µA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
JM38510/07401BCAAND-OR-INVERT GATES 14-CDIP -55 |
4,243 | 33.53 |
|
Datasheet |
54S | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
CD4085BFCMOS DUAL 2-WIDE 2-INPUT AND-OR- |
2,382 | 16.02 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
|
CD4078BE-NGPROTOTYPE |
2,182 | 0.00 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
M38510/05352BEACMOS QUAD AND/OR SELECT GATE 16- |
2,764 | 0.00 |
|
Datasheet |
4000B | 16-CDIP (0.300", 7.62mm) | Tube | Active | AND/OR Gate | 4 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 16-CDIP |
|
|
SNJ54S51FKAND-OR-INVERT GATES 20-LCCC -55 |
2,275 | 0.00 |
|
Datasheet |
54S | 20-CLCC | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
NL7SZ97MU1TCGFLEXIBLE CHOICE LOGIC (9 CONFIGU |
2,085 | 0.00 |
|
Datasheet |
7SZ | 6-UFDFN | Bulk | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NL7SZ58MU1TCGFLEXIBLE CHOICE LOGIC (9 CONFIGU |
2,601 | 0.00 |
|
Datasheet |
7SZ | 6-UFDFN | Bulk | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.45x1) |
|
|
NL7SZ57MU3TCGCONFIGURABLE MULTIFUNCTION GATE |
1,748 | 0.00 |
|
Datasheet |
7SZ | 6-UFDFN | Bulk | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
NL7SZ58MU3TCGFLEXIBLE CHOICE LOGIC (9 CONFIGU |
3,937 | 0.00 |
|
Datasheet |
7SZ | 6-UFDFN | Bulk | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
