Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

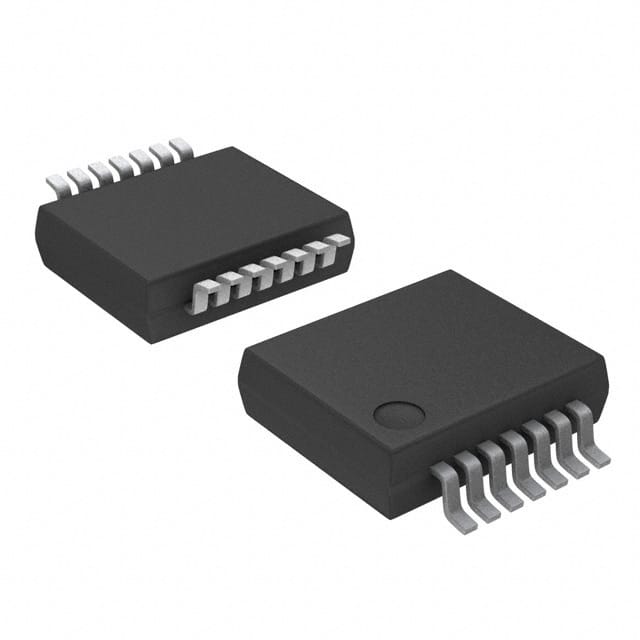

74HC58DB,118IC DUAL AND-OR GATE 14SSOP |
4,965 | 0.00 |
|
Datasheet |
74HC | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND/OR Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | - | - | - | - | - | Surface Mount | 14-SSOP |
|
74HC58D,653IC DUAL AND-OR GATE 14SOIC |
3,423 | 1.00 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND/OR Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | - | - | - | - | - | Surface Mount | 14-SO |
.jpg)
|
MC100E104FNR2GIC GATE AND/NAND QD 2INP 28-PLCC |
1,222 | 8.04 |
|
- |
100E | 28-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.7V | -40°C ~ 85°C | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
MC100EP01DTR2IC GATE OR/NOR ECL 4INP 8-TSSOP |
2,840 | 0.00 |
|
Datasheet |
100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
MC100EP01DTR2GIC GATE OR/NOR ECL 4INP 8-TSSOP |
1,536 | 0.00 |
|
Datasheet |
100EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
MC100LVEL05DTR2IC GATE AND/NAND ECL 2INP 8TSSOP |
2,159 | 0.00 |
|
Datasheet |
100LVEL | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 3.8V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
MC10E101FNIC GATE OR/NOR QUAD 4INP 28-PLCC |
1,188 | 0.00 |
|
- |
10E | 28-LCC (J-Lead) | Tube | Obsolete | NOR/OR Gate | 4 | 16 Input (4, 4, 4, 4) | No | Differential | - | 4.2V ~ 5.7V | -40°C ~ 85°C | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
MC10E104FNR2GIC GATE AND/NAND QD 2INP 28-PLCC |
2,465 | 1.00 |
|
- |
10E | 28-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.7V | -40°C ~ 85°C | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
MC10EL01DR2IC GATE OR/NOR ECL 4INPUT 8-SOIC |
3,760 | 0.00 |
|
Datasheet |
10EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 4.2V ~ 5.7V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
MC10EL12DR2IC BUFFER DRIVER ECL N-INV 8SOIC |
2,407 | 0.00 |
|
Datasheet |
10EL | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Buffer/Inverter | 4 | 1 | No | Differential | - | -4.2V ~ -5.7V | 0°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
MC10EP01DTR2IC GATE OR/NOR ECL 4INP 8-TSSOP |
3,754 | 0.00 |
|
Datasheet |
10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
MC10EP05DTR2IC GATE AND/NAND ECL 2IN 8-TSSOP |
2,549 | 0.00 |
|
Datasheet |
10EP | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
MC10EP101MNR4GIC GATE OR/NOR QUAD 4INP 32-QFN |
4,486 | 0.00 |
|
- |
10EP | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 4 | 16 Input (4, 4, 4, 4) | No | Differential | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 32-QFN (5x5) |
|

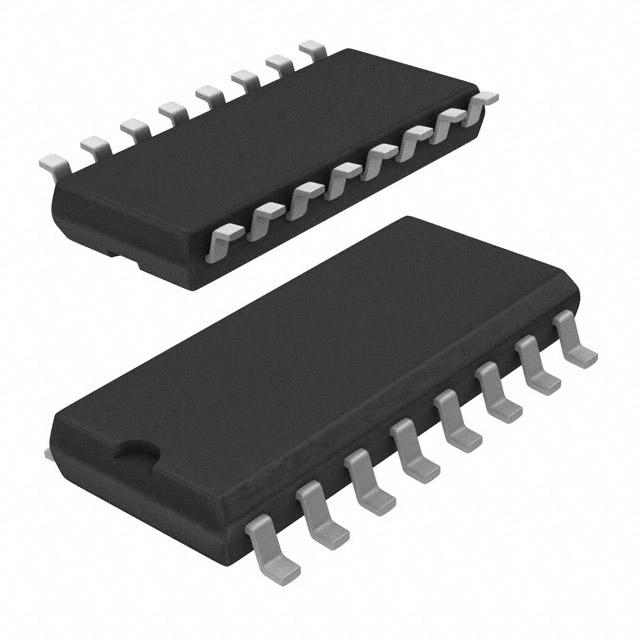

MC10H101MGIC GATE OR/NOR QUAD ECL 16SOEIAJ |
1,782 | 0.00 |
|
Datasheet |
10H | 16-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | NOR/OR Gate | 4 | 8 Input (2, 2, 2, 2) | No | Differential | - | - | 0°C ~ 75°C | - | - | Surface Mount | 16-SOEIAJ |
|
|
MC10H117MIC GATE OR/AND DUAL ECL 16SOEIAJ |
2,454 | 1.00 |
|
Datasheet |
10H | 16-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR/AND, OR/AND/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Differential | - | - | 0°C ~ 75°C | - | - | Surface Mount | 16-SOEIAJ |
|
MC14572UBDR2IC GATE HEX NAND/NOR/INV 16-SOIC |
1,924 | 0.00 |
|
Datasheet |
4000B | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND/NOR Inverter Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Single-Ended | 3.5mA, 8.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
NB7L86MMNR2GIC GATE MULTI FUNCT DIFF 16-QFN |
1,259 | 1.00 |
|
- |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 2 | 2 | No | Differential | - | 2.4V ~ 3.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
SN74LV8151NTG4IC BUFFER INVERTER 10BIT 24DIP |
3,524 | 0.00 |
|
Datasheet |
74LV | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V | -40°C ~ 85°C | - | - | Through Hole | 24-PDIP |
|

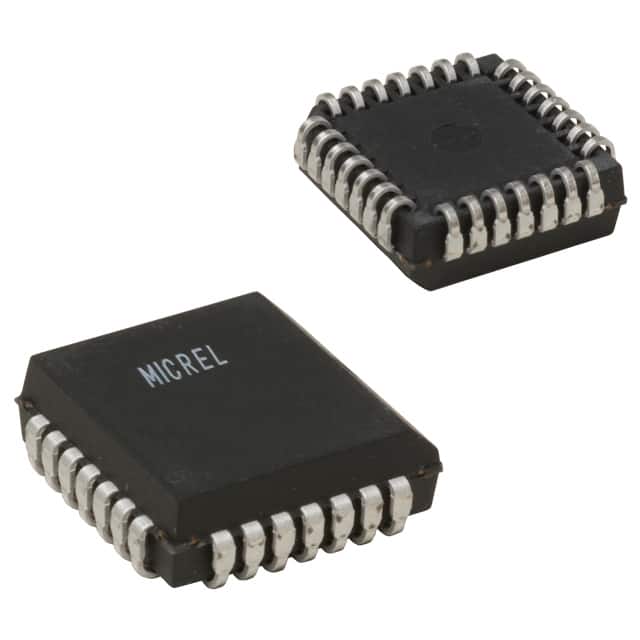

SY100E101JYIC GATE OR/NOR QUAD 4INP 28PLCC |
4,842 | 0.00 |
|
Datasheet |
100E | 28-LCC (J-Lead) | Tube | Obsolete | NOR/OR Gate | 4 | 16 Input (4, 4, 4, 4) | No | Differential | - | 4.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 28-PLCC (11.48x11.48) |
|
SY100EL04ZGIC GATE AND/NAND 2-INPUT 8-SOIC |
4,641 | 0.00 |
|
Datasheet |
100EL | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
